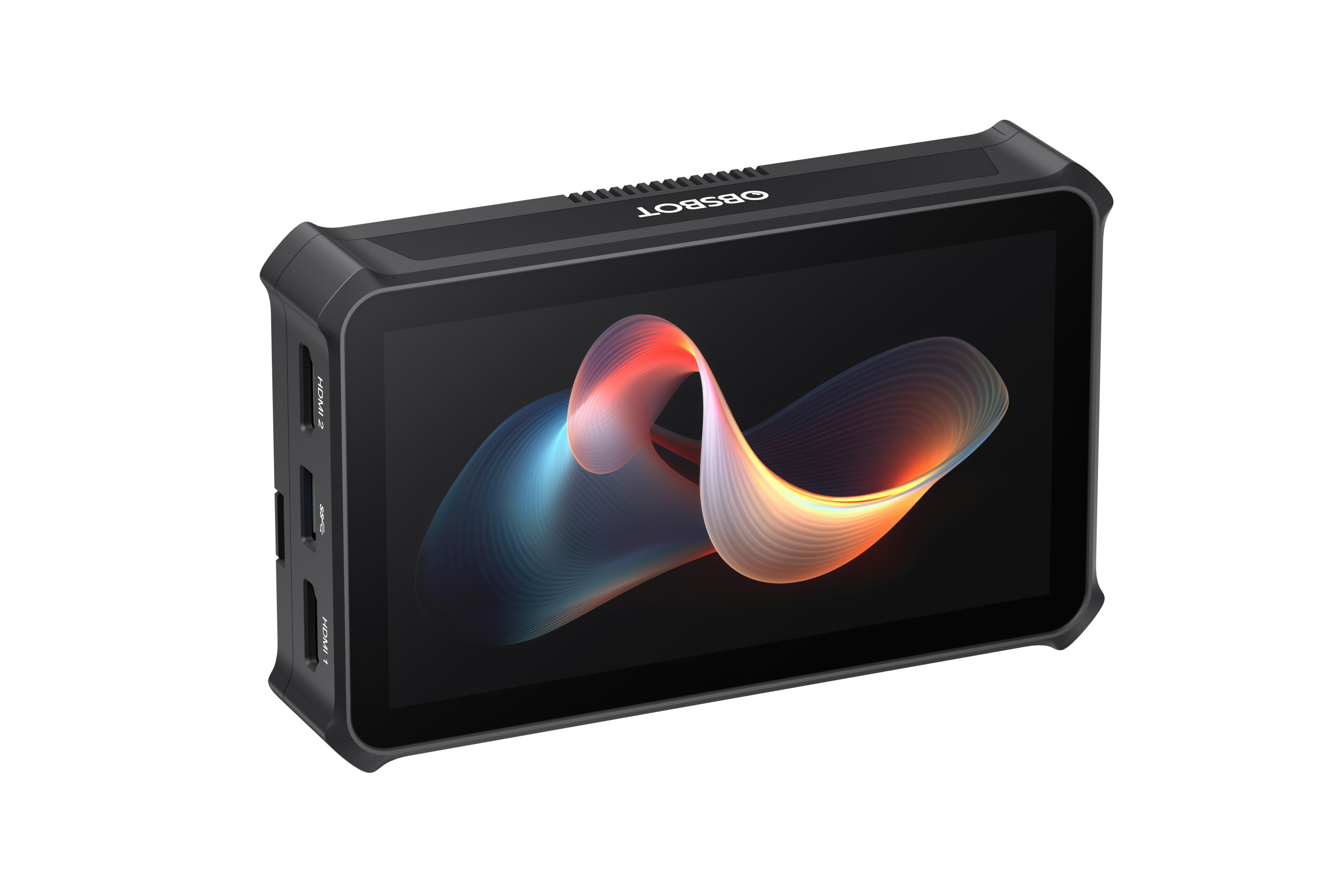

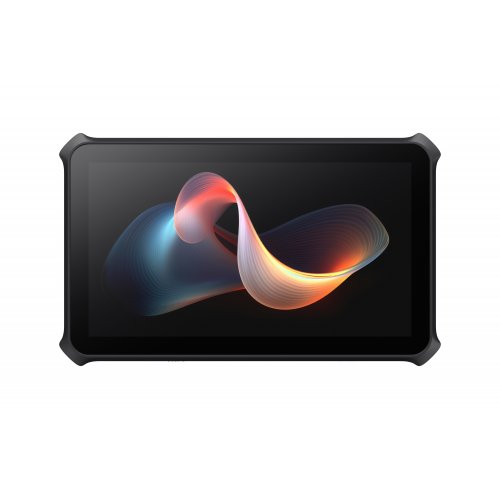

Obsbot Talent All-in-One Multi-Cam Live Streaming & Production Studio

About: Obsbot Talent All-in-One Multi-Cam Live Streaming & Production Studio

OBSBOT Talent is a truly boundary-breaking system that offers extensive connectivity for OBSBOT Camera and Webcam products, leading you to exploit ultra Live Streaming and Production capabilities. Take advantage of various connection methods and built-in production features. Everything is ready for your live streaming.

• All-In-One Live Streaming Hub
• Various Video Input Methods
• Hot-swappable Battery Design
• Abundant GFX Effects
• Optional Screen Rotation
• Outstanding Video Production Workflow
• Innovative OBSBOT Streaming Experience
• NDI+SRT Connection
• Minimum Setup for Maximum Possibilities

Encoder. Switcher. Monitor. Recorder. All-in-One Device.

OBSBOT Talent, a perfect combination of encoder, switcher, recorder, and monitor, takes an important position of the OBSBOT ecosystem to supervise, manage, record, and edit the video in real time and then put the video signal to live streaming online.

An Innovative OBSBOT Live Streaming Experience

Talent has one of the most seamless connection with OBSBOT products, with integrated control panel, you can directly control the PTZ gimbal, AI Auto Tracking, Preset Positions and more exclusive features to make your livestream scene more efficient, more professional and with more possibilities.

Smart Control Panel in Talent

On Talent, an exclusively designed control panel is available to be called out for PTZ Control, AI Auto Tracking settings, Preset Positions, and Focus, which offers a more helpful way for controlling OBSBOT PTZ products.

Start Multi-Cam Recording Without a Hitch

With NDI connection, OBSBOT Talent makes it possible to record with up to three Tail Airs at the same time. Say goodbye to recording with each device one by one. Take your time to create more excitement.

One Click to Start Multiple Device Shooting

By using the Tail Air Smart Remote Controller, you can connect with Tail Air and the Obsbot Live App. Now, we are empowered with seamless compatibility with Talent, bringing you a next-level, more immersive controlling experience.

Ultra-versatile Connection Compatibility

To ensure maximum compatibility and diversity, Talent features multiple interfaces for video capturing, including HDMI, USB-A, SD card, and even an Ethernet port. It also has two 3.5mm audio slots for audio input and monitoring. Additionally, a cellular connection can be achieved with a dongle input.

To Boundless Possibilities

Besides versatile input, Talent supports up to 7 video inputs, offering powerful connection capabilities to manage video signals. It can output them via USB port [3], Wi-Fi, 4G LTE, or Ethernet to various live streaming destinations like YouTube, Twitch, NDI, SRT, and more.

Powerful Hardware - A Powerful Livestreaming Studio

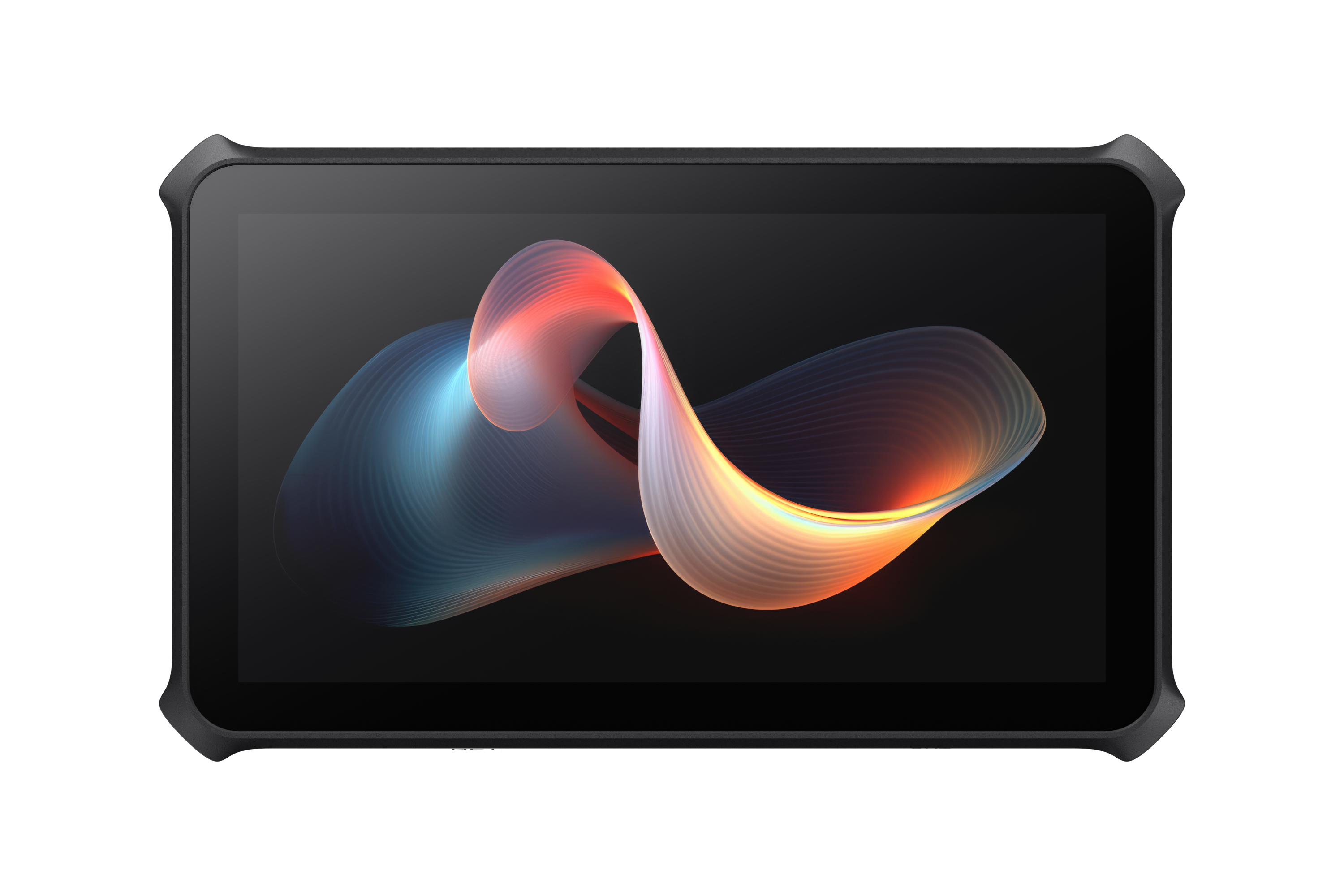

• Touchable Screen, Reliable Performance: The AMOLED FHD touchable 5.44" screen brings a premium and immersive experience for users to supervise the input video image in real-time.
• Lighter, Cooler, Tougher: Talent equips an aluminum-alloy body and an exclusively designed built-in cooling fan for better thermal conductivity.
• Keep You Informed: With the built-in optional Power Indicator/Tally Light, it's now easier to know the real-time status of your device or live stream, simplifying your streaming workflow.
• Choose Your Streaming Ratio: Talent handles the live stream well in both horizontal and vertical views, fitting various needs for different moods, streaming platforms, or use scenarios. Your streaming ratio, your choice!

Video Editing - An Incredible Video Editing Compressor.

• H.264 & H.265 Video Encoding: With the support for H.264 & H.265, Talent produces videos with improved coding and decoding speed as well as a lower bandwidth and bitrates, which could offer ideal quality for your video production.
• Video Sources and PDF via SD Card: Easily import external video sources , graphics or PDF files into the device and insert it natively into your real-time live streaming, or use the files as a half-time cutscene before you're ready.
• ISO Recording: With ISO recording, Talent can record a worded video feed and a clen feed simultaneously. Make your video post-editing more flexible and precise.
• Instant Replay: Capture your highlight moments using Instant Replay. With a simple touch, you can jump back to a point in your live stream or a sports game and replay the video clip with a preset duration and other settings.
• Video Cropping: Make your videos more editable by using Video Cropping to enhance focus, improve composition, and adjust the aspect ratio. Appropriate cropping can better tell your story and heighten the atmosphere.
• Audio Mixer: The integrated Audio Mixer in Talent makes all audio inputs visible and easy to control. It simplifies the process of quickly selecting and managing precise sound delivery, all within a palm-sized device.
• Built-in Chroma Key: Easily use Chroma Key to unleash your chromatic creativity in live streaming by adding backgrounds or other practical effects, make your production more interesting and unique.

Video Overlays - An All-beyond Video Effects Processor

• PIP (Picture in Picture): Realize multi-views all in one image with PIP features. You can insert another video capture source, an external video, or other overlays.
• Integrated Scoreboard: Talent provides a customizable scoreboard, making it easy to change colors, team logos, flags fonts, and more.
• Countdown Timer: A variety of built-in graphics and elements, such as logos, lower-thirds, and countdown timers, are crafted to elevate the professionalism and premium quality of your video image.
• Live HTML Graphics: Quickly add graphic overlays with a HTML graphic URL.
• Telestration: Use the telestration feature to easily draw a trace and highlight your target for seconds.
• Lower Third: Provide your audience with brief and relevant information by customizing a Lower Third during the live stream.

Control Methods - A Logical, Magical, Control Panel

• Screen Control
• Tail Air Smart Remote Controller
• Web Control

Level Up the Control with Collaboration

In live events like worship services, educational events, and exhibitions that require great performance, Talent's compatibility allows multiple controls simultaneously using another Talent, a computer, remote controller, or even a phone. A team can separately switch, control, manage, and mix audio to maintain a more stable workflow. This can even be done from different locations around the world via an Ethernet connection.

Efficient Workflow - A Leading-edge Productive Video Production Tool

• Less Burdens, More Flexibilities: Set up your live stream with Talent and OBSBOT devices to bid farewell to the burden of bulky equipment and heavy wires. With an easier setup process and greater flexibility for installation, your live stream will be cozier than ever.

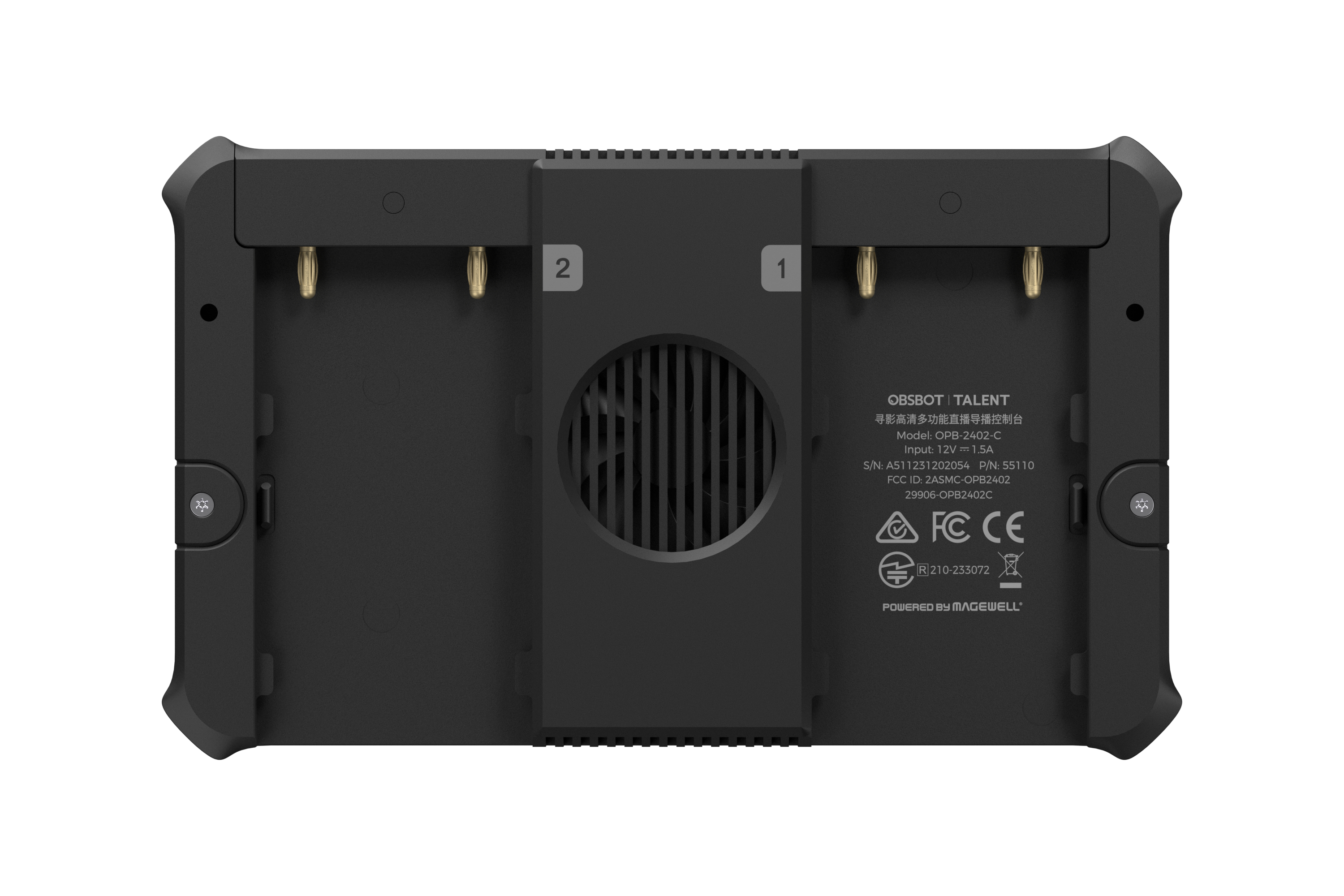

• Relax, the Battery is Hot-swappable: With a two-battery supply design, Talent is fully compatible with the NPF battery and is completely hot-swappable. When one battery runs out of power, you can seamlessly add or replace it with a new, fully-charged battery without interruption, ensuring your live stream always has power.[4]

Recommended Pairings

• OBSBOT Tail Air Smart Remote Controller: OBSBOT Smart Remote Controller lets you extend more possibilities to control your Tail Air device freely without installation of the Application. With connection via bluetooth, you can now manage up to 3 Tail Air devices for your livestreaming workflow.
• OBSBOT Tail Air: OBSBOT Tail Air is an AI-powered PTZ streaming camera, designed to enhance livestreaming experiences across content creation, live shows, house of worship, and more.
• OBSBOT Tiny 2 AI-Powered PTZ 4K Webcam: OBSBOT Tiny 2 enhances visual precision through its advanced 1/1.5" CMOS sensor, while seamlessly incorporating the AI tracking technology inherited from OBSBOT's acclaimed deep neural learning network algorithm.
• OBSBOT Tiny 2 Lite AI-Powered PTZ 4K Webcam: Tiny 2 Lite ensures you're always perfectly framed with advanced auto-tracking and auto-zoom capabilities, delivering crystal-clear visibility with a 1/2'' CMOS sensor and resolutions up to 4K@30fps / 1080P@60fps. Enjoy Preset Modes, Dual-omnidirectional Microphones, and more features designed to enhance your video meeting experience.
• Micro HDMI to HDMI Cable: By using this cable, you can output the fluent HDMI video signal for up to 4K@30fps and 1080P@60fps for supervising the image, and get it involved into your workflow.
• Extendable Tripod: This Extendable Tripod gives you an easy way to mount OBSBOT webcams to your ideal height for recording.

Specifications

• Size & Weight
  • Dimensions: 147.2mm x 90mm x 28.5mm
  • Weight:
    • With Stand: 495.2g
    • Without Stand: 402.9g
• Screen
  • Size: 5.44"
  • Type: AMOLED
  • Aspect Ratio: 16:9
  • Resolution: 1920x1080
  • Brightness: 350 nits
  • Color Depth: 8-bit
  • Contrast Ratio: 6000:1
  • Color Gamut: 105% NTSC
  • Refresh Rate: 60Hz
  • Viewing Direction: All
  • PPI: 405
  • Touchscreen: Capacitive
  • Screen Coating: Anti-fingerprint coating
• Video Input
  • HDMI:

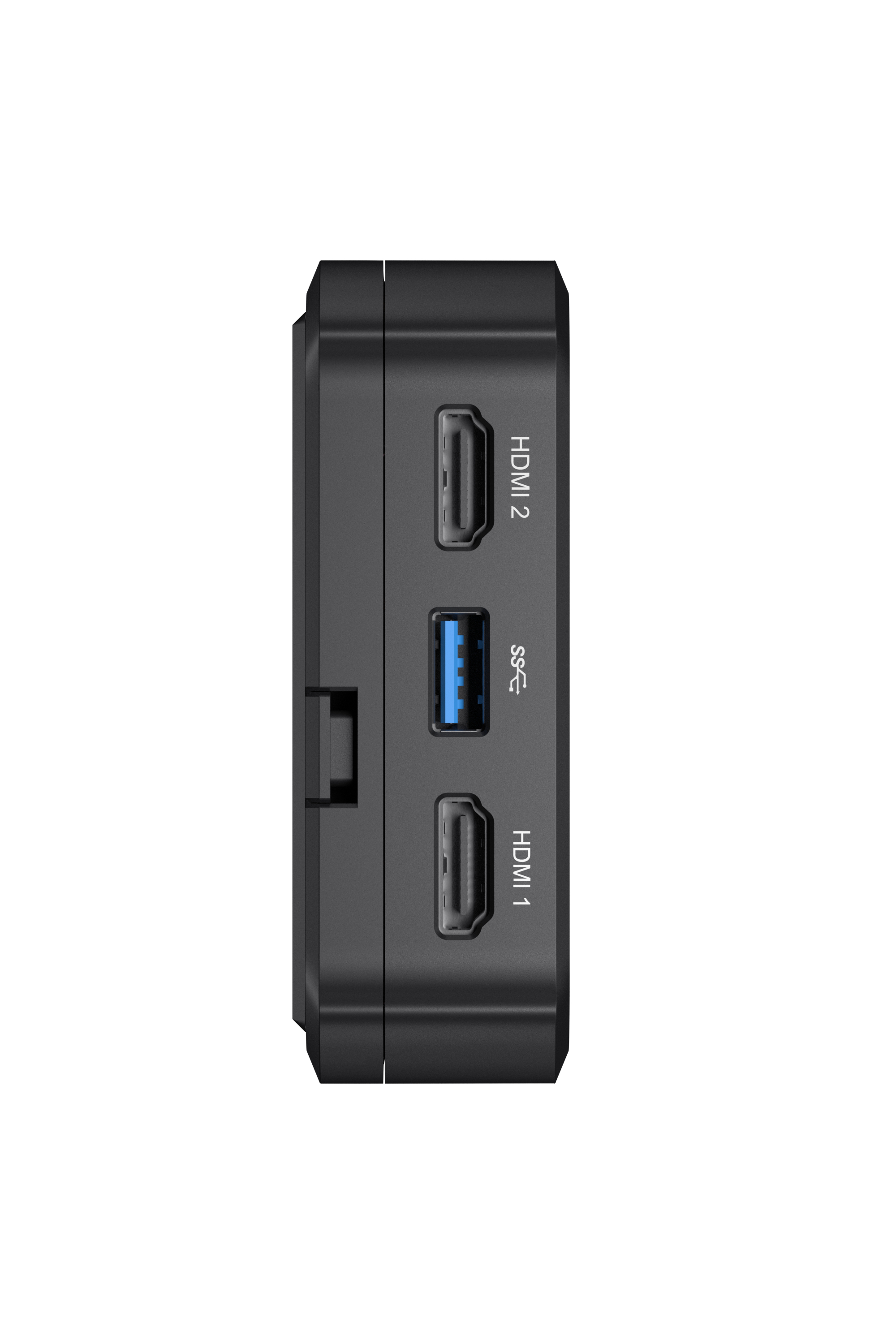

    • Port: 2x HDMI 2.0 Type-A port
    • Typical resolution/frame rate:
      • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
      • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1920x1080i 25/29.97/30
      • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
      • 720x576p 50/100
      • 720x576i 25/50
      • 720x480p 59.94/60
      • 720x480i 29.97/30
    • Color depth: 8/10/12-bit
    • Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
  • USB:
    • Port: 2x USB 3.0 Type-A port, 1x USB 3.0 Type-C port
    • Resolution/frame rate:
      • Single USB-A input: Up to 1920x1080p, 60fps
      • Single USB-C input: Up to 1920x1080p, 60fps
      • Dual USB-A input: Up to 1920x1080p, 50fps + 1920x1080p, 30fps
      • One USB-A input + one USB-C input: Up to 1920x1080p, 60fps + 1920x1080p, 60fps
    • Format: YUYV, MJPG, NV12
  • SRT Stream:
    • Codec: H.264, H.265
    • Resolution/frame rate: Up to 1080p, 60fps
  • RTMP Pull:
    • Codec: H.264, H.265
    • Resolution/frame rate: Up to 1080p, 60fps
  • RTMP Push:
    • Codec: H.264, H.265
    • Resolution/frame rate: Up to 1080p, 60fps
  • NDI Stream:
    • NDI HX2 or NDI HX3
    • Codec: H.264, H.265
    • Resolution/frame rate: Up to 1080p, 60fps
  • Video:
    • Resolution: Up to 4K
    • Codec: H.264, H.265
    • Format: MOV/MP4
  • Picture:
    • Format: JPEG/PNG/BMP
• Audio Input
  • Mic/line in: 1 x 3.5mm jack, 2-channel, 48 KHz, 16-bit
  • Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
  • Audio input from USB port: 2-channel (only microphone supported)
  • Audio input from Bluetooth device:
    • 2-channel, 48 KHz, 16-bit
    • Audio from SRT stream
    • Audio from RTMP stream
    • Audio from NDI stream
    • Audio embedded in video files
  • Background music (BGM): MP3, M4A, WAV files
• Video Output
  • Streaming and Recording:
    • Codec: H.264, H.265
    • Resolution: 1080p, 720p, 540p, 360p (only for NDI)
    • Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
    • Bitrate:
    • NDI HX3: up to 62.0Mbps, down to 1.5Mbps
    • Others: up to 30.0Mbps, down to 256kpbs
    • Key frame interval: customizable
    • Profile: High profile, Main profile, Baseline profile
    • Bitrate mode: VBR, CBR
  • USB-C:
    • Port: 1x USB 3.0 Type-C port
    • Output mode: DP-OUT, UVC/UAC
    • Resolution: 1920x1080
    • Frame rate: 60fps, 50fps
    • Sampling format: RGB 4:4:4
• Audio Output
  • Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps

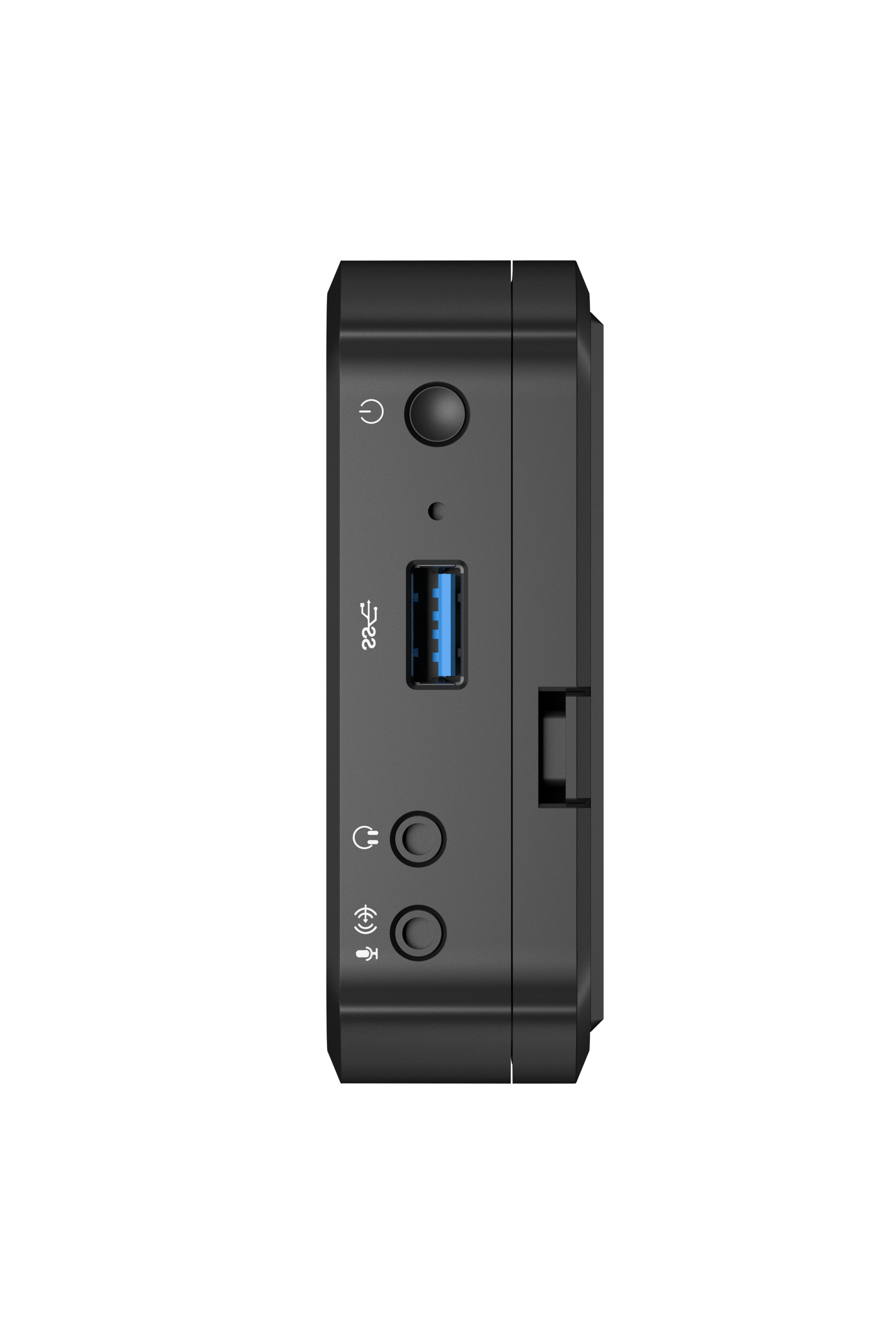

  • Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
  • Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
  • Audio output via USB-C port: 2-channel, 48 KHz, 16-bit
  • Audio output via USB-A port: 2-channel, 48 KHz, 16-bit/24-bit/32-bit
• Features of USB-A Port
  • Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc
  • Connect to a USB modem
  • Connect to a USB flash drive
    • To transfer video, picture, audio and other media files, firmware update files, log files, etc
    • Supported system format: FAT32, exFAT and NTFS
  • Connect to a USB keyboard for shortcuts
• Features of USB-C Out Port
  • Connect to an external screen
    • Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
    • A/V display mode options: Clean Program, Preview, Multi-view, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
    • Image rotation: Rotate 90° to left, or rotate 90° to right
    • Supports using an external touchscreen to control the device in the Duplicate Screen mode
  • Connect to a computer
    • MTP mode: Transfer video, picture, audio and other media files, firmware update files, log files, etc.
    • UVC/UAC mode[1]: Output audio and video to streaming software
• Features
  • Show:
    • Supports creating multiple shows in landscape (16:9) or portrait (9:16) mode, and manage them
    • Supports creating a shows at 60/59.94/50/30/29.97/25/24/23.98 fps
    • Scenes:
    • Supports creating multiple scenes in a show, and managing them
    • Supports adding various sources, including HDMI, Webcam, video, picture, RTMP stream, SRT stream, NDI stream, text and color
    • Supports multi-view composition in one scene
    • Provides lots of editing tools, including chromakey, crop, transition, etc
    • Supports switch scenes directly or preview at first and then switch
    • Supports switching scenes with an instant cut or fade effect
  • Audio:
    • Supports displaying level and peak through audio meter
    • Supports adjusting the level of each input audio, output and monitor audio
    • Supports global or scene-based settings for audio input sources
    • Supports AFV (Audio-follow-video)
    • Supports solo monitor
    • Supports switching monitor device
  • GFX:
    • Supports multiple GFX types, including title, lower third, animated text, digital clock, analog clock, bullet list, social media, logo, scoreboard, timer, stopwatch, custom picture and text
    • Supports HTML graphics
    • Supports displaying multiple GFXs, and managing them
    • Supports controlling scoreboard, timer and stopwatch in real time
    • BGM: Supports adding BGM for each scene and controlling in real time
    • Pen: Annotates on the screen in real time
  • PTZ Control:
    • Supports controlling PTZ camera via the network, supporting Visca UDP, supported sources including HDMI, Webcam (UVC camera), SRT stream, RTMP stream, and NDI stream
  • Live Stream:
    • Natively supports streaming to YouTube, Twitch and Facebook Live
    • Supports selecting RTMP or HLS protocol for streaming to YouTube
    • Supports streaming via SRT, RTMP and RTMPS protocols
    • Supports two NDI HX3 outputs, supporting NDI Tally lights
    • Supports customizing encoding parameters and selecting the encoding source (Program, HDMI, Webcam) for ISO streaming
    • Supports streaming to two destinations simultaneously
    • Supports sending live comment as an overlay into the video feed when streaming to social media
  • Record:
    • Supports customizing encoding parameters
    • Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source, and supported sources include Program, HDMI, Webcam as well as NDI|HX2 and NDI|HX3 stream
    • Supports saving recording files in MP4 or MOV format to local storage or SD card
    • Supports saving screenshot files in PNG format to local or SD card
    • Supports splitting recording files by time or size, up to 4 hours or 16G
    • Supports exporting or downloading files through computer, SD card, USB flash drive, or Web UI
• Network
  • Supports Ethernet, Wi-Fi and Cellular

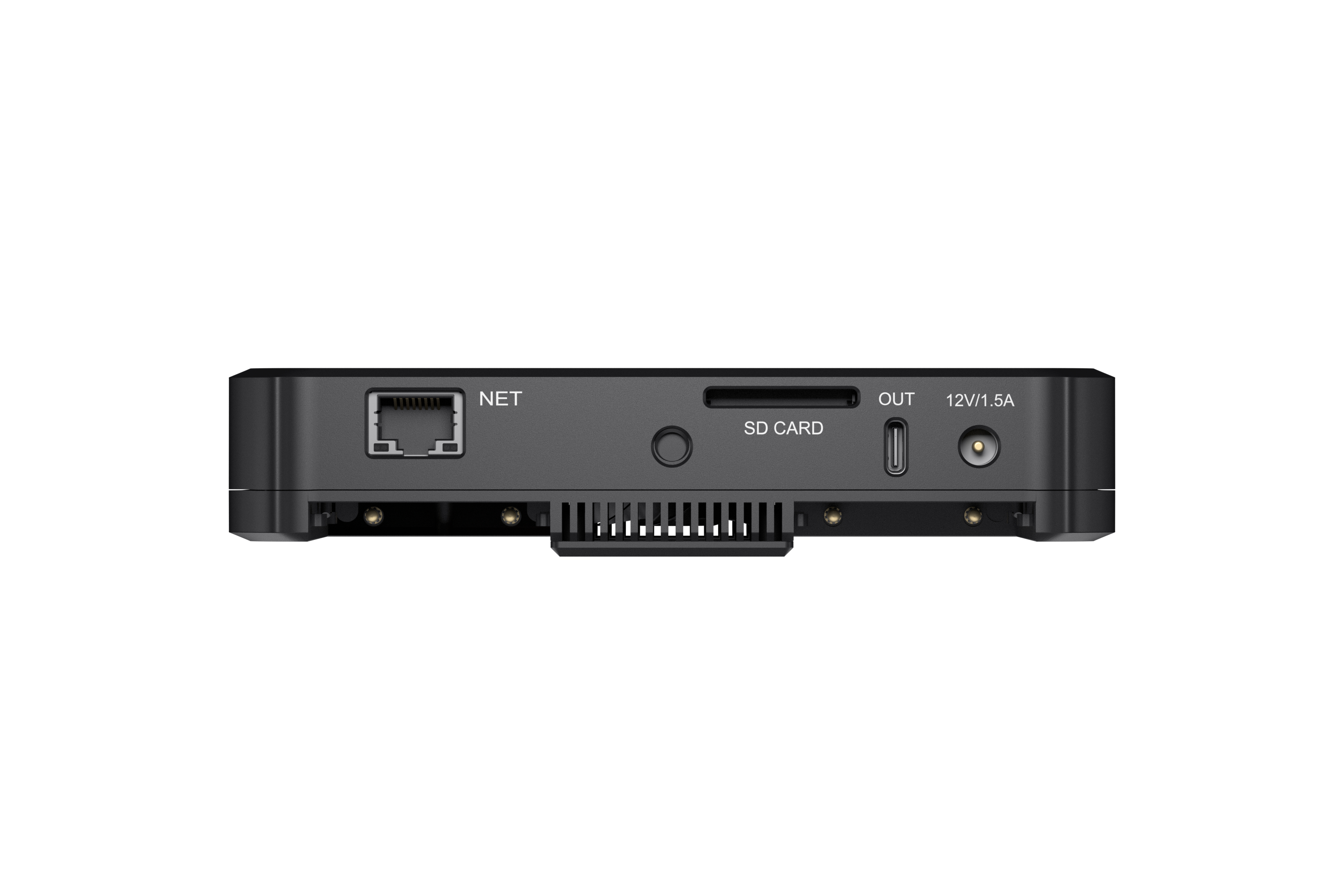

    • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
    • Wi-Fi: 2.4G/5G, Station and Hotspot modes supported
    • Cellular: USB modem supported (not supplied)
  • Supports Bluetooth for audio input or output with Bluetooth devices, and also supports Bluetooth keyboard, etc.
    • Bluetooth: BT 5.0
• Storage
  • Local Storage: 64GB
  • SD Card (not supplied): FAT32 (Under 128G), NTFS, exFAT
• Power
  • AC Power:
    • Power input: 12V/1.5A
    • Maximum power consumption: 15W
  • Battery Pack:
    • 2x DC 7.4V (NP-F battery packs, not supplied)
    • Hot swappable
• LED Light
  • Tips: The two back LED lights can be set as battery indicators or NDI tally lights.
  • Battery Indicators (default):
    • Green: 50% - 100%
    • Orange: 25% - 50%
    • Red: <25%
    • Off: depleted
  • NDI Tally Lights:
    • Red: the NDI streaming signal is in PGM view.
    • Green: the NDI streaming signal is in PVW view
• Working Environment
  • Operating Temperature: –10 to 50 deg C (AC power)
  • Storage Temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

What's in the Box

• 1x OBSBOT Talent
• 1x Power Adapter
• 2x Mini Stands
• 1x Sun Hood
• 2x Thumb Screws
