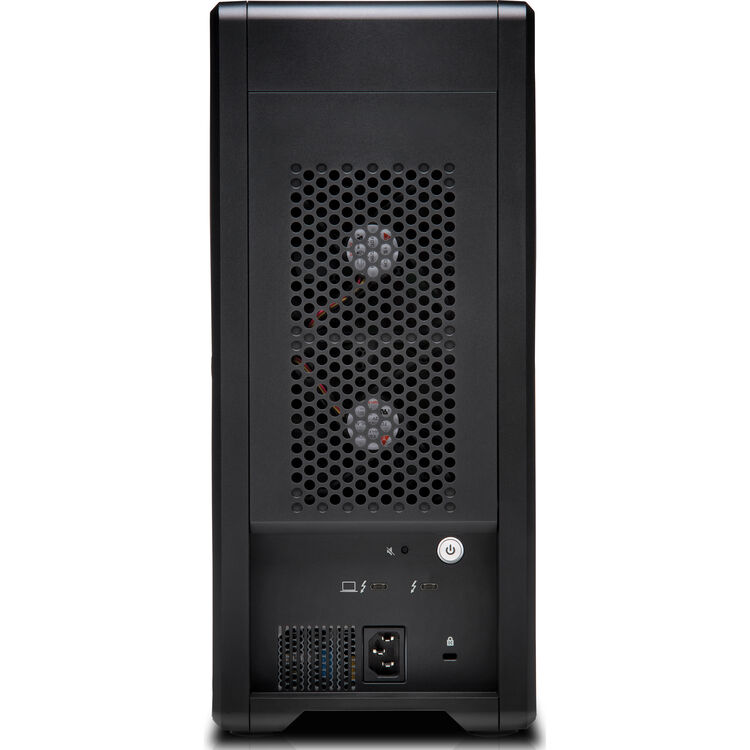

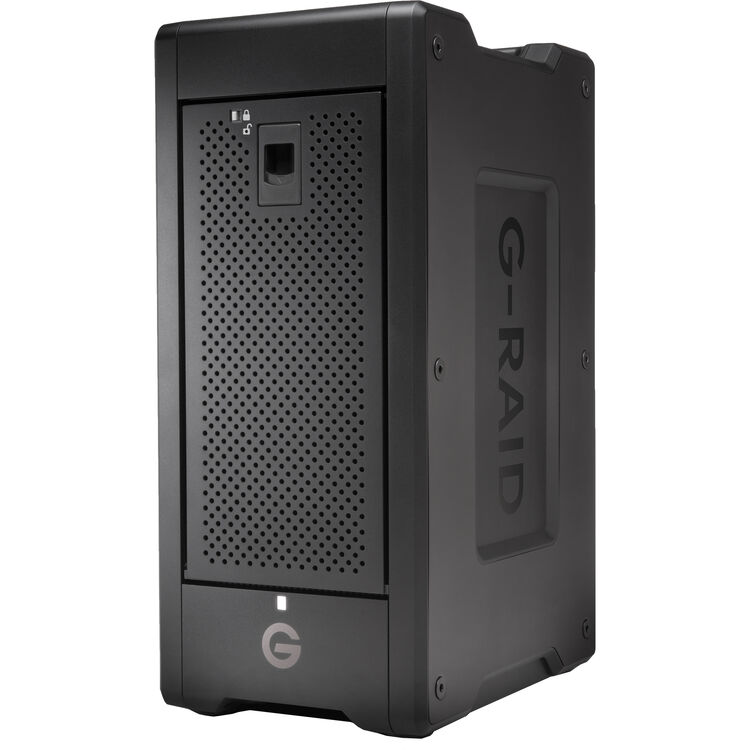

Western Digital G-RAID SHUTTLE 8 - 208TB
Model: SDPH48H-208T-NBAAB
About: Western Digital G-RAID SHUTTLE 8 - 208TB
Overview:
The G-RAID Shuttle 8 (208 TB) is a portable 8-bay hardware RAID chassis designed for high-capacity workflows (4K/8K/VR). It uses enterprise-class 7200 RPM Ultrastar HDDs, offers dual Thunderbolt 3 ports (40 Gb/s) plus USB-C, supports multiple RAID modes, and comes with a 5-year limited warranty.
Key points:
• Capacity: 208 TB (8 × 26 TB drives)
• RAID Modes Supported: 0, 1, 5, 6, 10, 50, 60, JBOD
• Preconfigured RAID: RAID 5 by default.
• Performance:
• Max read: up to 1900 MB/s
• Max write: up to 2000 MB/s (in some configs)
• In RAID 5: up to ~1700 MB/s read, ~1500 MB/s write (per B&H)
• Connectivity: 2 × Thunderbolt 3, supports daisy-chaining up to 5 devices
• Warranty: 5-year limited.
• OS Compatibility: macOS 10.15+ by default, Windows 10+ via reformat.
• Optimized For: On-site creative workflows, editing, high-volume backup, large media projects
Specification:
Total Capacity 208 TB (8 × 26 TB)
Drive Bays 8 × 3.5″ SATA III
Internal Drive Type Ultrastar 7200 RPM enterprise HDD
Interface / Connectivity 2 × Thunderbolt 3 (40 Gb/s), USB-C / USB 3.2 Gen 2
Supported RAID Modes 0, 1, 5, 6, 10, 50, 60, JBOD
Default RAID RAID 5
Max Sequential Read ~1900 MB/s
Max Sequential Write ~2000 MB/s (in some configs)
RAID 5 Read / Write Read: ~1700 MB/s, Write: ~1500 MB/s
Daisy-chain Support Yes — up to 5 additional devices via Thunderbolt 3
Power Delivery USB-C port supports up to 85 W (for charging)
OS Compatibility macOS 10.15+, Windows 10+ (via reformat)
Warranty 5 years limited
Portable / Transportable Yes — designed for on-site + studio use
Operating Conditions 41–95°F (5–35°C)
Weight ~27.2 lb / 12.3 kg
Dimensions ~15.16″ × 9.65″ × 6.89″ (38.5 × 24.5 × 17.5 cm)
Items Included:
- SanDisk Professional 192TB G-RAID Shuttle 8 8-Bay Thunderbolt 3 RAID Array (8 x 24TB)
- Thunderbolt 3 Cable
- IEC Power Cable
- Limited 5-Year Manufacturer Warranty
UPC: 718037906799
