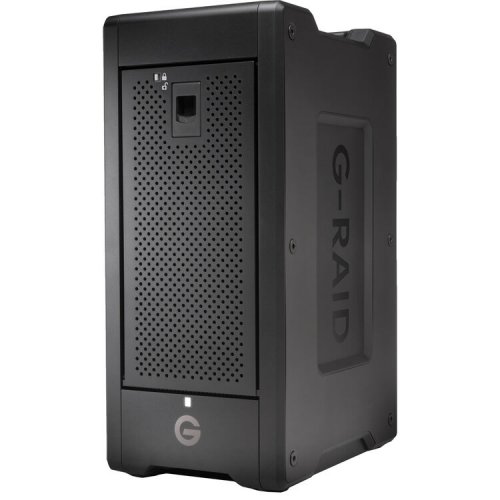

Western Digital G-RAID SHUTTLE 4 - 104TB

About: Western Digital G-RAID SHUTTLE 4 - 104TB

Overview:

Designed so content creators can have a premium solution for their demanding workflows, whether on location or in the studio, the 192TB G-RAID Shuttle 8 8-Bay Thunderbolt 3 RAID Array from SanDisk Professional delivers powerful RAID storage in a design that's easy to transport. Equipped with an overall capacity of 192TB that is made of up 8 x 24TB 7200 rpm Ultrastar Enterprise-class hard drives, the Shuttle 8 delivers sequential read speeds of up to 1900 MB/s and sequential write speeds of up to 1900 MB/s, which is more than enough to drive multi-stream 4K, 8K, and VR workflows. When configured as a RAID 5, the Shuttle 8 delivers read speeds of up to 1690 MB/s and write speeds of up to 1490 MB/s. In terms of connectivity, this array is equipped with two 40 Gb/s Thunderbolt 3 ports, one of which is used for host connectivity and up to 85W of power delivery, while the other remains available for daisy-chaining up to five additional devices, including drives, 4K displays, and more, all through a single cable connection.

SanDisk Professional built the G-RAID Shuttle 8 with a hardware RAID controller that supports RAID 0, 1, 1E, 5, 6, 10, 50, and 60, each of which provides performance, data redundancy, or a combination of both. For those who do not need a RAID, JBOD is also available. The system comes preconfigured as RAID 5 and formatted for macOS 11 and later, although the system may be reformatted for other RAID modes as well as Windows 10 and later. Included is a Thunderbolt 3 cable and an IEC power cable, while protection is provided by a limited 5-year warranty.

Specification:
Interface / Connectivity    Thunderbolt 3 (40 Gb/s) & USB-C (10 Gb/s)
Maximum Sequential Read (RAID 0)    ~1,000 MB/s
Maximum Sequential Write (RAID 0)    ~1,100 MB/s
Sequential Read (RAID 5 – some models)    Up to ~700 MB/s
Sequential Write (RAID 5 – some models)    Up to ~850 MB/s
Drive type inside    4× enterprise-class 7200 RPM “Ultrastar” HDDs
Supported RAID Modes    0, 1, 5, 10, JBOD
Daisy-chain support    Dual Thunderbolt ports, up to 5 additional devices
Warranty    5-year limited warranty
Dimensions (approx)    9.76 × 6.85 × 10.51 in (248 × 174 × 267 mm)
Weight (varies by capacity)    e.g., ~7.5 kg (≈16.5 lb) for 72 TB version
Operating Temp    5 °C to 35 °C (41°F to 95°F)
OS Compatibility    macOS 11+ (default) / Windows 10+ (via re-format)

Items Included:

•     SanDisk Professional 192TB G-RAID Shuttle 8 8-Bay Thunderbolt 3 RAID Array (8 x 24TB)
•     Thunderbolt 3 Cable
•     IEC Power Cable
•     Limited 5-Year Manufacturer Warranty
