Blackmagic Design Media Dock

About: Blackmagic Design Media Dock

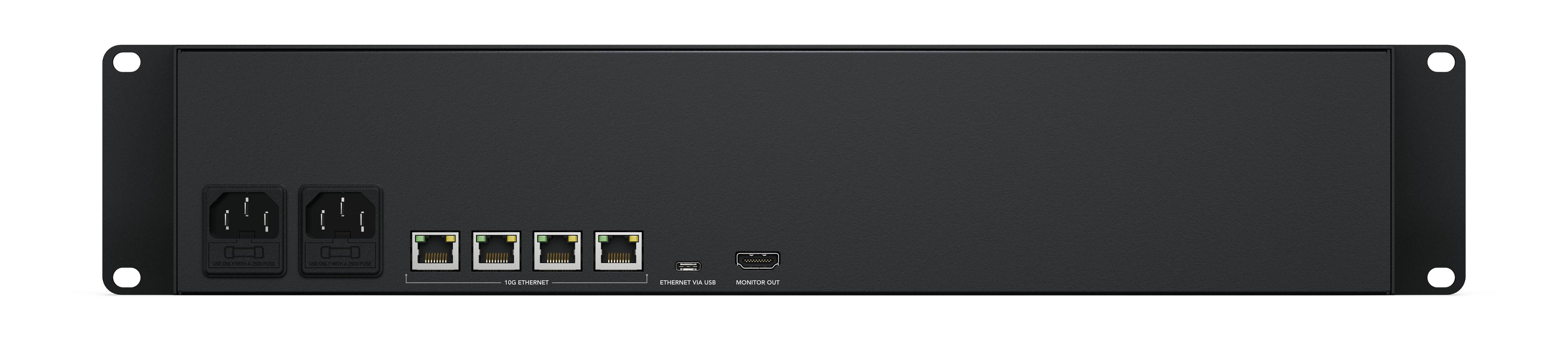

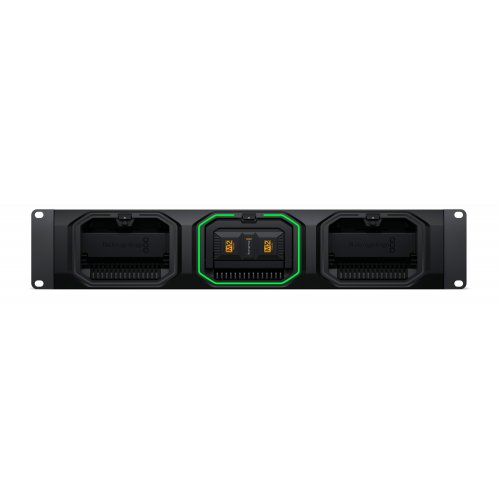

Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.

Specifications

• Connections
  • Interface - 3 x removable and hot-swappable Blackmagic Media Modules.
  • 10G Ethernet Ports - 4 x 10G BASE-T
  • USB-C Port - 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
  • HDMI Monitor Outputs - 1
  • Computer Interface - USB-C or Ethernet for shared file access, configuration and software updates.
• File Sharing Protocol
  • Protocol - SMB
  • Computer Connections - 50 max.
• Cloud Synchronization
  • Compatible Services
  • Dropbox
  • Google Drive
• Storage
  • Storage Type - Up to 3 Blackmagic Media Modules.
  • External Storage Format - Blackmagic (formatted in camera)
• Displays
  • HDMI Monitor Out Standards - 1080p50, 1080p59.94, 1080p60
  • Monitor Out Displays - Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
  • Status Indicator - LED bezel indicator lights around media module bays.
• Device Control
  • External Control - USB-C or Ethernet for configuration and software updates.
• Included Software
  • Blackmagic Cloud Setup Utility
  • Blackmagic Proxy Generator Lite
  • Internal software upgrade via Blackmagic Cloud Setup using USB-C port
• Operating Systems
  • Mac 14.3 Sonoma or later.
  • Windows 10, 64-bit.
  • Windows 11.
• Power Requirements
  • Power Supply - Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
• Physical Installation
  • 2 rack units.
• Environmental Specifications
  • Operating Temperature - 0° to 40° C (32°to 104° F)
  • Storage Temperature - -20° to 60° C (-4° to 140° F)
  • Relative Humidity - 0% to 90% non-condensing

What's Included

• Blackmagic Media Dock
• Welcome wallet with QR code for software download
