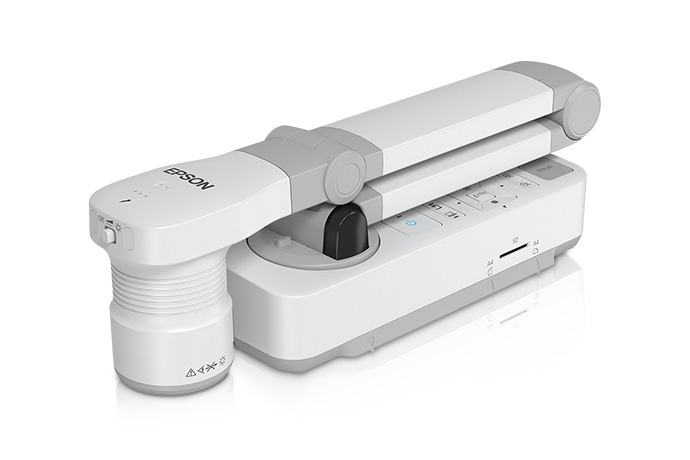

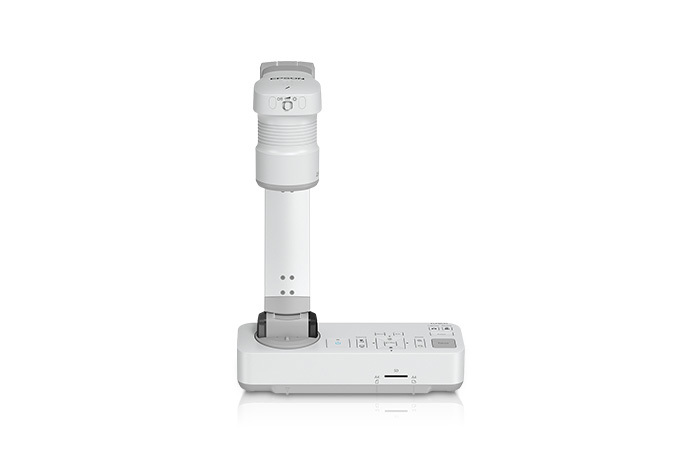

Epson DC-21 Document Camera

About: Epson DC-21 Document Camera

Engage students like never before with the Epson DC-21 document camera. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card1 or computer.

• Deliver powerful lessons with extraordinary close-up detail — 10x digital zoom plus 12x optical zoom
• Astounding clarity and colour — HD 1080p output resolution
• Advanced connectivity — HDMI digital connectivity for high-definition video
• Share magnified images — microscope adapter included; supports many standard microscopes
• Record and share audio/video lessons — built-in microphone and included software; one-touch A/V recording
• Ultra smooth video performance — 30 frames per second (fps) at a 1080p frame rate
• Capture, save and present images — supports SD cards1 and computers
• Convenient Freeze and Capture buttons — easily pause and/or resume the image

Specifications

• Camera
  • Lighting Source
    • Brightness: 250 lx or above @ A3 shooting area
    • Upper: White LED x 2
  • Imaging Element
    • Pick-up device: 1/2.7" CMOS sensor
    • Effective pixels: 1920 x 1080, 2 megapixels
    • White Balance: Auto
    • Exposure: Adjustable
    • Brightness: Adjustable
  • Frame Rate: 30 fps max.
  • Output Signals / Resolution:
    • VGA: SXGA (1280 x 1024), XGA (1024 x 768),WXGA (1280 x 800), HD (1360 x 768), 1080p (1920 x 1080)
    • USB: VGA, SVGA, XGA, SXGA, WXGA, 720p, 1080p
    • HDMI: 480p/720p/1080p
• Optics
  • Capture Area: Max: 11.7" x 20.7" (at 1080p); 11.7" x 16.5" (at XGA)
  • Lens: F-number: 3.4-5Zoom:10x digital zoom, 12x optical zoom
  • Focus: Automatically with one-touch button
  • Iris: 250 lx or above @ A3 shooting area
• Functions
  • Image Rotation: Camera Head Rotation: 180 degrees (Horizontal/Vertical)
  • Internal Memory: SD card slot (SD/SDHC only)
  • User Functions: Zoom, Freeze, Auto Focus, Focus Lock, LED, Brightness, Contrast, Negative, Black and White, Split Screen, Playback, Video Capture, Digital Scroll (pan/tilt), Flicker Reduction, Image Rotation, Source (PC/ DC), Auto-detect Aspect, Video Recording, Video Playing
• Interface
  • Input Terminal
    • HDMI
    • Computer In (VGA)
    • Display Out (VGA)
    • USB-B (for connection to PC/Mac)
    • SD Card Slot
• Application Software
  • Driver:TWAIN (for Windows)
  • Language:13 languages
  • Functions: Rotation, Zoom (+, -, selectable, x1), Auto Focus, Freeze, Record, Time-lapse, Picture Control (Brightness, Contrast, White Balance, Auto White Balance)
  • Saving Format
    • Still Image: JPG, BMP, PNG
    • Video (Windows): AVI
    • Video (Mac): MOV
    • Other: PDF, EIT
• General
  • Operating Systems: Windows 7, Windows 8, Windows 10, Windows Vista, Mac OS X 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x
  • Temperature: 41 ° to 95 °F (5 ° to 35 °C)
  • Humidity: 20 - 80%
  • Weight: 5.8 lb
  • Security: Kensington lock support, Metal security bar, Security mounting holes
• Dimensions -Doc Camera
  • Open / Unfolded:10.6" x 19.7" x 12.9"
• Power
  • Power Supply Voltage: 100 - 240 V AC
  • Rated Frequency: 50/60 Hz
  • Power Consumption:
    • 13 W (Operating)
    • < 0.5 W (Standby Mode)
  • Output Voltage of AC Power Adapter: DC 12 V

What's in the Box

• DC-21 Document Camera
• AC power adapter with cord
• USB cable
• Application software CD
• Remote control
• (2) AA batteries
• VGA cable
• Microscope adapter
• User's Guide CD
• Quick Start Guide
• Warranty card
• Soft carrying case
