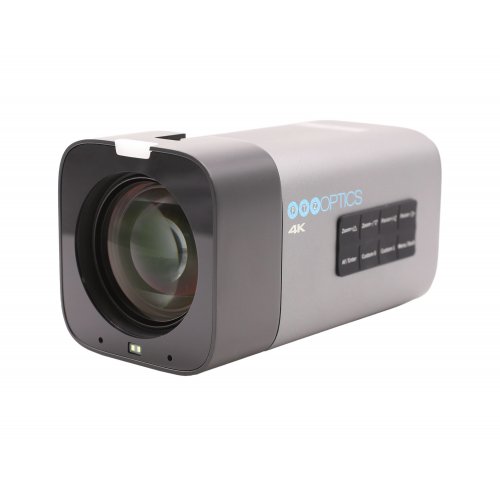

PTZOptics Studio 4K w/ 12x Optical Zoom - Gray

About: PTZOptics Studio 4K w/ 12x Optical Zoom - Gray

Whether as a standalone camera or an addition to a larger studio setup, PTZOptics’ Studio 4K provides crystal-clear 4K resolution, 12X or 20X zoom and conveniently Hive-Linked to our easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere.

• 4K@60fps Resolution
• 12x or 20x Optical Zoom
• Compact & Modern Fixed Design
• Hive-Linked for One-Click Integration
• SDI, HDMI, USB, and IP Outputs with NDI/HX3

Connect, Point, Produce!

The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI/HX3, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in connectivity links to Hive Studio automatically!

Zoom In with Power and Endurance

The Studio 4K is your perfect entry into the world of 4K videography, offering powerful zoom capabilities and reliable performance. Capture a head-and-shoulders shot of your subject from up to 90 feet away with zoom strengths of 12X or 20X, ideal for medium or large spaces. Designed for utility and endurance, its unobtrusive design, continuous operation, and a variety of mounting options, the Studio 4K will be your new video system workhorse.

A Multitude of Applications

The Studio 4K is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with an additional fixed-camera option that complements your PTZ cameras. The Studio 4K’s high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as a fixed camera the Studio 4K is courtroom friendly.

Future-Friendly Performance

To accommodate ever-evolving productions, the Studio 4K will be Hive-Linked (coming soon!), PTZOptics’ proprietary built-in automatic connection to Hive Studio, allowing centralized multi-camera control & management from anywhere within the comfort of a web browser. With just a few clicks, you’ll have centralized management of all your cameras from anywhere with just a web connection, enabling controlling and configuring multiple cameras from a single interface—no need for complex multi-software setups. Hive-Linked functionality is coming soon!

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

• Camera Management Platform (CMP) for camera management, control, color correction, and auto-tracking (zoom-only for the Studio 4K)
• Control apps for desktop and mobile devices
• Plugins and integrations for popular platforms, including OBS
• Camera configuration and management tools
• Support and testing utilities
• And more!

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow. The Studio 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

Specifications

• Camera & Lens
  • Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
  • Digital Zoom: 16x
  • Resolution and Frame Rate
    • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    • SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
  • Optical Lens Focal Length (Zoom)
    • 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
    • 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6
  • Optical Lens Field of View, Horizontal & Vertical
    • 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
    • 20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
  • Display Field of View:
    • 12x: 80.2°
    • 20x: 67.8°
  • Min Lux: 0.5 Lux @ (F1.8, AGC ON)
  • Shutter: 1/30x ~ 1/10000s
  • Presets: 255 Presets
  • Presets Accuracy: 0.1°
  • Image Flip: Supported
  • Image Mirror: Supported
  • Image Freeze: Supported
• Connections
  • HD Video Output
    • 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI/HX3 enabled
    • 1x HDMI: Version 2.0
    • 1x USB: 3.0 Type C
    • 1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
  • Audio Interface
    • 1x 3.5mm Line level input
    • 1x 3.5mm Line level output
  • Video Formats
    • USB:
      • YUY2: Max resolution 1920x1080p @ 30fps
      • MJPEG: Max resolution 3840x2160p @ 30fps
      • H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
    • ​RTSP/NDI HX3 only:
      • H.265: Max resolution 3840x2160p @ 60fps
  • Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI HX3 only)
  • UVC Version Supported: UVC 1.1 ~ 1.5
  • Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX3, SRT, Multicast, etc.
  • IR: 4x IR Addresses, Max distance 30ft / 9m
  • Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
  • Current Consumption: Max 2A
  • Power Consumption: Max 18W
• Physical Specifications
  • Material: Aluminum, Plastic
  • Colour: Gray
  • Dimensions (LxWxH) 5.7 x 2.99 x 3.09 inch (145 x 76 x 78.5mm)
  • Weight: 1.5 lbs (0.68kg)
  • Working Environment: Indoor
  • Humidity Range: 10% ~ 80%
  • Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
  • Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)
