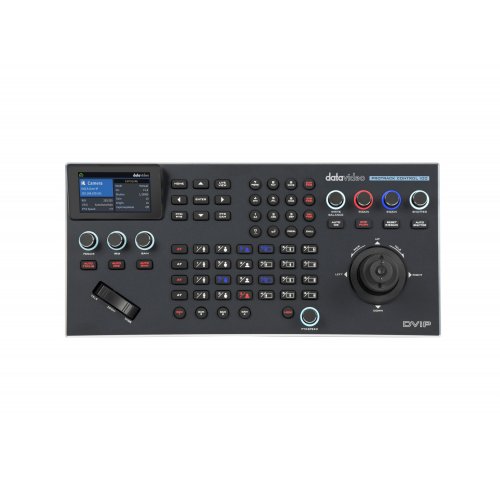

Datavideo ProTrack Control 100 PTZ Camera Controller

About: Datavideo ProTrack Control 100 PTZ Camera Controller

The ProTrack Control 100 is a professional-grade camera controller designed specifically for multi-camera applications, combining intuitive operation, precise control, and multi-protocol compatibility to fully meet the demands of professional video production.

• 3-inch LCD for intuitive menu navigation and live view monitoring
• 6 independent PTZ camera auto-tracking controls with clear status indicators:
  • Left, Center, Right, Full, Half, and Close-up modes
• 4-axis joystick with assignable function button for precise camera movement
• Rocker switch for zoom control
• Live video streaming support via RTSP, ONVIF, and NDI HX2 protocols
• Web-based UI for easy configuration and setup
• PoE (802.3af) for power and connectivity
• HDMI output up to 4K30

It supports managing up to 999 camera profiles, with up to 255 presets per camera, and is fully compatible with DVIP, VISCA, VISCA over IP, NDI, and ONVIF protocols—making it adaptable to a wide range of mainstream PTZ cameras.

With built-in real-time video preview and streaming support for RTSP, ONVIF, and NDI HX2, it also provides up to 4K30P HDMI output for high-quality monitoring and flexible streaming workflows.

Equipped with a four-dimensional high-precision joystick, professional control knobs, and a 3-inch LCD display, the ProTrack Control 100 enables fast and accurate switching and adjustments, even in complex multi-camera production environments.

Supports Storage of Up to 999 Cameras

Serial connection can control up to 4 cameras, while IP connection can storage up to 999 cameras profiles.

Up to 255 Presets per Camera

Each connected camera supports up to 255 preset positions, allowing operators to instantly recall precise pan, tilt, and zoom settings. This ensures fast scene switching, consistent framing, and efficient multi-camera production in live events, studios, and broadcast environments.

High-precision 4D joystick for accurate control

Provides smooth pan, tilt, zoom, and rotation operations, with support for customizable button functions.

3-inch LCD display

Provides real-time camera preview, supports menu operation and status display, with key information clearly visible at a glance.

Multi-Parameter Precise Adjustment

Independent knobs control white balance, aperture, shutter, gain, and focus, enabling quick response to various shooting needs.

Web UI Management

Features a brand-new interface, supporting remote web-based customization of functions and parameter settings, as well as device firmware upgrades via the web.

Multiple Shortcut Key Design

Quickly control intelligent tracking, switch modes with one touch, and flexibly adjust coverage and shot sizes for improved workflow efficiency.

Supports Multiple Control Protocols

Compatible with DVIP, VISCA, VISCA over IP, NDI, and ONVIF, making it adaptable to mainstream PTZ cameras.

Supports Multiple Streaming Protocols

Built-in RTSP, ONVIF, and NDI HX2 protocols for seamless integration into various video production workflows.

HDMI video output up to 4K30P

Delivers high-quality monitoring to ensure clear and reliable real-time previews.

Supports PoE Power Supply

Complies with IEEE 802.3af standard, allowing a single Ethernet cable to transmit both data and power, simplifying cabling.

Specifications

• Maximum Camera Control: 4
• Preset (Position): 255
• Control Protocol
  • VISCA
  • VISCA over IP
  • Pelco-D、Pelco-P
  • DVIP
  • ONVIF
  • NDI
• Connection to Cameras
  • 4 x RS-422/ RS-232
  • 1 x Ethernet (DVIP)

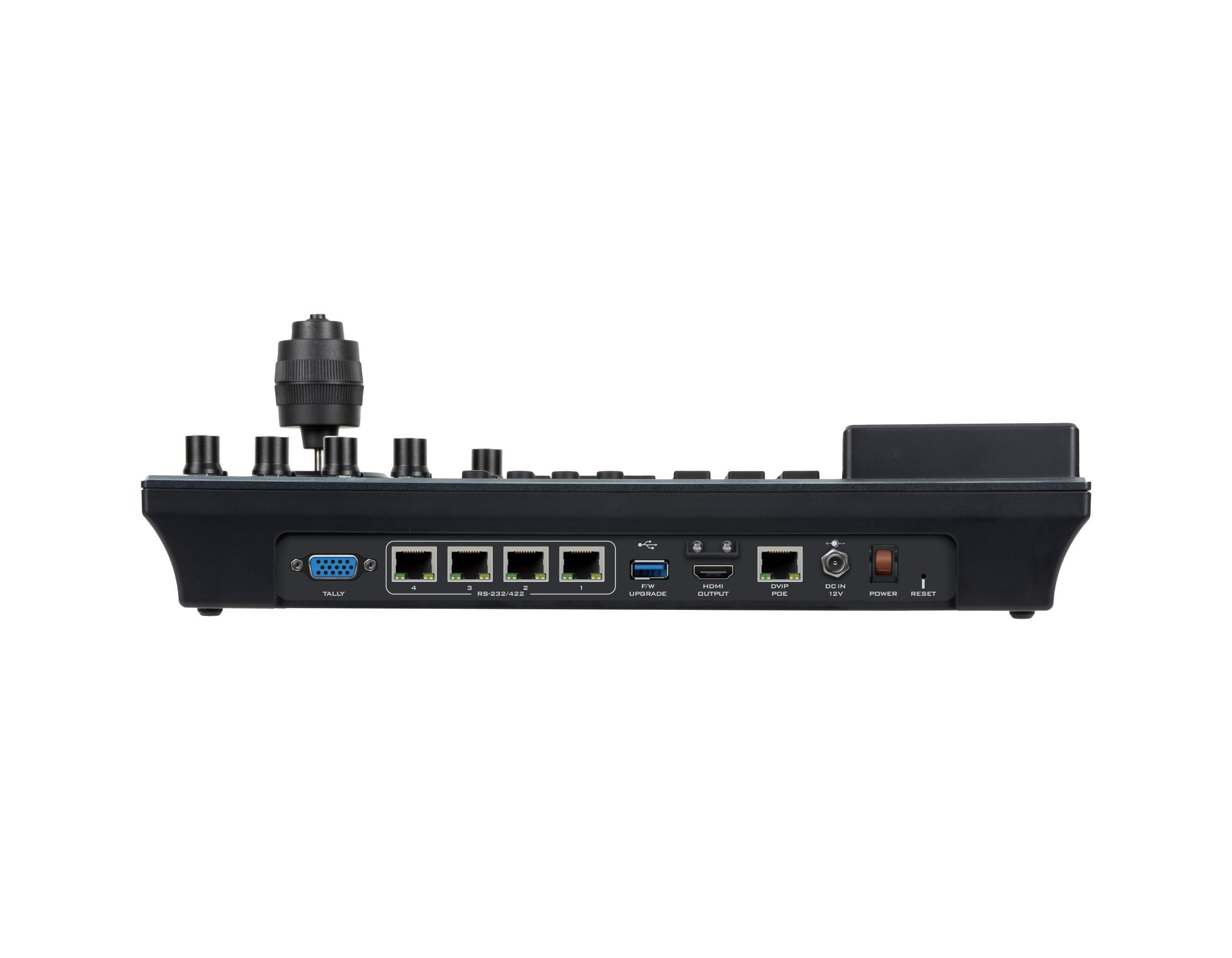

• Input/Output
  • 1 x Tally Input
  • 1 x HDMI Output, up to 4K30Hz
• Build-in Control Panel: Size: 3 inches, Resolution: 640 x 360
• Firmware Upgrade
  • Via WebUI
  • OSD+USB
• Operating Temp. Range: 0° C ~ 40° C (32° F ~ 104° F)
• Storage Temperature: - 10° C ~ 60° C (14° F ~ 140° F)
• Operating Humidity: 10% to 80% (non-condensing)
• Power: DC-12V, 18W
• Dimension: 13.74 x 6.5 x 4.72 in (354 x 165 x 120mm)
