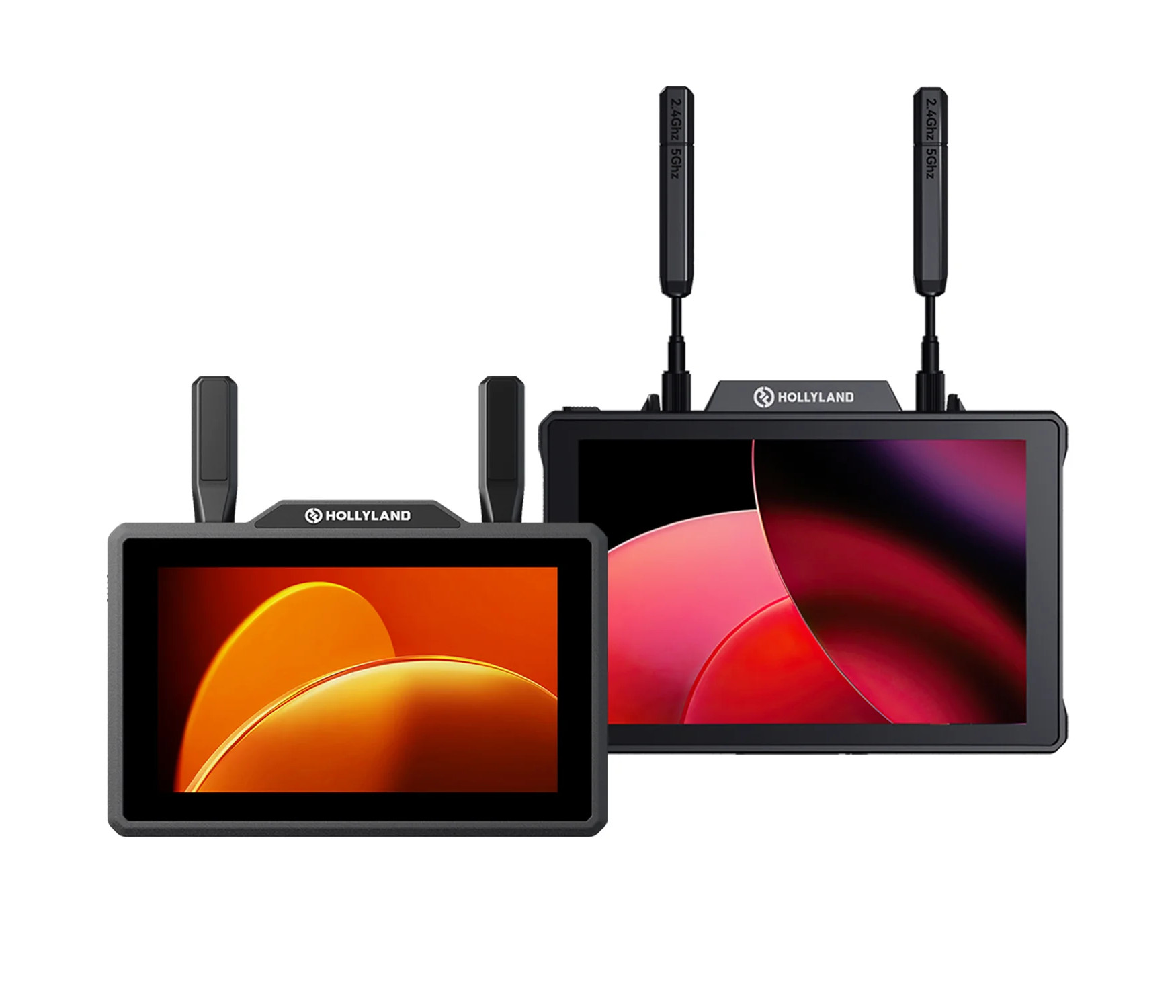

Hollyland Pyro 5 + Pyro 7 Wireless Transceiving Monitor Kit

About: Hollyland Pyro 5 + Pyro 7 Wireless Transceiving Monitor Kit

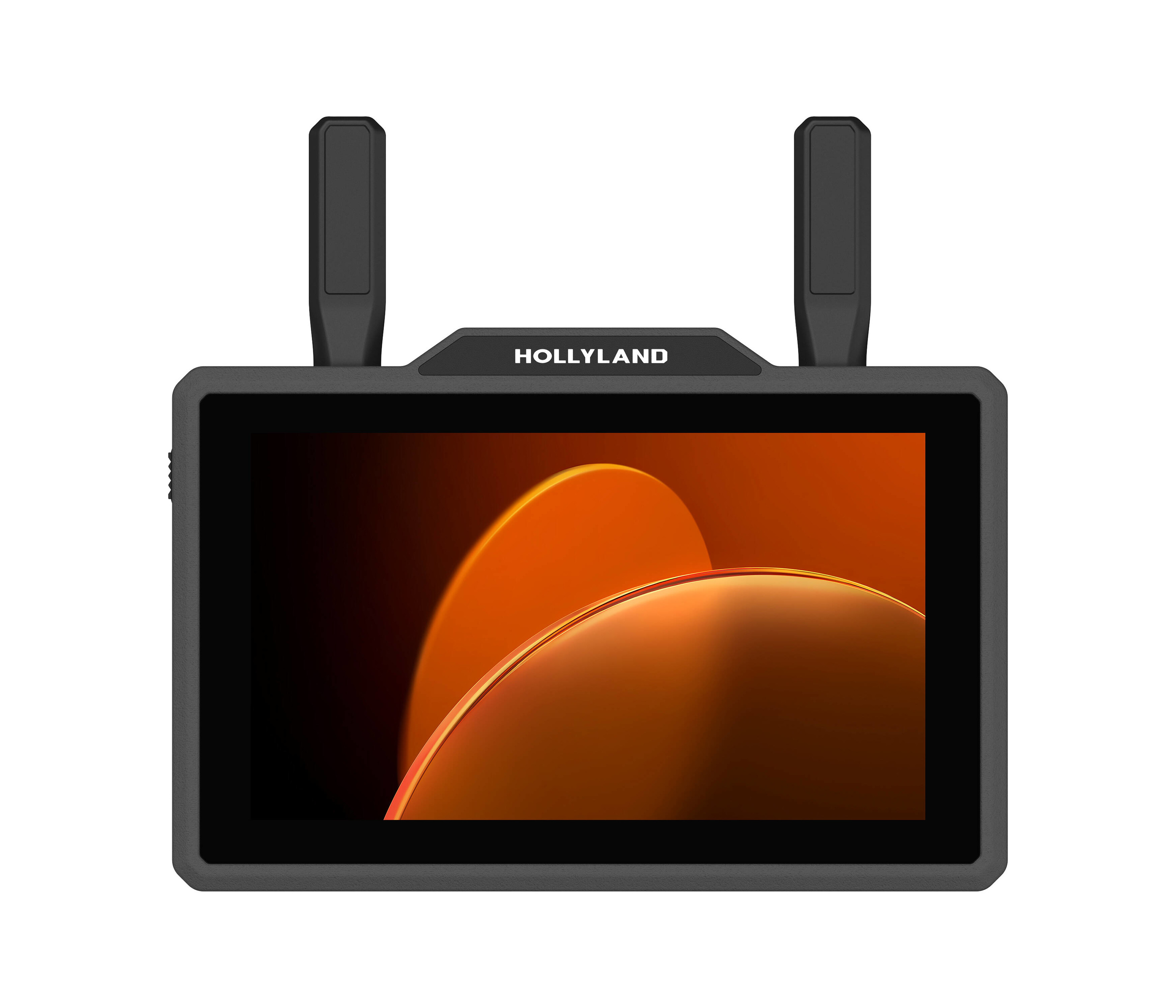

Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording and RTMP live streaming make Pyro 5 more than just a monitor—it's your multi-tasking hub on set, built to simplify and speed up every step of production.

• 1TX & 4RX (1TX & 1RX in box)
• Range Up to 1300ft (400m) & 0.06 Latency
• 2.4GHz & 5GHz Dual Band
• Auto Frequency Hopping
• Camera Control
• 5.5-Inch & 1500 nits
• TX, RX, and Monitor - All in One
• Precise Image Analysis
• RTMP Streaming

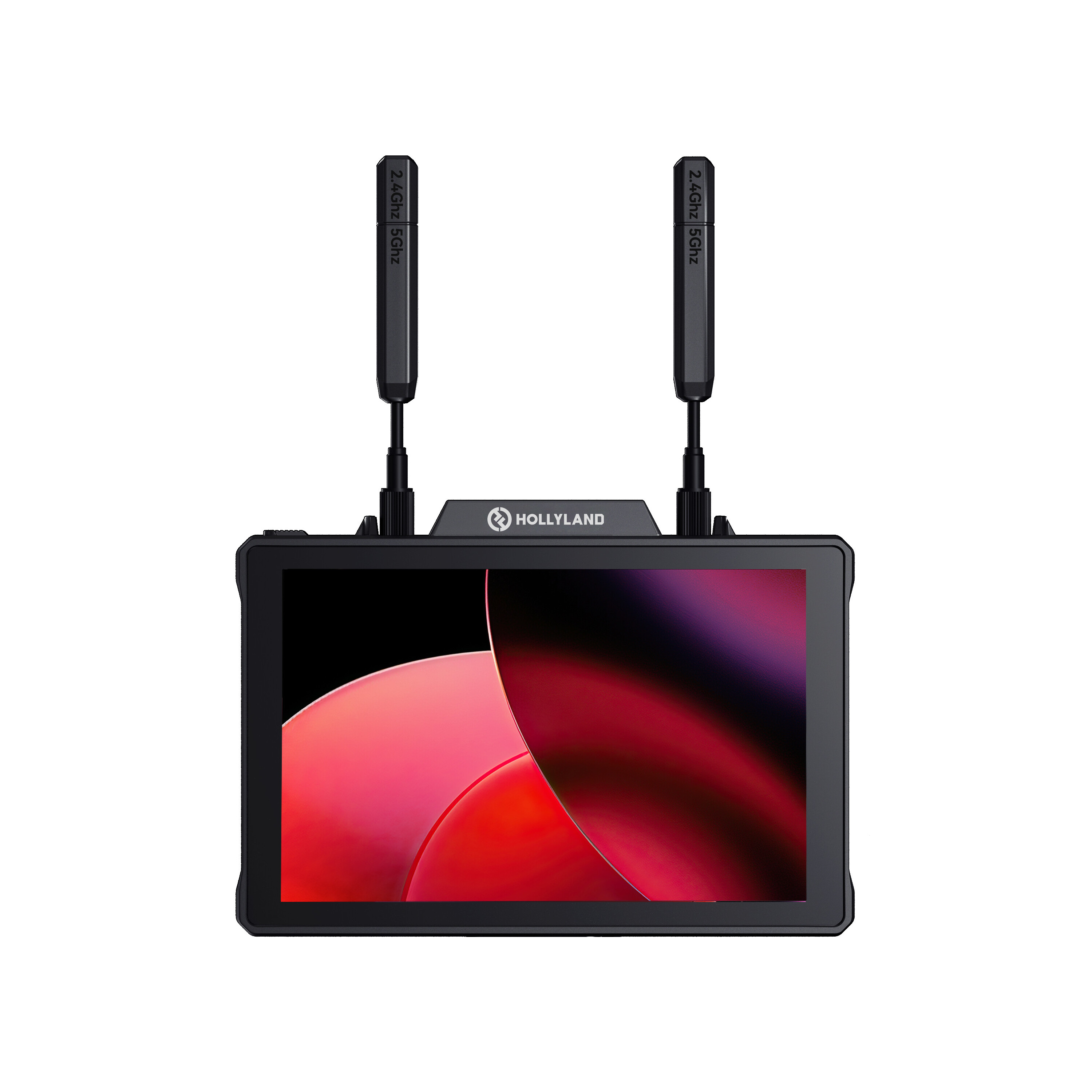

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

• 1TX & 4RX - Offers more flexibility when additional monitoring needs emerge on set.
• 1300ft (400m) & 0.06s Latency - Ultra-long range wireless transmission capability.
• 2.4 GHz & 5 GHz Dual Band - Provides better signal transmission performance and efficiency.
• Auto Frequency Hopping - Guarantees reliable and uninterrupted wireless video transmission.
• TX, RX, and Monitor – All in One - One device to meet your diverse needs
• Dual-View Quick Monitoring Switch - Conveniently switch to the desired view.
• 7-Inch & 1200 nits - 7-inch, better monitoring experience. 1200 nits, clear and visible even in outdoor or strong lighting conditions.
• Precise Image Analysis - More precise and advanced image analysis features for you.
• SDI & HDMI Loopout - Satisfies the diverse requirements of different user groups.
• RTMP Streaming - Convenient for live streaming and video conferencing.

Specifications

• Pyro 5
  • Input Port
    • Transmitter Mode: HDMI 1.4b + 3G SDI
    • Receiver Mode: -
  • Output Port
    • Transmitter Mode: Loop-Out HDMI 1.4b
    • Receiver Mode: HDMI 1.4b
  • Audio-Video Parameters
    • Transmitter Mode: Color Depth Capability
    • Transmitter Mode: Input Audio Format
    • Transmitter Mode: Output Audio Format
    • Receiver Mode: HDMI Input: YUV422/YUV444 8BIT
    • Receiver Mode: HDMI 1.4b 8-Channel
  • Antenna: SMA Male
  • Power Input: DC Input (2.0mm core socket)
  • Headphone Jack: 3.5mm
  • Upgrade Port: USB-C (USB 2.0 OTG) / SD Card Slot
  • Screen Size: 5.5″ Touchscreen
  • Screen Resolution: 1920*1080 Pixels
  • Color Gamut: Rec.709
  • Aspect Ratio: 16: 9
  • Screen Brightness: 1,500 nits
  • Contrast Ratio: 1000:1
  • Power Input Voltage
    • NPF: 6V~16V
    • DC-in: 10-18V DC
  • Video Processing Technology
    • Transmitter Mode: Video Bitrate
    • Transmitter Mode: Video Encoding Format
    • Receiver Mode: Maximum 12 Mbps
    • Receiver Mode: H.264
  • Power Consumption
    • Transmitter: <14W
    • Receiver Mode: <16.5W
  • Net Weight: ≈538g (19oz)
  • Dimensions (LxWxH): 180 x 127 x 45.8mm
  • Operating Frequency
    • 5.150-5.250GHz
    • 2.412~2.484GHz
    • 5.250-5.350GHz
    • 5.470-5.600GHz
    • 5.600-5.725GHz
    • 5.725-5.850GHz
  • Transmit Power: Transmitter Mode: < 23dBm
  • Receiver Sensitivity: Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm
  • Transmission Latency: ≈60ms (Tested in a laboratory environment with 1080P60 signal transmission)
  • Bandwidth: Unicast: 20 MHz Broadcast: 40 MHz
  • Operating Temperature: - 10℃ - 45℃
  • Storage Temperature: - 40℃ - 60℃
  • HDMI Input
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60
  • HDMI Loopout/Output
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p23.98/24/25/29.97/30
  • SDI Input
    • 1080p50/59.94/60 (Level A)
    • 1080p50/59.94/60 (Level B)
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080psf23.98/24
    • 1080psf25/29.97/30
    • 720p50/59.94/60
  • SDI Loopout/Output
    • 1080p50/59.94/60(Level A)
    • /
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080psf23.98/24
    • 1080i50/59.94/60
    • 720p50/59.94/60
• Pyro 7
  • Input Port - HDMI 1.4b + 3G SDI
  • Output Port - HDMI 1.4b + 3G SDI
  • Antenna - RP-SMA Male*2
  • Power Input - DC Input (2.0mm core socket)
  • Headphone Jack - 3.5mm
  • Upgrade Port
    • USB-C (USB 2.0 OTG)
    • SD Card Slot
  • Screen Size - 7" Touchscreen
  • Screen Resolution - 1920 × 1200 pixels
  • Pixel Density - 323 PPI
  • Aspect Ratio - 16:9
  • Screen Brightness - 1200 nits
  • Contrast Ratio - 1000:1
  • Power Input Voltage - 10 – 18V/2.5A DC Input (nominal 12V)
  • Power Consumption - < 22W
  • Net Weight - 545g (19.2oz)
    • with battery plate included and external antennas excluded
  • Dimensions (LxWxH) - 180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″)
    • with battery plate and external antennas excluded
  • Operating Frequency - 5.1 – 5.8 GHz; 2.412 – 2.484 GHz
  • Transmit Power - ≤ 23 dBm
  • Receiver Sensitivity - -80 dBm
  • Display Latency - < 50ms
  • Transmission Latency - ≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
  • LOS Range
    • 1,300ft (400m) (Connection to the monitoring app may affect the range);
    • 650ft (200m) (in Broadcast mode)
  • Bandwidth - 20 MHz; 40 MHz (in Broadcast mode)
  • Audio Format - HDMI 1.4b 8-Channel
  • Operating Temperature - – 10℃ – 45℃
  • Storage Temperature - – 40℃ – 60℃
  • HDMI Input
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60
    • 3840*2160 23.98/24/25/29.97/30
      • HDMI Loopout
        • 720p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p50/59.94/60
        • 3840*2160 23.98/24/25/29.97/30
      • SDI Loopout
        • 720p50/60
        • 1080i50/60
        • 1080p24/25/30
        • 1080p 50/60
        • 1920*1080 24/25/30
      • HDMI/SDI Output
        • 720p50/60
        • 1080i50/60
        • 1080p24/25/30
        • 1080p 50/60
        • 1920*1080 24/25/30
  • SDI Input
    • 1080p50/59.94/60 (Level A)
    • 1080p50/59.94/60 (Level B)
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080psf23.98/24
    • 1080psf25/29.97/30
    • 720p50/59.94/60
      • HDMI/SDI Loopout
        • 1080p50/59.94/60 (Level A)
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p23.98/24
        • 1080i50/59.94/60
        • 720p50/59.94/60
      • HDMI/SDI Output
        • 1080p50/59.94/60 (Level A)
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p23.98/24
        • 1080i50/59.94/60
        • 720p50/59.94/60

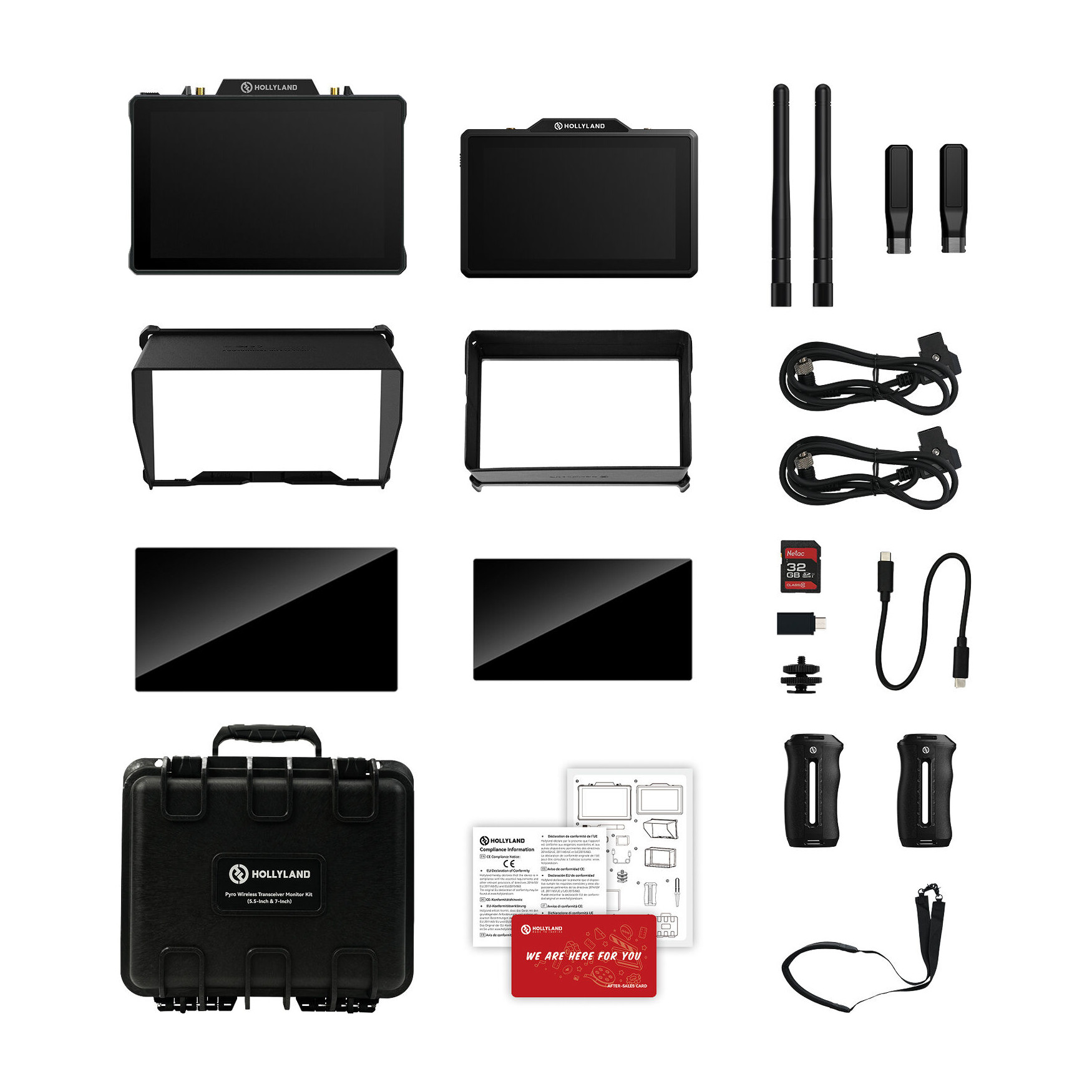

What's in the Box

• 1x Pyro 7 Wireless Transceiving Monitor
• 1x Pyro 7 Tempered Glass Screen Protector
• 3x Paddle Antenna (2.4GHz & 5GHz)
• 1x Monitor Hood (7-Inch)
• 1x Cold Shoe
• 1x USB-C OTG Adapter
• 1x Pyro 5 Wireless Transceiving Monitor
• 2x Easy-Install Short Antenna
• 1x Pyro 5 Monitor Hood（5-inch)
• 1x Pyro 5 Monitor Hood Mount
• 1x Pyro 5 Tempered Glass Screen Protector
• 2x HL Side & Bottom Mounted Aluminum Handle
• 1x Pyro 5 Quick Guide
• 1x Pyro 7 User Manual
• 1x Warranty Card
• 1x Hollyland Ecosystem Leaflet
• 2x D-Tap to Locking DC Power Adapter Cable
• 1x SD Card
• 1x Pyro Ecosystem Hard-Shell Case
