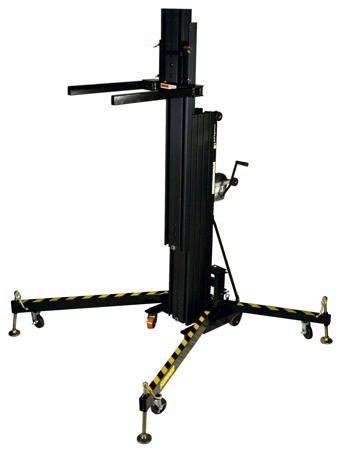

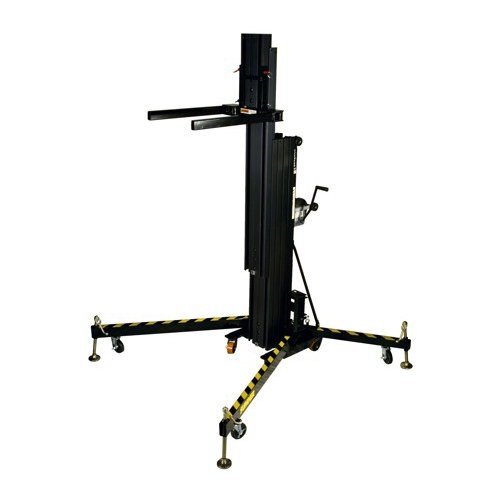

Sumner Eventer 20 Stage Lift - 20 Foot
Model: 783801
About: Sumner Eventer 20 Stage Lift - 20 Foot
The Eventer series, specifically designed for the theatrical and entertainment industries, has proven a reliable lifting solution for flying light and speaker arrays in both indoor and outdoor venues. Available in 16' (4.9 m) 20' (6.4 m) and 25' (7.7 m) heights.
- Black anodized aluminum telescoping masts fade out on the stage
- Lifts 800 lbs. (360 kg) 20’ (6.4m)
- Sumner-built winch specifically designed for the application
- Compact - folds up for storage and transport
- Low mast heights fit through most doorways and truck tailgates
- Winch cable away from operator
- Forks reverse for added height
- Safety stripe markings on legs
- Large, rubber padded leveling jacks
- Robust quick-action plungers
- Lifting bar for hoisting the Eventer
Specifications:
- Height (stowed): 78"
- Length (stowed): 27.5"
- Width (stowed): 23"
- Length (operating): 77.25"
- Width (operating): 75"
- Height (forks up): 20' 7.75"
- Height (forks down): 18' 8.5"
- Ground Clearance: 3.25"
- Load Height (min): 8.5"
- Load Center (min): 13"
- Load Capacity (at center): 800 lbs
- Lift Weight: 469 lbs
- Fork Width (min): 16"
- Fork Width (max): 25"
- Fork Length: 28"
- Fork Weight: 41 lbs
- Winch Rotation: 5.25 / foot
