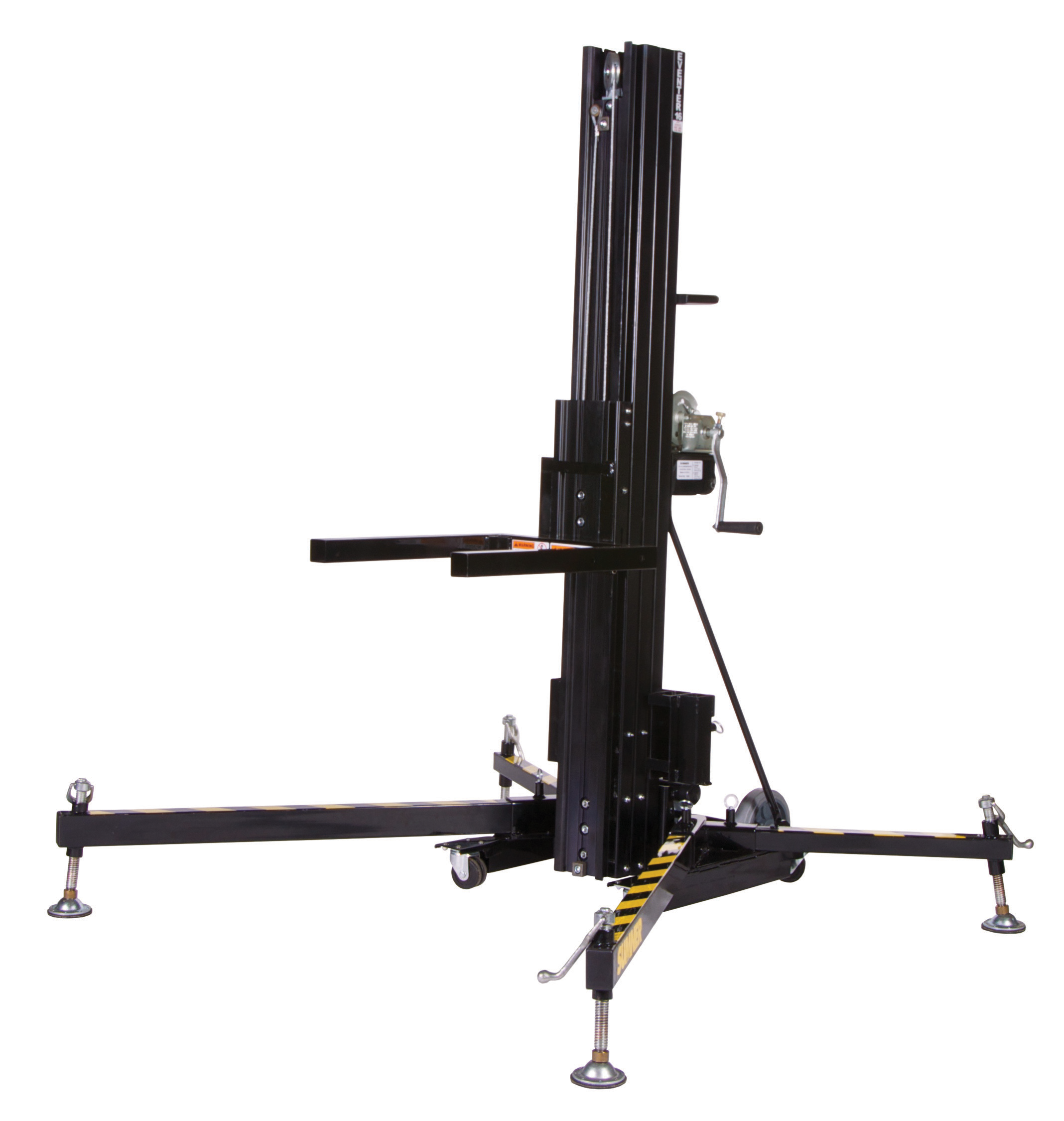

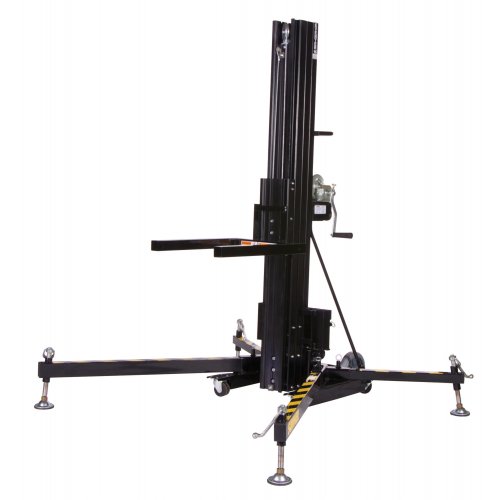

Sumner Eventer 16 Stage Lift - 16 Foot
Model: 784760
About: Sumner Eventer 16 Stage Lift - 16 Foot
The Eventer series, specifically designed for the theatrical and entertainment industries, has proven a reliable lifting solution for flying light and speaker arrays in both indoor and outdoor venues. Available in 16' (4.9 m) 20' (6.4 m) and 25' (7.7 m) heights.
- Black anodized aluminum telescoping masts fade out on the stage
- Lifts 500 lbs. (225 kg) 16' (4.9 m)
- Sumner-built winch specifically designed for the application
- Compact - folds up for storage and transport
- Low mast heights fit through most doorways and truck tailgates
- Winch cable away from operator
- Forks reverse for added height
- Safety stripe markings on legs
- Large, rubber padded leveling jacks
- Robust quick-action plungers
- Lifting bar for hoisting the Eventer
Specifications:
- Height (stowed): 78"
- Length (stowed): 30"
- Width (stowed): 24.5"
- Length (operating): 62"
- Width (operating): 67"
- Height (forks up): 16' 11"
- Height (forks down): 15' 16"
- Ground Clearance: 3.75"
- Load Height (min): 5.75"
- Load Center (min): 12"
- Load Capacity (at center): 500 lbs
- Lift Weight: 279 lbs
- Fork Width (min): 19"
- Fork Width (max): 19"
- Fork Length: 23.5"
- Fork Weight: 18 lbs
- Boom Weight: 14 lbs
- Winch Rotation: 8 / foot
