Fantek Truss Lifting Tower 12.47ft
Model: XTF-T101D
About: Fantek Truss Lifting Tower 12.47ft
The XTF-T101D Telescopic Top lifting Truss Tower by Fantek is Made in Spain is ready to lift a Max Load of 220 lbs / 100 kg at a Max Height of 12.47 ft / 3,8 meters. The XT-FT101D model is a top loading tower designed to lift vertical loads while keeping its compact size, which allows an easy transportation.

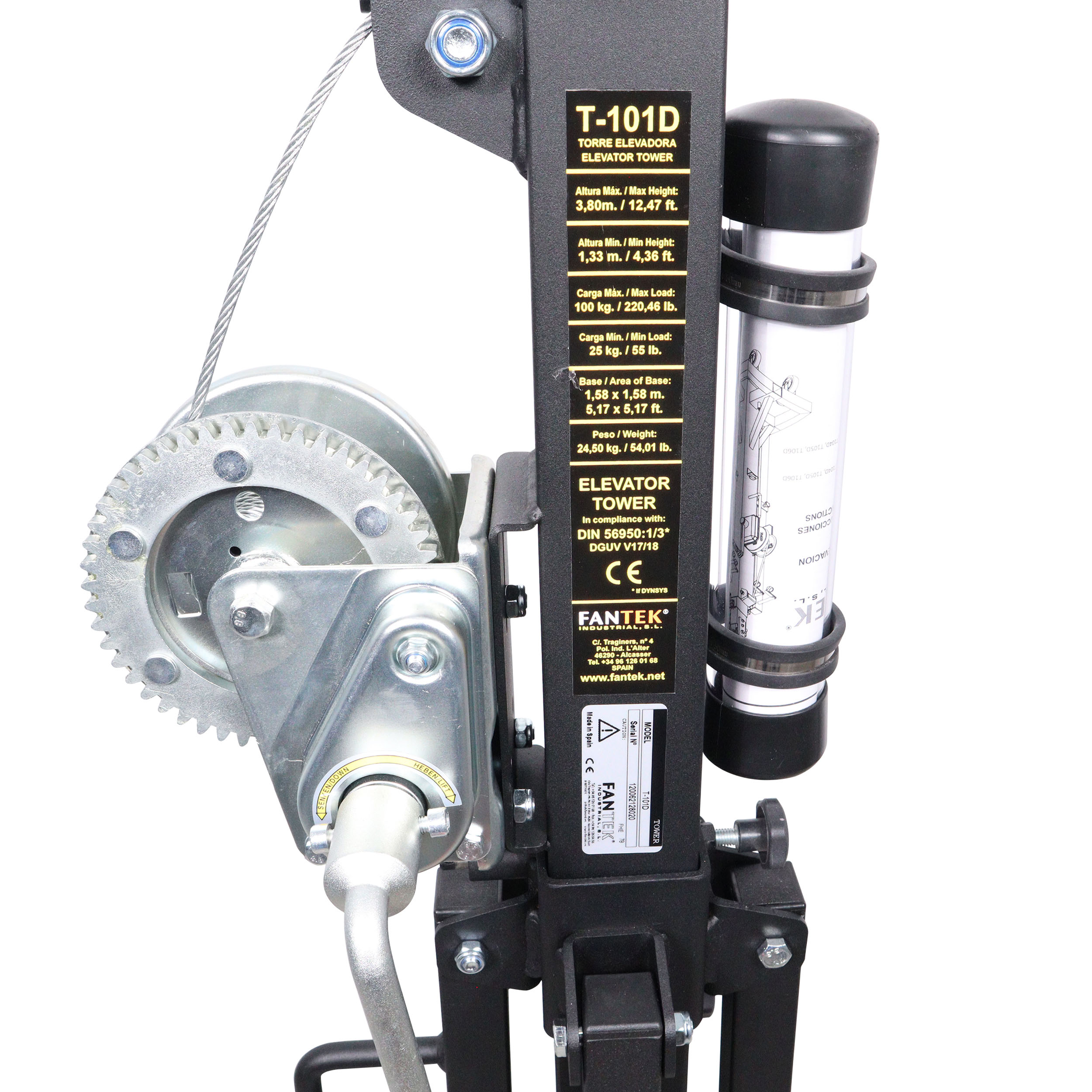

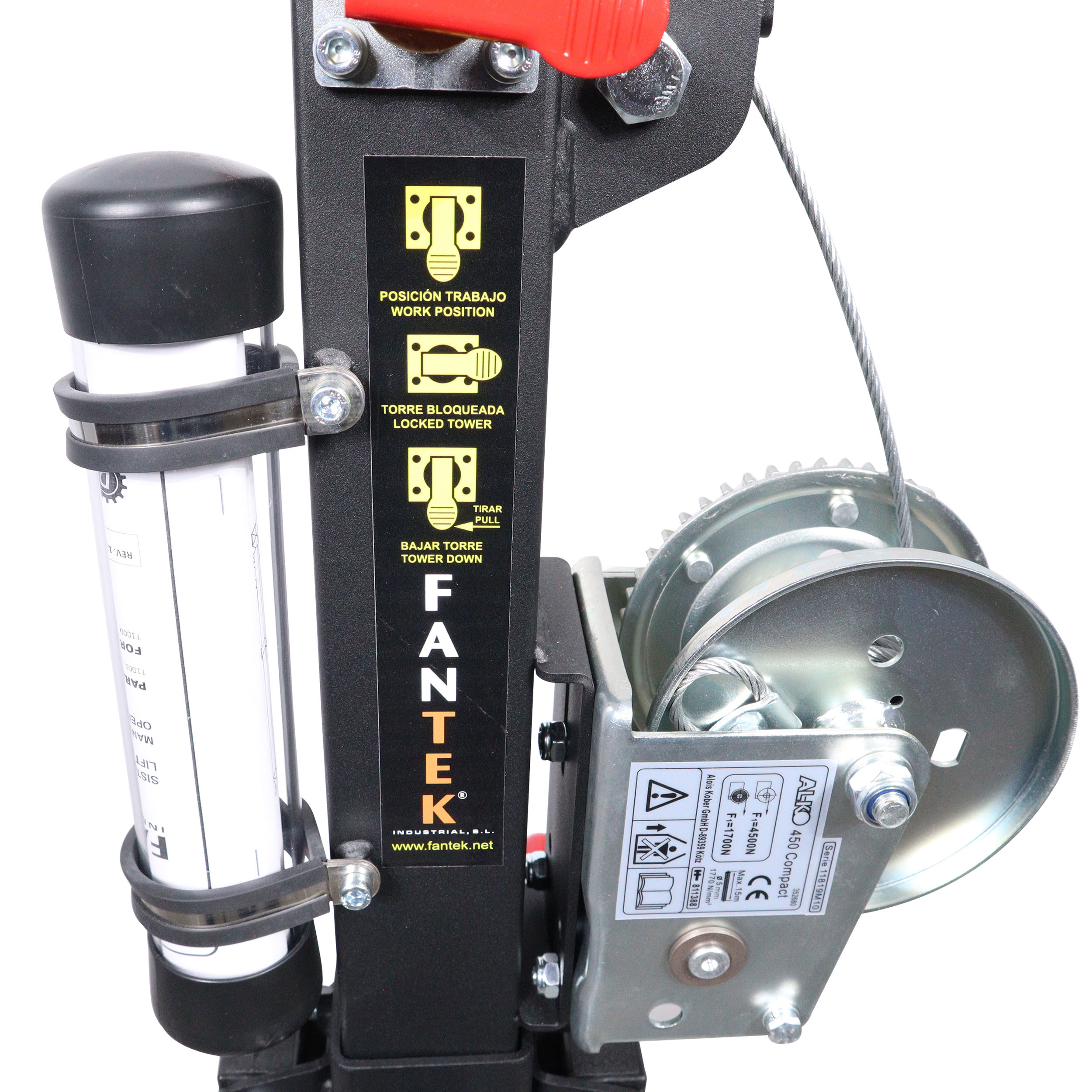

It is composed of three extensible steel profiles, lifted by a high-strength steel cable with grooved pulleys with SELOIL bearings. Automatic locking system comprised of self locking steel pins that fixes the tower to the deisred height. Legs with non-slip rubber feet. The entire system is operated with a manual winch.
Standards and Certifications CE, DGUV, BGV C1, BGG 912
Made in Spain by Fantek
Features
- Folded Height: 4.59 ft

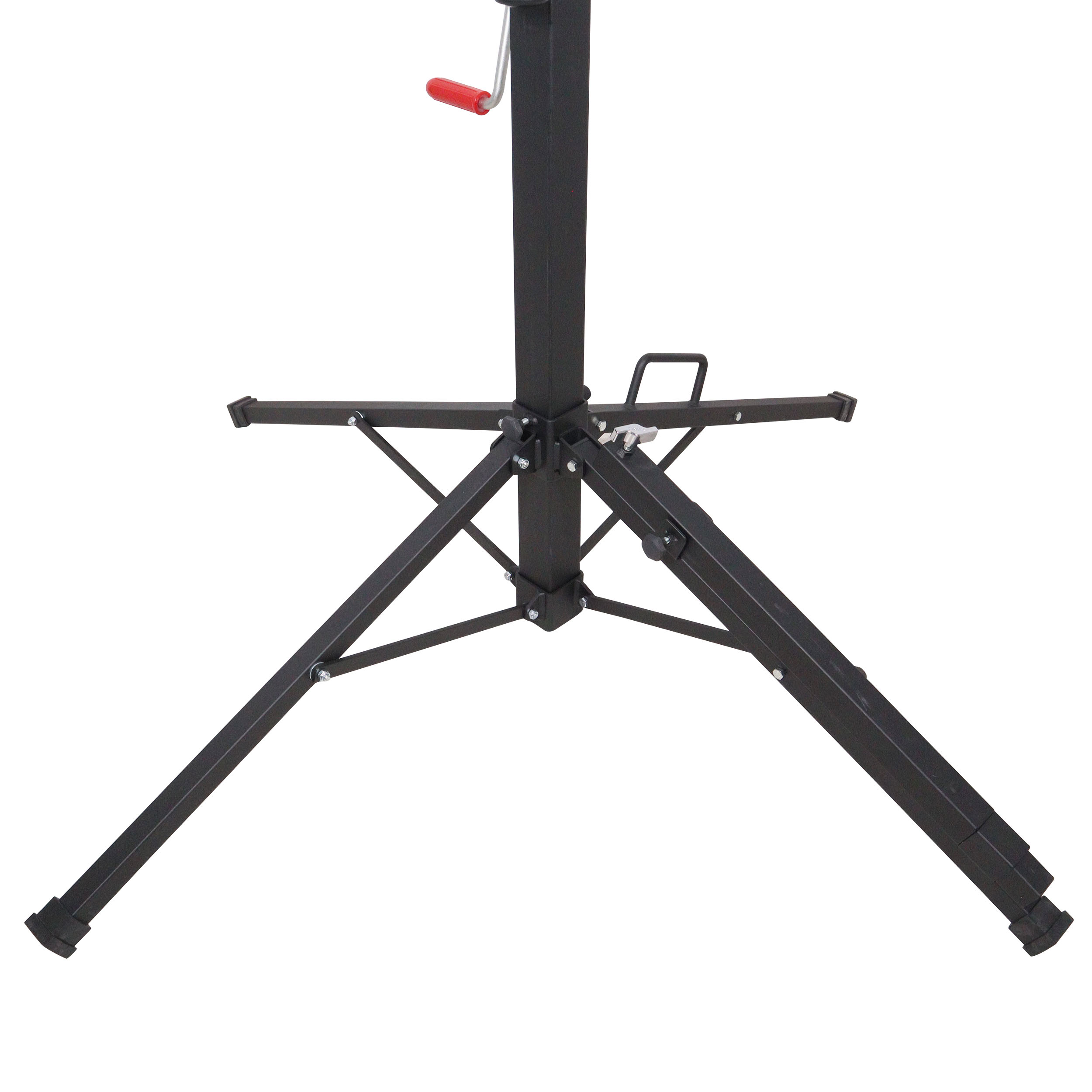

- Ext. Base Dims: 5.25 x 5.25 ft
- Folded Base Dims: 0.75 x 0.92 ft
- Unfolded Base: 5.28 x 5.28 ft
- Max height: 12.47 ft
- Min. height: 4.59 ft
- No. of Sections: 3
- Min. Load: 55.12 lb
- Max Load: 220 lb (mechanism mode)
- Winch: 771.62 lb
- Weight: 52.91 lb
UPC: 804589615668
