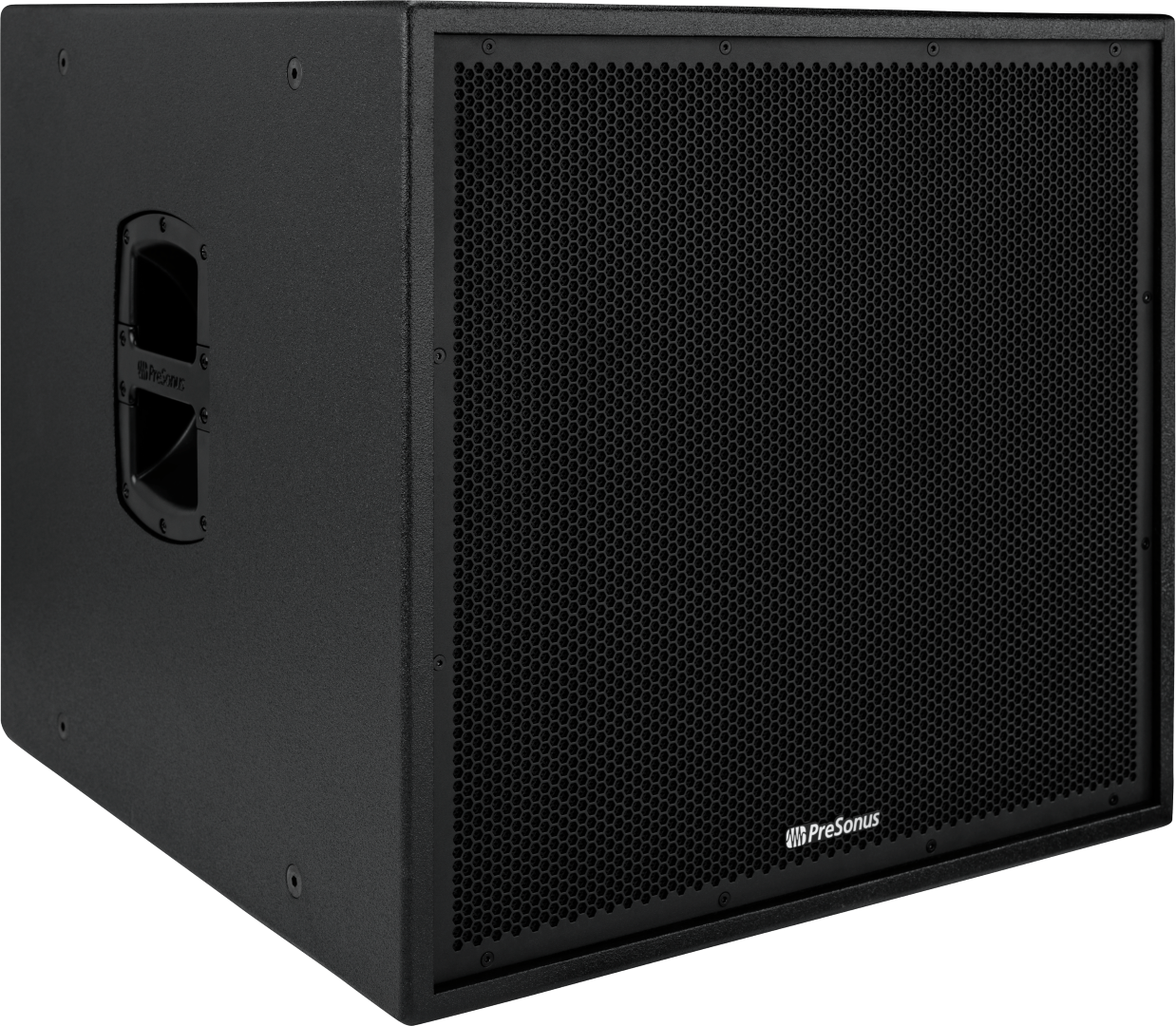

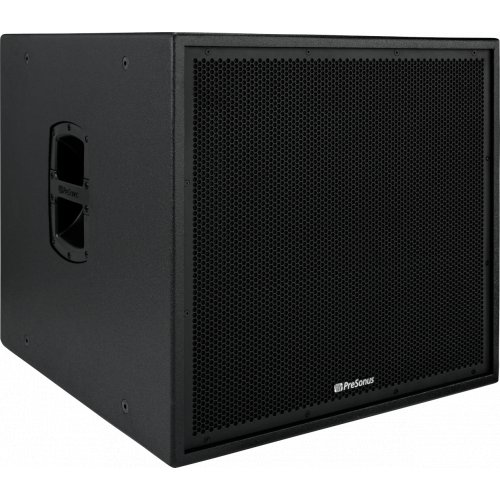

Presonus CDL Sub18 Active Subwoofer

About: Presonus CDL Sub18 Active Subwoofer

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL Sub18 a great choice for installed and mobile sound.

The CDL Sub18 features a 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown or combined for ground-stacked applications, the CDL Sub18 and CDL12P or CDL10P form a complete system with an even response across the frequency spectrum.

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, stack two CDL Sub18 subwoofers together. Integrated M10 fly points make it easy to suspend CDL Sub18 subwoofers, for flexibility in any environment.

For flexibility in various live sound situations, a menu system is provided for adjusting the performance of the subwoofer. This includes, sound enhancing presets, plus a variable low pass filter for adjusting the transition between full range loudspeakers.

Features

• 18-inch low-frequency driver with a 4-inch voice coil
• 2,000W peak (1000W RMS) Class D power amp
• Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
• Unique ported design that maximizes efficiency
• Easy-to-use Menu and Performance Monitoring LED's
• Variable Low Pass Frequency Control
• Integrated M20 threaded pole mount for ground-stacked systems
• Integrated M10 Fly Points for suspending
• Balanced XLR input and balanced XLR direct output
• Locking In and Out powerCon AC connectors
• Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grille

The CDL18s’ Unique Port Configuration
The CDL18s port configuration creates big bass in a compact cabinet. The four triangular ports are placed in corners so they couple to the cabinet and take advantage of the side walls to effectively elongate each port, allowing the CDL18s to move more air, while avoiding port chuffing and minimizing baffle reflections for better phase coherence.

Inputs, Outputs And More

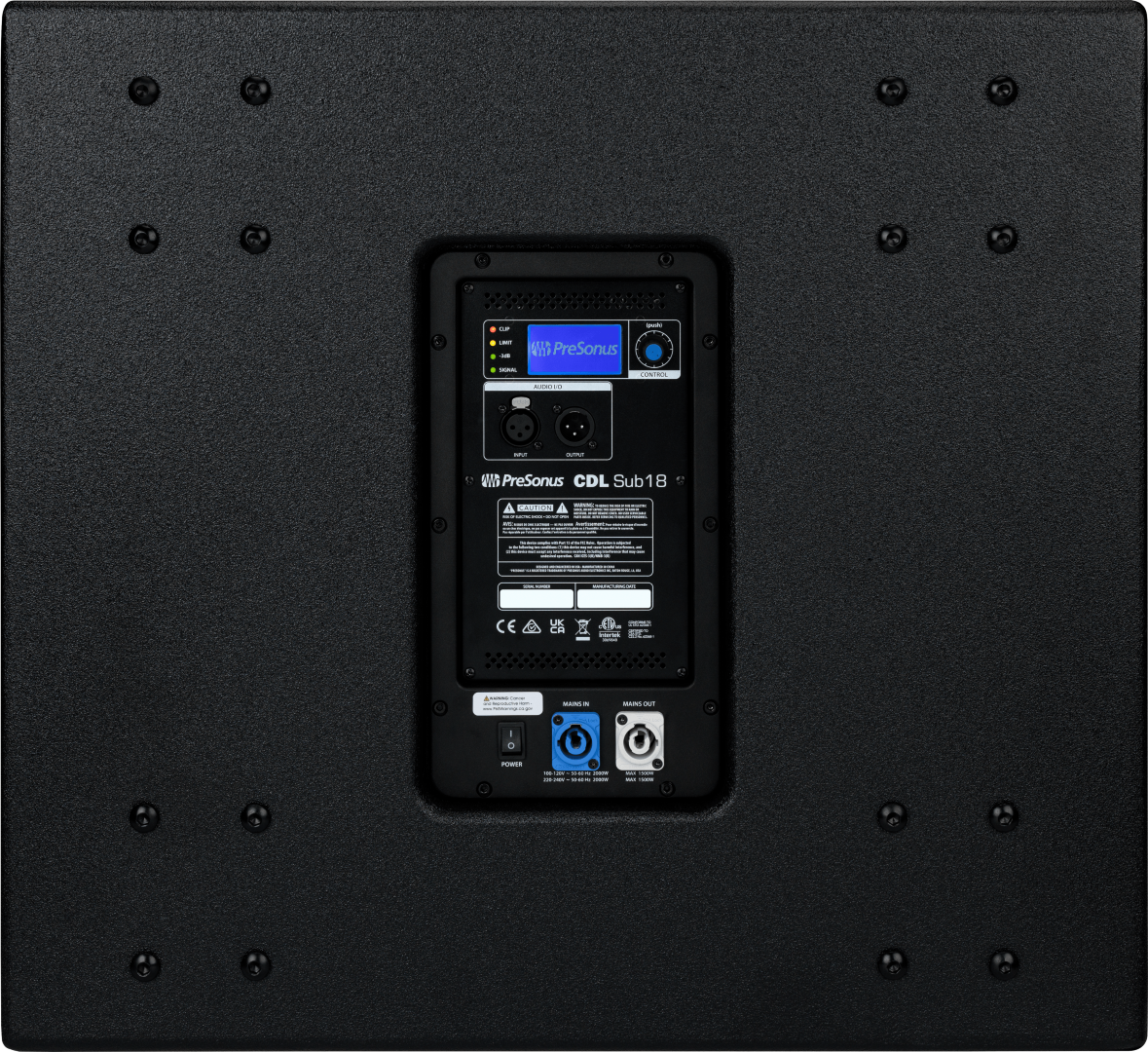

The CDL Sub18 sports balanced XLR input and XLR direct output and menu-driven onboard variable low-pass filter, output power preset select, and polarity invert, giving you total control over your low end.

PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.

Specs

• Inputs: One - 1 XLR
• Line Out: One - Direct Line Out (XLR)
• Power Consumption: 2000 Watts
• Voltage Requirements: 100-240 VAC, 50-60 Hz
• Cooling: Free Air Convection
• Handle: 2 Side
• LF Power: 2 x 500W Bridged (1000W Total)
• Amplifier Dynamic Range: 119 dB (A - Weighted)
• Maximum Output Level: 135 dB
• Total Power Output: 2000W Peak (1000 RMS)
• Product Depth: 25" (63.5 cm)
• Product Height: 22.75" (57.8 cm)
• Product Width: 24.5" (62 cm)
