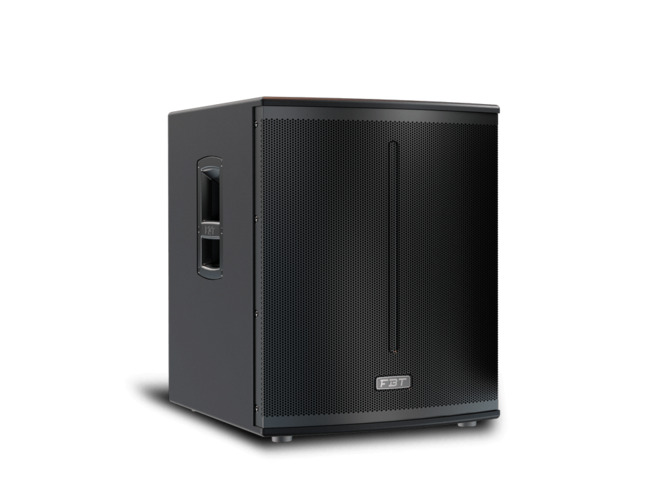

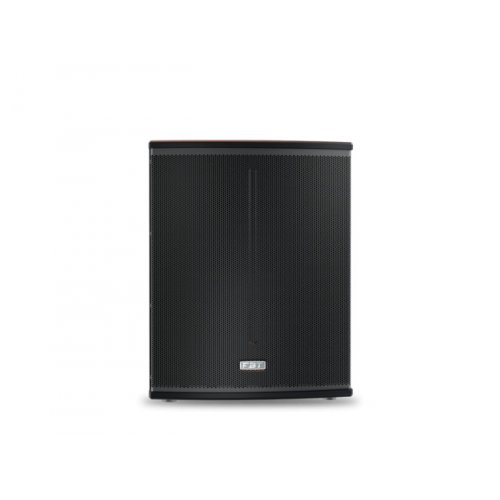

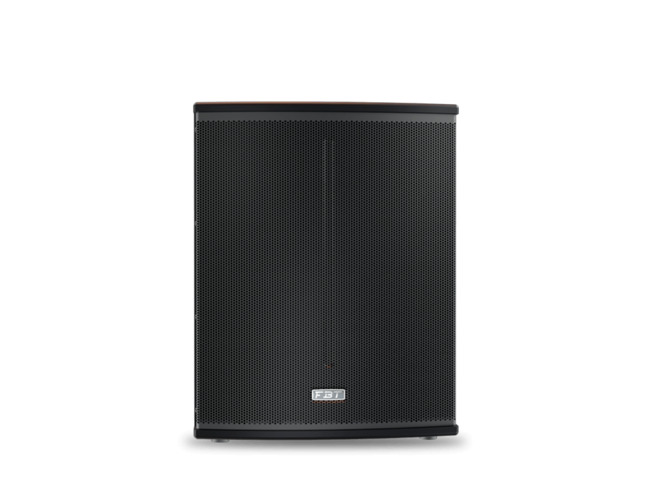

FBT X-SUB 115SA 15" Processed Active Subwoofer
Model: X-SUB-115SA
About: FBT X-SUB 115SA 15" Processed Active Subwoofer
The FBT X-SUB 115SA , 1 x 15" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 115SA provides the following performance criteria: frequency response of 42Hz to 120Hz @ -6dB, maximum SPL of 135 dB peak, 1200W Class D amplifier.
The FBT X-SUB 115SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 115SA feature 0,59" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm/3,93" transport wheels.

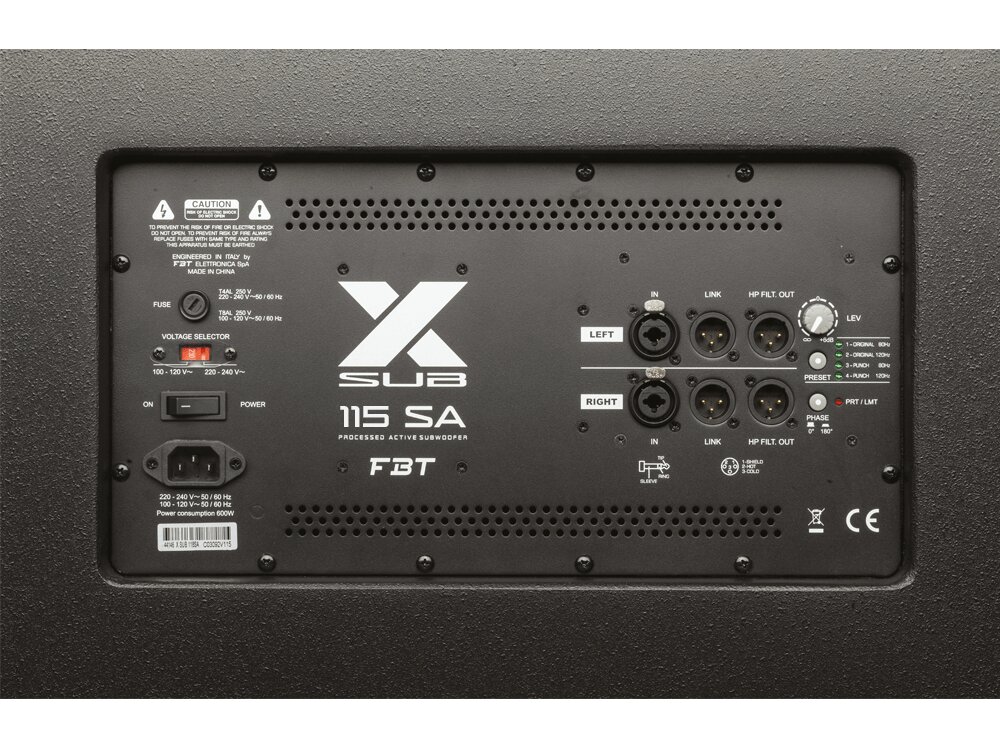

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.
- Active subwoofer
- 15" woofer / 3" voice coil
- Frequency response 42Hz - 120Hz
- 4 DSP presets
- 1200W RMS Class D power amplifier
- 15mm / 0,59" birch plywood cabinet
- Optional 100mm / 3,93" transport wheels
- M20 stand pole mount
SPECIFICATIONS
- CONFIGURATION - bass reflex
- BUILT-IN AMPLIFIER LF/HF - 1200W
- BUILT-IN AMPLIFIER PEAK LF/HF -
- FREQUENCY RESPONSE - 42Hz - 120Hz (@-6dB)
- LOW FREQUENCY WOOFER - 15” / 3” coil
- MAXIMUM SPL CONT/PEAK - 135dB half space
- DISPERSION - omnidirectional
- INPUT IMPEDANCE - 22 kOhm
- CROSSOVER FREQUENCY -
- AC POWER REQUIREMENTS - 600W
- INPUT CONNECTOR - XLR with loop
- POWER CORD - 9.8ft / 3mt
- NET DIMENSION (WXHXD) - 17.91 x 23.07 x 22.44 / 455 x 586 x 570
- NET WEIGHT - 66.13 lbs / 30kg
Videos: FBT X-SUB 115SA 15" Processed Active Subwoofer
Reviews: FBT X-SUB 115SA 15" Processed Active Subwoofer
Warranty: FBT X-SUB 115SA 15" Processed Active Subwoofer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
2 Year
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
