Palmer PGA03 Y-Box Guitars Splitter
Model: PGA03
About: Palmer PGA03 Y-Box Guitars Splitter

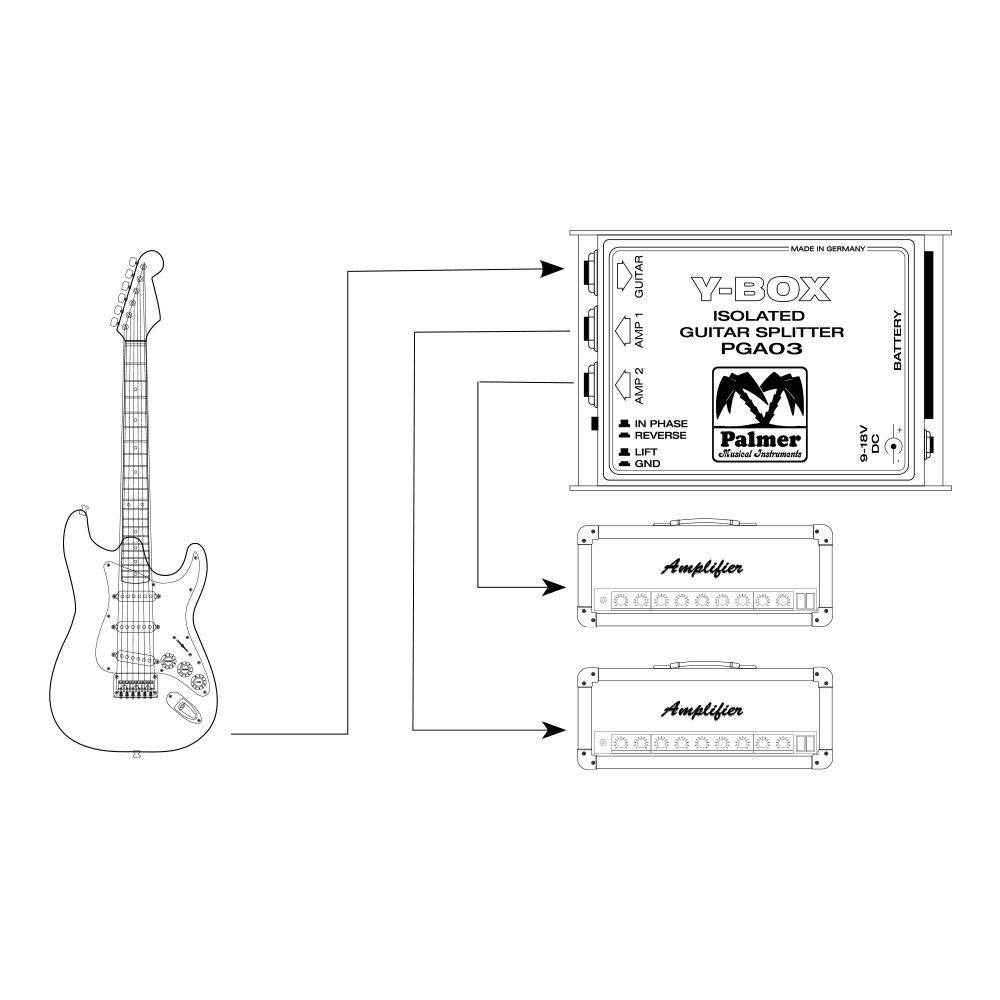

"When I run my guitar into two amps simultaneously, I always get a loud hum". This is a rather common problem, often discussed in the technology section of relevant industry magazines. The PGA03 Y-box is the solution. Converting the hi-Z guitar signal, the FET input circuitry also drives a transformer which routes the ungrounded signal to the output to eliminate ground loop hum. 9V battery operation is recommended.
The PGA03 Y-box can also be used as a line driver for long cable runs. Also, the PGA03 features a phase reverse switch for the AMP 2 output when using pre-amps or amps that are out of phase.
Specifications
- Product type: Splitters
- Split type: 1 in 2
- Inputs: 1
- Input connectors: 6.3 mm jack
- Adjustable input: No
- Number of split-outputs per channel: 1
- Output connectors: 6.3 mm jack
- THRU outputs/channel: 1
- Transformer isolated outputs: Yes
- Adjustable output: No
- Controls: ground lift, phase
- Indicators: Power
- Power supply: 9 V block, 9 V DC power supply
- Cabinet material: sheet steel
- Cabinet surface: Powder coated
- Dimensions (WxHxD): 4.92 x 1.77 x 3.15 in (125 x 45 x 80 mm)
- Weight: 1.16 lbs (0.528 kg)
