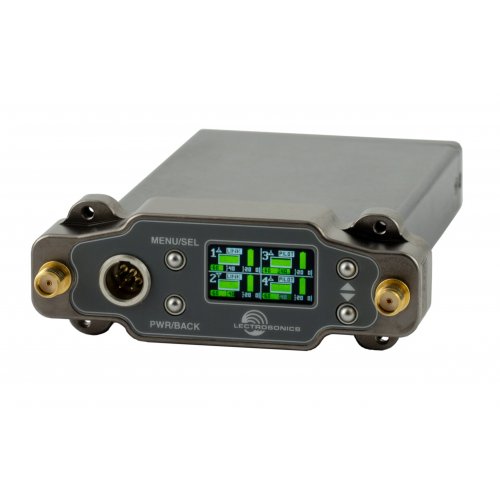

Lectrosonics DSR4 Four Channel Digital Receiver

Model: DSR4-A1B1

Lectrosonics DSR4 Four Channel Digital Receiver
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed

More models to choose from:

DSR$4,125.00
DSR4$6,140.00


About: Lectrosonics DSR4 Four Channel Digital Receiver

The DSR4 digital receiver provides the highest level of RF and audio performance available with a versatile feature set in a compact design for field and location production. Settings can be made from the front panel with tactile buttons and color LCD interface, making the unit ideal for use in portable bag systems and on sound carts. An RF spectrum analyzer and SmartTune are built into the receiver to alleviate interference problems in an increasingly congested RF spectrum.

The mechanical design of the receiver fits into the Super-Slot ecosystem and combines field-proven features developed over many years of experience in motion picture and television production. To decrease weight, the DSR4 provides a four channel receiver in one unit powered by external DC. The receiver is also equipped with an IR port for data transfer between units. The machined aluminum housing and panels are surfaced with a hardanodized finish with laser etched markings to withstand the rigors of field production.

The RF gain stages in the front end use a newly developed design to provide low noise RF amplification, excellent sensitivity and extremely low susceptibility to intermodulation and de-sensitization.

  • Four independent channels, compact design
  • Two diversity options for maximum flexibility
  • 24 bit/48 kHz digital for flawless audio
  • AES 256-bit, CTR mode encryption, with 4 different key policies available
  • High IP3 performance of +15 dBm for tough RF environments
  • Analog and AES3 digital audio outputs
  • External DC powering options and USB input for firmware updates and data transfer

Diversity Options

An ideal diversity system constructively combines all the energy available at both antennas. The DSR4 offers two diversity options: for 4-channel operation, each channel combines signals from both antennas in or out of phase, depending on field strength at each antenna and which combination yields the best results. For 2-channel operation, receivers can be paired for Vector Diversity operation. The Vector subsystem smoothly and continuously combines RF signals from both channels, with differing phase angles in order to obtain maximum energy. The four receivers in the DSR4 can be use separately or combined in pairs.

Compatibility

The DSR4 offers compatibility with the D-Squared and Duet digital transmitters, including the DBu, DHu, DPr, DBSM, DCHT, and M2T, and backward compatibility with any Digital Hybrid Wireless® transmitters including the SM and SMWB series, WM, HM Series, MM400 Series, HH Series, LT, LMb, UM400 Series, and SSM.

SmartNR

With a noise floor at -120 dBV and a frequency response to 20 kHz, high frequency noise in the source audio is more apparent than in conventional wireless systems. The Smart NR algorithm has three mode. When OFF, no noise reduction is performed. When NORMAL is selected, enough noise reduction is applied to remove most of the hiss from the mic preamp and some of the hiss from lavaliere microphones. When FULL is selected, enough noise reduction is applied to remove most of the hiss from nearly any signal source of reasonable quality, assuming levels are set correctly at the transmitter.

Specifications

  • Frequency Selection Steps -  25 kHz
  • Frequency Stability -  ±0.001 %
  • Front end bandwidth -  ±5.5 MHz, @ -3 dB
  • Sensitivity:
    • 20 dB Sinad: 0.9 uV(-108 dBm), A weighted
    • 60 dB Quieting: 1.12 uV (-105 dBm), A weighted
  • AM rejection -  >60 dB, 2 uV to 1 Volt
  • Modulation acceptance -  85 kHz
  • Spurious rejection -  85 dB
  • Third order intercept -  +15 dBm
  • Diversity method:
    • Antenna phase switching (4 channel operation)
    • Vector diversity (2 channel operation)
  • Antenna inputs -  50 Ohm; SMA female connectors
  • Audio output connectors:
    • Interchangeable D connector adapters or camera slot interfaces
    • Dual TA5 male (mini XLR) balanced output adapter
    • Battery sled adapters with TA5 male outputs.
    • Front panel TA5 male for analog output channels 3 and 4.
  • Audio Performance (overall system):
    • Frequency Response: 25 Hz to 20 kHz (+0/-3 dB)
    • THD: 0.2% (typical)
