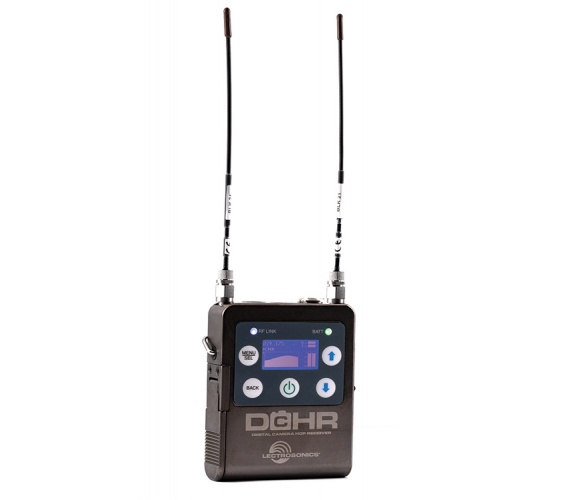

Lectrosonics DCHR Digital Stereo Portable Receiver (B1C1)

Model: DCHR-B1C1

Lectrosonics DCHR Digital Stereo Portable Receiver (B1C1)
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

A1B1$3,134.00
B1C1$3,134.00


About: Lectrosonics DCHR Digital Stereo Portable Receiver (B1C1)

The DCHR Digital Receiver is engineered to work along-side the DCHT transmitter to form the Digital Camera Hop system. The receiver is also compatible with the M2T unencrypted and encrypted digital stereo transmitters, and the D2 Series mono digital transmitters, including the DBu, DHu, DBSM, DSSM, and DPR-A. Designed to be camera mountable and battery powered, the receiver is ideal for location sound and televised sports, along with many other applications. The DCHR employs advanced antenna diversity switching during digital packet headers for seamless audio. The receiver tunes across a wide UHF frequency range.

  • Tunes across a wide UHF frequency range
  • 256-bit encryption - AES 256-CTR
  • AES3 and dual mic/line level analog outputs
  • Headphone monitor output
  • USB port for firmware updates
  • Compatible with DCHT , M2T, M2T-X, and D2 Series transmitters (DBu, DHu, DPR-A)
  • 2-way IR (infrared) port for fast setup
  • 2 AA battery power

The headphone monitor output is fed from a high-quality stereo amplifier with power available to drive even inefficient headphones or earphones to sufficient levels for noisy environments. An intuitive interface and high resolution LCD on the unit provide users with a quick read on the status of the system.

The DCHR also employs 2-way IR sync, so settings from the receiver can be sent to a transmitter. This way, frequency planning and coordination can be done quickly and confidently with on-site RF information.

The DCHR operates in the UHF frequencies of 470.100 to 614.375 (A1B1) or 537.600 to 691.175 MHz (B1C1) for maximum flexibility. The Locale setting is used to re-strict the tuning range for North American users to avoid the 608-614 MHz restricted range.

The receiver employs AES 256-bit, CTR mode encryp-tion for robust security, and four key policy choices for different applications.

Housings and panels are made of machined aluminum with ebENi finishes (black electroless nickel plating) with laser etched marking for durability, yet they are lightweight and sleek in order to occupy minimal space on a camera. The DCHR features a user-friendly inter-face with a high-resolution, backlit LCD and membrane switches for ease of setup and system monitoring.

The DCHR runs for 8 hours on two lithium AA batteries.

Specifications

  • Operating Frequencies: 537.600 - 691.175 MHz
  • Operating temperature range: -20 to 50°C; -5 to 122°F
  • Modulation Type: 8PSK with Forward Error Correction
  • Frequency Response:
    • D2 mode: 25 Hz - 20 kHz, +0-3dB
    • Stereo modes: 20 Hz - 12 kHz, +0-3dB
      • THD+N: 0.05% (1kHz @ -10 dBFS)
      • Dynamic Range: >95 dB weighted
      • Adjacent Channel Isolation: >85dB
  • Diversity Type: Switched antenna, during packet headers
  • Audio Output
    • Analog: 2 balanced outputs
    • AES3: 2 channels, 48 kHz sample rate
    • Headphone Monitor: 3.5 mm TRS jack
    • Level (line level analog): -50 to +5dBu
  • Latency
    • D2 mode: 1.4 ms
    • Stereo modes: 1.6 ms
  • Power requirements: 2 x AA batteries (3.0V)
  • Battery life: 8 hours; (2) Lithium AA
  • Power consumption: 1W
  • Dimensions (HxWxD): 3.34 x 2.44 x 0.75 inch (85 x 62 x 19 mm)
    • Height measured to top of SMA connector
    • Width/Depth measured without wire belt clip
  • Weight: 0.57 lbs / 259 grams (with batteries)

What's Included

  • 1x 26895 Wire Belt Clip
  • 2x AA Batteries
  • 2x AMJ-19 SMA-mount antennas
  • 2x AMJ-22 SMA-mount antennas
