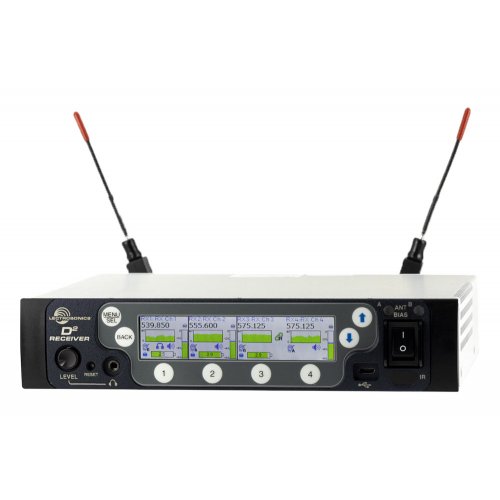

Lectrosonics DSQD 4-Channel Digital Receiver

About: Lectrosonics DSQD 4-Channel Digital Receiver

The D Squared digital wireless microphone platform utilizes the Lectrosonics 4th-generation digital architecture for excellent flexibility, ultra-fast setup, studio quality audio, and ultra-low latency. The system includes the DSQD 4-channel digital receiver, DBu digital belt pack transmitter, and DHu digital handheld transmitter. System features include 24 bit, 48 kHz digital audio, 2-way IR sync, three different encryption key policies, and a tuning range from 470-608 MHz (470-614 MHz for export versions).

System performance: audio frequency response is 25 – 20 kHz +- 1 dB, with dynamic range of 110 dB and THD+N of 0.05% at 1 kHz, -10 dBFS. Latency is 1.4 ms, transmitter input to analog output, using digital transmitters, and <2.9 ms using Digital Hybrid transmitters.

The Lectrosonics DSQD Half Rack Receiver with analog and digital audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless® systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz.

Antenna ports on the rear panel accept input from remote antennas, with a “loop-thru” output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.

• Four-channel, half-rack design
• Continuously tunable tracking filters covering 470.100 - 614.375 MHz
• Compatible with D2, DSW, Duet and Digital Hybrid Wireless® transmitters
• Built-in wideband antenna multicoupler with loop-thru for additional receivers
• Antenna bias power enabled from the front panel (fused and over-temperature protected)
• IR bi-directional port for transmitter setup
• Analog and Digital audio outputs with TalkBack (in applicable RX modes)
• Ethernet and USB interface

Included Accessories

• 1-USB cable (#21926)
• 1-Bracket, rear tie (#25990)
• 1-Bracket, front tie (#25991)
• 1-Rack flange bracket (#27076)
• 1-Rack “D” handle (#27082)
• 1-SCR10 cap screw (#28885)
• 1-Spacer (#28951)
• 1-Rubber feet, large, stick on (#35664)
• 1-Hex key (#35800)
• 1-Hole plug (#35959)
• 1-right angle BNC antenna, block 20 (#A500RA20)
• 1-right angle BNC antenna, block 22 (#A500RA22)
• 1-power supply (#DCR15/4AU)
