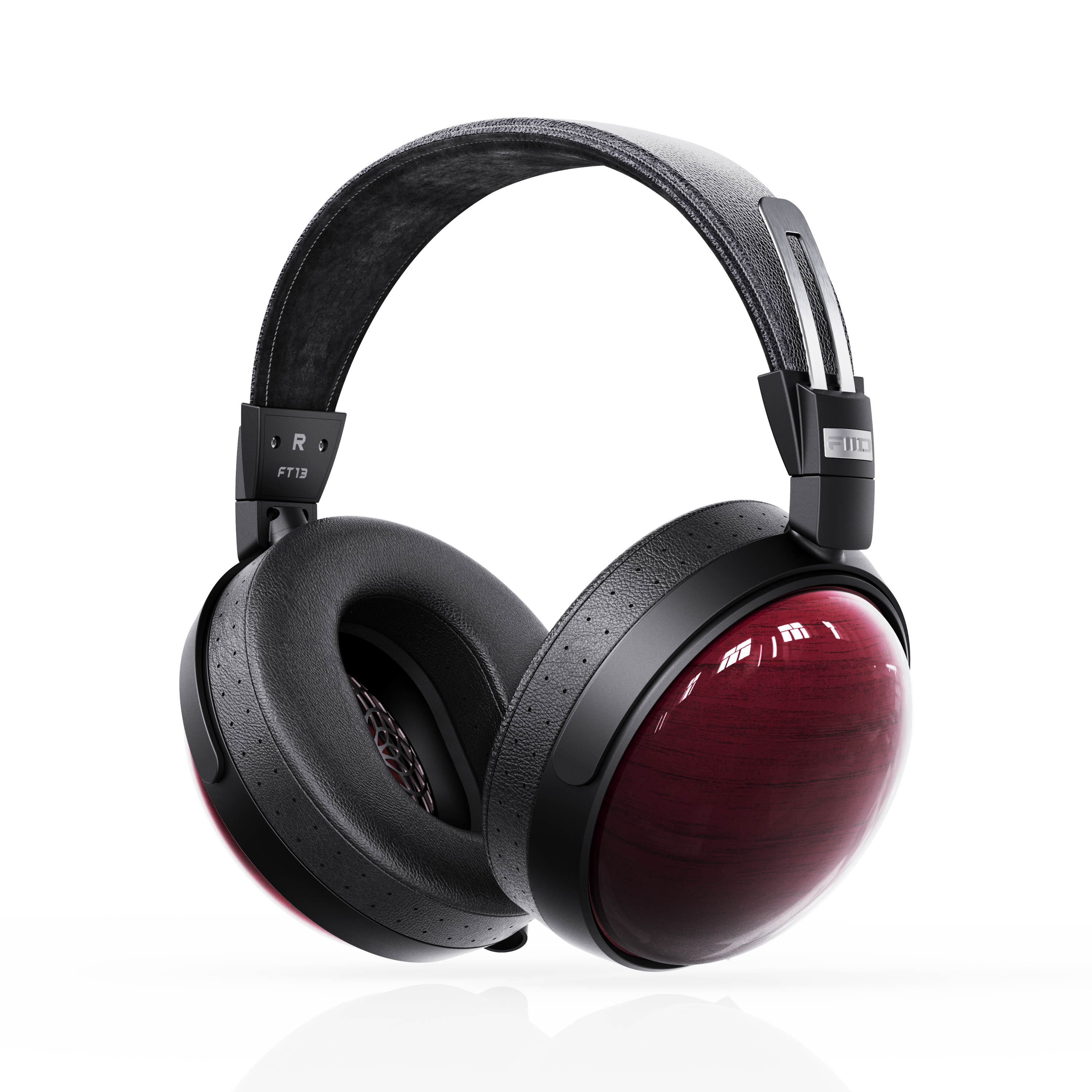

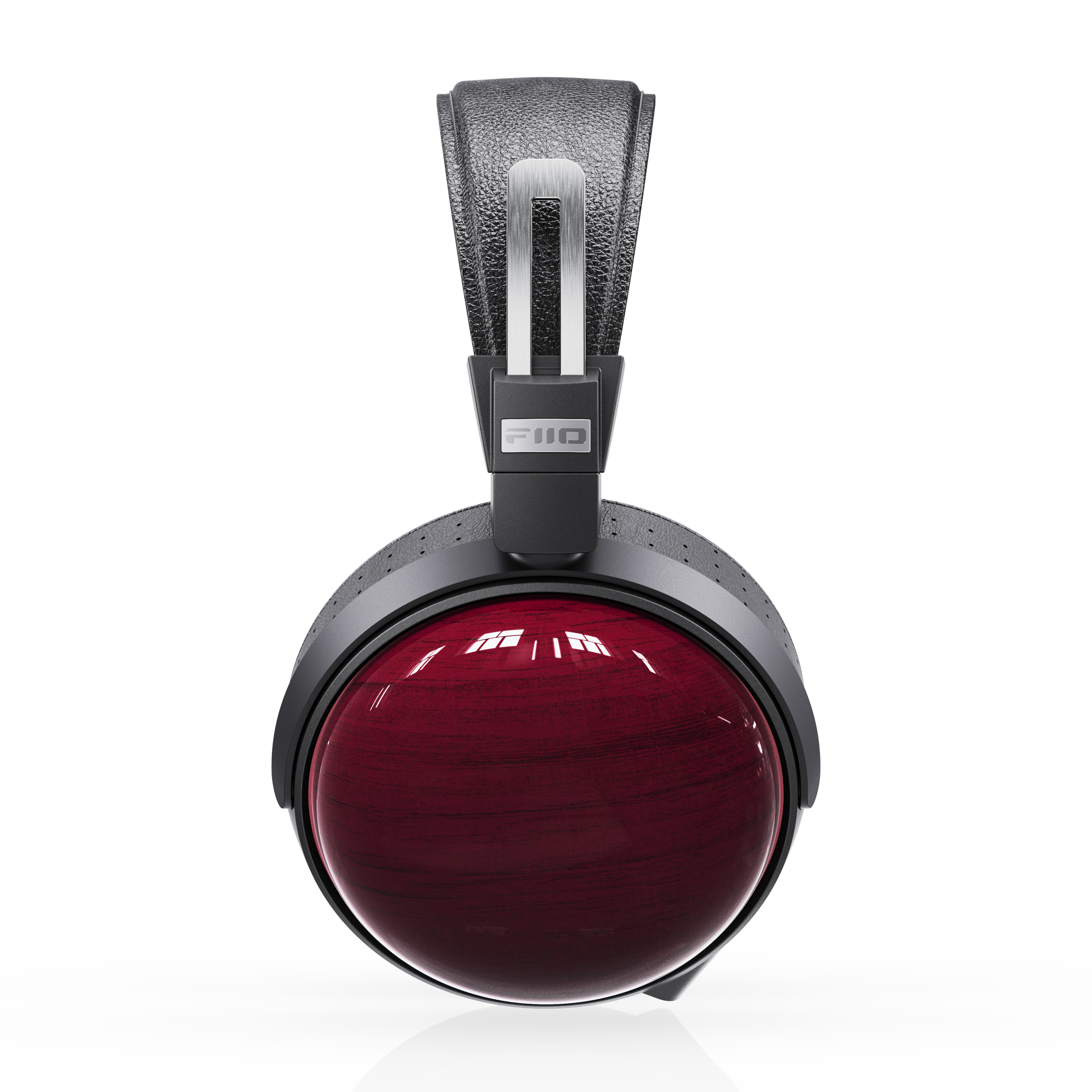

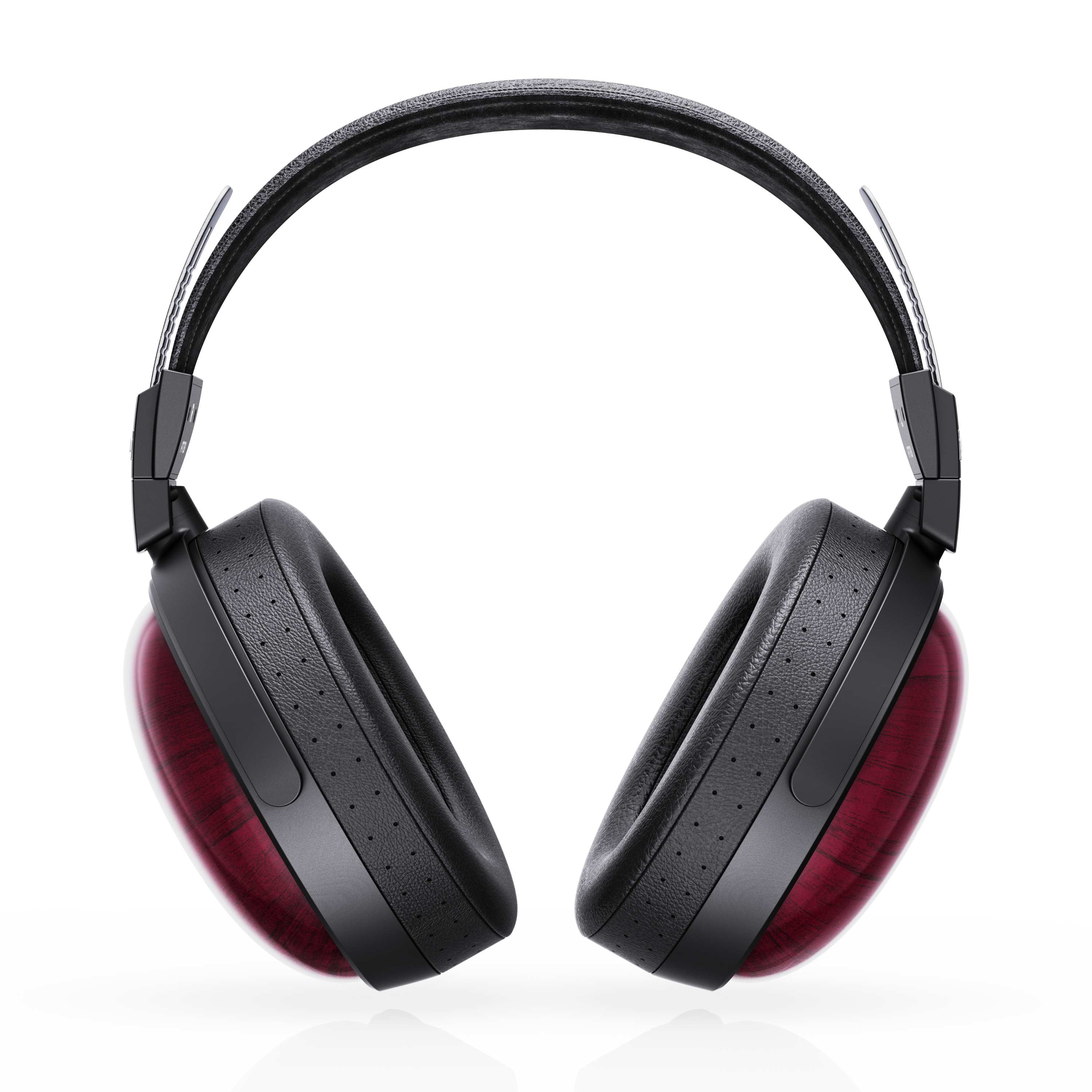

FiiO FT13 Closed-Back Dynamic Headphones - Mahogany

About: FiiO FT13 Closed-Back Dynamic Headphones - Mahogany

• Natural purpleheart wooden earcups
• Large 60mm dynamic driver
• Wool composite nano-fiber wood diaphragm
• W-shaped diaphragm
• Closed-back design
• U-shaped damping tube
• Low impedance, high-sensitivity, easy-to-drive
• Furukawa monocrystalline copper + silver-plated oxygen-free copper braided cable
• Lambskin/Suede earpads included

Naturally magical colors, Gracefully charming purple - Creation of the FT13’s Wooden Earcups

After the success of our FT1 wooden headphones, we began searching for new  types of wood to let more people experience their unique appeal.

This time, our search led us to a “purple treasure” from the ancient rainforests of South America: Purpleheart wood. This wood is not only exceptionally hard but also boasts a unique color. Over time, its light brown hue will gradually transform into an unforgettable, deep purplish-red. To create the vivid wooden earcups, a blend of nature’s magic and FIIO's meticulous craftsmanship is required.

Purpleheart has been used for instruments, furniture, and other items since the 1920s. It was nature’s gift as well as the FIIO team’s devotion that created such naturally vivid wooden earcups. After a long journey from South America, the wood arrives in Lianyungang, Jiangsu, where it is stabilized in a hot kiln and precisely cut. It is then aged for months in a dark room where it slowly “brews” its mesmerizing, wine-like color. This wood then undergoes a final, intensive process of selection, cutting, CNC carving, polishing, and lacquering before it’s ready to become the final product.

Due to its rarity in nature, purple has long been seen as a symbol of mystery, power, and individuality – with deep cultural meaning. This very color, which matures beautifully with time, is our inspiration. It allows us to perfectly express the original intention of our wooden headphone series - to blend with the natural world and evolve gracefully with time.

Natural purpleheart wooden earcups - Natural colors, Solidly hard

The headphone shells are crafted from Purpleheart wood, a species native to South America. To achieve their rich color, each piece of wood is allowed to naturally age for 90 days. Each wooden earcup features a unique grain and hue based on its individual characteristics, making every pair of headphones truly one-of--kind. The raw wood is the first precision-cut with CNC machining. To achieve a perfect finish, we then apply a high-gloss lacquer process, which involves repeatedly sanding, polishing, and filling the wood’s natural pores and imperfections until the surface is perfectly smooth. A final coat of high-gloss lacquer is then applied, allowing the wood’s unique, natural grain to shine through. With a density and hardness well beyond that of ordinary woods, Purpleheart wood is not only naturally resistant to corrosion but is also a huge contributor in minimizing resonance within the headphone earcups. This result is a faster and cleaner sound.

• *Hailing from the tropical rainforests of South America, this wood is famous for its stunning purplish-brown hue and superior strength. It is often used in high-end furniture, musical instruments, and decorative items. Its unique color is not artificially applied but is the result of natural oxidation. Prolonged exposure to light and air results in the wood’s color gradually darkening, eventually turning a deeper purplish-brown or chestnut brown.

Large 60mm dynamic driver - Enjoy deep bass and a wide soundstage

The FT13, like the FT1, features a massive 60mm dynamic driver, a size almost unheard of in its category. This larger driver generates more power and is more efficient at converting electrical signals into sound. The result is sound with less distortion, quicker transients, and deeper, more powerful bass.

Wool composite nano-fiber wood diaphragm - European wood, Honed from over 100 years of papermaking craftsmanship

The new diaphragm is made of birch wood from Europe’s cold climates. The extreme cold naturally makes the wood incredibly hard with strong fibers. This unique property allows us to precisely tune the diaphragm's resistance and stiffness during manufacturing to achieve our desired sound goals.

Using the same traditional paper-making process as used for the FT1’s diaphragm – a method that has existed for over 100 years and is still widely used by various Hi-Fi brands - the raw materials are made into wood pulp through soaking, steaming, and beating. During this process, lighter and harder carbon fiber threads are added to increase the diaphragm’s rigidity and reduce unwanted breakup, thus improving treble detail. The diaphragm is then baked and molded to a thickness of just 0.1mm.

By blending wool fibers into the paper cone, we use their natural flexibility to fine-tune the sound. This gives the final diaphragm a uniquely natural, and warm sound signature that is highly engaging as well as deeply rich and emotional.

• Over 100 years of birch wood
• Red wooden diaphragm - Materials from the same factory as Dali
• Split Vibration - Carbon Fiber
• 0.1mm Diaphram thickness

​W-shaped diaphragm - Proprietary acoustic tech, For higher efficiency

The headphone features a W-shaped diaphragm design inspired by speaker cones. Compared to the driver diaphragms typically found in headphones, this design increases the effective vibration area of the diaphragm by 25.8%. The diaphragm is made from a hard dome and a flexible surround. This rigid dome covers a larger surface area than traditional diaphragms, and since the voice coil drives it directly, there is less energy lost during vibration transfer. Compared to a more flexible material, the hard dome features reduced internal loss, resulting in higher efficiency and reduced distortion caused by driver breakup.

Closed-back design - Greater immersion through reduced noise, Enjoy pure tranquil sound

Beyond the natural isolation of its closed wooden earcups, the FT13 features an integrated system of passive noise-reduction components. This includes a standing wave dissipation chamber, specially designed rear cavity sound-absorbing cotton, and a noise-reducing U-shaped tube. Together, these components can reduce everyday ambient noise by up to 26dB. This closed design also prevents sound from leaking out, making the headphones perfect for quiet environments like offices, libraries, or dorms without disturbing others.

U-shaped damping tube - An unseen hand, Reducing resonance

Inside the FT13, a U-shaped damping tube cleverly uses the air inside the headphones to tune the sound. This tube's design has been carefully optimized to lower the cavity’s resonant frequency, resulting in deeper and higher-quality bass.

Low impedance, high sensitivity, easy-to-drive - Your entry-level headphones

The FT13’s impedance, sensitivity, and frequency response make it an ideal choice for listeners dipping their toes into the world of personal audio gear. It’s a perfect match for mainstream, non-audiophile devices like smartphones, tablets, and PCs. Experience high-fidelity,

• Impedance - 32Ω
• Frequency range - 7Hz-40KHz
• Sensitivity
  • 113dB/Vrms@1KHz
  • 98dB/mW@1KHz

Furukawa monocrystalline copper + silver-plated oxygen-free copper - Upgraded cable, Upgraded sound

This cable is crafted with an 8-strand braided design, housing 1,000 wire conductors in total. It’s a hybrid of 500 secondary smelted Furukawa single-crystal copper wire conductors and 500 oxygen-free silver-plated copper wire conductors, with each polarity at 17AWG. This combination of premium metals and advanced processing techniques is what allows the cable to deliver truly excellent sound quality.

• Furukawa monocrystalline copper: Increases the richness and thickness of the midrange, as well as improves bass quality, making the mid and low frequencies sound full and emotional.
• Silver-plated oxygen-free copper: The silver-plating helps to enhance the copper's conductivity and high-frequency transmission capability, thus improving sound transparency with greater detail and optimized harmonics, as well as expanded soundstage.

Lambskin/Suede earpads - Velvety texture, Reliably durable

Included are two types of ear pads, both featuring a skin-friendly, breathable, and durable outer material. Inside the earpads are low-density, slow-rebound memory foam that conforms to the shape of the ear. Compared to the artificial leather ear pads typically found on headphones, these offer an upgrade in both comfort and durability.

• Lambskin earpads: The premium natural lambskin earpads feature a velvety-smooth exterior that is also breathable, sweat-resistant, and easy to clean. In terms of sound, these earpads deliver detailed treble, a clear and clean midrange, and quick bass.
• Suede earpads: Suede earpads The suede earpads feature a frosted texture, and are durable and flexible, all while remaining cool and breathable. In terms of sound, these earpads enhance the bass, add richness to vocals, and heighten the sense of atmosphere.

Sound moves according to you 3-axis adaptive headband

The FT13 includes four detachable audio plugs, allowing one cable to work with various kinds of audio sources.

• 3.5mm interchangeable plug: Compatible with mainstream electronic devices
• 4.4mm interchangeable plug: Powerful drive, enhanced sound quality
• 3.5mm to 6.35mm adapter: For electronic instruments, quiet practice sessions
• 4.4mm to XLR-4 balanced adapter: Compatible with more professional desktop devices

Large CCAW voice coil - Lightweight and broad, Powerful

The FT13 features a Japanese-imported CCAW voice coil with an ultra-thin 0.035mm wire and a lightweight KSV former. These components dramatically reduce the moving mass of the diaphragm, resulting in faster sound response and reduced unnecessary reverberations. The voice coil has a diameter of 25mm. In a fixed magnetic field and with a constant current, a larger coil diameter means a longer voice coil wire. Thus, a longer copper wire results in greater driving force and higher efficiency, leading to a richer midrange and quicker transients.

Adjustable magnesium alloy headband - Advanced materials, Upgraded comfort

The FT13 brings a major upgrade to the headband’s comfort, with comprehensive improvements to its materials, aesthetics, and ergonomics. The outer U-shaped frame is now crafted from a strong and lightweight magnesium alloy that blends seamlessly with the headphones’ design. The ball-bearing slider uses a premium design found in high-end headphones, offering a silky-smooth adjustment with clear feedback, while the pivots and connections are more robust than ever. The part of the headband in contact with your head has been upgraded to a soft, durable lambskin that is both more durable and breathable than the artificial leather typically used, making it more comfortable for extended listening sessions.

• Magnesium alloy die-casting: Lighter and stronger
• Lambskin material: Durable and skin-friendly
• Ball-bearing slider design: Upgraded experience
• Silver laser-engraved LOGO: Sharp and detailed finish

Three-axis swivel - Swivel however you want, Adjust freely

After extensive ergonomic testing, we have implemented a three-axis adaptive swivel that continues the tradition of excellent ergonomics on the FT series. This design not only ensures the headphones comfortably adapt to various head sizes and shapes, but also allows you to adjust them to ensure a perfect fit without sound leakage.

• 38mm Sliding Length
• 45º Vertical Rotation Angle
• 35º Horizontal Rotation Angle

Angled driver design - Reduces standing waves For clearer sound

The FIIO FT1 adopts the commonly used dual 3.5mm TRS headphone connectors, allowing you to easily change and upgrade to another headphone cable.

• Tilted driver unit: Helps deliver an ideal and focused soundstage
• Conical deflector design: Helps deliver an ideal and focused soundstage

Hi-Res Audio certified

The certification is a testament to not only how the headphones meet international standards, but also to our continued pursuit of better sound quality.

Yaoli linen storage bag - Stylish and dust-proof, Giving you peace of mind

A premium Yaoli linen storage bag is included with the earphones, to further enhance the ownership experience. With materials and craftsmanship on par with premium French brands, its exquisite quality and excellent texture provide dedicated protection for your cherished device.

3 Major Upgrades

• Upgraded Sound
  • Compared to the FT1's spruce wood diaphragm, the FT13 features a birch wood diaphragm that is several times harder to improve diaphragm precision. Carbon fiber has also been added to increase the diaphragm's rigidity and reduce unwanted driver breakup, resulting in a more resolving treble compared to the FT1.
• Upgraded Cable
  • Compared to the FT1's silver-plated oxygen-free copper cable, the FT13' s secondary refined Furukawa monocrystalline copper and high-purity oxygen-free silver-plated copper cable is an upgrade in every sense. The materials used, number of wires, and even wire diameter have all been upgraded, leading to a comprehensive improvement across the low, mid, and high frequencies.
• Upgraded Comfort
  • Compared to the FT1, the FT13 features comprehensive ergonomic improvements. Both the headband and ear pads have been upgraded to more breathable materials that are also wear-resistant and less likely to fiake. The headband uses a lighter magnesium-aluminum alloy, and the feel and design of the ball-bearing slider have been improved.

Specifications

• Headphone type: Closed-back dynamic headphones
• Frequency response: 7Hz-40kHz
• Driver: 60mm
• Dynamic Impedance: 32Ω
• Sensitivity: 98dB/mW@1kHz 113dB/Vrms@1kHz
• Weight: About 356g (excluding cable)
• Earcup pressure: 4.2N±0.3N
• Cable material: Secondary refined Furukawa monocrystalline copper + silver￾plated oxygen-free copper
• Cable length: About 1.5m
• Cable headphone connector: Dual 3.5mm (TS)
• Audio plug: 3.5mm/4.4mm
• Earcup material: Purpleheart wood
• Earcup color: Mahogany

What's in the Box

• 1x FT13 headphones
• 1x Lambskin earpads (pre-installed on headphones)
• 1x Suede earpads
• 1x 4.4mm balanced detachable plug
• 1x 4.4mm female to XLR-4 male adapter
• 1x 3.5mm to 6.35mm adapter
• 1x 3.5mm single-ended detachable plug
• 1x Storage pouch
• 1x Cleaning cloth
• 1x Storage bag
• 1x Quick start guide
