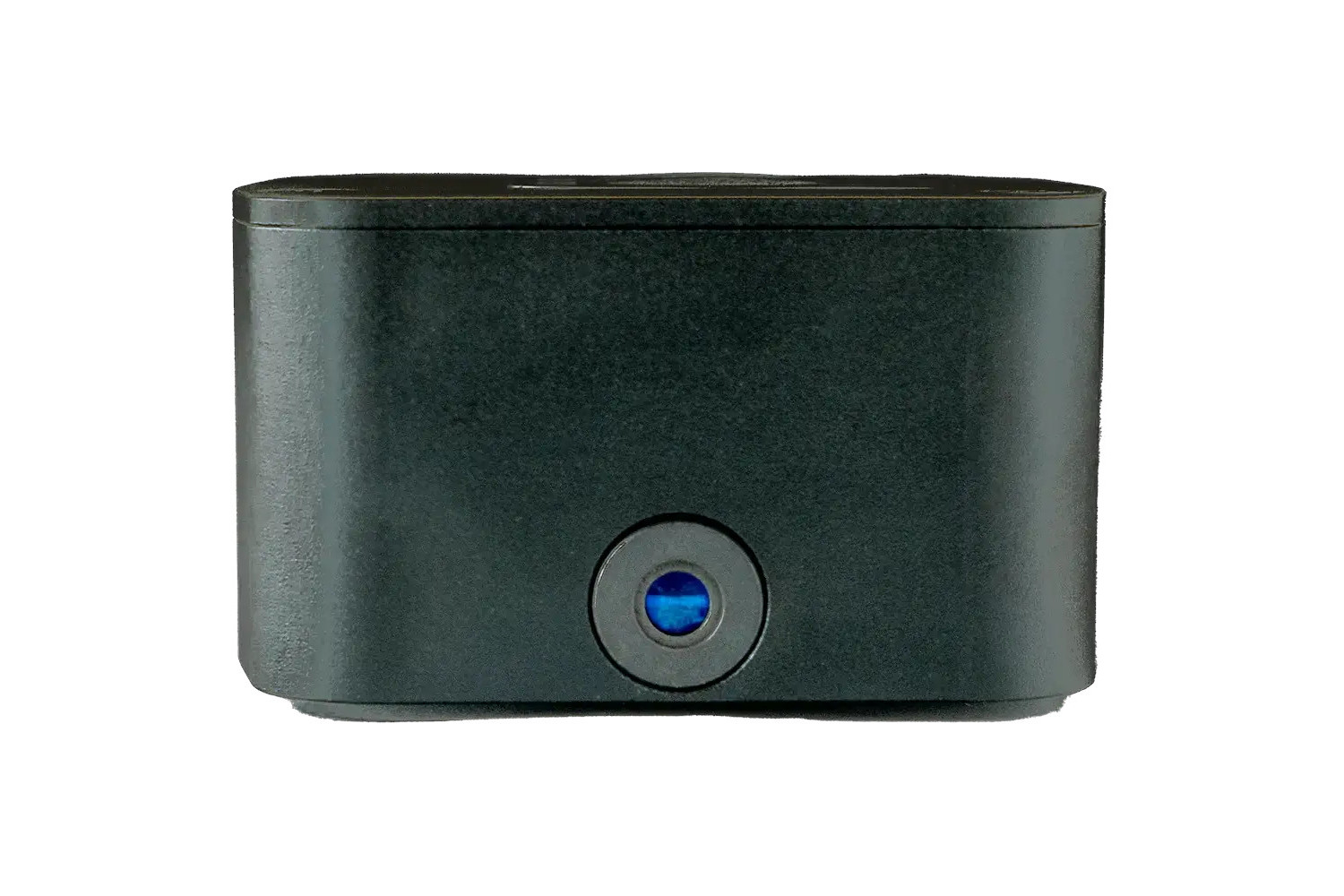

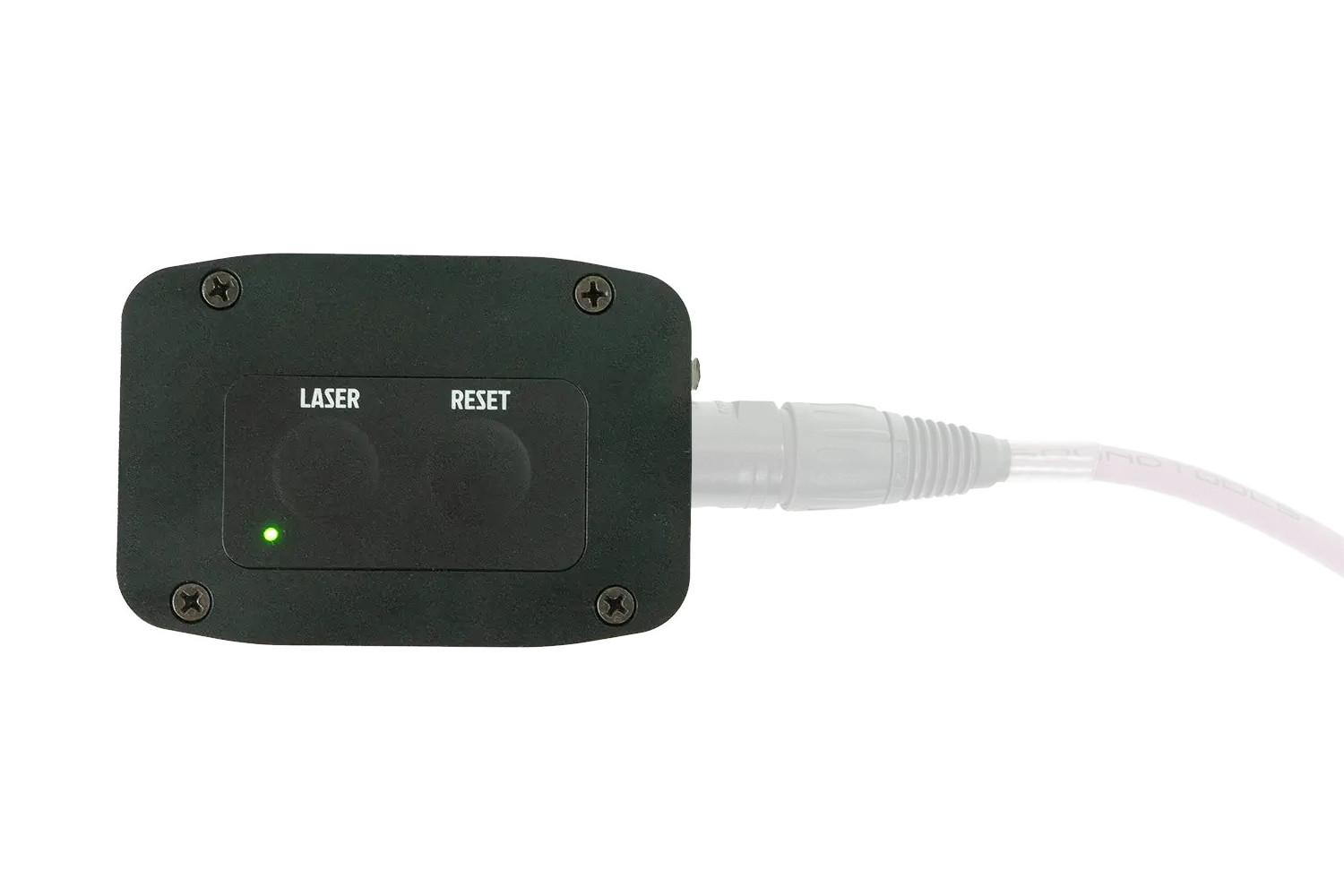

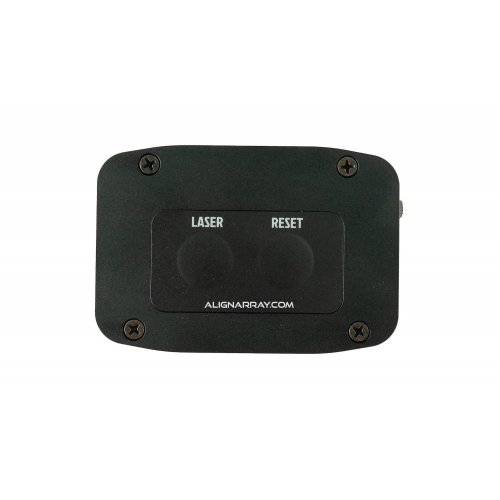

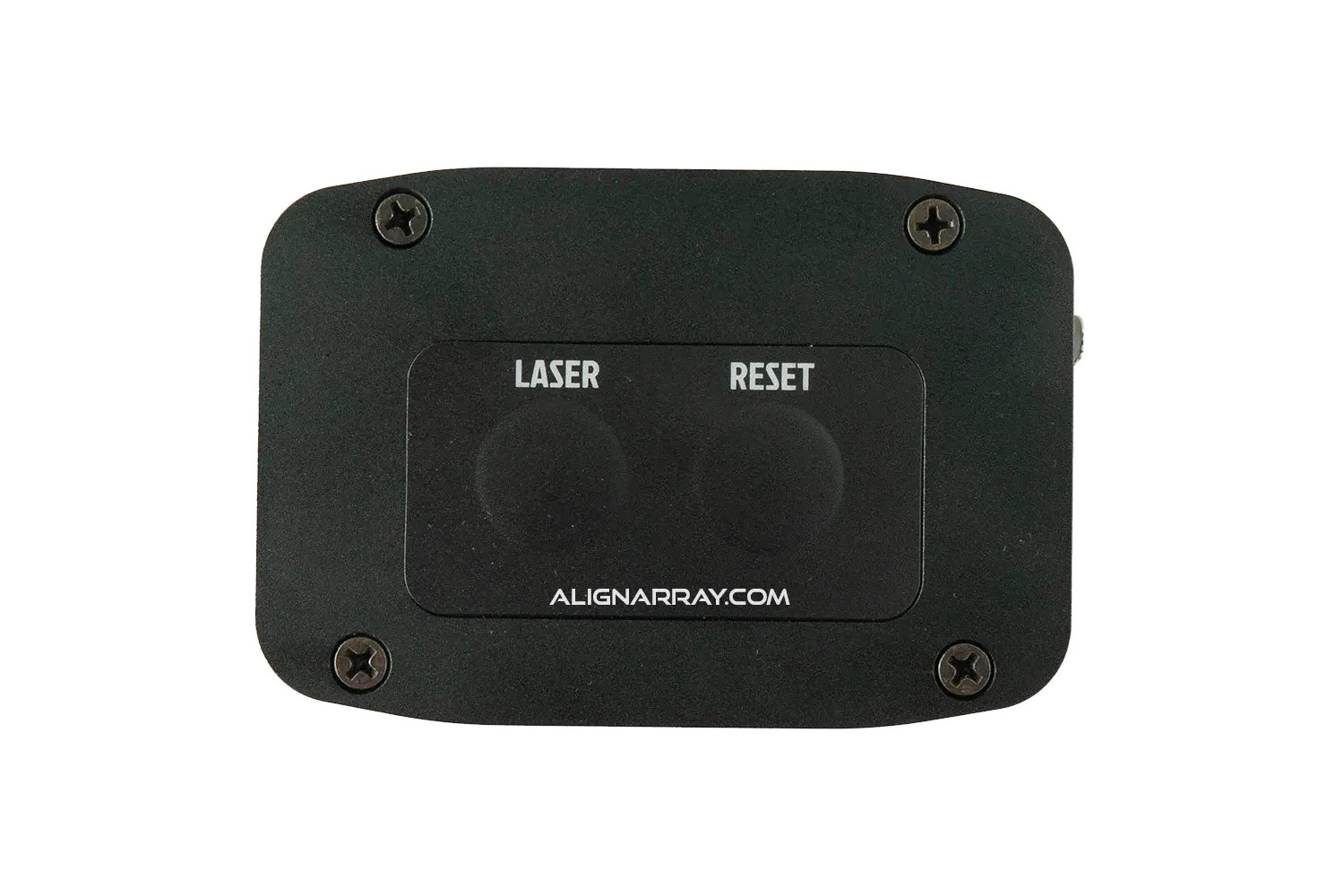

Align Array 3 Laser/Inclinometer
Model: AL3
About: Align Array 3 Laser/Inclinometer
The Align Array 3 is a network-controllable laser and inclinometer that attaches to nearly any line array speaker system. It is powered over Ethernet (PoE), providing both power and local network access. Each unit can be accessed via a user-defined IP address, making it easy to read inclination data through a web browser. The built-in webpage allows you to adjust settings like laser blink speed and timeout. Further customization, including setting the unit’s IP address, hostname, and admin password, can be done via the Admin Page, where firmware updates can also be applied.
HIGHLY VISIBLE LASER INCLINOMETER
The Align Array 3 is Powered Over Ethernet (PoE), providing operational power as well as allowing for local network access. Each unit is accessible via a user defined IP address making reading the Align Array 3 inclination data as simple as opening a web browser. By using the built-in webpage to access your Align Array 3, you can adjust settings like laser blink speed and laser timeout. The unit can be further customized by accessing the Admin Page via the Management Functions option. The unit’s IP address, Hostname, and Admin Password can all be set from the Admin Page. Additionally, future updates to the device firmware can also be applied from the Admin Page when released.
CONTROLLABLE VIA WEB BROWSER
- Innovative network design (no additional hardware needed for network access)
- Power over Ethernet or Power from Reader 3
- User defined IP addressable
- Accessible webpage via computer or smart device
- Ultra-high accuracy laser
- Laser blink function offers improved laser observation
- Laser timeout function for increased laser life
Specifications

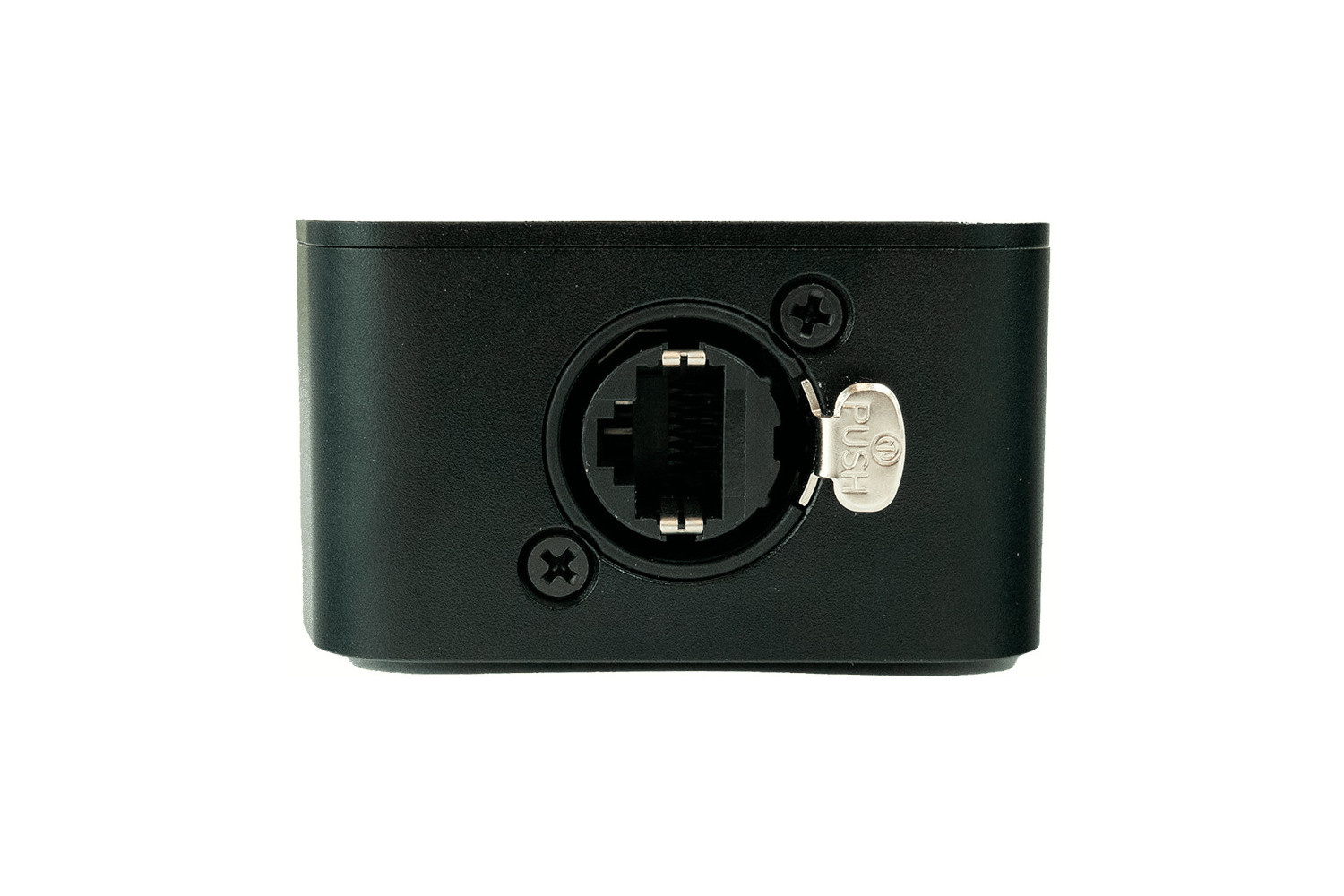

- Powered over ethernet
- Controllable from a web interface (via local private network)

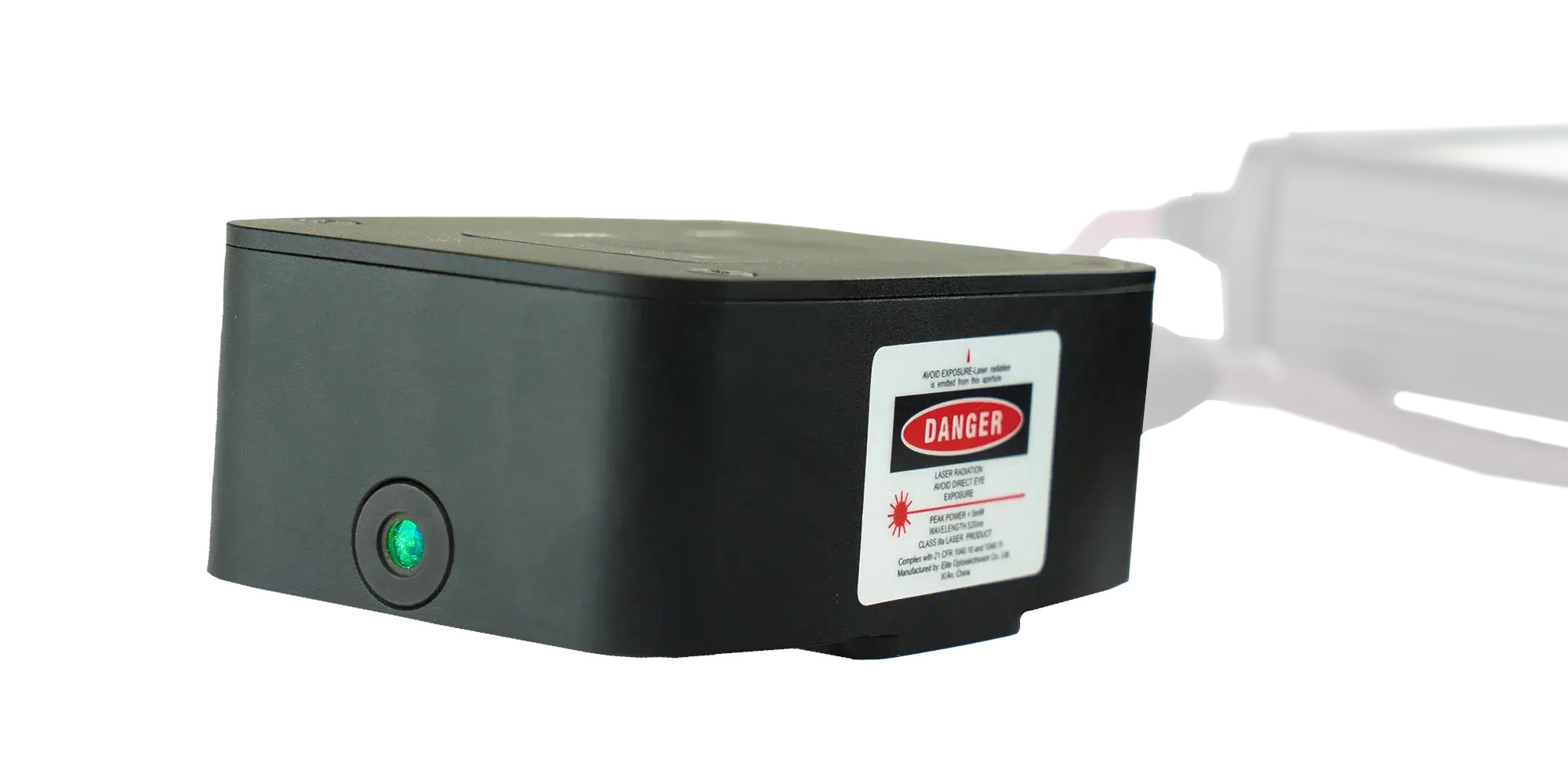

- Green 5mw laser peak power for max visibility in lit environments
