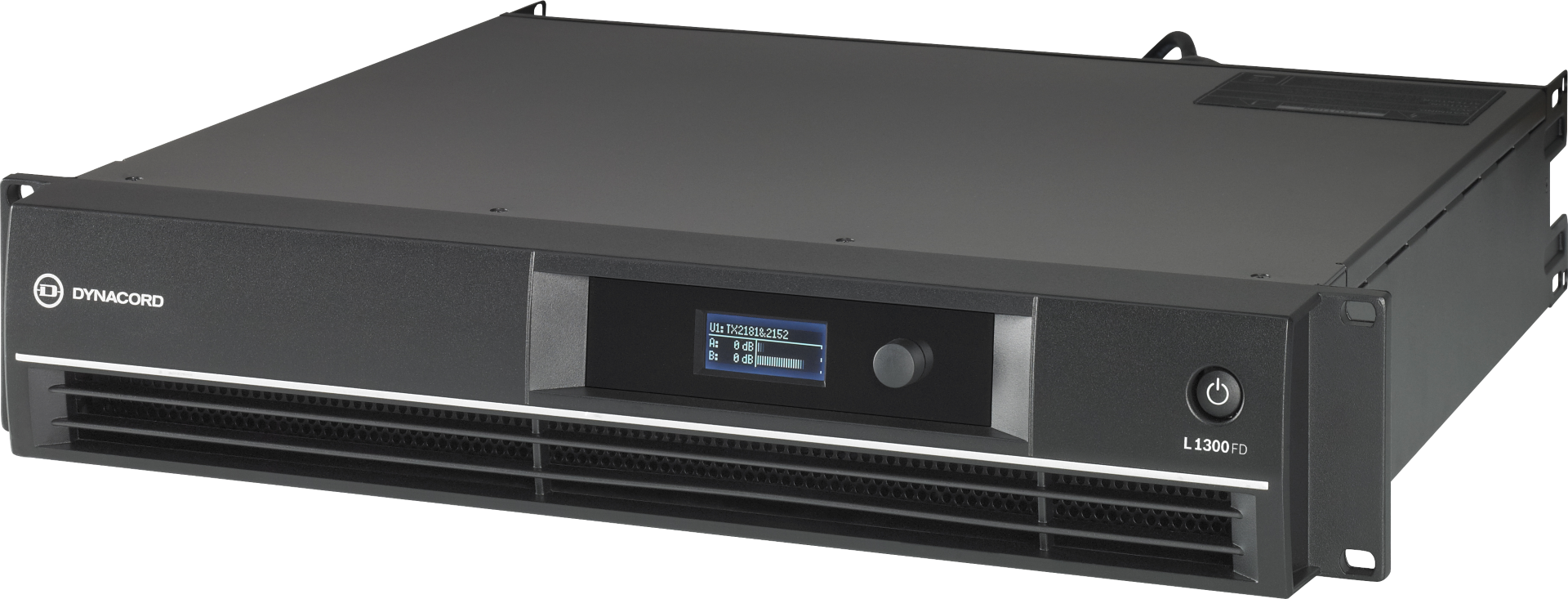

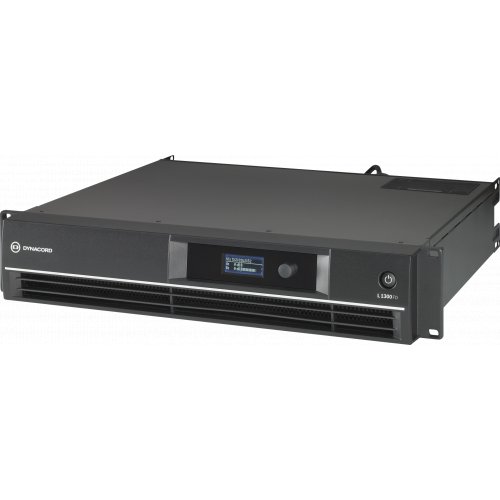

Dynacord L1300FD 2x650W DSP Power Amplifier

Model: L1300FD-US

Dynacord L1300FD 2x650W DSP Power Amplifier
Dynacord L1300FD 2x650W DSP Power Amplifier
  • Free Shipping!
  • Usually Ships in 7-10 Days
  • Not yet reviewed

More models to choose from:

L1800FD 2x950W$949.00
L1300FD 2x650W$749.00
L3600FD 2x1800W$1,449.00
L2800FD 2x1400W$1,199.00



About: Dynacord L1300FD 2x650W DSP Power Amplifier

Dynacord's L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performance centers, and sports venues.

The L Series power amplifiers comprise a powerful linear amp design with a best-in-class, tour-grade feature set that brings real professional performance to a new, more accessible price point. Like all Dynacord amplifiers, the L series offers high-quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions.

An onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group. L Series are also equipped with advanced FIR-Drive, a premium feature normally reserved for the highest quality tour-grade DSPs. It optimizes original factory loudspeaker settings, yielding a level of performance unheard of at this price point.

Features:

  • Rock solid amplifier technology engineered in Germany
  • Extremely powerful, proven audio performance
  • Engineered for constant stability at 2 ohms
  • Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
  • High-performance bulletproof voltage handling
  • On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel
  • Intuitive, powerful control software makes configuration and real time control easy — up to 16 amp channels can be controlled and monitored simultaneously
  • User profiles can be setup to ensure security of the system
  • Advanced FIR drive to optimize original factory loudspeaker settings yielding a level of unparalleled performance
  • True channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group

L1300FD Specifications

  • Load Impedance: 2Ω 2.6Ω 4Ω 8Ω
  • Maximum Output Power, SIngle Channel: 2Ω=1100W; 2.6Ω =950W; 4Ω=660W; 8Ω=350W
  • Maximum Output Power, Dual Channel: 2Ω=1000W; 2.6Ω =850W; 4Ω=600W; 8Ω=320W
  • Maximum Output Power, Bridged: 4Ω=2000W; 8Ω=1200W
  • Maximum RMS Voltage Swing, THD = 1%, 1kHz: 55.3 V
  • Voltage Gain ref.1kHz: 32.0dB
  • IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
  • DIM 30: < 0.05% (3.15 kHz, 15 kHz)
  • Maximum Input Level: +21 dBu
  • Crosstalk: < -80dB (ref. 1 kHz, at 100 W/4 Ω)
  • Frequency Response: 10 Hz to 21 kHz (±1 dB)
  • Input Impedance, active balanced: 20kΩ
  • Signal-to-Noise Ratio (A-weighted): >104dB
  • Output Noise , A-weighted: < -68 dBu
  • Output Stage Topology Class: AB
  • Where to buy: AVShop.ca
  • Power Requirement: 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
  • Power Consumption: 550 W (⅛ Maximum Output Power @4Ω)
  • Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
  • Cooling: Front-to-rear, 3-stage-fans
  • Safety Class: I
  • Available Color: Black
  • Height: 88mm (3.46")
  • Width: 483mm (19.02")
  • Depth: 462.4mm (18.2")
  • Weight Net: 12.9kg (28.44 lbs)
  • Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
  • Mains Fuse: 120 V/100 V: T20AH
  • Operating Temperature Range: +5°C to +40°C (40°F to +105°F)
  • Total Harmonic Distortion: < 0.05% (at 450 W/4 Ω MBW = 80 kHz, 1 kHz)

UPC: 800549797719

AVShop.ca is a Canadian authorized Dynacord retailer.
