Studio Technologies DPL-KIT-01 Party-Line Intercom Kit 1
Model: DPL-KIT-01
About: Studio Technologies DPL-KIT-01 Party-Line Intercom Kit 1

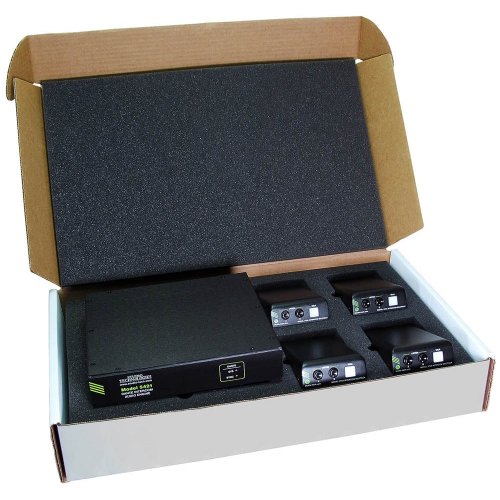

Party-Line Intercom Kit 1 consists on one Model 5421 Dante Intercom Audio Engine and four Model 372A Intercom Beltpack units. Packed in a single carton, this kit is a simple and cost-effect way to implement a basic single-channel party-line (PL) intercom system. Requires Ethernet local area network (LAN) with Power-over-Ethernet (PoE) ports and headsets to enable (not included).
Model 5421 Dante Intercom Audio Engine
The Model 5421 Dante Intercom Audio Engine is a high-performance, cost-effective, and flexible solution for creating party-line (PL) intercom circuits when used with Dante®-compatible products. It's directly compatible with the Studio Technologies' range of 1-, 2-, and 4-channel intercom beltpacks. The Model 5421 can also prove valuable in other general-audio and broadcast-related mixing and interfacing applications. The unit is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, as well as language interpretation and entertainment applications.
Key Features
- Dante audio-over-IP technology with AES67 and DDM support
- Creates multiple virtual party-line (PL) intercom circuits
- Special audio functions including summing and pass-thru
- Auto Mix for enhanced audio performance
- 16-channel audio engine
- PoE powered, Gigabit Ethernet interface
- Configured using STcontroller application
- Tabletop, portable, or optional rack-mount installation

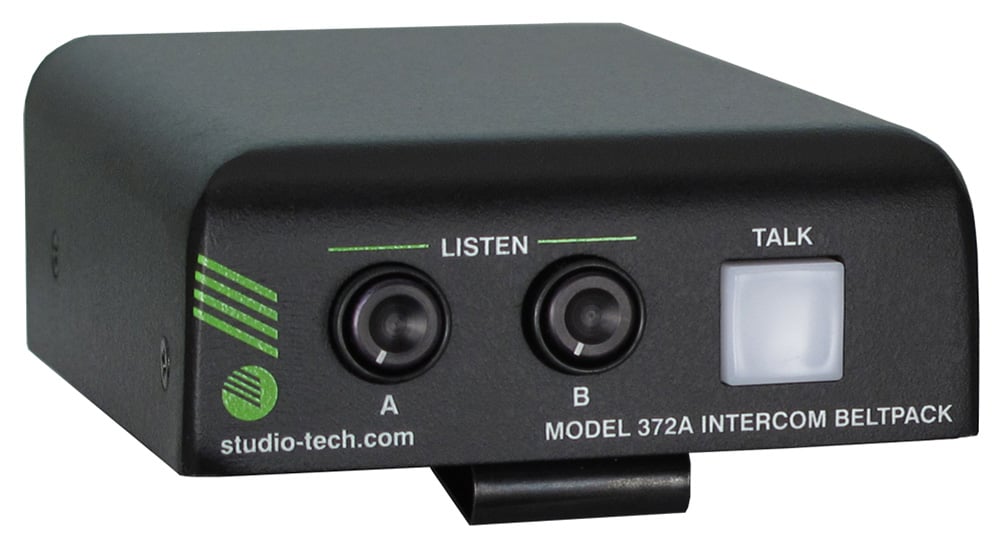

Model 372A Intercom Beltpack
The Model 372A Intercom Beltpack is a highly compact user-worn device that combines a single channel of talk and two channels of listen. The unit begins with the features offered by traditional analog party-line (PL) intercom user devices and adds a range of new capabilities, along with the advanced performance and flexibility that Dante® audio-over-Ethernet provides. Over a standard IP network, multiple Model 372A and other compatible Studio Technologies' beltpack units can be used to create party-line intercom applications with help from an external Dante-enabled audio matrix such as the Studio Technologies' Model 5422 Dante Intercom Audio Engine. Alternately, Model 372A units can be used "point-to-point" or interfaced with Dante-compatible matrix intercom systems.
Key Features
- Dante audio-over-Ethernet technology
- One talk and two listen channels
- Supports dynamic and electret microphones
- 5-pin female XLR headset connector
- 3.5 mm 4-conductor TRRS CTIA headset connector
- Call receive and display function
- Excellent audio quality
- Uses STcontroller for configuration
- AES67 and Dante Domain Manager (DDM) support
- Power-over-Ethernet (PoE) powered
