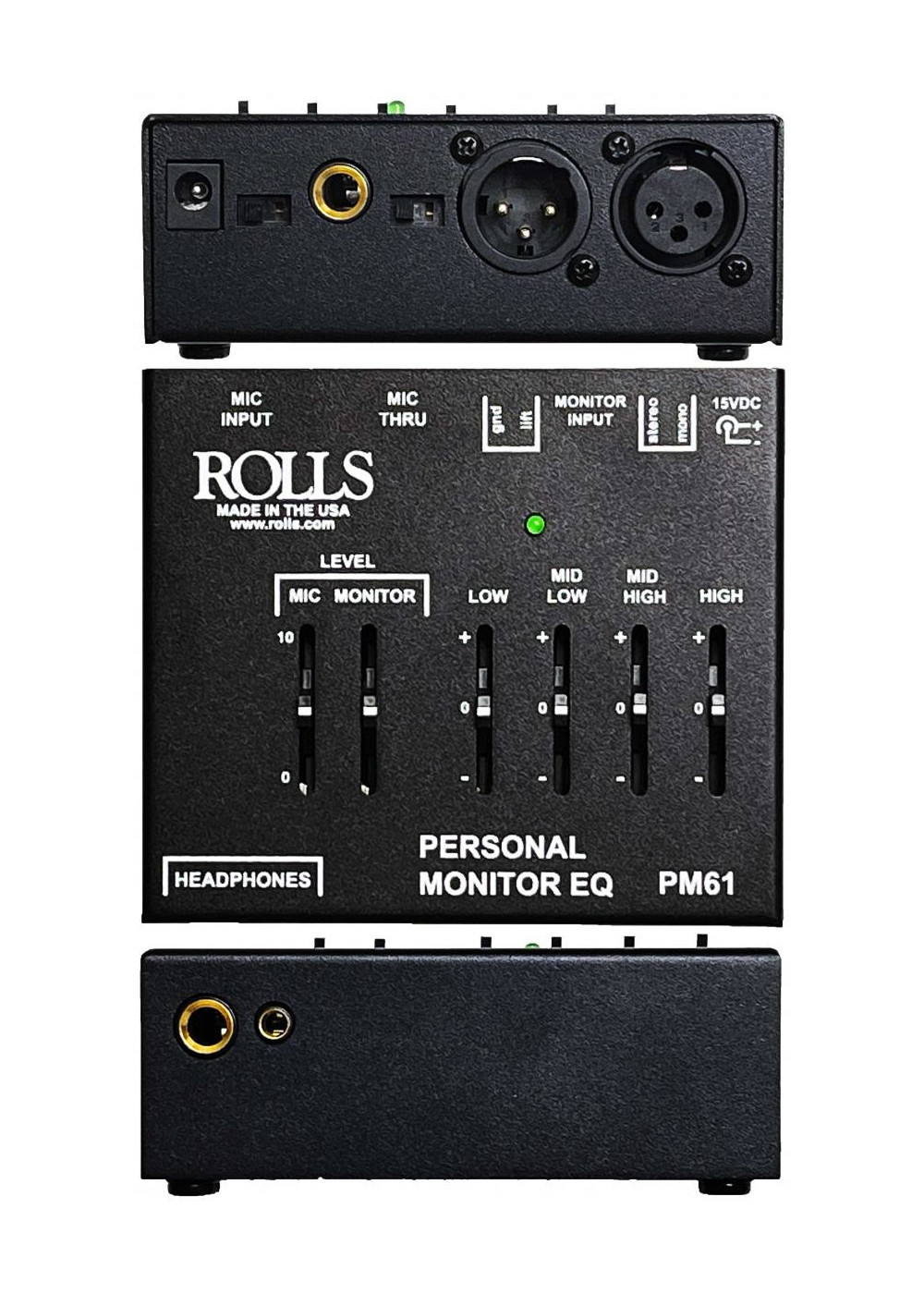

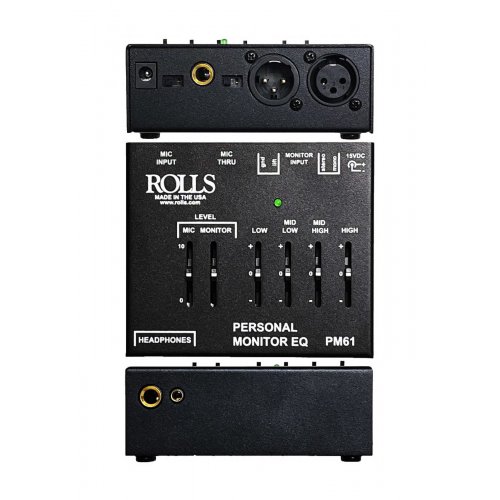

Rolls PM61 Personal Monitor EQ
Model: PM61
About: Rolls PM61 Personal Monitor EQ
Meet the PM61, the ultimate solution for seamless audio mixing and precise monitoring with a four band EQ. This versatile device enables you to effortlessly blend a microphone XLR signal with a stereo or mono 1/4” input, delivering crystal-clear audio directly to your headphones.
The PM61 is equipped with essential features such as a monitor level control, mic/XLR level control, mic/line pass-through XLR jack, two headphone output jacks, and a stereo or mono TRS/TS 1/4" monitor input jack. These capabilities make it an indispensable tool for a diverse range of users—from drummers syncing with a click track to choir singers monitoring their performances, podcasters refining their recordings, and much more.
Whether you′re a musician, podcaster, or recording professional, the PM61 is designed to enhance your workflow with unmatched precision.
Discover the PM61—your go-to companion for professional-grade audio mixing and monitoring with EQ.
Applications
- Studio
- Live
- Broadcast
- Anywhere you need to mix a mic with a stereo or mono signal.
Specifications
- Gain
- 10 dB 1/4”
- 48 dB XLR “MIC”
- Input Impedance
- 600 Ohms XLR
- 22K 1/4”
- Output Impedance: 10 Ohms
- Frequency Response: 3Hz to 100kHz
- THD: .05% @ 1KHz
- S/N Ratio: 90 dB
- PWR: 9-15 VDC
- Indicator: 1 Power LED
- Size: 4" x 3.5” x 1.5"
- Weight: 0.8 lbs
What's in the Box
- 1x PM61
- 1x 15V power supply (PN PS27s)
- 1x Owners manual
UPC: 675889061000
