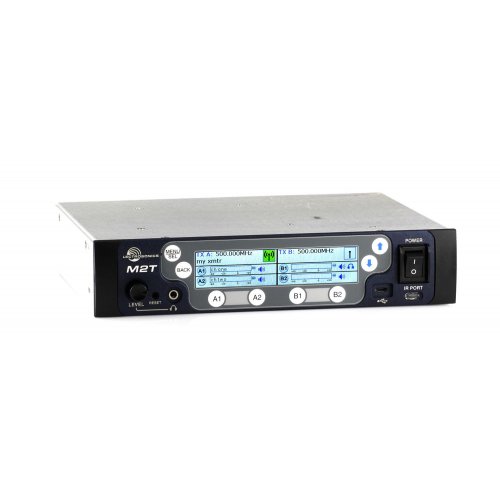

Lectrosonics M2T IEM/IFB Transmitter
Model: M2T
About: Lectrosonics M2T IEM/IFB Transmitter
The M2T half-rack transmitter houses two stereo transmitters to provide two stereo audio channels, and for up to four mono audio channels in a single rack space. The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors are full-size XLR/TRS combo types for balanced line-level analog signals while the input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. A Dante™ Ultimo™ interface via dual RJ45 connectors accepts Dante networked audio inputs and can daisy chain the digital stream to additional units via CAT6 cables. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designer™ software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.
- IEM (Wireless Monitor) with digital RF transmission
- 2 independent stereo audio transmissions per 1/2 RV enclosure
- USB port for firmware updates
- Fully Dante™ compatible
- IR (infrared) port for fast setup
- Up to 50 mW per Rf carrier
- All metal housing
- Compatible with Wireless Designer™ Software
Included Accessories
- 21926 Cable USB
- 25990 Bracket Rear Tie M2T/M4T
- 25991 Bracket Front Tie M2T/M4T
- 27076 Rack Flange Bracket
- 27082 Rack Handle RMP2T
- 4 - 28885 SCR10 Cap Screw
- 4 - 35664 Rubber Foot (Large)
- 35800 Hex L Key Wrench
- 35959 Hole Plug
- 2 - A500RA20 Antenna
- DCR15/4AU DC Power Supply
- Instruction Manual
