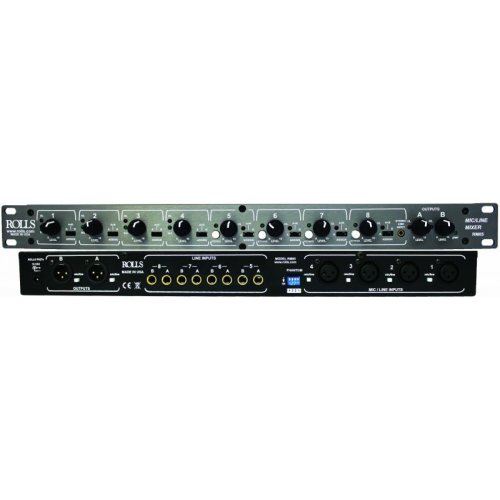

Rolls RM85 Two Zone Mic/Line Mixer
Model: RM85
About: Rolls RM85 Two Zone Mic/Line Mixer

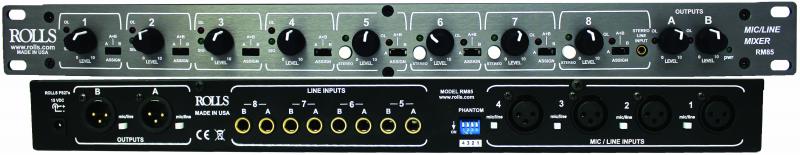

The RM85 is a 8 channel two zone mixer. Channels 1-4 will accommodate XLR microphone or XLR line level inputs. Channels 5-8 are 1/4" inputs. All 8 channels can be sent to the two XLR outputs in three configurations; A, B or both A+B. The separate A and B outputs are XLR and either can be selected to be Line or Microphone level output. Channel 8 also has a stereo 3.5mm (1/8") input on the front of the RM85.
RM85 Two Zone Mic/Line Mixer
- Four XLR balanced inputs with +48 V phantom power
- Four stereo Source inputs, including a front panel 3.5mm input
- Master Output Level control for each channel
- Low noise, efficient operation
- All in a single rack space
Specifications
- Input Impedance: Mic: 600 Ohms XLR balanced Line: 22K Ohms RCA
- Max Input Level: Mic: -14 dBV Mic level Line: +24 dBV
- Total input Connectors: 4: XLR, 4: Stereo 1/4", 1: 3.5mm
- Phantom Power: +48 VDC
- RCA Output Level: +17 dBV max (impedance 1K Ohm)
- Max Gain: Mic: 70 dB Source: 30 dB
- Noise Floor: - 80 dB, THD: <.025%
- S/N Ratio: 96 dB
- Voltage Gain: 32 dB
- Nominal Supply Voltage: 15 VDC
- Bandwidth: 20Hz - 25 kHz
- Size: 19” x 1.75” x 4” (48.3 x 4.5 x 10 cm)
- Weight: 7 lbs. (2.3 kg)
- Power supply: Rolls PS27s power supply 15 VDC 500 mA TIP NEGATIVE.
UPC: 675889008517
Reviews: Rolls RM85 Two Zone Mic/Line Mixer
Warranty: Rolls RM85 Two Zone Mic/Line Mixer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Rolls Accessories
Limited 1-year warranty parts and labor.
Rolls Rack Units: (Mixers, Amplifiers, Processors)
Limited 1-year warranty parts and labor.
Rolls Signal Sources
90 Days warranty parts and labor.
RFX Units
Limited 3-year warranty parts and labor.
Bellari
Limited 1-year warranty parts and labor.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Rolls do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
