Sony UWP-D Wireless Handheld Microphone Package (Freq.25UC: 536 to 608MHz)

About: Sony UWP-D Wireless Handheld Microphone Package (Freq.25UC: 536 to 608MHz)

The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.

Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

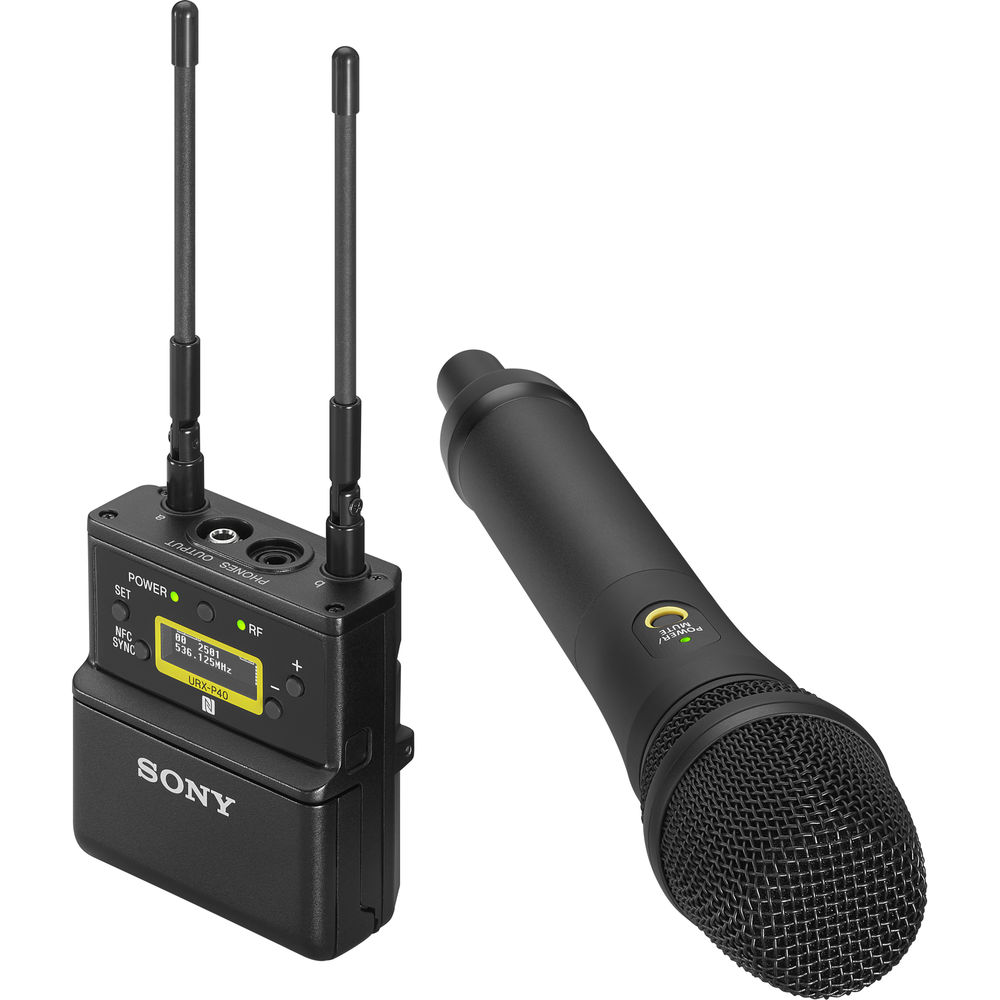

The UWP-D22 handheld wireless microphone package includes the UTX-M40 handheld microphone and URX-P40 receiver, plus accessories.

• High quality sound with Sony digital audio processing
• NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-M40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)
• True double tuner diversity for stable signal reception
• Interchangeable head for wide choice of microphone capsules
• Auto gain mode volume control
• +15 dB gain volume boost mode for off-mic audio
• Channel memory for fast switching between receiver frequencies for two transmitter operation
• Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
• Headphone output for monitoring
• Monitor mode for using a receiver as an ear monitor
• Variable muting function
• Compatibility with Sony WL-800/UWP/UWP-D series
• Receiver output level control
• High visibility OLED display, ideal for indoor/outdoor use
• USB connector for power supply (URX-P40 only)
• Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)*
  • * For details on cameras that support this function, visit the Sony website.

Features

Digital audio processing for high quality sound

• Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.

Seamless camcorder integration

• Integration with compatible* Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status and transmitter low battery alert in the camera’s viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronised power on/off between camera and receiver for more effective power management.
  • * See details on SMAD-P5 for compatibility information.

Fast, easy frequency setting

• Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.

Light, compact design

• Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver’s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras

Specifications

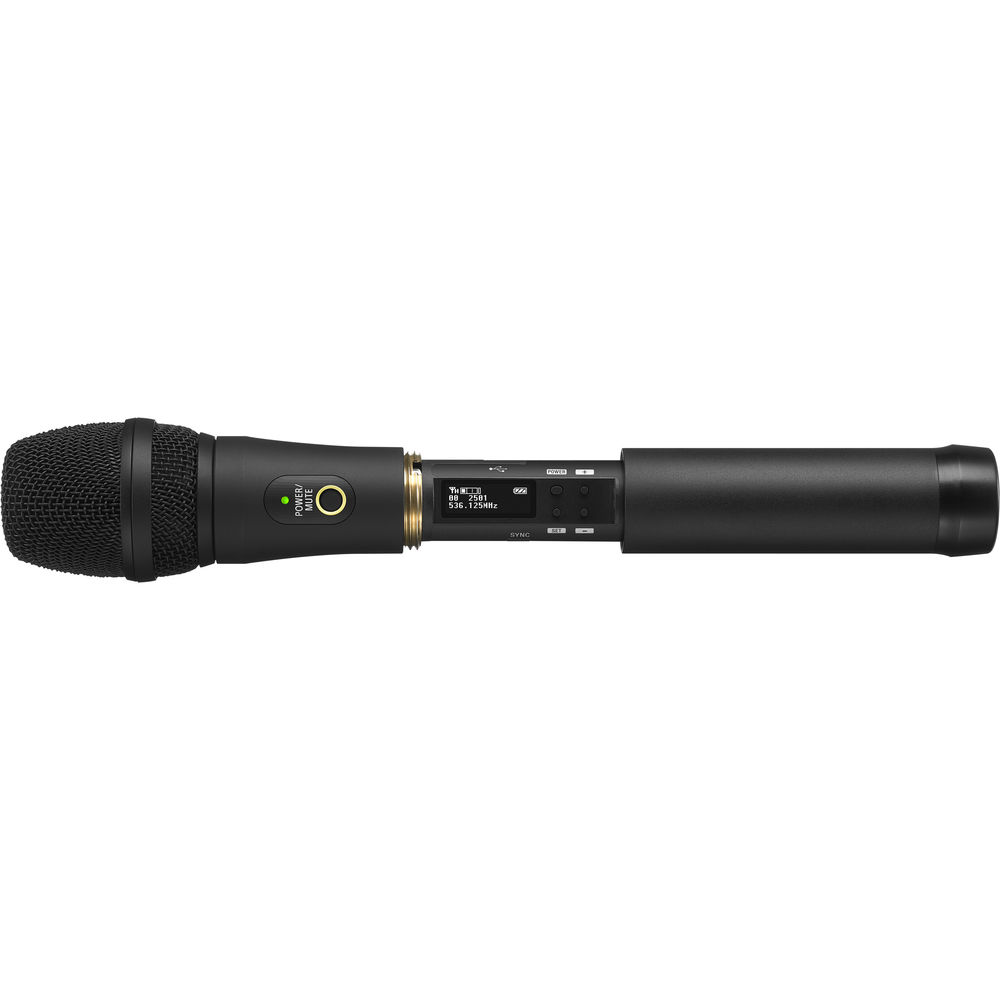

• ​UTX-M40 Transmitter
  • Oscillator Type -  Crystal-controlled PLL synthesizer
  • Antenna Type -  1/4 λ wavelength wire antenna
  • Carrier Frequencies -  25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
  • RF Output Power -  30 mW/5 mW selectable
  • Capsule Type -  Dynamic
  • Directivity -  Uni-directional
  • Reference Audio Input level -  –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
  • Maximum Audio Input Level -  151 dB SPL (21 dB attenuation, using supplied microphone unit)
  • Audio Attenuator Adjustment Range -  0 dB to 21 dB (3 dB steps)
  • Frequency Response -  70 Hz to 18 kHz (Typical)
  • Signal-to-Noise Ratio
    • 60 dB (–60 dBV, 1 kHz sine wave input)
    • 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
    • 96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
  • Distortion -  0.9% or less (–60 dBV, 1 kHz input)
  • Audio Delay -  Approx. 0.35 ms
  • Tone Signal Frequency
    • In UWP-D compander mode: 32.382 kHz
    • In UWP compander mode: 32 kHz
    • In WL800 compander mode: 32.768 kHz
  • Display -  OLED
  • Power Requirements
    • DC 3.0 V (two LR6/AA size alkaline batteries)
    • DC 5.0 V (supplied from USB Type-C connector)
  • Battery life*
    • Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
    • Approx. 10 hours with output power of 10 mW (J, E, KR models)
      • *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
  • Operating Temperature -  0 °C to 50 °C (32 °F to 122 °F)
  • Storage/Transport Temperature -  –20 °C to +55 °C (–4 °F to +131 °F)
  • Dimensions (diameter / length) -  Approx. 1.89 x 10.16 (48 × 258 mm)
  • Weight -  Approx. 0.56 lbs (255 g) (excluding batteries)

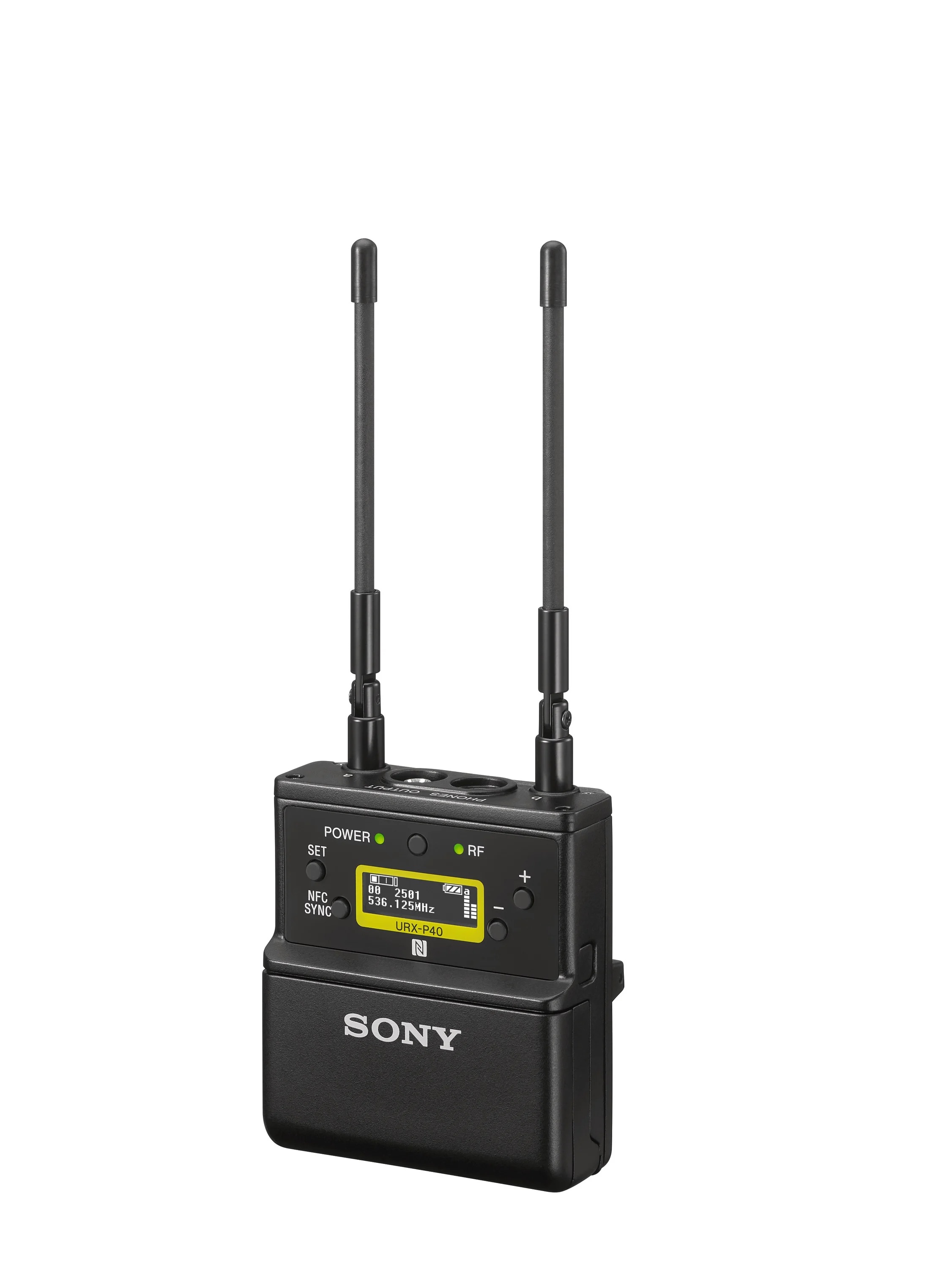

• URX-P40 Receiver
  • Oscillator Type -  Crystal-controlled PLL synthesizer
  • Reception Type -  True diversity method
  • Antenna Type -  1/4 λ wavelength wire antenna (angle-adjustable)
  • Frequency -  25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
  • Frequency Response -  23 Hz to 18 kHz
  • Signal-to-Noise Ratio -  60dB (1kHz sine wave, 5kHz modulation)
  • Distortion (T.H.D) -  0.9% or less (1kHz sine wave, 5kHz modulation)
  • Audio Delay
    • Approx. 0.35 ms (analog output)
    • Approx. 0.24 ms (digital output)
  • Audio Output Connector -  3.5mm diameter 3-pole locking mini jack, external connection
  • Audio Output Level
    • -60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level)
    • -20 dBFS (external connection, digital output, 0dB audio output level)
    • -50 dBFS (external connection, analog output, 0dB audio output level)
  • Analog Audio Output Adjustment Range -  -12dB - +12dB (3dB step)

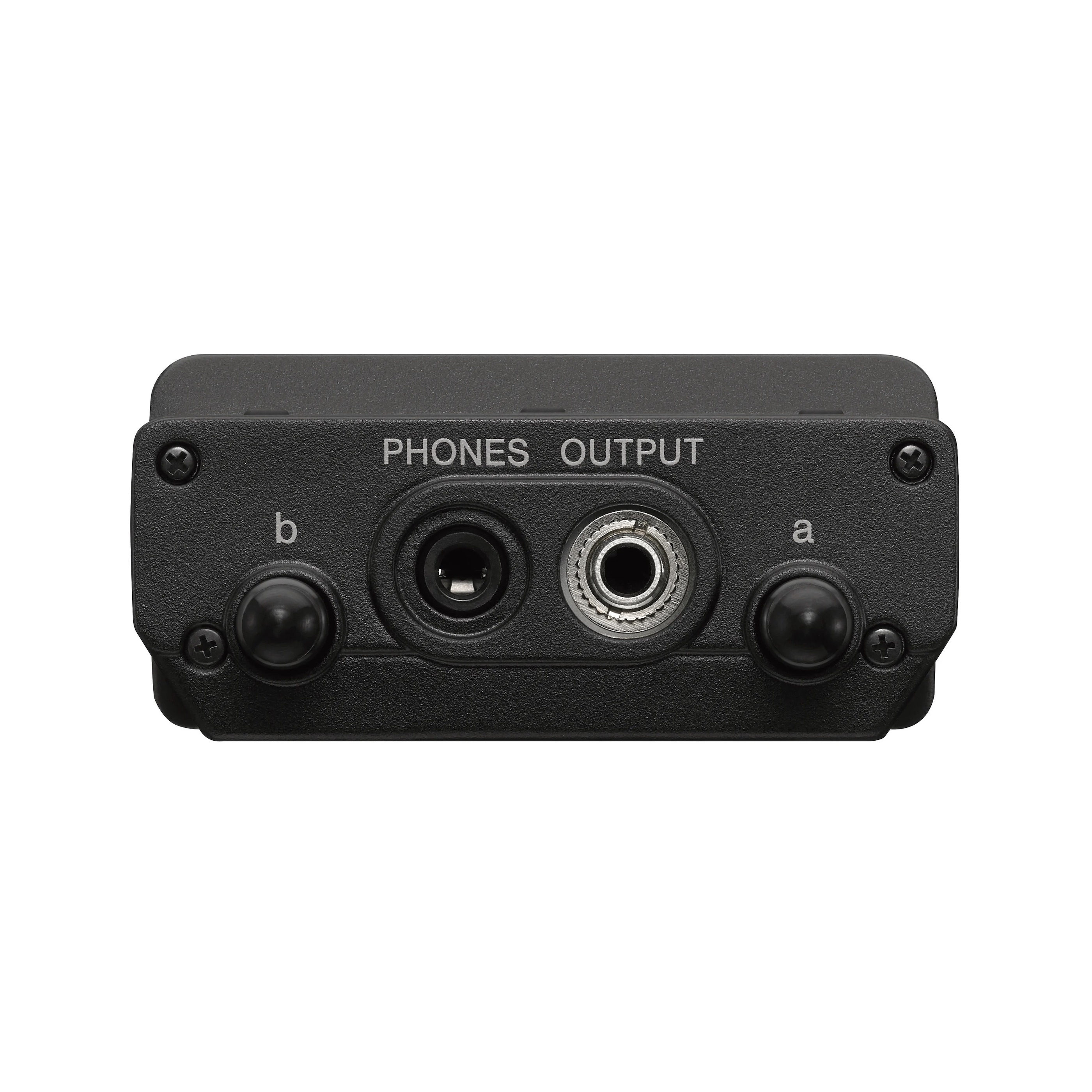

  • Headphone Output Connector -  3.5mm diameter mini jack
  • Headphone Output Level -  Max. 10mW (16-ohm)
  • Tone Signal Frequency
    • In UWP-D compander mode: 32.382 kHz
    • In UWP compander mode: 32 kHz
    • In WL800 compander mode: 32.768 kHz
  • Display -  OLED
  • Power Requirements

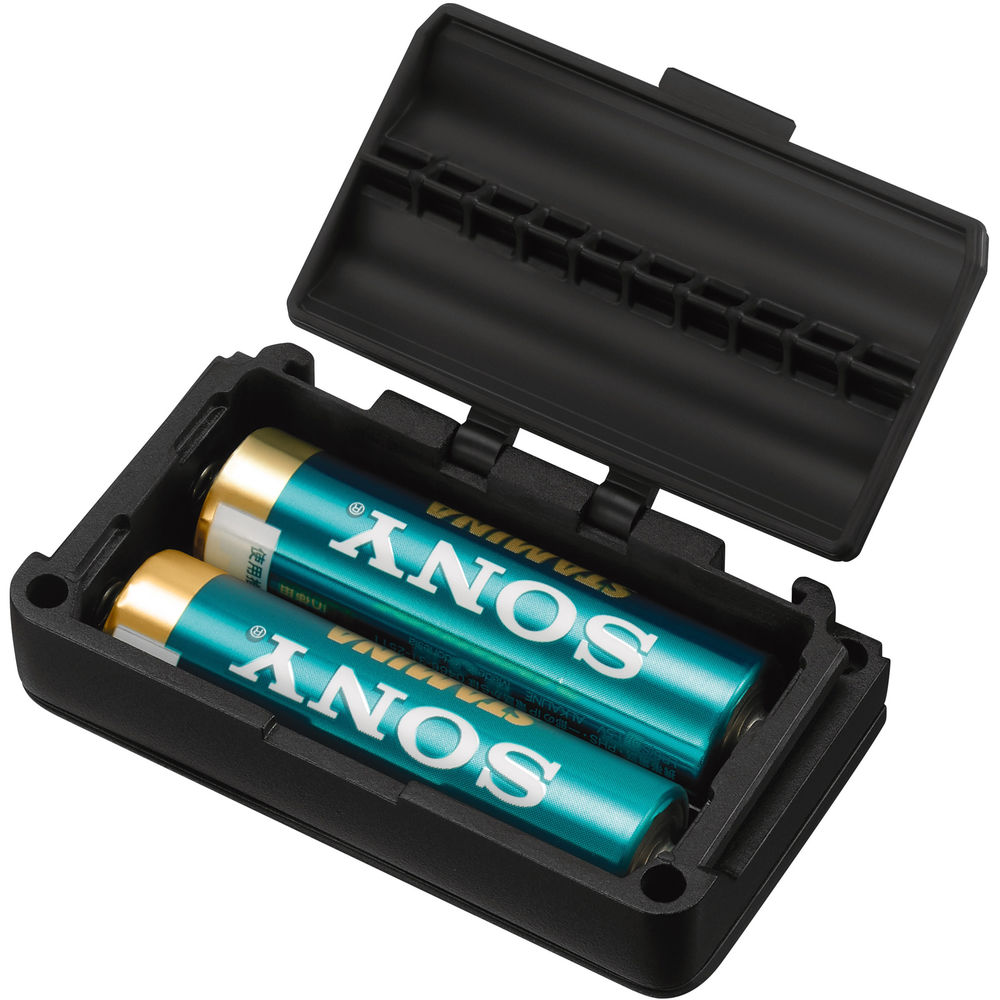

    • DC 3.0 V (two LR6/AA size alkaline batteries)
    • DC 5.0 V (supplied from USB Type-C connector)
  • Battery Life -  Approx. six hours*
    • *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
  • Operating Temperature -  0 °C to 50 °C (32 °F to 122 °F)
  • Storage/Transport Temperature -  –20 °C to +55 °C (–4 °F to +131 °F)
  • Dimensions (WxHxD) -  2.48 × 2.76 × 1.22 in (63 × 70 × 31 mm) (excluding antenna)
  • Weight -  Approx. 0.29 lbs (131 g) (excluding batteries)

What's in the Box

• Sony URX-P40 Wireless Receiver
• Sony UTX-M40 Wireless Handheld Transmitter
• Mic Holder
• Shoemount Adapter
• Belt Clip
• 3.5mm to 3.5mm Output Cable
• 3.5mm to XLR-M Output Cable

NOTE: Batteries not included.
