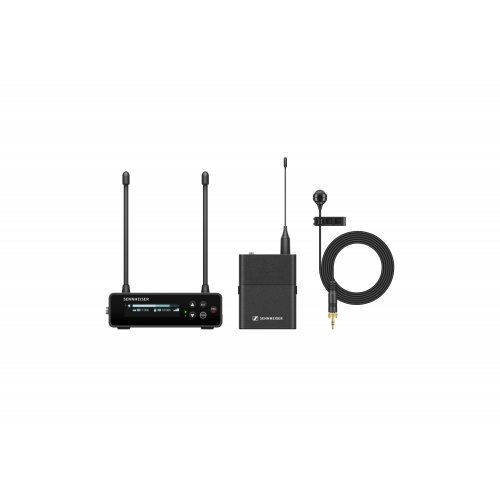

Sennheiser EW-DP ME 4 Portable Digital Wireless Mic System (Freq: R4-9)

About: Sennheiser EW-DP ME 4 Portable Digital Wireless Mic System (Freq: R4-9)

The EW-DP ME4 Set delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

Choose between the ME 2 omnidirectional lavalier which delivers clear, intelligible dialog or the ME 4 cardioid lavalier which helps to isolate your speech in nosier environments.

Features

• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours:minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetically stackable components for versatile mounting
• Industry leading 134 dB input dynamic range for distortion free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor & control
• Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

Capture every detail, every time

When it comes to wireless transmission, UHF is the standard by which all other wireless audio systems are measured by. Used by professionals the world over, Evolution Wireless operates in the UHF spectrum and is known for its reliability, flexibility, and comprehensive feature set. Combine that with the spectral efficiency and audio clarity that only digital technology can offer, and you get EW-DP – our most advanced wireless audio system for video applications.

It's the little things…

Ergonomics were extremely important when developing EW-DP. Starting with the mechanical design, every button, connection, and component was thoughtfully considered for the best user experience possible. Furthermore, EW-DP is the first portable wireless system that has magnetically stackable receivers with a front-facing OLED display. These features allow for ease and flexibility when mounting your receiver, offering optimal visibility regardless of placement, angle, or light. A variety of powering options include primary-cells, lithium-ion rechargeable battery packs and direct power via USB-C, ensuring peace of mind during long hours on set.

Guidance when you need it most

EW-DP is a wireless system that troubleshoots for you. As the old saying goes, to err is human. Smart Notifications provide suggestions to errors that occur when setting up or operating EW-DP. If your audio clips, the system will suggest lowering the gain. When your battery is running low, the system will alert you. If you try to operate on a blocked frequency, you will be promoted to select another. If your transmitter and receiver are not linked, you’ll be prompted to press sync. And if the talent accidentally mutes their transmitter, you’ll be notified and will have the option to disable the mute remotely. These guides make all the difference when audio isn’t your only responsibility.

Control in the palm of your hand

Sennheiser Smart Assist app provides automated setup, operation, and monitoring using any iOS or Android device via Bluetooth. Auto frequency coordination creates reliable wireless connections for up to 16 systems, no wireless expertise required. Remote access to system settings whether at camera or across the room allow for quick and discreet adjustments on the fly. You’ll also find a support hub with video tutorials and detailed manuals to help get you started.

Specifications

• System
  • Audio link frequency range -  R4-9: 552 - 607.8 MHz
  • Bluetooth Low Energy (BLE) frequency range -  2402 - 2480 MHz
  • Audio frequency response -  20 Hz - 20 @ 3 dBfs
  • Audio THD -  ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic range -  134 dB
  • System Latency -  1.9 ms
  • Operating temperature -  -10 °C - +55 °C (14 °F - 131 °F)
  • Relative air humidity -  5 - 95 % (non-condensing)
• EW-DP EK
  • Input voltage -  ~ 1.8 - 4.35 V
  • Input Current
    • Typ. < 250 mA / Max. < 400 mA (BA 70)
    • Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
    • < 300 mA@5 V (USB-C standalone)
  • Power supply
    • 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
      • 5V / 1500mA
      • 9V / 900mA
      • 12V / 700mA
  • Transmit power (radiated) -  BLE: max. 10 mW EIRP
  • Audio output power -  < 2 dBV max. (high level) / < 4dBU max (high level)
  • Headphone Output -  < 50 mW into 16 Ohms
  • Dimensions -  86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
  • Weight (without antennas and power supply) -  approx. 140g (0.31 lbs
• EW-D SK (Bodypack Transmitter)
  • Input Current -  < 300 mA
  • Input voltage -  2.0 - 4.35 V
  • Power supply -  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Transmit power (radiated)
    • Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
    • BLE: max. 10 mW EIRP
  • Occupied bandwidth -  200 kHz
  • Dimensions (without antenna) -  63 x 80 x 20 mm (2.48" x 3.15" x 0.79")
  • Weight w/o batteries -  approx. 120 g (0.26 lbs)
• ME 4 (Lavalier Microphone)
  • Transducer principle -  pre-polarized condensor microphone
  • Pick-up pattern -  cardioid
  • Sensitivity in free field, no load (1kHz) -  40 mV/Pa
  • Max. SPL at 1 kHz -  120 dB
  • Frequency response -  50 to 18,000 Hz
  • Equivalent noise level A-weighted -  31 dB
  • Connector -  3.5 mm jack
  • Cable length -  approx. 1.60 m (62.99")
  • Supply voltage -  7.5 V

What's in the Box

• EW-DP EK digital portable single channel receiver (Frequency R4 - 9 (552 - 607.8 MHz))
• EW-D SK digital bodypack transmitter (Frequency R4 - 9 (552 - 607.8 MHz))
• ME 4 cardioid lavalier microphone
• Mounting kit (cheese plate, cold shoe, belt clip & screws)
• BA 70 li-ion battery & (2) AA battery
• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
