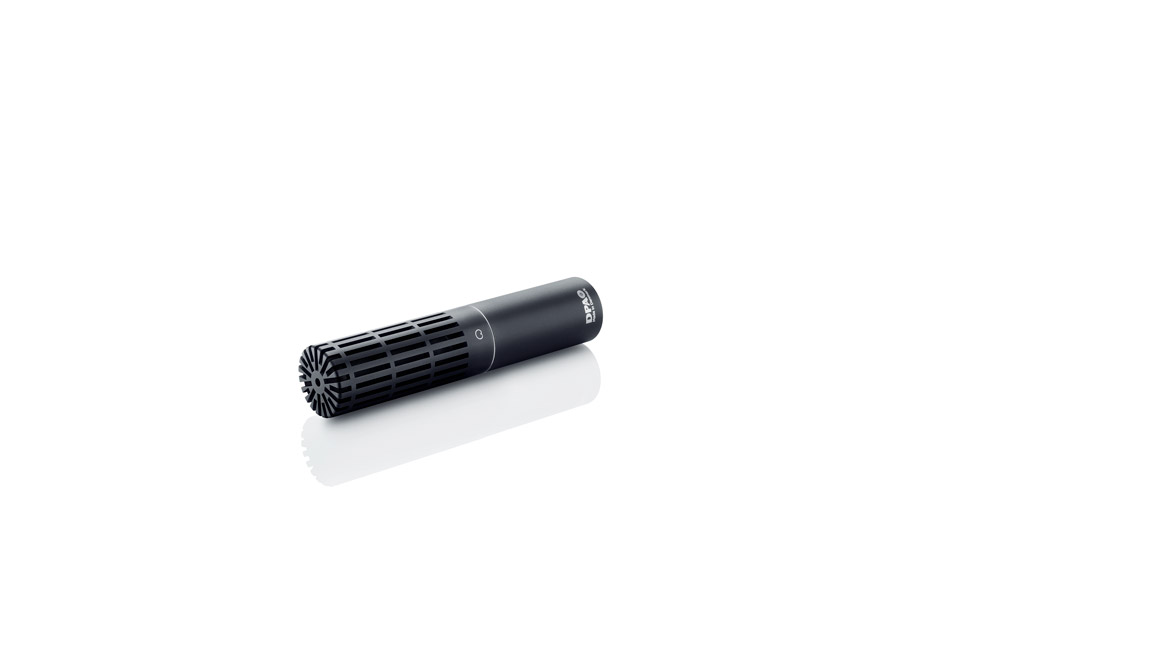

DPA 2011C Twin Diaphragm Compcat Cardioid Mic

About: DPA 2011C Twin Diaphragm Compcat Cardioid Mic

The DPA 2011C Twin Diaphragm Cardioid Mic is a directional microphone. The distinctive sound of this microphone is well balanced. It bridges the gap between the extreme sound quality of our pencil microphones and our well-known Lavalier microphones.

• Blends clarity, richness and dynamics
• Twin Diaphragm Capsule Technology
• Advanced Interference Tube Technology
• Superb stage separation and level control
• Modular flexibility

Two opposite-facing miniature capsules are custom rebuilt inside this microphone. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth. The capsules are loaded to our supreme preamps, which gives the sound more air and precision.

Combine it with the preamp of your choice

As with all of our modular pencil microphones, you can combine the 2011 Twin Diaphragm Cardioid Mic Capsule with any of our preamps.

The MMP-A Mic Preamp is an ultra-transparent, transformerless preamplifier with active drive for impedance balancing. The MMP-C Compact Mic Preamp is an ultra-compact preamplifier with active drive for impedance balancing. It has a slightly softer character than the other preamps for our pencil microphones.

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter.

The 2011A Twin Diaphragm Cardioid Mic is acclaimed for its close-miking excellence and hi-SPL handling. Optimized for onstage use, it has been used on many stages as well as recording sessions. It exhibits a previously unheard blend of clarity, richness and dynamic range.

The 2011C Compact Twin Diaphragm Cardioid Mic offers a subtle character alteration with a bit more “body” to the low end than the 2011A. It is also much easier to position than other cardioid mics.

At any time, and with no tools needed, it is possible to transform the 2011 Twin Diaphragm Cardioid Mic into a new configuration. The 2011 is very widely used as a snare drum mic but fits easily well on many other instruments.

Specifications

• Directional pattern: Cardioid
• Preamp: MMP-C Compact Mic Preamp
• Principle of operation: Pressure gradient, with interference tube
• Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
• Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
• Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
• Dynamic range: Typ. 117 dB
• Max. SPL, THD 10%: 148 dB SPL peak
• Rated output impedance: 100 Ω
• Minimum load impedance: 2 kΩ
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 50 dB
• Power supply (for full performance): P48 (Phantom Power)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 64 g (2.3 oz)
• Microphone diameter: 19 mm (0.75 in)
• Microphone length: 92 mm (3.6 in)
• Maximum output voltage, RMS: 4.5 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
