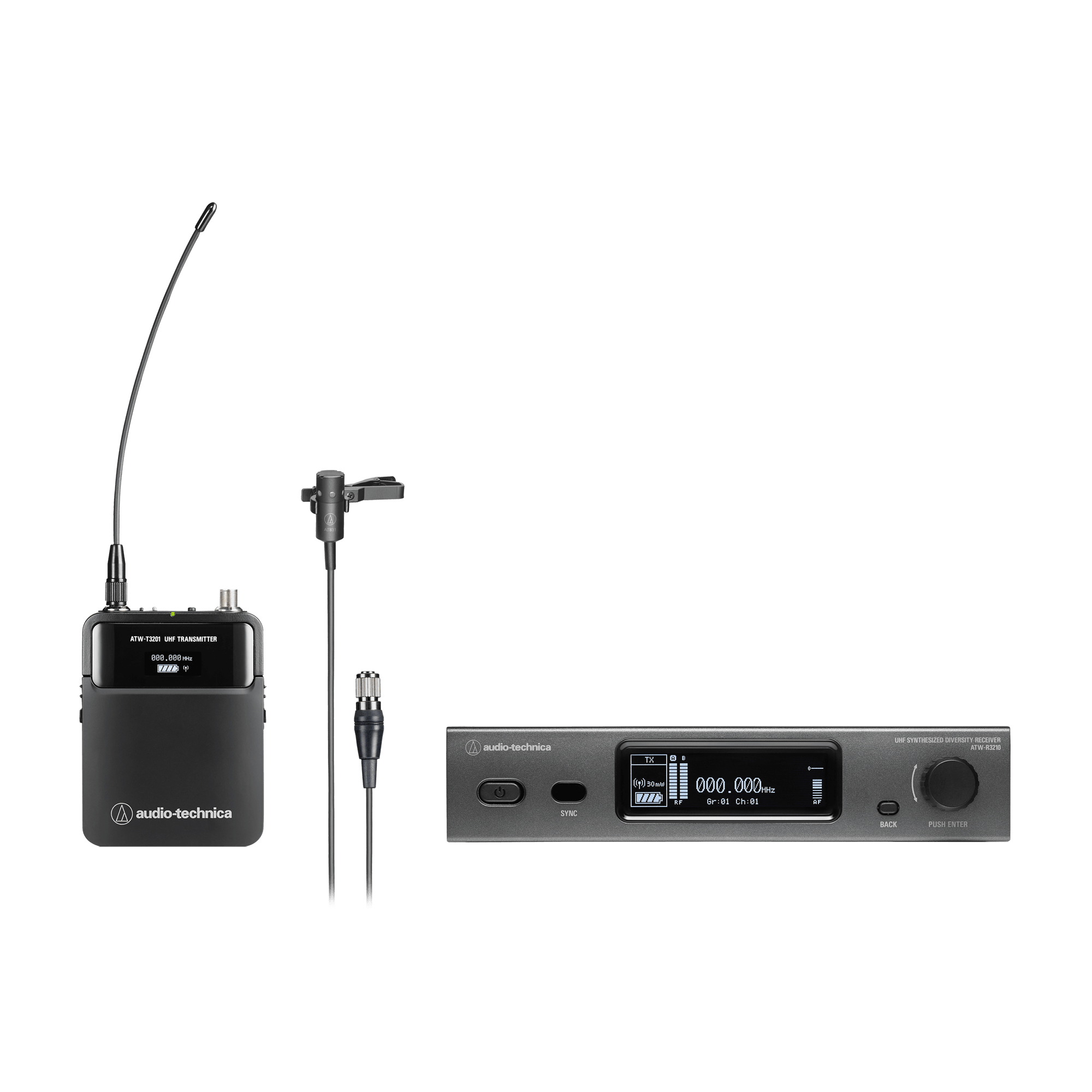

Audio Technica ATW-3211/831DE2 3000 Series Wireless Lavalier Microphone System

About: Audio Technica ATW-3211/831DE2 3000 Series Wireless Lavalier Microphone System

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models.

3000 Series network-enabled systems offer the same features and configurations as the standard systems along with network monitoring and control via Audio-Technica’s Wireless Manager software. Each network-enabled receiver also comes with an AT8631 joining plate.

Navigate Today’s Congested RF Environment

• This feature-rich wireless system boasts a class-leading 60 MHz tuning range, giving you the power to operate unimpeded.

Easily Accessible Backup Frequency

• The transmitter’s multifunction button can be used to switch to a preset backup frequency if interference is encountered.

Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

Operating Frequencies

• Band DE2: 470.125 to 529.975 MHz (2395 frequencies)

Operating Frequencies

• Band DE2: 470.125 to 529.975 MHz (2395 frequencies)

Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.

• Minimum Frequency Step 25 kHz
• Modulation Mode FM
• Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
• ATW-T3202: ±36 kHz (THD:10%)

Includes

• ATW-R3210 receiver
• ATW-T3201 body-pack transmitter
• AT831cH cardioid condenser lavalier microphone
