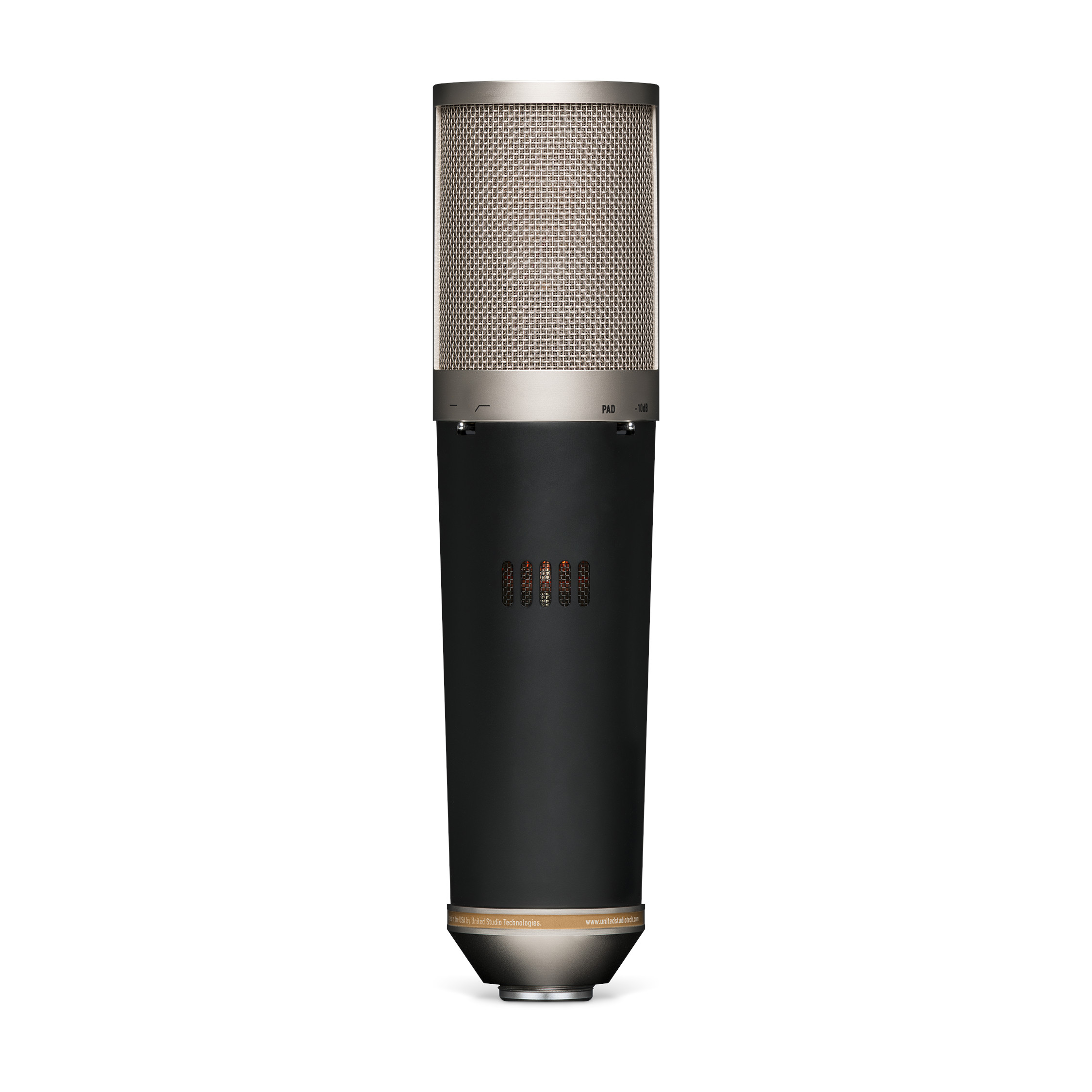

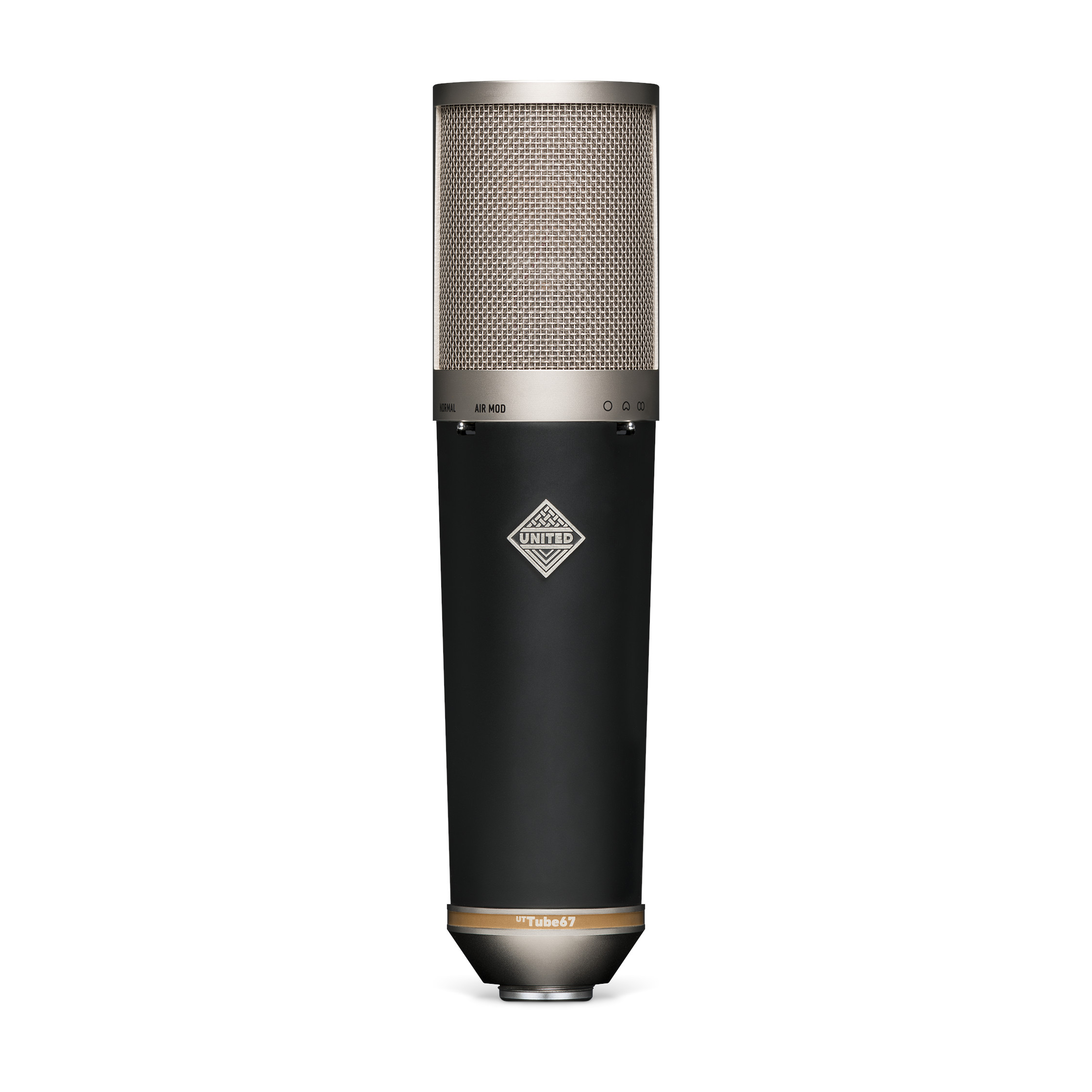

United Studio UT Tube67 Large Diaphragm Tube Condenser Microphone

About: United Studio UT Tube67 Large Diaphragm Tube Condenser Microphone

​The UT Tube67 is United’s faithful homage to one of the most in-demand mic designs of all time. The original classics have shaped the sound of countless classic recordings since their debut 1960; renowned for velvety, creamy, full-bodied tone. The UT Tube67’s provides a warm, intimate quality that only can be delivered by it’s 1960’s NOS EF86 vacuum tube.

• Faithful reproduction of the venerable 67-style German tube microphones
• A vastly superior reproduction compared to others on the marketplace
• Uses a NOS (New Old Stock) 1960s EF86 pentode vacuum tube
• Custom United 24k gold sputtered dual diaphragm/dual backplate K48 style capsule — based off of a superior one-of-a-kind golden sample from the 1970s
• Custom wound, American-made United transformer
• Switchable Air Mod gives a subtle top end lift, as well as clearing up transient peaks in the high frequency spectrum.
• Absolute workhorse, a desert-island microphone for professional studios, demanding musicians, and voiceover artists
• Silky-smooth top end that’s considered “unmatched by other microphones”

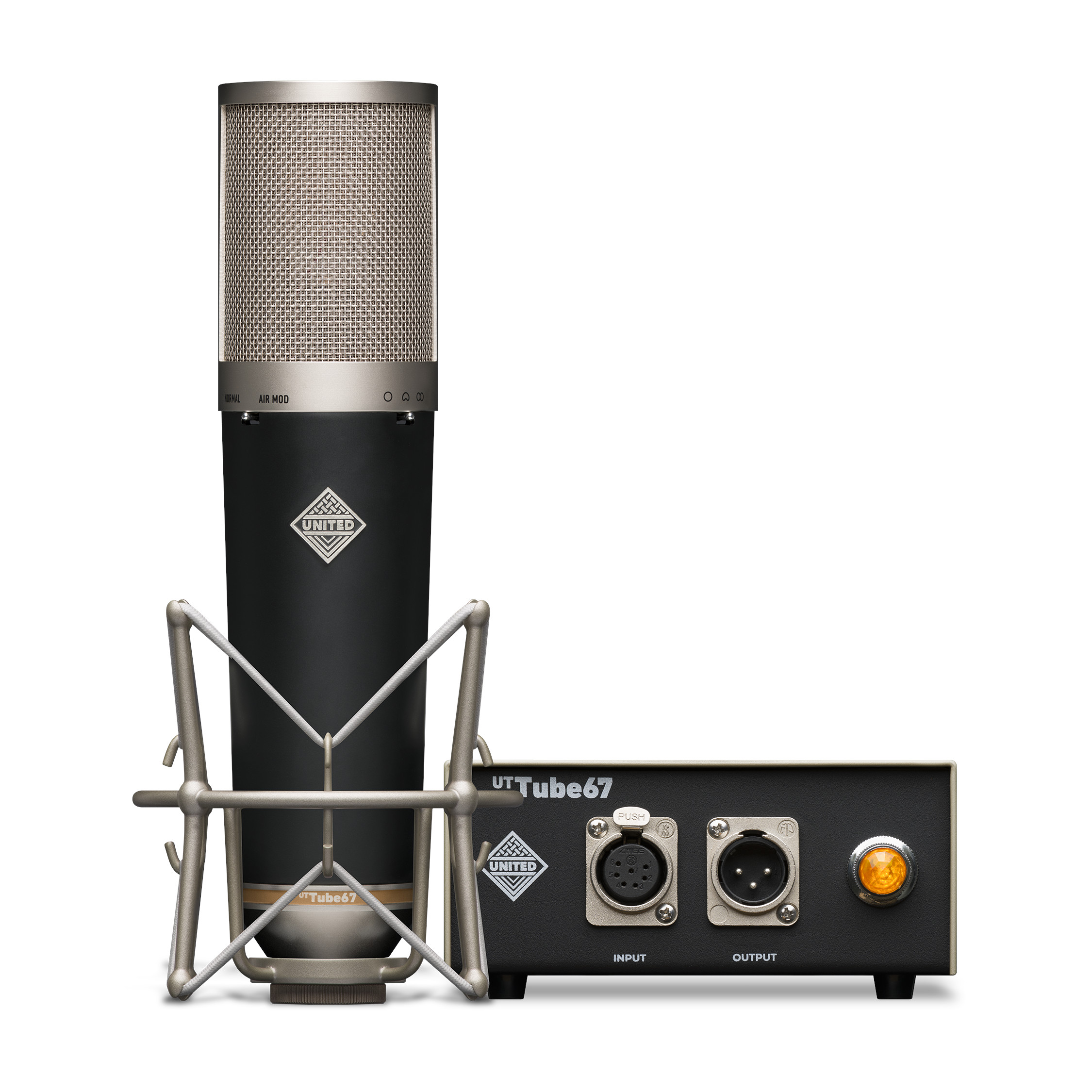

• Includes high-performance power supply, custom Sommer (Germany) Octave 7 conductor cable, vintage-style storage pouch, and shockmount

Silky-smooth tube sound.

​The UT Tube67 is a United’s faithful homage to one of the most in-demand mic designs of all time. The original classics have shaped the sound of countless classic recordings since their debut 1960; renowned for velvety, creamy, full-bodied tone. The UT Tube67’s smooth top-end make it an outstanding choice for vocals, imparting a warm, intimate quality that only can be delivered by it’s 1960’s NOS EF86 vacuum tube. Linear response across polar patterns ensures versatility, excelling in capturing strings, woodwinds, brass, piano, drums, and both acoustic and electric guitars. ​

United has taken this classic-specification design to the next level with component-level attention to detail, as well as including a switchable Air Modification prefered by many classic recordists.

A Custom United UT K67 Capsule.

The UT Tube67’s capsule is a custom-made, historically correct dual backplate/diaphragm capsule; skinned in a laboratory clean-room environment and 24k gold-sputtered on 6 micron Mylar. It has been optimized for the microphone’s operating voltage, and tuned to it’s ancestors’ specification; resulting in a smooth sound without the resonance that is found on most modern reproductions. The difference in comparison to other reproductions is incredible.

We based it’s design on a 1970’s-made capsule that we found to be the best we had ever heard — providing a little more natural low to low-mid range frequency.

Custom United Transformers.

The custom-wound, US-made, UT-BV12 transformer is wound to our own specifications and set to the same laminations historically used on the original parts. Careful measurements were made from a golden speciman of the original transformer, delivering the same tight bass response legendary to the original.

We used all high-nickel alloy laminations and employed a copper Faraday shield for reduced Radio Frequency Interference (RFI). While we could have used a smaller or less expensive transformer, United’s design team refuses to compromise.

It’s not just another mic — it’s a United.

The UT Tube67 is a personal homage to one of our favorite classics; a classic that we felt has not gotten the proper respect it deserves. We have gone the extra mile to reduce noise and RFI, and to ensure that the UT Tube67 provides boutique-quality sound that’s built to last.

From the custom-made Sommer Octave 7 pin cable to the regulated power supply, to all final assembly and testing conducted in the USA at United’s base of operations, we have left no stone unturned in the pursuit of the highest level of audio quality. The Tube67 is an exceptional microphone to grab for almost any application.

Specifications

• Type: Condenser Microphone
• Capsule: UT Series, 34 mm brass, dual backplate K67
• Diaphragm: 6 micron, 24k gold sputtered Mylar (PET film)
• Capsule Sensitivity: -38dB @60v polarization
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid, Omni, Figure-of-8
• SPL: 137dB @ 0.5% THD
• Output Impedance: 38 Ω
• Amplifier Type: Vacuum tube
• Tube: NOS selected EF86 pentode vacuum tube
• Self Noise: <11 dB
• Output: Custom-wound UT Series transformer, made in USA
• High Pass Filter: 80 Hz (-12dB down point)
• Pad: -10dB
• Body: Nickel electroplated / black satin paint, solid milled brass

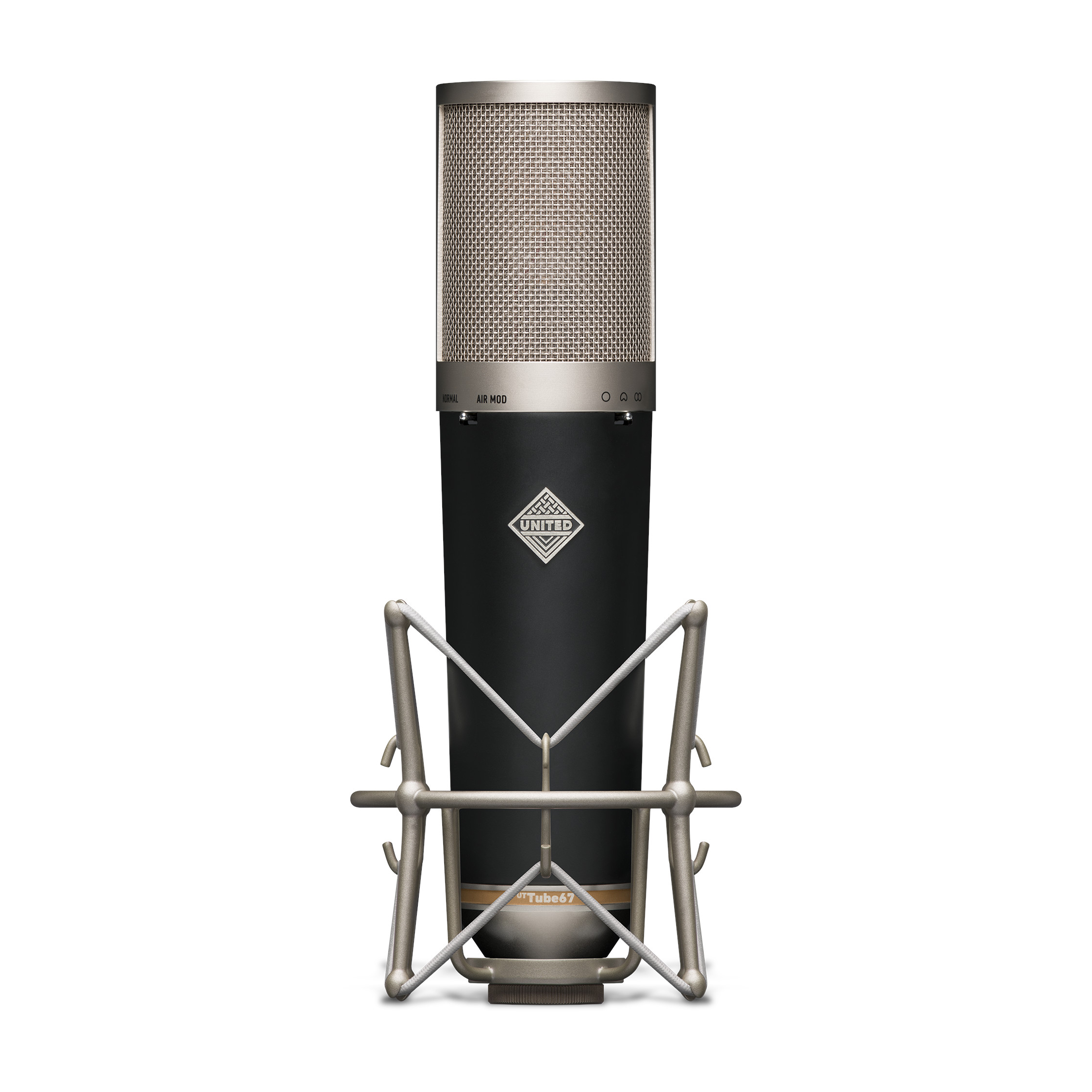

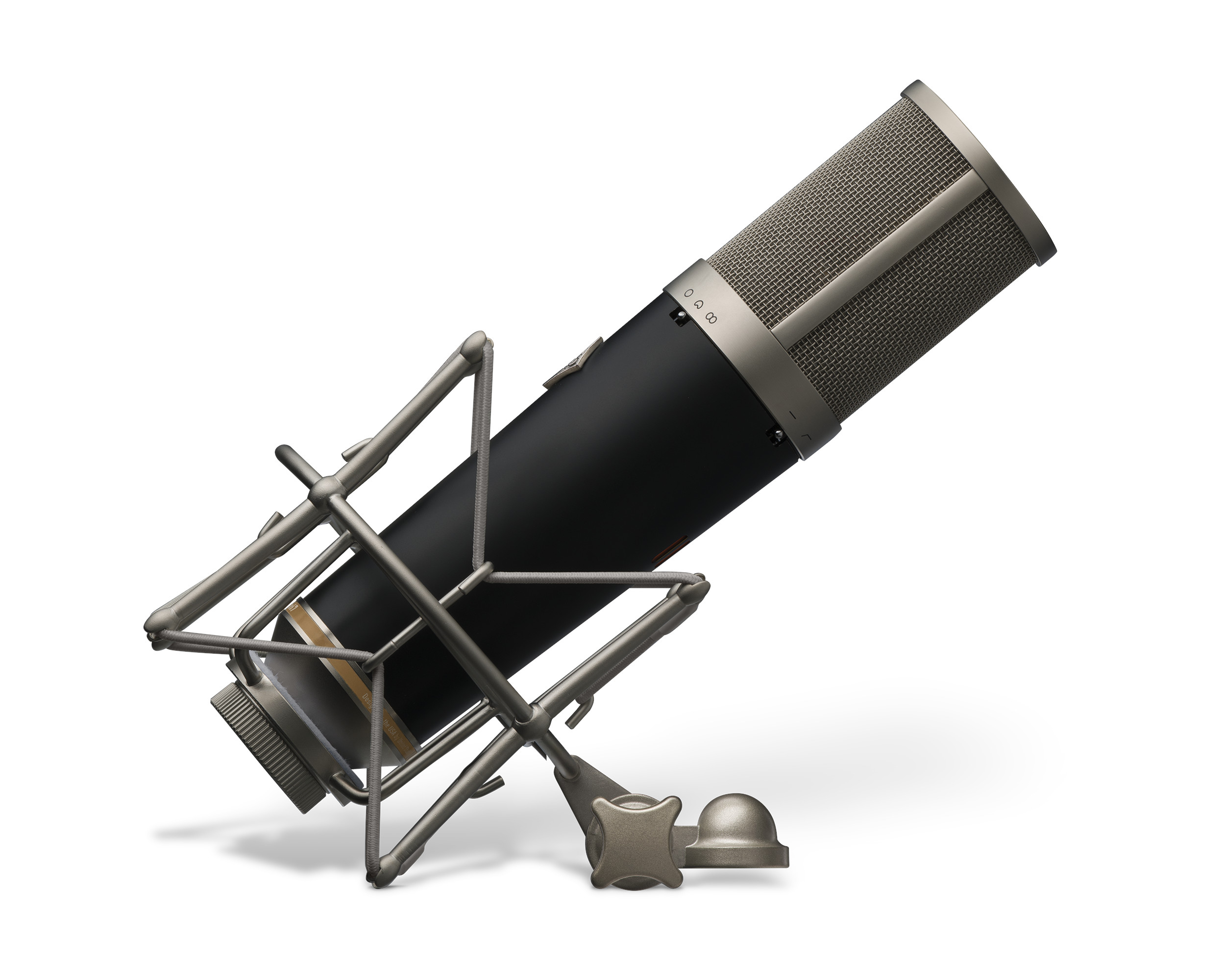

• Mount: Suspension type shock mount (included)
• Interconnect: Custom Sommer 7 conductor XLR cable 6 m / 19.7’

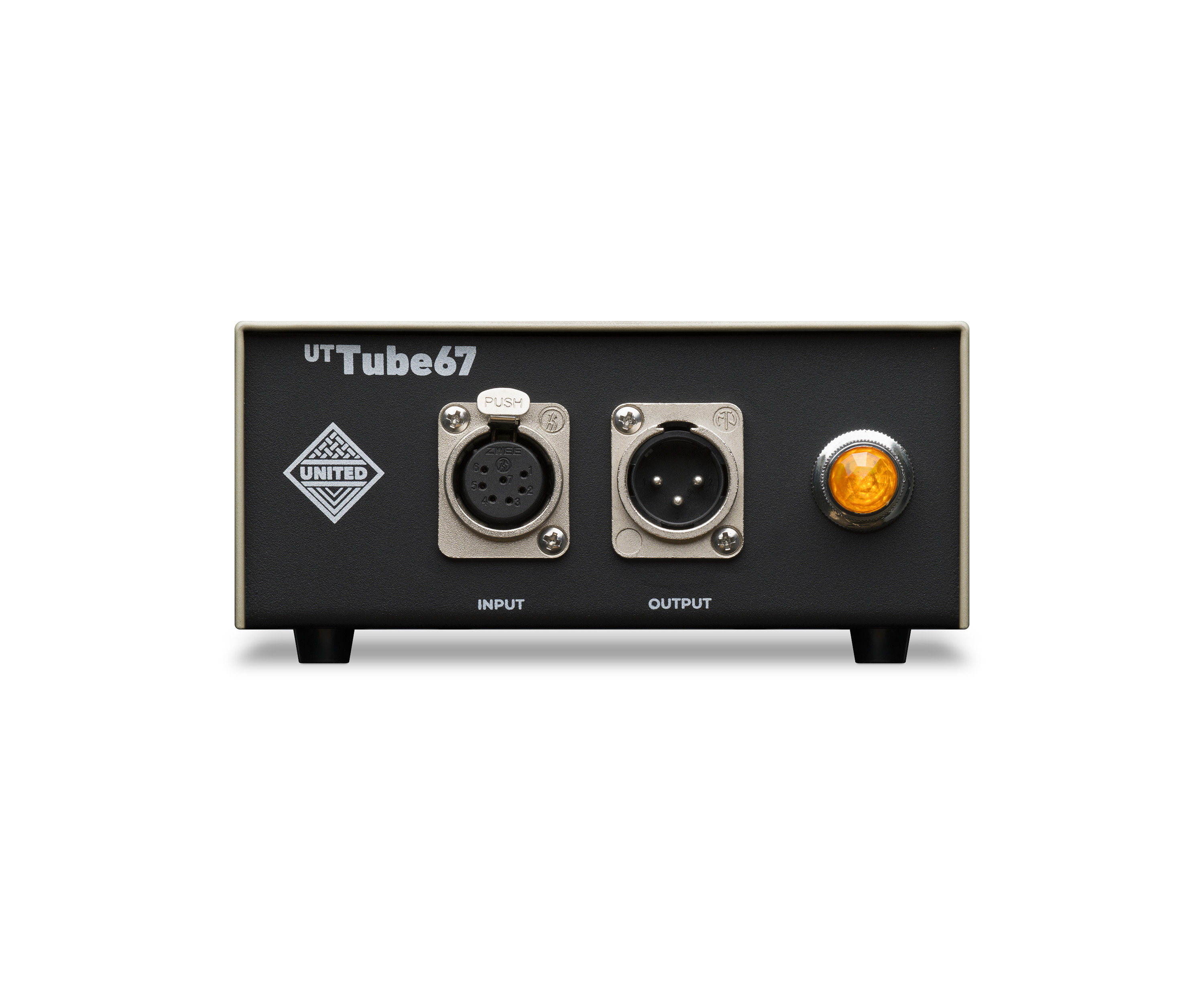

• Output Connector: 24k gold plated 3 pin XLR, pin 2 HOT, pin 1 GND from Power Supply

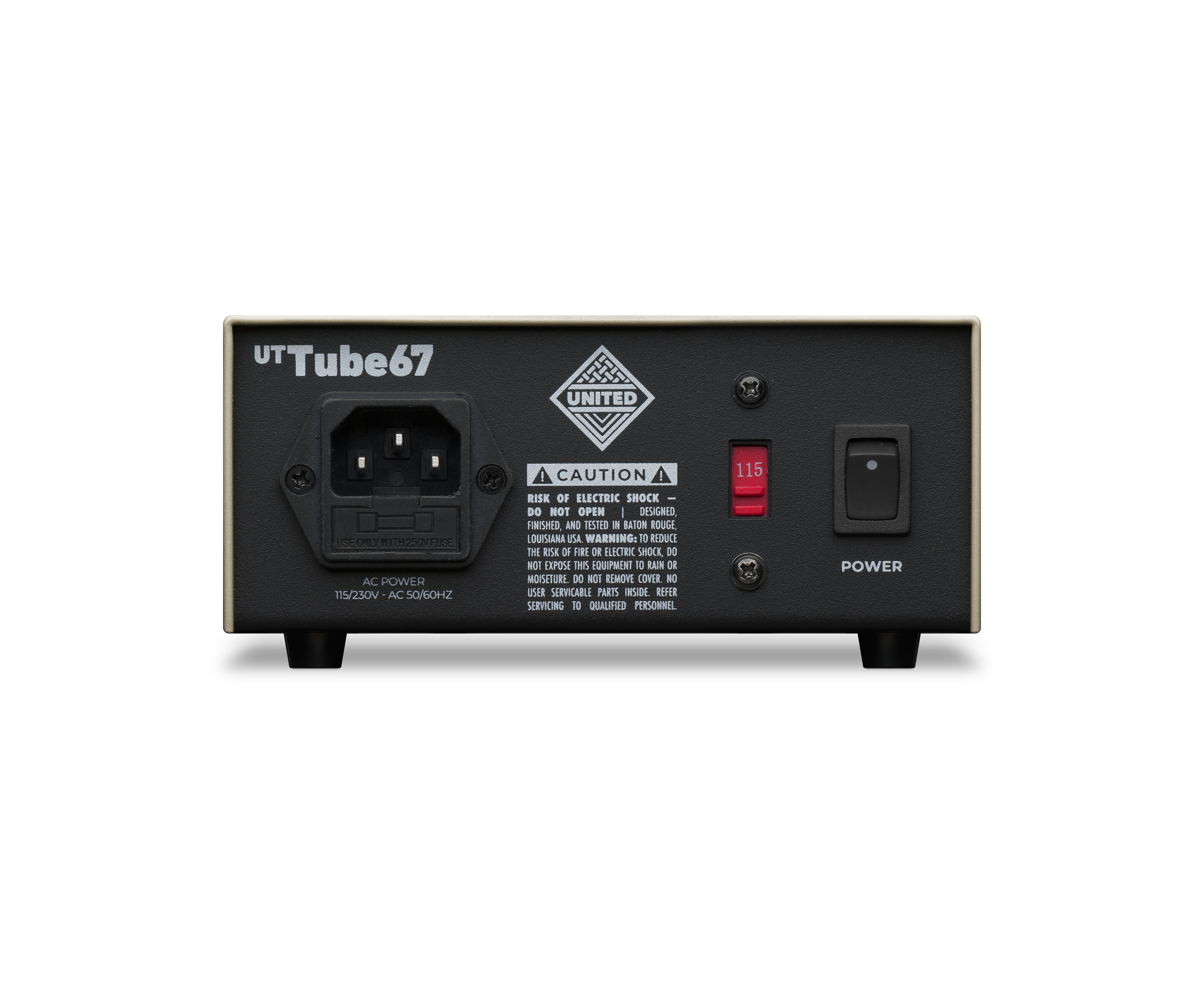

• Power Connector: IEC320 3-conductor receptacle
• Power Input: 110-120 vAC or 220-240 vAC; switch selectable
• Dimensions
  • Microphone (HxD): 9.48 x 2.38 inch (241 x 60mm)
  • Shockmount (Depth): 4.7 - 7.2 inch (119 - 184mm)
  • Power Supply (HxWxD)
    • With feet: 2.63 x 5.6 x 6.75 inch (67 x 143 x 171mm)
    • Without feet: 2.36 x 5.6 x 6.75 inch (60 x 143 x 171mm)
