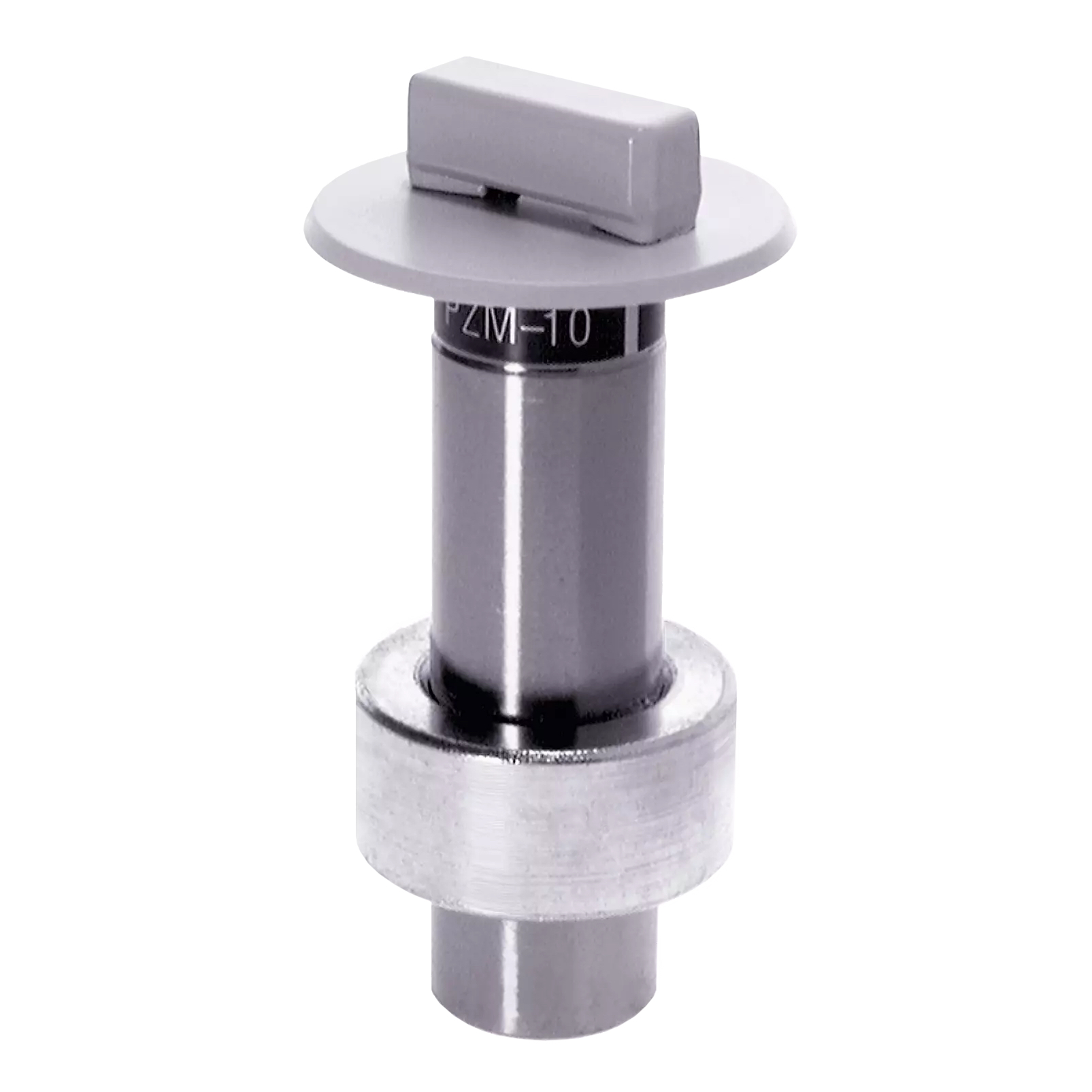

AKG PZM10 Flush-Mount Boundary Layer Microphone with XLR Connector
Model: PZM10
About: AKG PZM10 Flush-Mount Boundary Layer Microphone with XLR Connector
The PZM-10 is part of the Pressure Zone Microphone line, and designed for security, surveillance, and conference-table use. Since it does not look like a microphone, it is inconspicuous. Each mic’s tubular housing mounts in a 25/32-inch diameter hole in a ceiling panel, wall or table.
The PZM-10 has a mic-level output and a 3-pin XLR-type connector for easy plug-in installation. The mic requires 12 to 48 V phantom power.
- Hemispherical polar pattern - For clear, intelligible pickup of speech
- Low profile, cylindrical design - Perfect for wall or tabletop installations
- Mic level output - Male XLR connector optimized level matching
- PZM10 powered by 12V - 48V power, XLR connector - Connects to all standard mixers with phantom power out
Frequencies below the voice range are rolled off to reduce pickup of air conditioning rumble. The high-frequency response is boosted slightly to help articulation. Because of their tailored response and PZM construction, the PZM-10 and PZM-10LL will pick up conversations or other desired sounds with extra clarity and definition.
The output is balanced, low impedance, which allows long cable runs without hum pickup or high-frequency loss. The mic’s humbucking transformer and steel case prevent hum pickup, even near fluorescent lights.
Specifications
- Polar pattern - Hemispherical
- Frequency response - 80 to 20,000 Hz
- Equivalent noise level - 26 dB-A
- Sensitivity - 2.5 mV/Pa
- Signal to Noise - 68 dB-A
- Recommended Load Impedance - 2000 Ohms
- Impedance - 240 Ohms
- Maximum SPL - 120 dB
- Voltage - 12 to 48 V
- Connector - 3-Pin Balanced XLR, male
- Finish - Off-white (Paintable)
- Dimensions (HxD) - 2.83 x 1.54 in (72 x 39 mm)
- Net weight - 0.16 lb (74 g)
