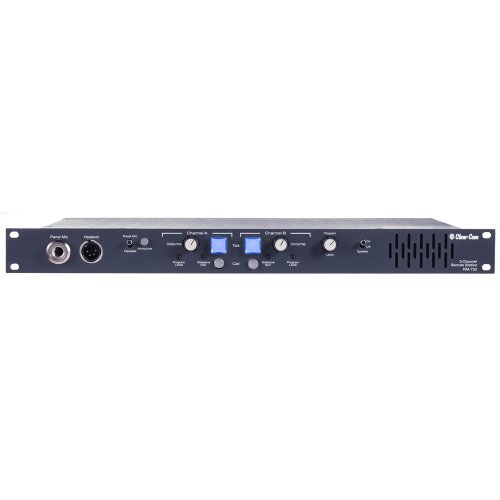

Clear-Com RM-702 2-Channel Headset/Speaker Station
Model: RM-702
About: Clear-Com RM-702 2-Channel Headset/Speaker Station
Single rack-space, two-channel station is powered by the intercom line. Operator can talk and/or listen on either or both channels. Accepts line-level audio program input via DB-15 Connector, with both channels programmable for interrupt. Microphone limiting and speaker "dipping" circuit for greater output before feedback.
The RM-702 can monitor intercom activity on one or both channels with individual Listen Level controls. Monitor intercom activity through a head-set, the internal speaker, or both at once. The 4-watt output amplifier can drive the wide-response speaker or Clear-Com headset to very high output levels - more than enough volume for the noisiest environment. A "speaker dipping" circuit helps to reduce feedback when stations are placed in close proximity to each other.
The station has a convenient speaker "on/off" switch when private conversation via the headset is desired. The station accepts dynamic headsets or optional plug-in gooseneck mic.
Talk Selection
The operator can talk on either of the channels separately or on both at once. A proprietary contoured frequency response in the mic pre-amp enhances speech intelligibility in high-noise environments. Illuminated dual-action talk buttons are electronic momentary or latching: blue-color LED while in stand-by, and amber-color LED when latched. The latching feature may be disabled if desired. The station also features a headset or microphone selector switch. The talk buttons can also be remote controlled with a footswitch.
Signaling
The RM-702 features individual call buttons and visual call signaling to attract the attention of operators who have removed their headsets or turned off their speakers. The visual signaling flashes the illuminated talk button when a call is received. The call-signaling feature can be programmed to the talk buttons.
AUX. Audio Input and Program Interrupt (IFB)
The station can accept either a balanced or unbalanced line-level audio input through the DB-15 connector on the rear panel. The program can be monitored at the station or fed into channel B, where it can also be set up for IFB/Program interrupt from this or any other Encore station.
Additional Features
Each channel has its own sidetone control. This allows the operator to vary the level of their own voice as heard in the headset. When the announce button is pressed, the microphone signal is routed to a connector on the back panel. Relay contacts are also available for muting speakers or turning on a signal light. The station accepts Clear-Com's 9" or 18" gooseneck microphone.
Features:
- Selectable one- or two-channel communication
- Individual listen volume controls
- Momentary/latching talk buttons
- Individual call buttons
- Visual call signaling
- Balanced audio input with program interrupt (IFB)
- “Hot mic” and line-level outputs
- Studio announce output with relay
- Optional plug-in gooseneck mic
- Wide-range high-output speaker
- One rack space
- LED buttons for talk, call, announce, link, all talk, and mic on
Reviews: Clear-Com RM-702 2-Channel Headset/Speaker Station
Warranty: Clear-Com RM-702 2-Channel Headset/Speaker Station
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:
- Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
- Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
- Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
- Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
- Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
- All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
