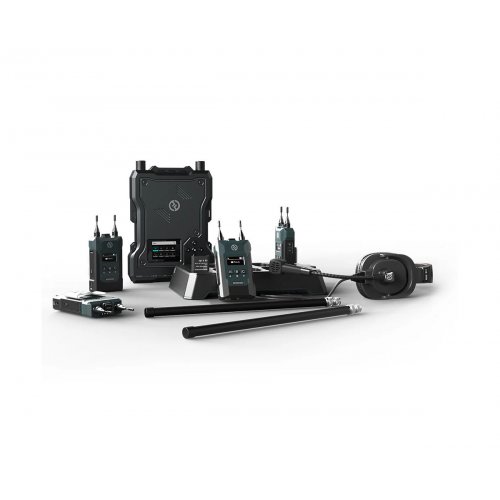

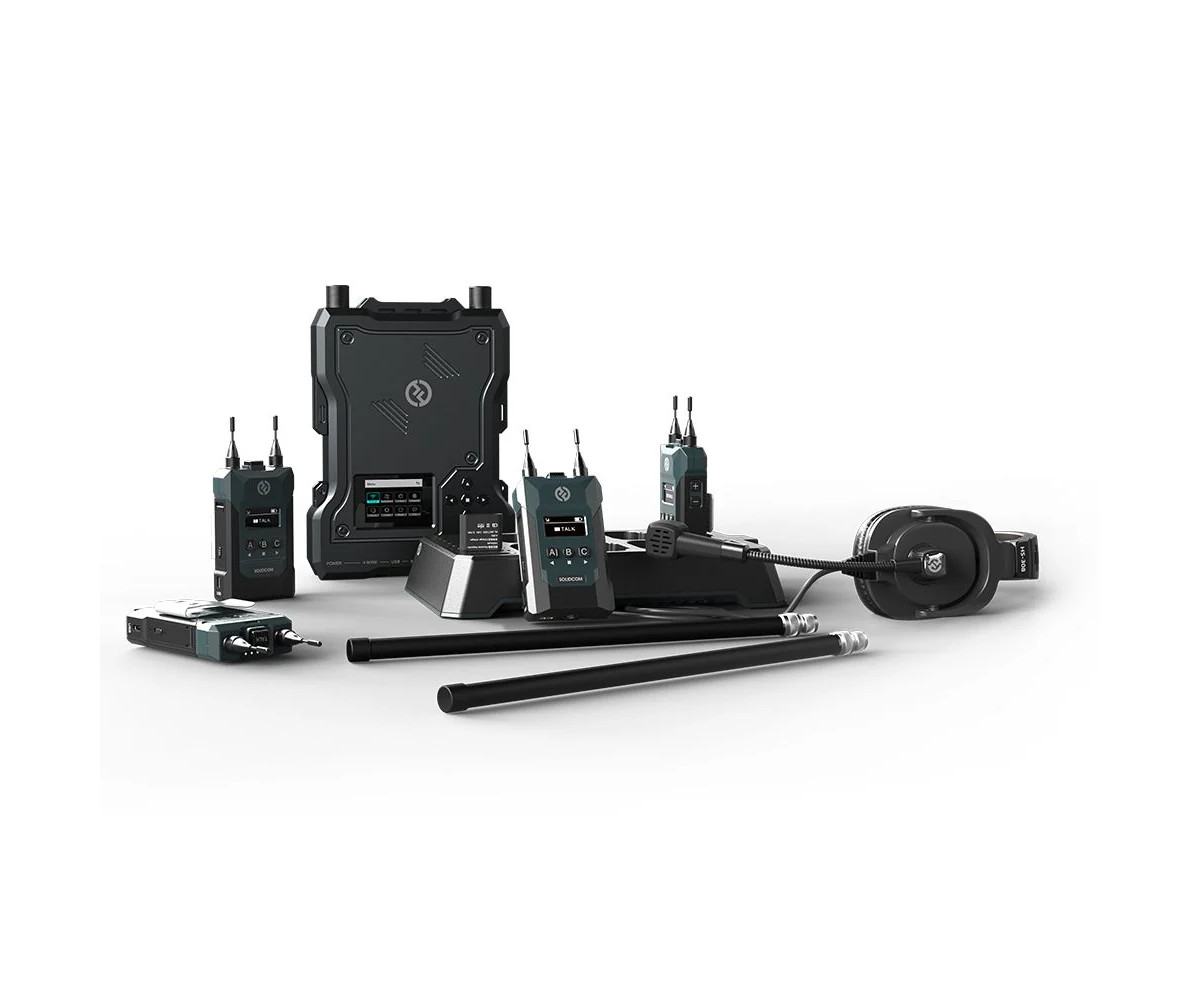

Hollyland Solidcom M1 Pro Wireless Intercom System - 4 Beltpacks, Dual-Ear

About: Hollyland Solidcom M1 Pro Wireless Intercom System - 4 Beltpacks, Dual-Ear

The Solidcom M1 Pro stands out with its exceptional dual-mic ENC technology, which delivers clear audio even in challenging conditions by effectively blocking unwanted background noise. Its supercardioid primary mic captures the speaker's voice and environmental noise accurately, while the omnidirectional secondary mic collects environmental noise from various directions as noise samples. Through advanced ENC algorithms, the audio signal is processed in the beltpack, successfully eliminating the environmental noise and ensuring high-quality clear audio.

• Dual-Mic ENC
• 1,300ft (400m) LOS Range
• Group Communication
• Expandable Cascade Connection
• 1.9GHz Frequency
• Cozy Headset Fit
• Flexible Configuration & Upgrade
• Extended Battery Life

Precise Communication with Group Talk

The Solidcom M1 Pro achieves precise communication by allowing for up to three-group communication, even in unlimited cascade connections. Group configuration flexibility is easily accessible via the base station or web page (where the group configuration file can be saved and imported). The beltpack offers 8 preset modes that users can adjust to suit their individual working needs. These modes are ideal for different team collaboration scenarios and work situations. Each mode comes with a color indicator light to make it easy to use and understand.

Complete Connectivity for Seamless Communication

With its versatile range of interfaces, the Solidcom M1 Pro boasts unparalleled cascade connection capabilities. This means that you can expand your system to include virtually unlimited base stations. To connect two Solidcom M1 Pro base stations, a straightforward option is to use either IP or 4-wire cascade connection. To connect more than two base stations, a combination of IP and 4-wire cascade connections can be employed. This user-friendly approach empowers you to effortlessly expand your communication network according to your requirements.

Impressive Communication Range with 1.9GHz for Enhanced Connection Stability

The Solidcom M1 Pro offers full support for two types of antennas — panel antenna built into the base station and external fiberglass antenna. This allows for greater flexibility in on-site applications and significantly extends the transmission range. In addition, the device operates on 1.9GHz, ensuring communication free from interference.

• External Fiberglass Antenna
  • The external fiberglass antennas provide a dependable transmission range of approximately 985ft (300m) in all directions, making them perfect for large-scale events like sports events, exhibitions, and beyond, ensuring reliable communication throughout the entire venue and uninterrupted connectivity.
• Built-in Panel Antenna
  • Ideal for operations in unobstructed venues like church events and concerts, the built-in panel antenna offers an impressive one-way transmission range of up to 1,300ft (400m) in the front. Additionally, it provides an extra 160ft (50m) of range at the back. This configuration makes it an excellent choice for one-way communication purposes.

Increased Communication Stability and Reliability

Powered by automatic frequency hopping technology, our device automatically identifies interferences across the frequency bands and selects interference-free options, ensuring uninterrupted communication and improved stability.

Immerse Yourself in Audio Excellence

The Hollyland Solidcom M1 Pro boasts impressive technical specifications for an immersive audio experience. For example, with a frequency range of 200Hz-7kHz, it captures every sound detail with precision. Furthermore, its sampling rate of 16kHz ensures high-quality audio sampling for accurate reproduction.

• Frequency Range: 200Hz–7kHz
• Sampling Rate: 16kHz
• SNR: 60dB±2
• Distortion: <1%

Enhanced Design for Maximum Comfort and Superior Audio

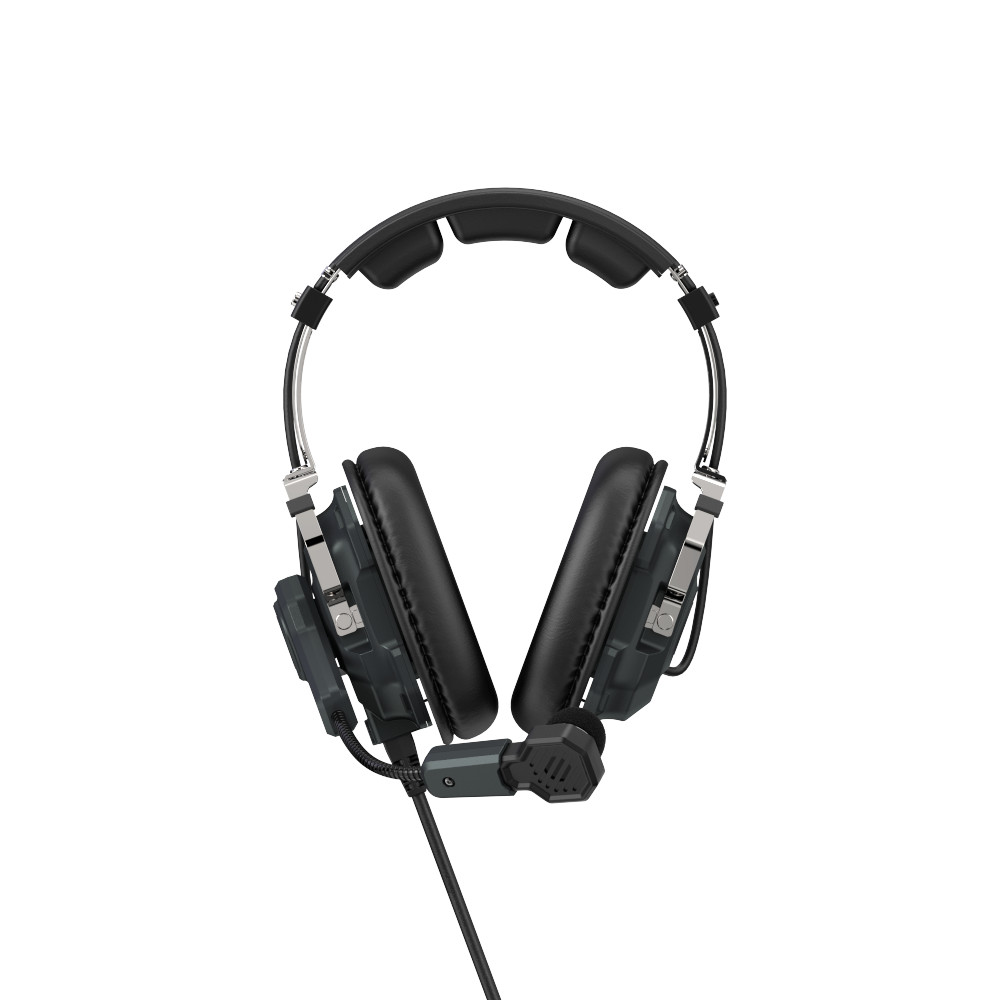

The brand-new headsets (including the single-ear headset and double-ear headset) developed by Hollyland offer maximum comfort and superior audio quality, with a structure that better fits the human ear and effectively reduces environmental noise. In addition, a wide range of headset accessories, such as mic cushion and head beam, is available for easy replacement on-site, promoting cleanliness and hygiene. Simply use them as needed and enjoy an exceptional wireless intercom experience.

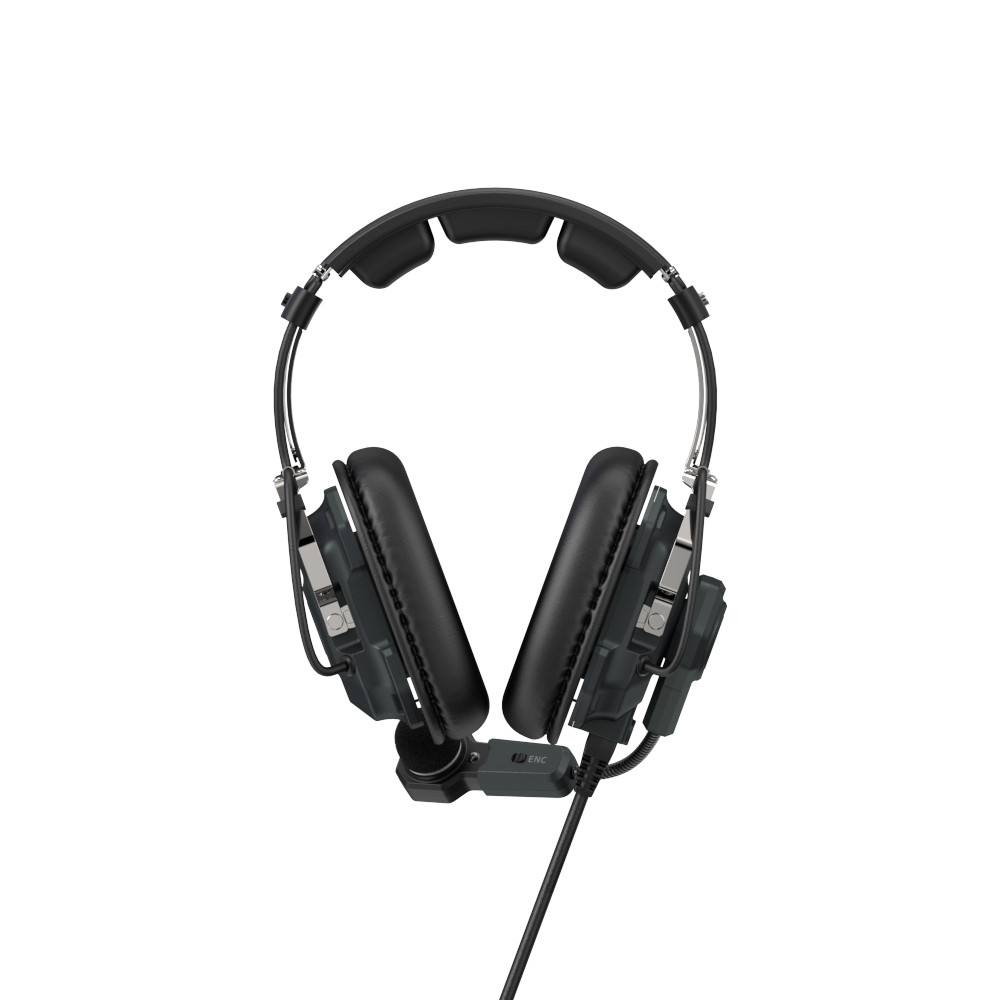

• Electret Mic ENC Double-Ear: The Hollyland Solidcom M1 Pro includes an optional accessory in the form of a double-ear headset, ensuring maximum ambient noise reduction while catering to the specific preferences of those who need to focus more on their communication without being disturbed by environmental noise.
• 3.5mm Headset Interface: The beltpack offers compatibility with 3.5mm headsets with a condenser microphone, providing greater flexibility for communication.
• TALK Button: With the ergonomically designed TALK button, you can effortlessly engage in conversations with just a single press, while a quick release activates the MUTE mode.

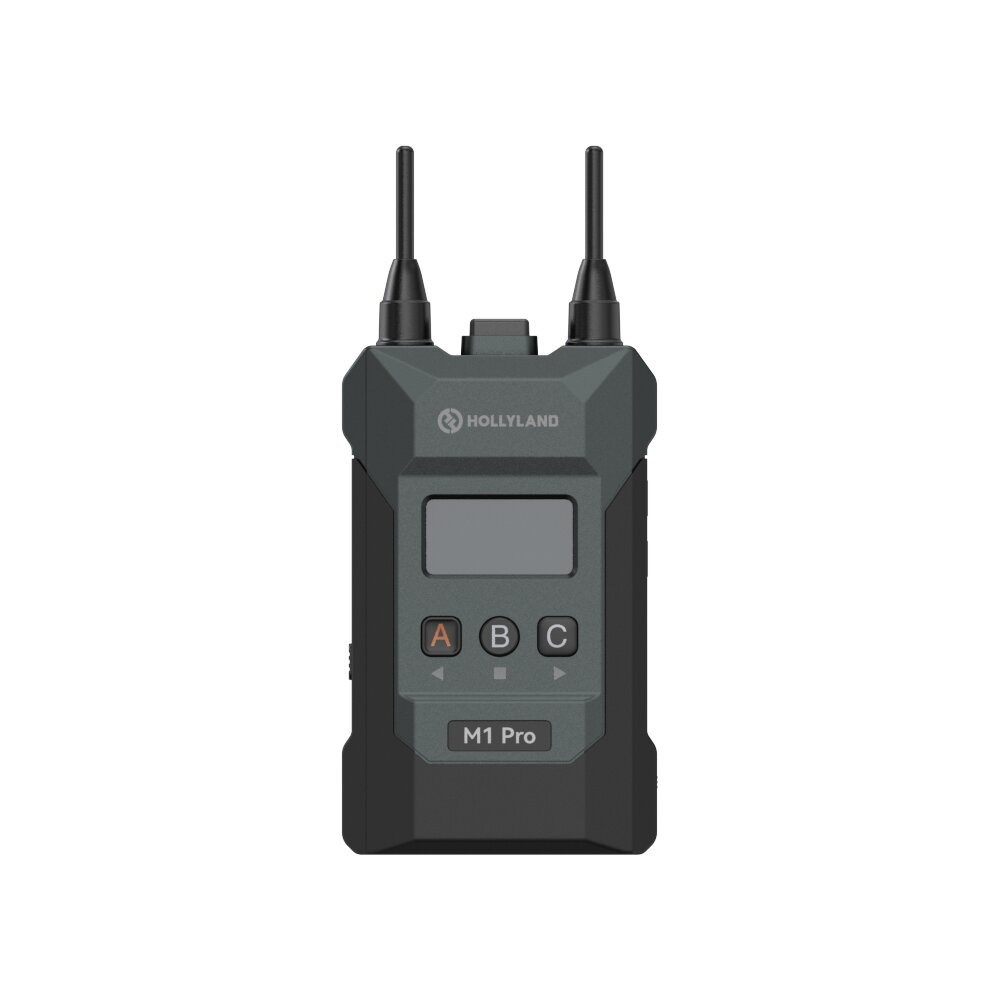

• Group Button: The illuminated color on the A, B, and C buttons allows for easy identification of the assigned group, enabling efficient communication.
• Neck Strap: Each beltpack comes with a lightweight neckstrap for added security.
• Volume Button: The volume buttons on the side of the beltpack allow for effortless adjustment of 10-level volume, ensuring optimal audio control.

Configure Your Device Anywhere, Anytime

Seamlessly unleash the maximum capabilities of the device by utilizing the base station, Hollyvox app, and web page for device configurations and upgrades.

• Web Page
• Hollyvox App
• Base Station

Continuous Power Supply for Uninterrupted Communication

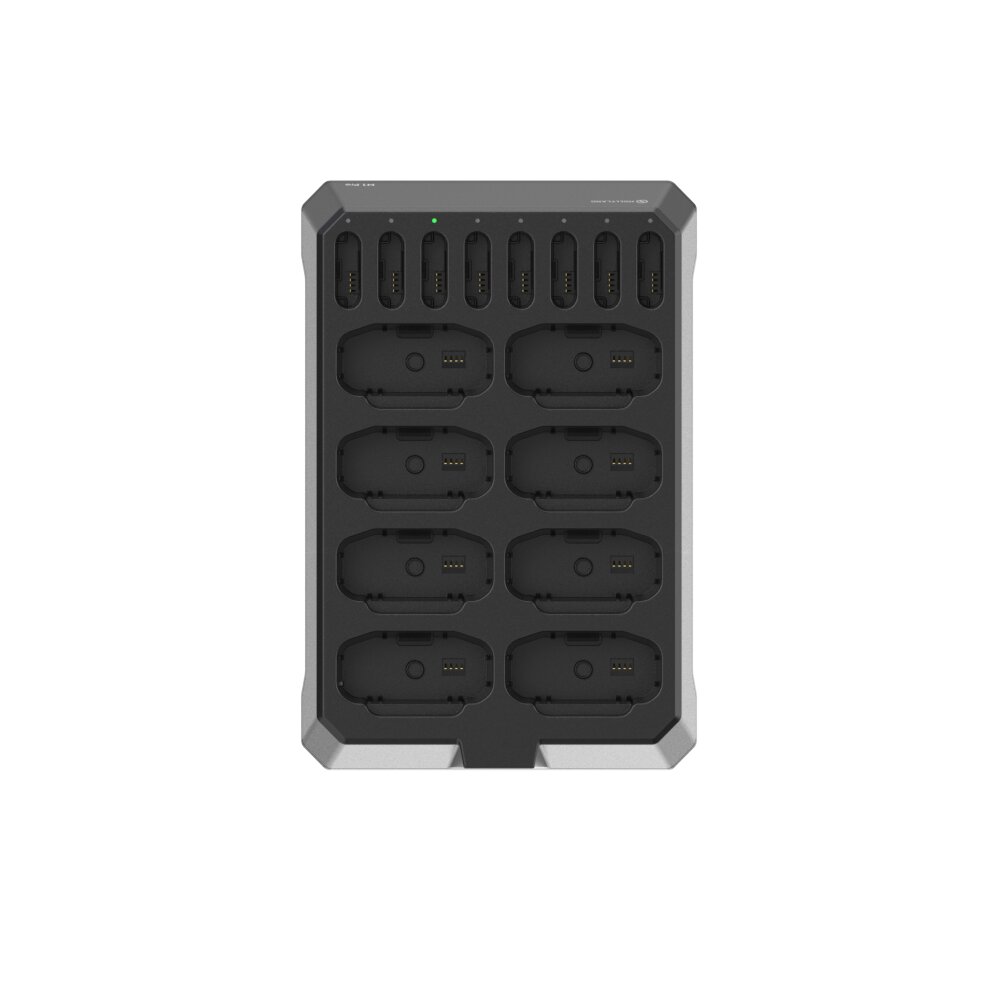

Each beltpack comes with two replaceable lithium polymer batteries with an operating time of up to 6 hours. The included charging base completely alleviates concerns about low power, as it can fully charge 8 beltpacks and 8 batteries in merely 2.5 hours at a time. The base station supports power supply through POE or NP-F batteries, ensuring uninterrupted communication regardless of the power source.

Incredible Form Factor Effects

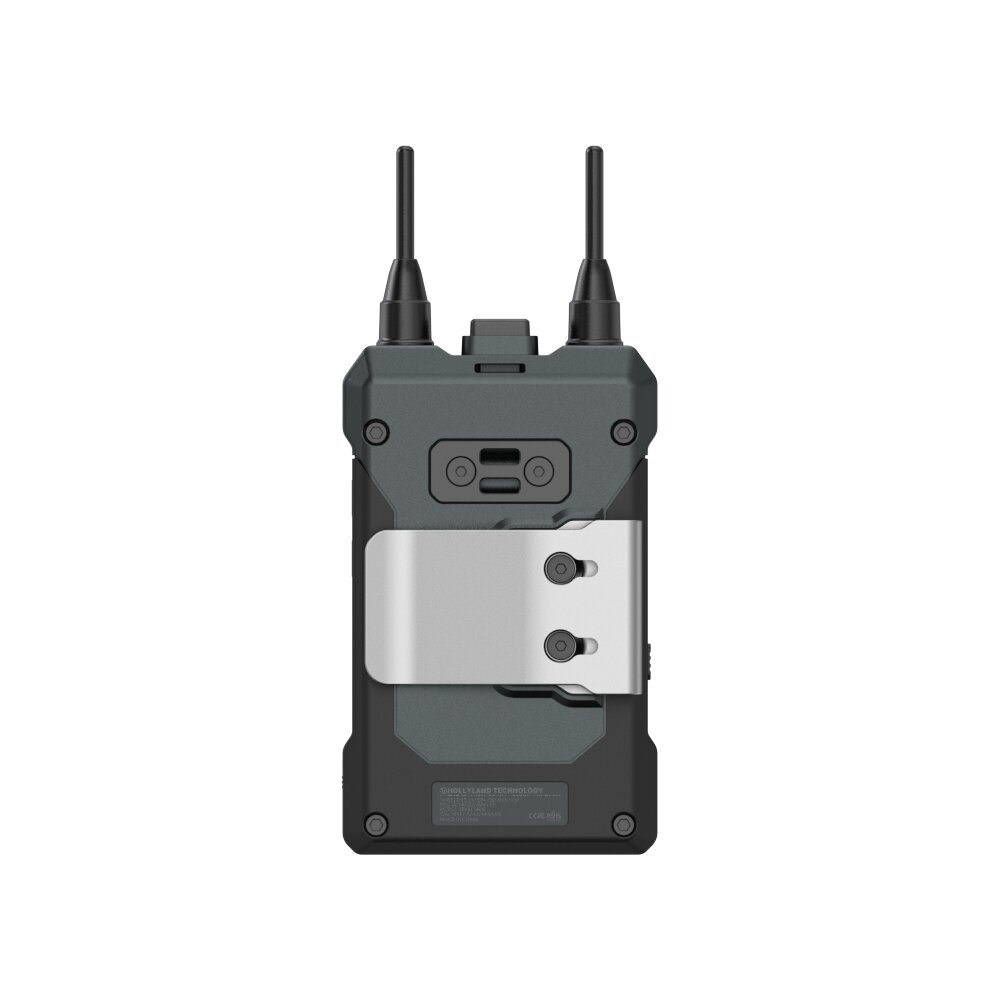

The beltpack features detachable antennas for easy replacement and added robustness, along with a secure TALK button. Weighing around 200g (7oz), the beltpack is crafted using double injection molding technology, providing a comfortable grip and improved drop-proof performance with its matte finish.

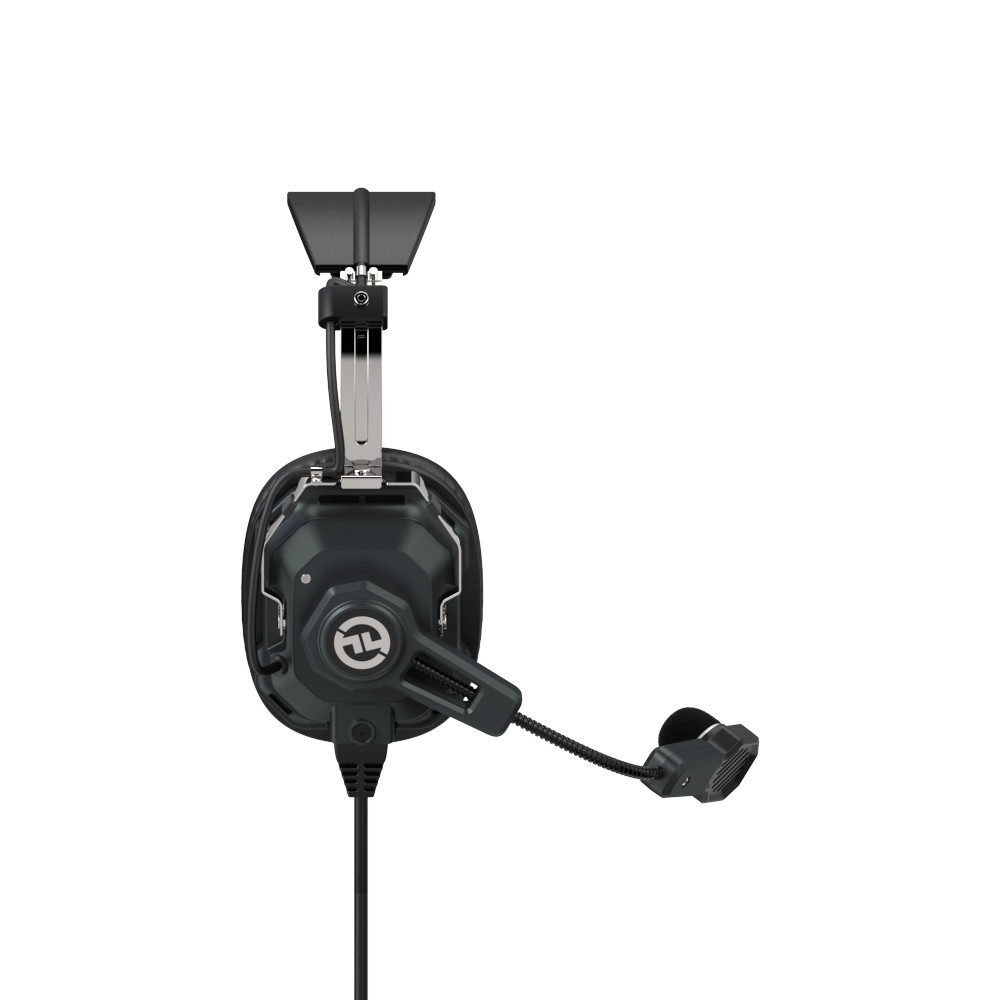

The headset with a military-inspired design features a metal head beam, specifically engineered to deliver optimal scratch-proof performance.

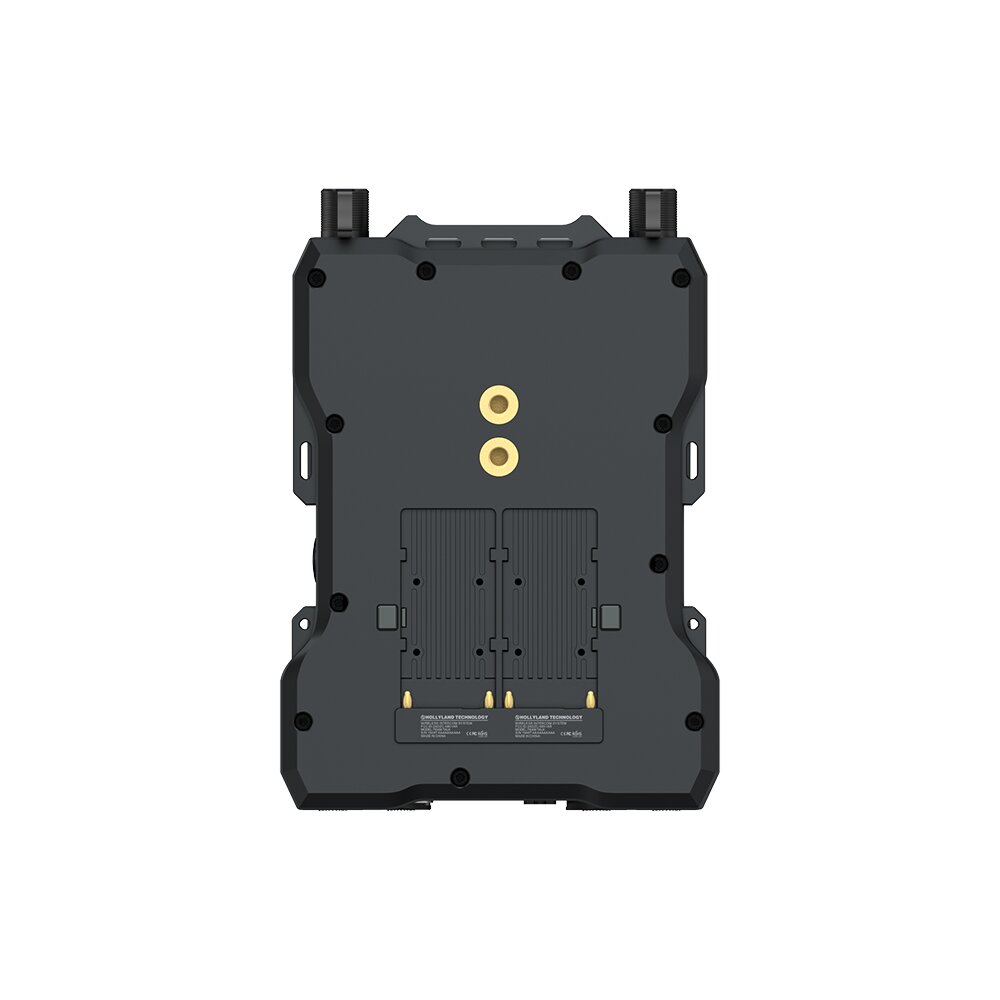

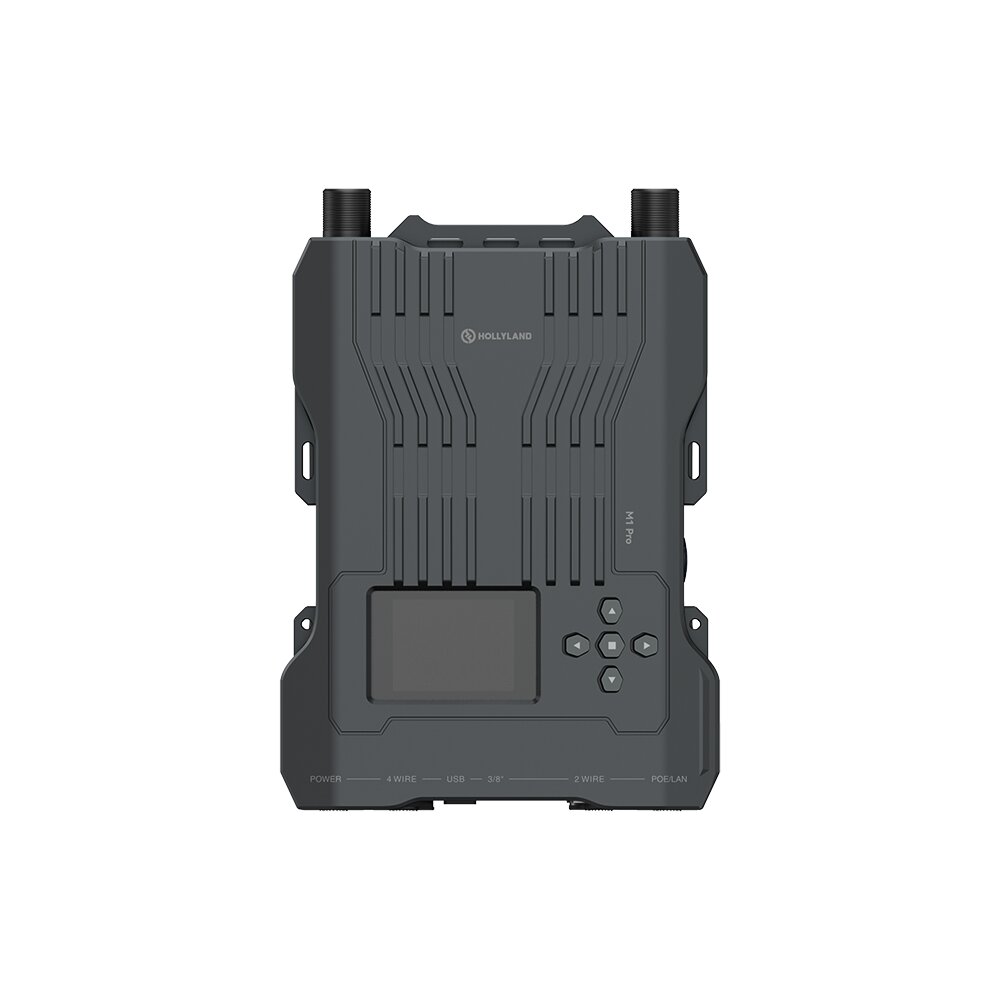

The base station is crafted with high-quality aluminum alloy, featuring a robust construction that ensures exceptional resilience, even in the most demanding environments.

Specifications

• Base Station
  • Interface
    • POE interface (RJ45)
    • Power supply interface (RJ45)
    • 4-wire audio interface
    • 2-wire audio interface
    • USB interface
  • Power Supply
    • POE power supply
    • NP-F battery
  • Frequency Response: 150Hz-7kHz
  • Signal-to-Noise Ratio: >55dB
  • Distortion: <1%
  • LOS Range: 1,300ft (400m)
  • Frequency Band: 1.9GHz
  • Modulation Mode: GFSK
  • TX Power: <21dBm
  • RX Sensitivity: ≤-93dBm
  • Bandwidth: 1.728MHz
  • Power Consumption: <3W
  • ENC Level: /
  • Temperature Range
    • 0℃ to 45℃ (working condition)
    • -20℃ to 60℃ (storage condition)
  • Dimensions (LxWxH): 10 x 7.1 x 1.9 inch (255.5 x 180.4 x 48.5mm)
  • Net Weight: Approx. 3.44 lbs (1560g)
• Beltpack
  • Interface
    • 3.5mm headset interface
    • 0B10 headset interface
    • USB-C interface
  • Power Supply: 1500mAh lithium polymer battery
  • Frequency Response
    • ENC OFF: 150Hz-7kHz (fluctuation range: ±6dB)
    • ENC ON: 150Hz-7kHz (fluctuation range: ±10dB)
  • Signal-to-Noise Ratio: 60dB±2
  • Distortion: <1%
  • LOS Range: 1,300ft (400m)
  • Frequency Band: 1.9GHz
  • Modulation Mode: GFSK
  • TX Power: <21dBm
  • RX Sensitivity: ≤-93dBm
  • Bandwidth: 1.728MHz
  • Power Consumption: <0.65W
  • ENC Level: 20dB
  • Temperature Range
    • 0℃ to 45℃ (working condition)
    • -20℃ to 60℃ (storage condition)
  • Dimensions (LxWxH): 4.13 x 2.56 x 0.88 inch (105 x 65 x 22.4mm)
  • Net Weight: Approx. 0.44 lbs (200g)

What's in the Box

• 1x Wireless Intercom System RRU
• 4x Electret Mic ENC Dual-Ear Headset
• 4x Wireless ENC Intercom Beltpack
• 1x Beltpack Battery Charging Base
• 2x External Fiberglass Antenna
• 8x Beltpack Battery
• 1x 4-Pin XLR Adapter
• 4x Neck Strap
• 1x POE Adapter
• 1x 3/8 Mounting Screw
• 1x Crab Clamp
• 1x RJ45 to Dual XLR Cable
• 1x RJ45 to XLR Cable
• 2x AC Power Cable
• 1x USB-A to USB-C Cable

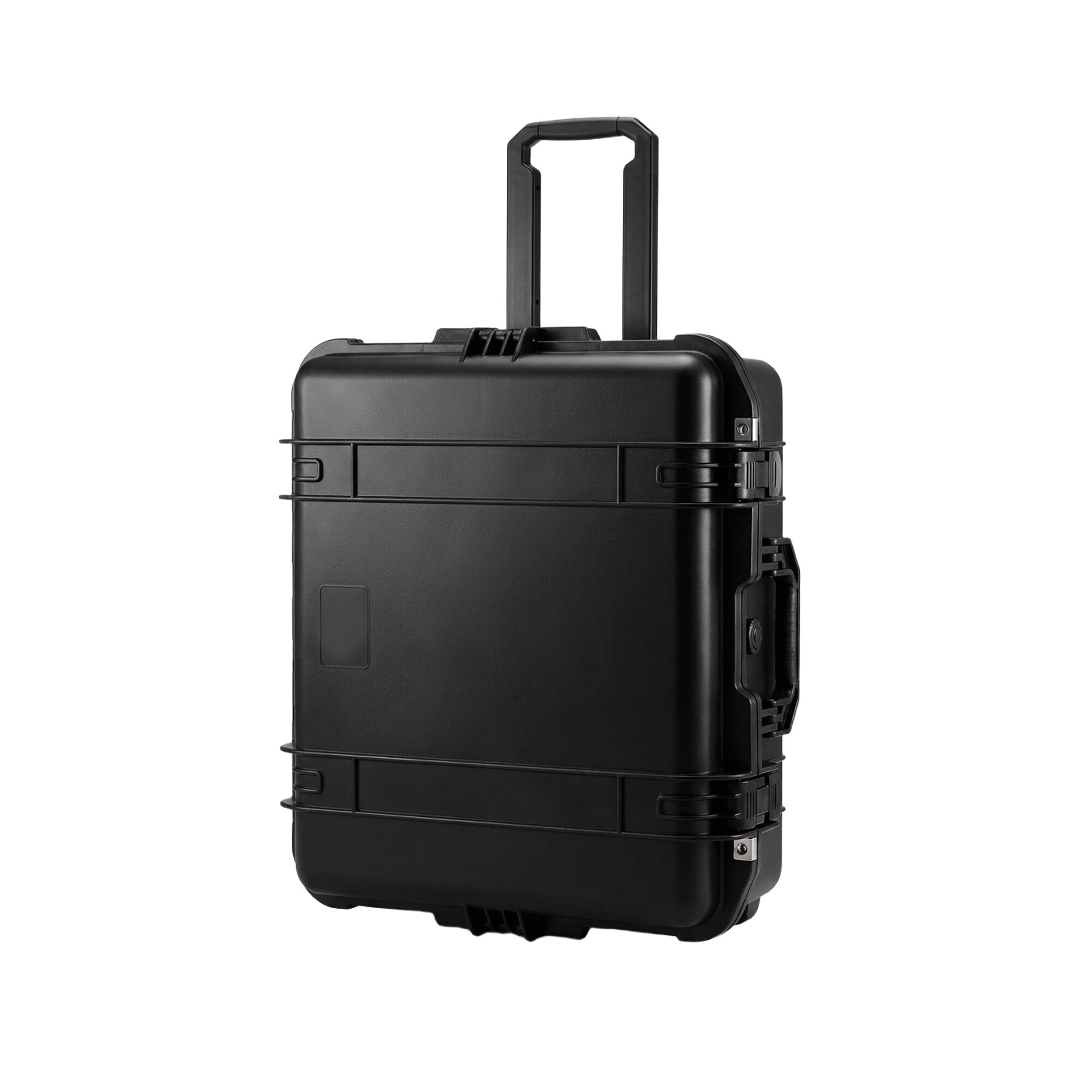

• 1x Hard-Shall Carry Case
