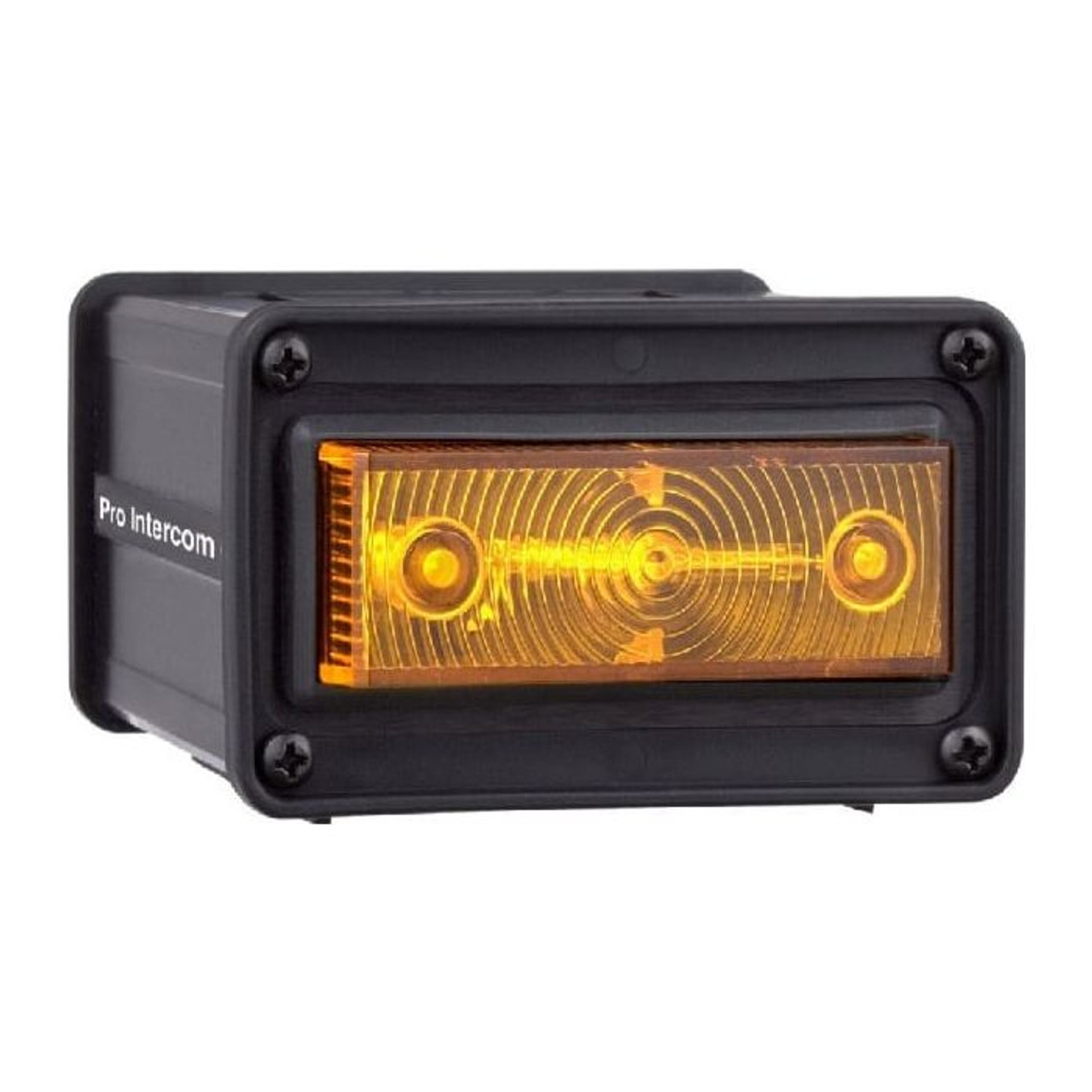

Pro Intercom Blazon 180 Xenon Signal
Model: PI BLAZON-180
About: Pro Intercom Blazon 180 Xenon Signal
The Blazon 180 incorporates a front mounted rectangular xe non lamp to limit the visibility of the flashes to 180º. Blazon 180 is triggered by the same voltage which lights the normal signal lamps in the intercom system. When ever any signal lamp but ton on any station in the same circuit is pressed, the Blazon 180 will be activated. The xenon lamp is permanently connected. Circuitry is provided to sustain the Blazon 180 for 4 seconds after being triggered. The xenon lamp has a flash rate of 2Hz, providing 8 flashes per cycle.
The Blazon 180 is connected to the headset intercom system in the same manner as a belt pack. It has two 3-pin XLR connectors on the rear panel. By convention (to differentiate from microphone inputs) the female connector is designated as input. The male connector is provided for looping onwards to the next station in the system. Reversing these connections will not affect operation.
Blazon 180 is powered by the intercom power supply and requires no batteries or other external power source. In its ready mode it draws only 21.1mA; with the strobe active, 120mA. When calculating power supply requirements, you may consider the Blazon 180 as the approxi mate equivalent of 3 or 4 belt packs.
Durability: The ribbed, extruded aluminum case; glass-filled nylon end bezels; internal support system for the PC board, and; best quality XLR-type connectors, all contrib ute to the Blazon 180’s ability to with stand rough usage.
Value: The comparatively low price of the Blazon 180 is made possible by the minimized assembly cost resulting from simplicity of construction
Compatibility: Clear-Com and other lesser known (unbalanced 200Ω) party-line head-set intercom systems
Reviews: Pro Intercom Blazon 180 Xenon Signal
Warranty: Pro Intercom Blazon 180 Xenon Signal
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
3 year warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Pro Intercom do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
