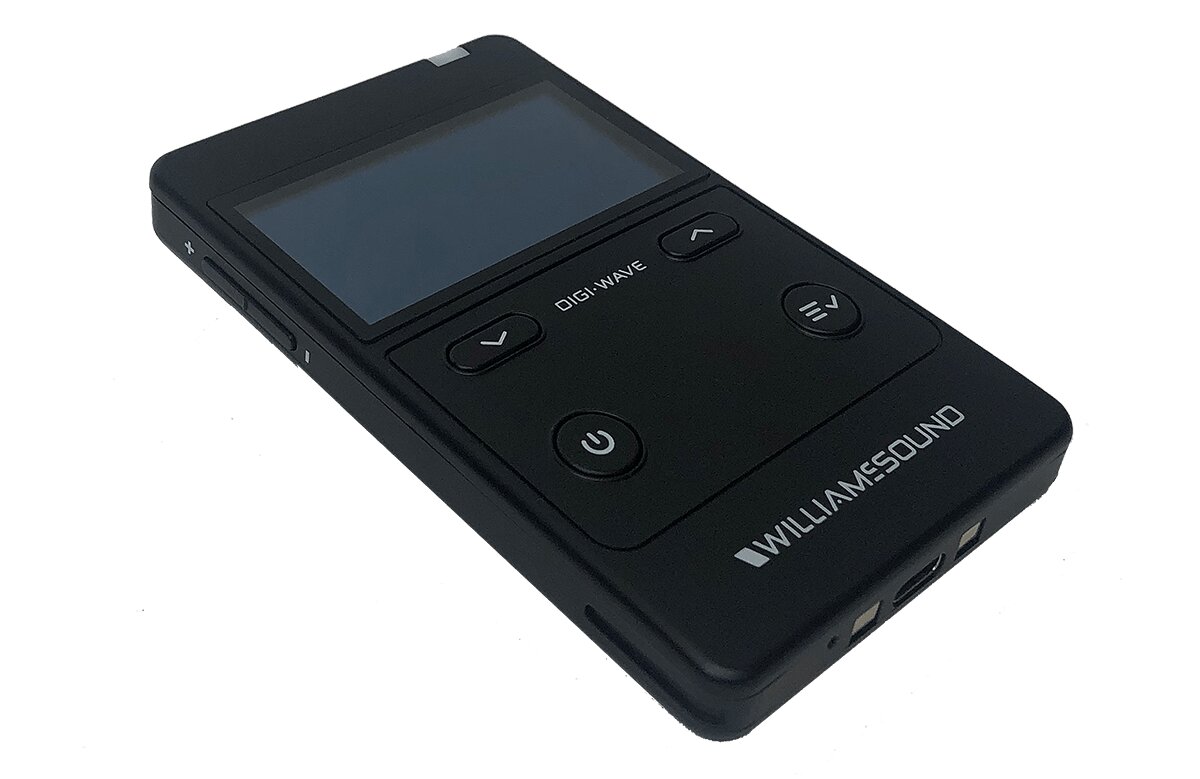

Williams AV Digi-Wave 400 Receiver (Rechargeable)

About: Williams AV Digi-Wave 400 Receiver (Rechargeable)

The Digi-Wave system is a digital spread-spectrum (DSS) wireless listening system. The receiver uses a frequency-hopping algorithm to avoid interference and provide a secure method of communication. The Digi-Wave 400 receiver allows users to listen to users with a Digi-Wave transceiver wirelessly in a variety of scenarios.

Great for use during training, presentations, and tours, especially in houses of worship, classrooms, and healthcare facilities.

Features

A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT’s and DLR’s can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:

• Guided Tours – with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)
• Language Interpretation – one or more interpreted languages transmitted to audience (1-way)
• Intercom – with up to six people able to speak simultaneously, and even more listening
• Hearing Assistance – featuring boosted audio for improved comprehension

The DLR 400 RCH has an internal rechargeable battery. If alkaline batteries are preferred, see the DLR 400 ALK.

Specifications

• Dimensions - 4.22″W x 2.60″H x 0.50″D (107.3 mm x 66 mm x 12.6 mm)
• Weight - 3.3 oz (94 g) including battery
• Color - Black
• Battery type - Lithium Polymer with smart charge built into transceiver; 1800 mAH
• Battery life - Up to 32 hrs per charge @ 1ch Rx
• Power Save - Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
• Charge time - 5 hrs. approx.
• System Voltage - OLED 14VDC; RF 5VDC; Logic 3.3 VDC
• Operating frequencies - 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
• Audio Frequency response (-3dB Level)
  • Intercom Mode: 100 – 7,200 Hz
  • Other Modes: 100 – 11,500 Hz
• SNR - 73 dB (A-weighted)
• THD - 0.1 % (Default Volume, 1kHz)
• Headphone Output - 3.5 mm TRRS headphone jack; 25 mW, R32 Ω
• Line Audio Output - USB-C, Adjustable Level
• Range - Up to 900 ft (274 m) (depending upon environmental conditions)
• Modulation - FSK
• RF Sensitivity - -92 dBm
• Security - 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
• Indicators - OLED
• LEDs - Bi-color, changing green and red LED at top
• Charging Connectors - USB-C; Two contacts for use with CHG 412
• Compatible Units - DLT 400, DLT 300 with some limitations
• Operating Tempurature Range - 14º to 113ºF (-10º to 45ºC)
• Approvals - FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
• Warranty - 2-year warranty against component failure and manufacturing defects; 6 months on internal battery
