Opus Tech AuraGateLite Wall Transmitter - White (30m)
Model: AURAGATE-LITE
About: Opus Tech AuraGateLite Wall Transmitter - White (30m)

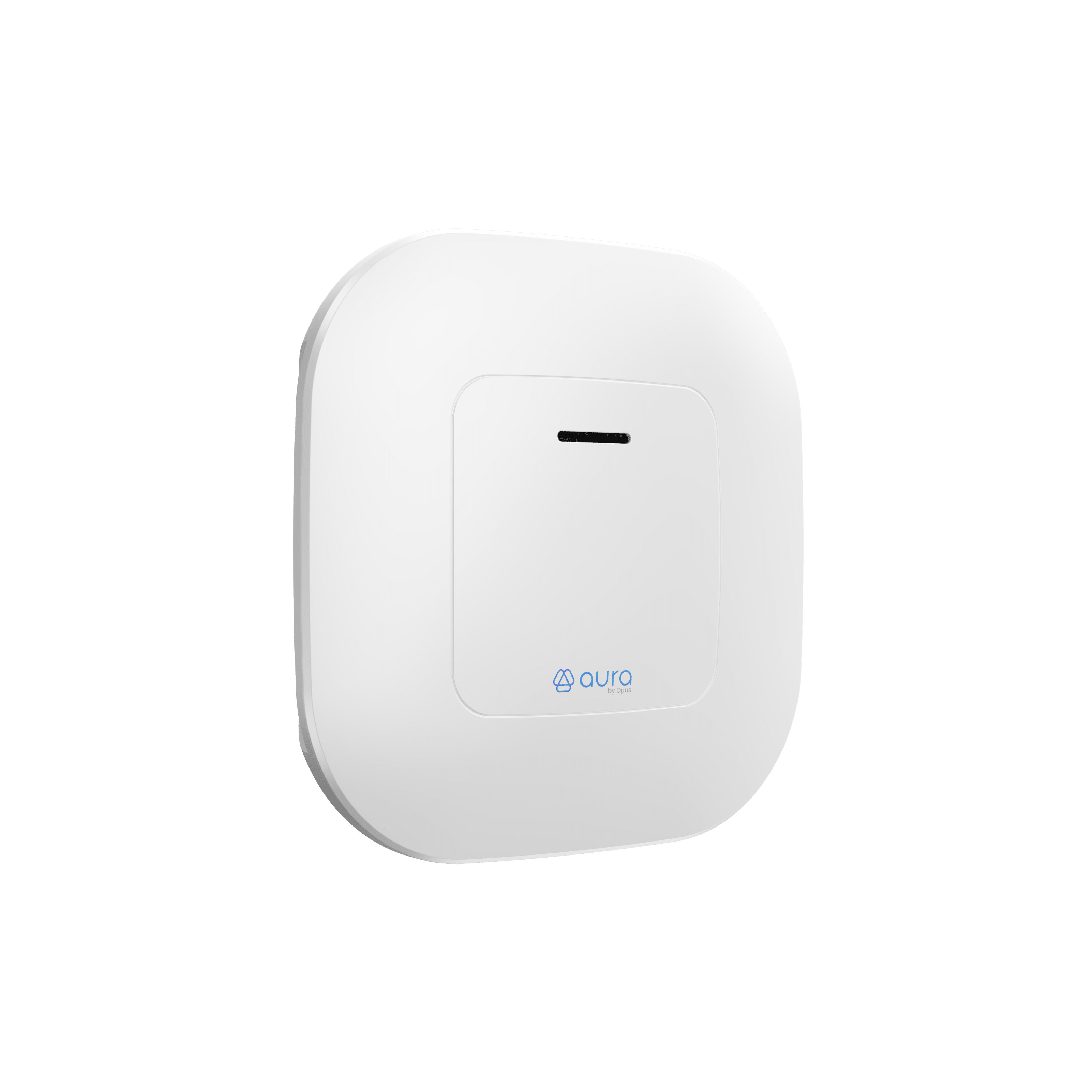

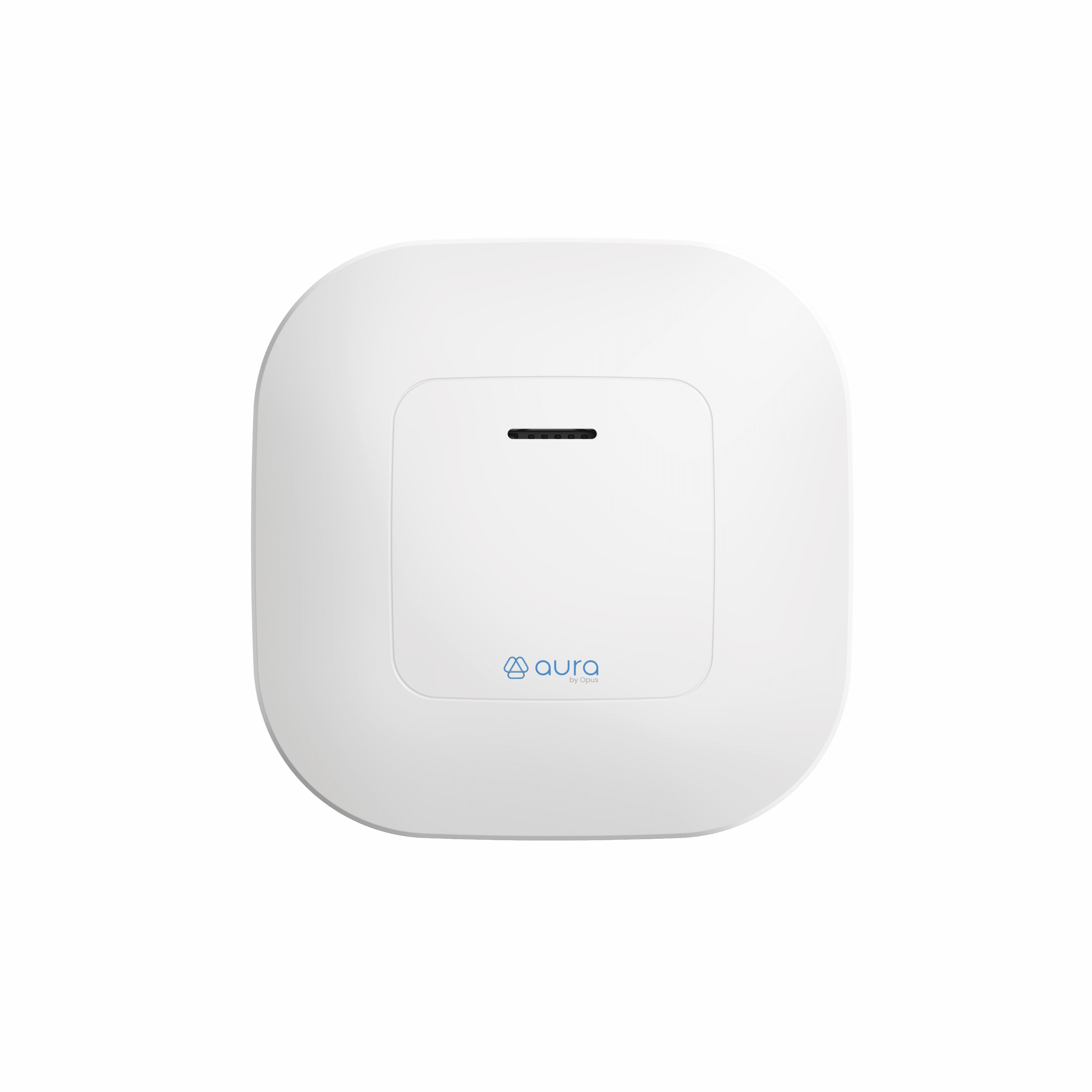

The AuraGateLite by Opus is an innovative broadcasting unit designed to deliver a high-quality audio experience in medium-sized rooms. By combining Auracast streaming with cutting-edge technologies, it provides smooth, stable audio that faithfully reproduces the original source, regardless of the listening environment whether it’s a meeting room, classroom, waiting area, or similar.
Specifications
- RF
- Connectivity: Auracast™ (Bluetooth 5.2 and up)
- Operation freqeuncy: 2 402 to 2 480 MHz
- Auracast™ mode: Transmitter
- Encryption: EAS-CCM
- Transmission power: 0 dBm (EU)
- CONTROL
- Mechanical buttons: 4 switchs : First function : Micro/LINE/Phantom Second function : set to BLE COFIG/UPDATE or Auracast mode
- Configuration: AuraConnect application
- Update: AuraConnect application
- PERIPHERALS
- Statuts LED: RGB multifunction
- AUDIO INPUT (AURACAST™)
- Auracast™ stereo: Quality : 16, 24 or 48 kHz
- Mesured range: Up to 30m (open field)
- AUDIO OUTPUT (PHYSICAL)
- Mode: Mono/Stereo
- Connection: 3 pins (differential)
- Impedance: 4 or 8 Ohm
- Nominal output: 400 mW
- AUDIO INPUT
- LINE or MICRO input: 2x LINE/MICRO inputs (mono mixed)
- SPDIF input: 1x SPDIF input
- USB port: 1x USB-C input
- AUDIO PROCESSING
- Sample rate
- 16 kHz
- 24 kHz
- 48 kHz
- Codec: LC3
- Frequency responses
- 16 kHz : 50 Hz to 7,5 kHz
- 24 kHz : 50 Hz to 11 kHz
- 48 kHz : 50 Hz to 19,5 kHz
- Latency: 30 ms
- Automatic Gain Control (AGC): Yes
- Sample rate
- POWER SUPPLY AND CHARGING
- Power supply: USB-C
- Power: 5 V, 300 mA
- Connection to the station: USB-C / PoE
- GENERAL
- Temperature storage: -15 to 60 °C
- Dimensions: 7.48 x 7.48 x 1.97 inch (190 x 190 x 50 mm)
- Weight: 0.55 lbs (250 g)
