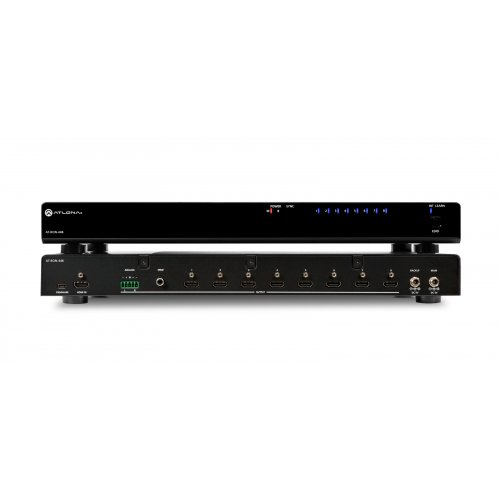

Atlona Eight-Output HDMI Distribution Amplifier

About: Atlona Eight-Output HDMI Distribution Amplifier

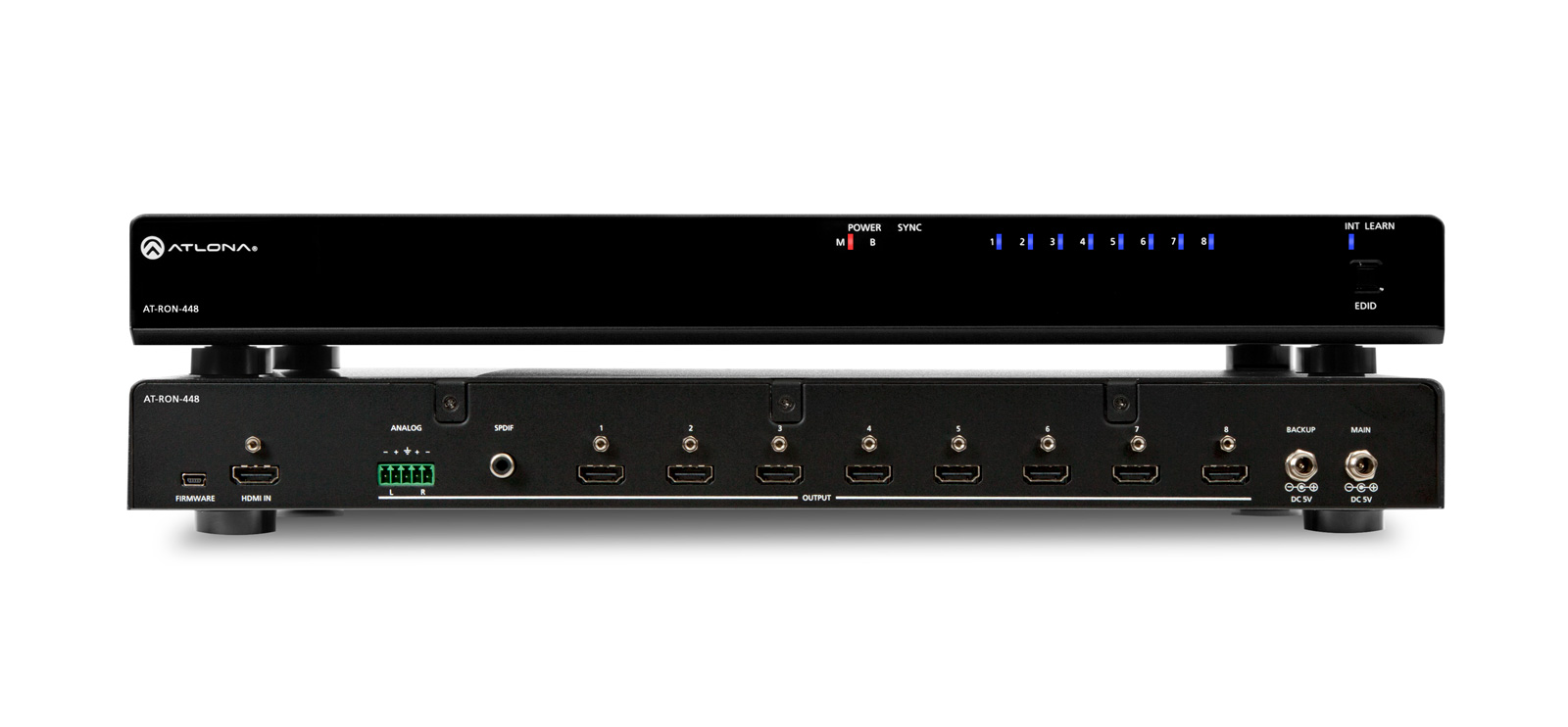

The Atlona Rondo 448 (AT-RON-448) is a 1×8 HDMI distribution amplifier for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo 448 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, audio de-embedding to analog and coaxial S/PDIF audio outputs, and the capability to cascade several units without compromising performance.

The Rondo 448 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications. It includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Applications

• Residential installations – The Rondo 448 is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
• TV showrooms – The Rondo 448 can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
• Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.

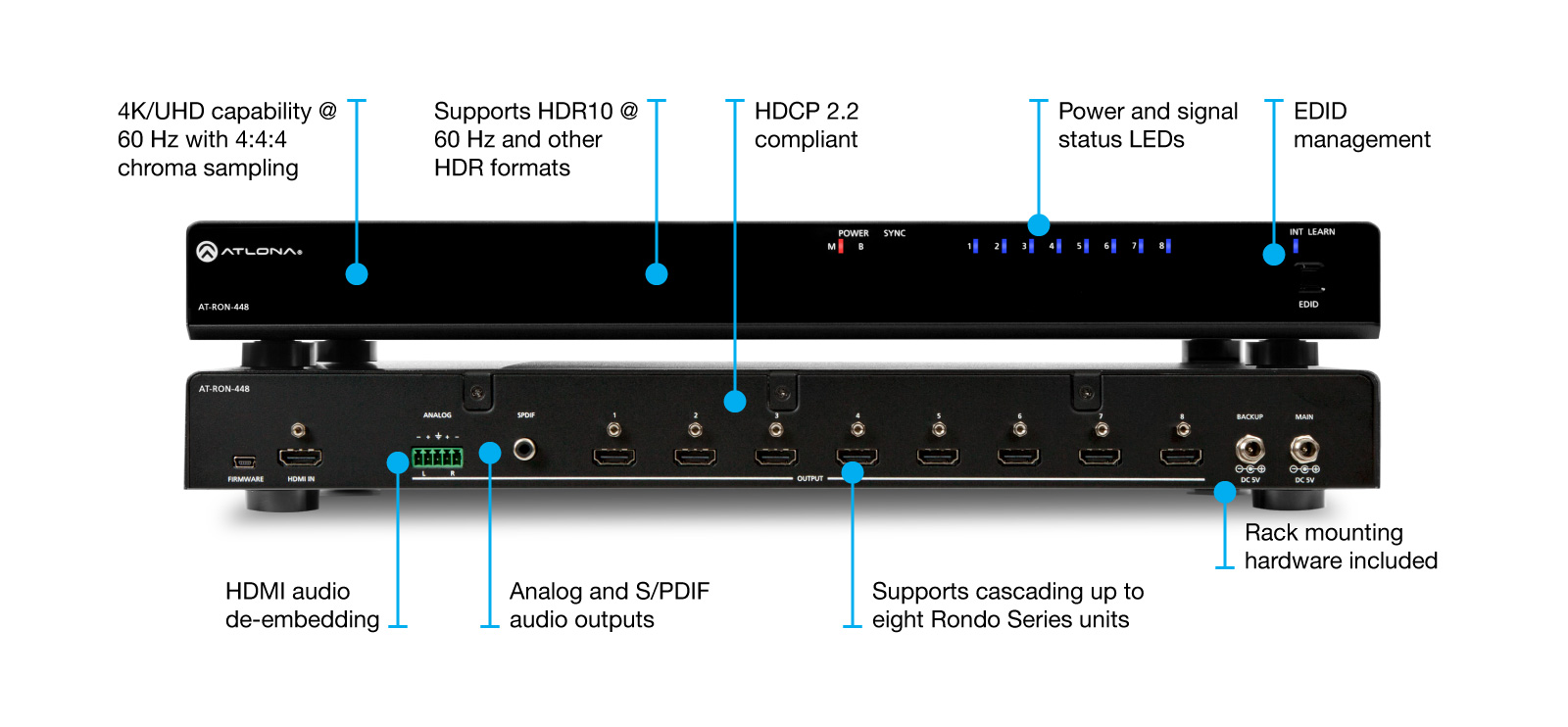

FEATURES

• 1×8 HDMI distribution amplifier
  • Delivers high performance, reliable HDMI signal distribution
  • Easy to install and deploy in commercial and residential applications
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10 and Dolby Vision @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
• HDCP 2.2 compliant
  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between devices
• EDID management
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system
• Supports cascading up to eight units
  • Combine multiple Rondo 448 and other Rondo Series distribution amplifiers without compromising performance or reliability
  • System designs and configurations can easily be adapted or modified as needed
• HDMI audio de-embedding
  • Extracts HDMI two-channel PCM audio to the unbalanced analog stereo output, and two-channel PCM or multi-channel bitstream audio to the coaxial S/PDIF digital output
  • Provides an additional integration option for AV receivers and whole-house audio systems
• Multi-channel audio compliant
  • Passes through multi-channel audio formats from the HDMI input
  • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
• Field-updatable firmware
  • Device can be updated in the field via USB port
• Front panel power and signal status LEDs
  • LED indicators provide power and HDMI input / output signal status information
  • Provides easy setup and troubleshooting
• Rack-mountable 1U, full rack width enclosure
  • Installs easily in rack mounted systems with included 19” rack mount brackets
  • Reduces installation time and cost
• Included accessories
  • Installation guide, rack mounting brackets, and external universal power supply
• Award-winning 10 year limited product warranty
  • Ensures long-term product reliability and performance in residential and commercial systems
  • Specify, purchase, and install with confidence
