Zoom H6studio Handy Recorder

About: Zoom H6studio Handy Recorder

The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date.

• Mono mode for recording interviews, narration, and vocals
• Low-cut filter to suppress low-frequency noise
• Normalize and export audio files in 24-bit/16-bit WAV formats
• Variable speed playback (0.5 to 2.0x) and A-B repeat playback of recorded files
• The recording start tone function useful for aligning audio with video
• The H6studio uses microSDHC/microSDXC cards up to 2TB (SD card sold separately)

The Power of F-Series Preamps

The H6studio’s F-series preamps deliver ultra-clean audio (-127 dBu EIN). Paired with dual A/D converters and 32-bit float recording, they provide 132 dB of dynamic range capturing every nuance.

A Perfect Pair

The H6studio’s mics are stacked at a 90º angle to form a perfect X/Y pair. This minimizes phase cancellation commonly experienced with AB and other mic arrangements that can result in hollow sound.

Capture Bigger Sound

The H6studio’s 19.4mm microphones capture a rich, flat-response with 123 dB of dynamic range and can withstand 140 dB SPL, enough for a jet engine.

Switch Formats, Not Recorders

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping.

The H6studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production. And with the dedicated format switch, you can adapt your workflow quickly.

6 Tracks + Stereo Mix

The H6studio supports sampling rates from 44.1 to 192 kHz. Capture up to 8 tracks* at once - 6 individual tracks plus a stereo mix.

• Up to 8 tracks (6 inputs + 2 stereo mixes) at 96kHZ
• Up to 6 tracks (6 inputs) at 192kHZ

The Noise Stops Here

Carefully designed RF shielding blocks interference from smartphones and Wi-Fi. The mics on the XYH-5s capsule use shock mounting to reduce handling noise.

Limiters That Think Ahead

The H6studio’s advanced “look-ahead” limiters catch peaks early to prevent distortion, avoiding clipping in 16/24-bit and removes the need for post-recording adjustments when using 32-bit float.

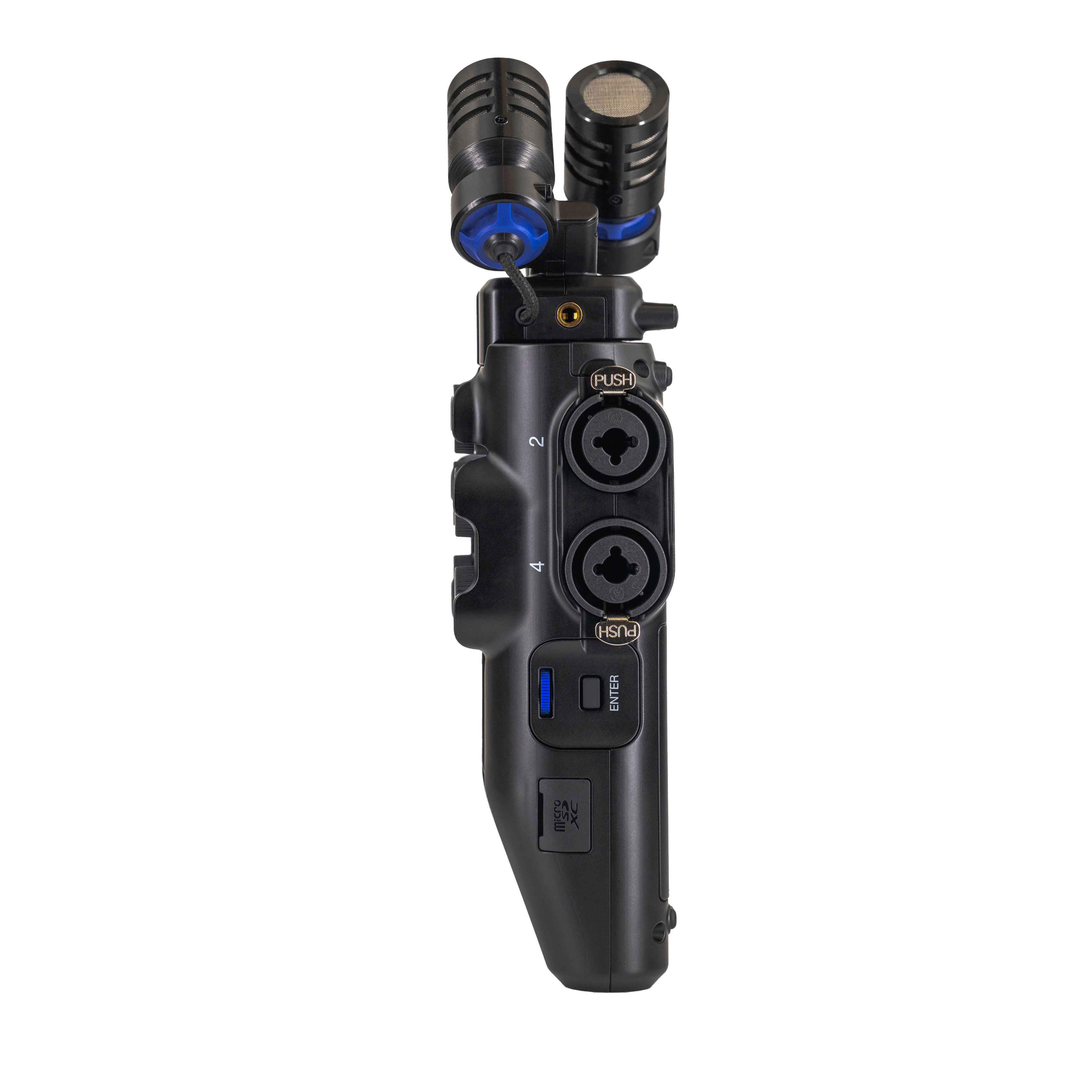

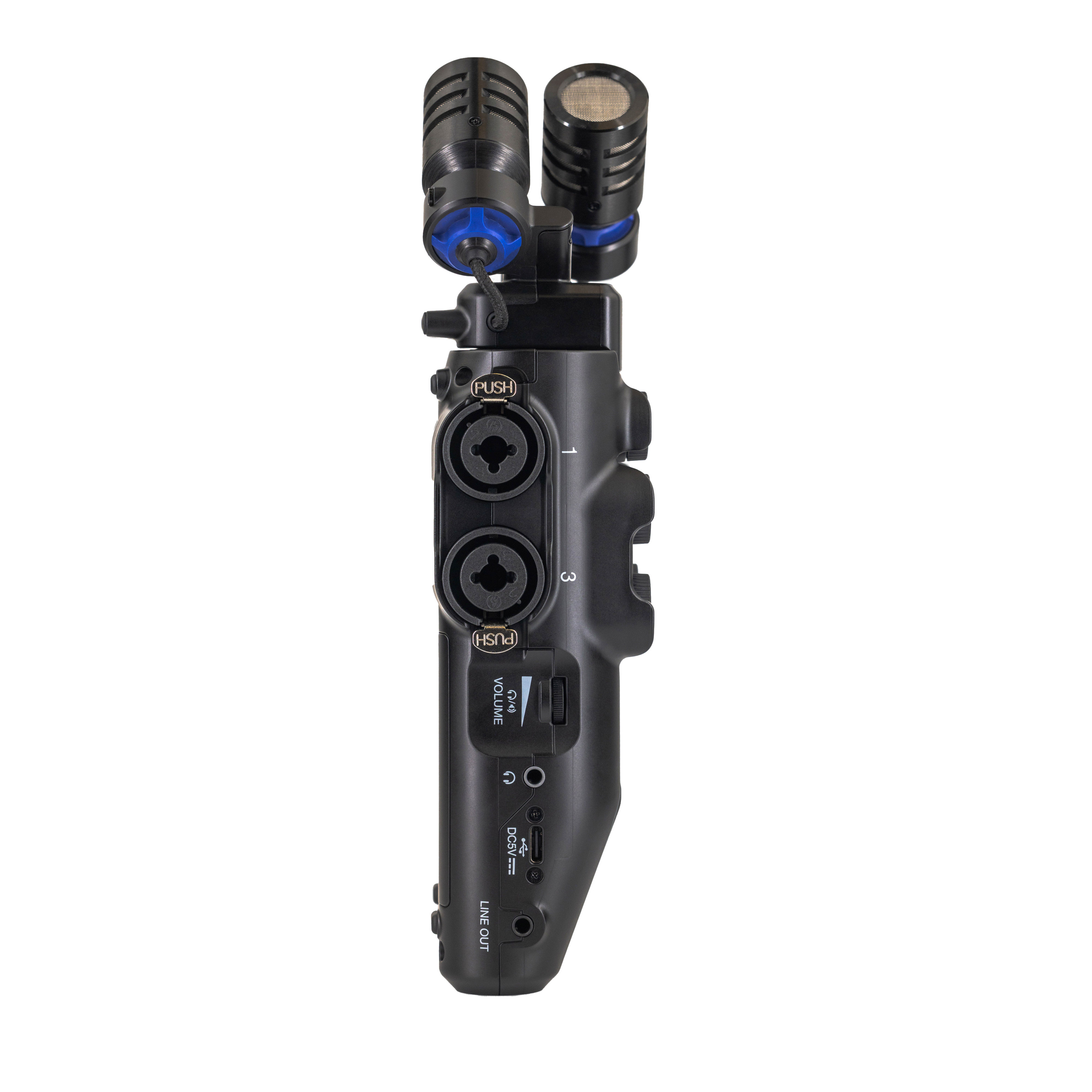

Four XLR/TRS Inputs + Stereo Mini Jack

The H6studio includes four locking XLR/TRS inputs with +48V phantom power and +4dBu line-level support, plus a stereo mini jack with plug-in power.

Next Generation Capsule System

The H6studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording.

• *Compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e

Capsule Carousel

• Use the Zoom SSH-6e Mid-Side Shotgun Capsule to capture direct sound and ambience in fine detail. With precise control over the stereo image, you can record hyper directional audio and mix in only the environmental sounds you want.
• Use the Zoom EXH-6e Dual XLR/TRS Input Capsule for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.
• The H6studio’s large 19.4mm microphones deliver superior audio with 140 dB max SPL, incredible frequency response, and a dynamic range of 123dB.
• The WLM-1 is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter's built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL.

Wireless Capsule

The WLM-1* is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter's built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL.

• * Available in 2026, compatible with Capsule System 3.0

See Your Sound in Real Time

See both the input level peaks and the recording waveforms at the same time. Tap the DISP key to switch between level meter only or waveform view.

Versatile Output Options

• Headphone Out: Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.
• Line Out: Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.
• Onboard Speaker: The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

USB Audio Interface

The H6studio is a 6-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Precision Sync, Wireless Freedom

The TCA-1 timecode adapter* generates and outputs timecode or jams to an external clock with .5 ppm accuracy. You can also receive wireless timecode from the ATOMOS UltraSync BLUE.

• **TCA-1 or BTA-1 Required

Handy Control & Sync

With the ZOOM Handy Control & Sync app for iOS, you can remotely manage multiple Zoom recorders*, control start/stop, and synchronize timecode effortlessly.**

• *Current compatible models: H6studio, H5studio, H2essential
• **TCA-1 or BTA-1 Required

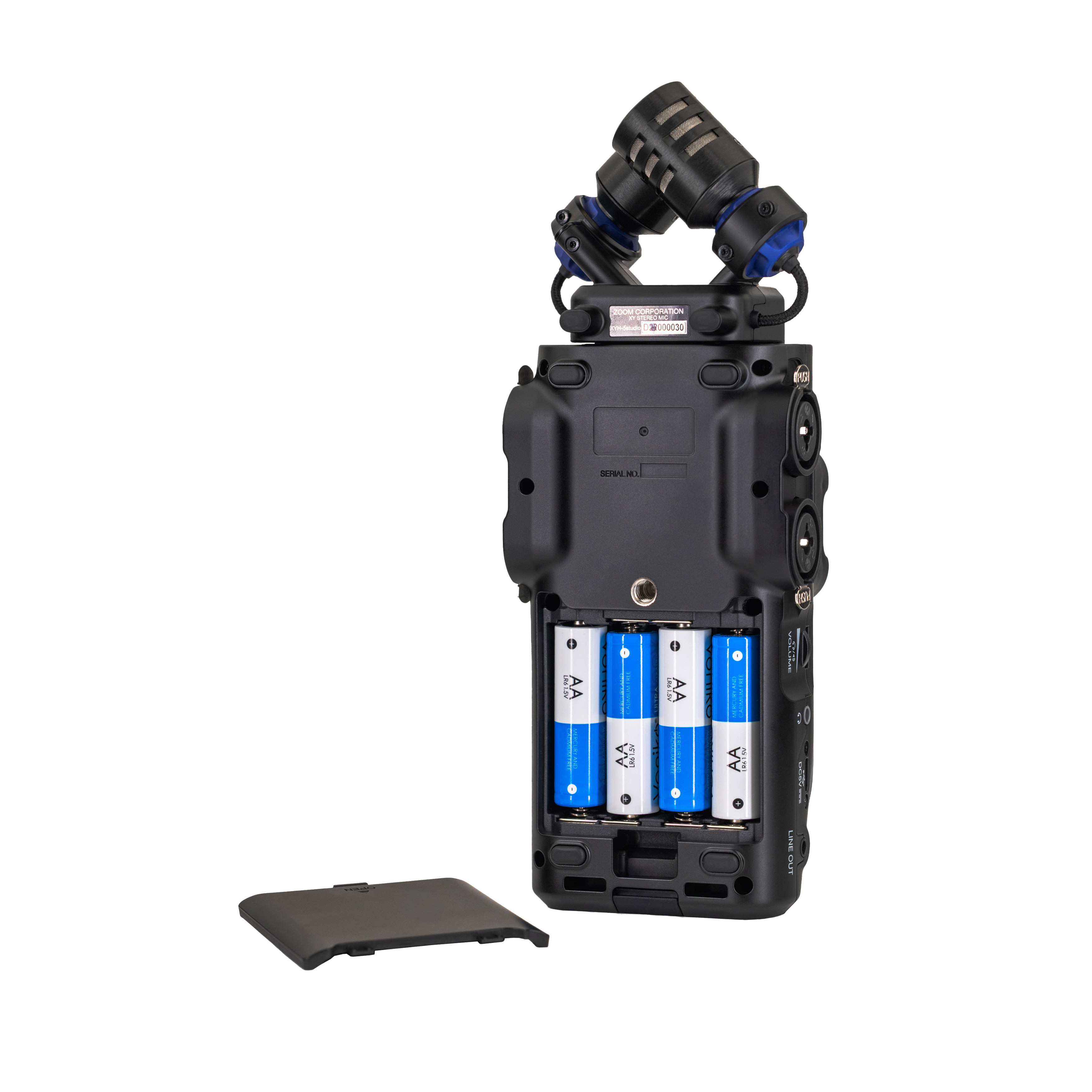

15-Hour Battery

Operates on 4 AA batteries for up to 15 hours of recording. Power through the USB port using a USB mobile battery or AC adapter*.

• *AD-17 sold separately

Designed for Everyone

The H6studio is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

Complete Your Setup

The optional accessory pack (APH-6st) includes a padded shell case, hairy windscreen, AC adapter, and USB-C cable.

Specifications

• INPUT AND OUTPUT CHANNELS
  • Inputs
    • Mic capsule: 1
    • MIC/LINE (mono): 4
  • Outputs
    • LINE OUT: 1
    • Headphone: 1
    • Built-in speaker (mono): 1
• INPUTS
  • XY mic (XYH-5s)
    • 90º XY stereo format
    • Pickup pattern: Unidirectional
    • Sensitivity: –41 dB/Pa at 1 kHz
    • Maximum sound pressure input: 140 dB SPL
  • MIC/LINE IN (XYH-5s)
    • Connector: 1 stereo mini jack
    • Input gain: −∞ – +60 dB
    • Input impedance: 2 kΩ or more
    • Plug-in power: 2.5 V
  • MIC/LINE (mono)
    • Connectors: 4 XLR/TRS combo jacks
      • (XLR：2 HOT, TRS：TIP HOT）
    • Input gain: −∞ – +60 dB
    • Input impedance
      • MIC: 3 kΩ or more
      • LINE: 3 kΩ or more
    • Maximum input level
      • MIC: +4 dBu
      • LINE: +24 dBu
    • Phantom power: +48 V
    • Equivalent input noise: –127 dBu or less (IHF-A) at 150Ω input
• OUTPUTS
  • LINE OUT
    • Connector: 1 stereo mini jack
    • Maximum output level: +1 dBu
    • Output impedance: 110 Ω or less
  • Headphone
    • Connector: 1 stereo mini jack
    • Maximum output level: 20 ｍW + 20 ｍW（when 32 Ω load）
    • Output impedance: 10 Ω or less
  • Built-in speaker
    • Type: 20 mm x 30 mm elliptical dynamic speaker
    • Effective maximum output: 250 mW
• RECORDER
  • Maximum simultaneous recording tracks: 8
  • Maximum simultaneous playback tracks: 6
  • Recording formats
    • WAV
    • 44.1/48/96/192 kHz,
    • 16-bit/24-bit/32-bit float
    • mono/stereo
    • BWF and iXML formats supported
  • Recording media
    • microSDHC memory cards
    • microSDXC memory cards
• DISPLAY
  • 2.00" full-color LCD: 320 x 240
• USB
  • Connector: USB Type-C
    • • Use a USB cable that supports data transfer.
  • Audio Interface: USB 2.0 High Speed
    • Input and output channels
      • 6 in / 2 out (Multi)
      • 2 in / 2 out (Stereo)
    • Sampling frequencies
      • 44.1/48/96 kHz (audio interface only)
      • 44.1/48 kHz (audio interface + onboard recording)
    • Bit depths: 24-bit, 32-bit float
  • File transfer: USB 2.0 High Speed
• REMOTE
  • Dedicated wireless adapter: ZOOM BTA-1
• POWER
  • 4 AA batteries: Alkaline, lithium or rechargeable NiMH batteries
  • AC Adapter: ZOOM AD-17 (DC 5 V/1 A)
    • USB bus power is supported.
• ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording
  • Alkaline batteries: About 15 hours
  • NiMH batteries (1900 mAh): About 12 hours
  • Lithium batteries: About 26 hours
    • At 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording
  • Alkaline batteries: About 4.5 hours
  • NiMH batteries (1900 mAh): About 5 hours
  • Lithium batteries: About 11 hours
    • At 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording
  • Alkaline batteries: About 2 hours
  • NiMH batteries (1900 mAh): About 3 hours
  • Lithium batteries: About 6.5 hours
    • At 192 kHz/32-bit float with phantom power on (INPUTS 1-4), headphones used (33Ω load), LINE OUT used (10KΩ load), REMOTE used (BTA-1), Power Saving On, Display Brightness Bright
• Power consumption: 5 W maximum
• Dimensions (WxDxH): 3.27 x 8.7 x 2.15 inch (83 x 221 x 54.5 mm)
• Weight (including batteries): 1.05 lbs (477 g)
