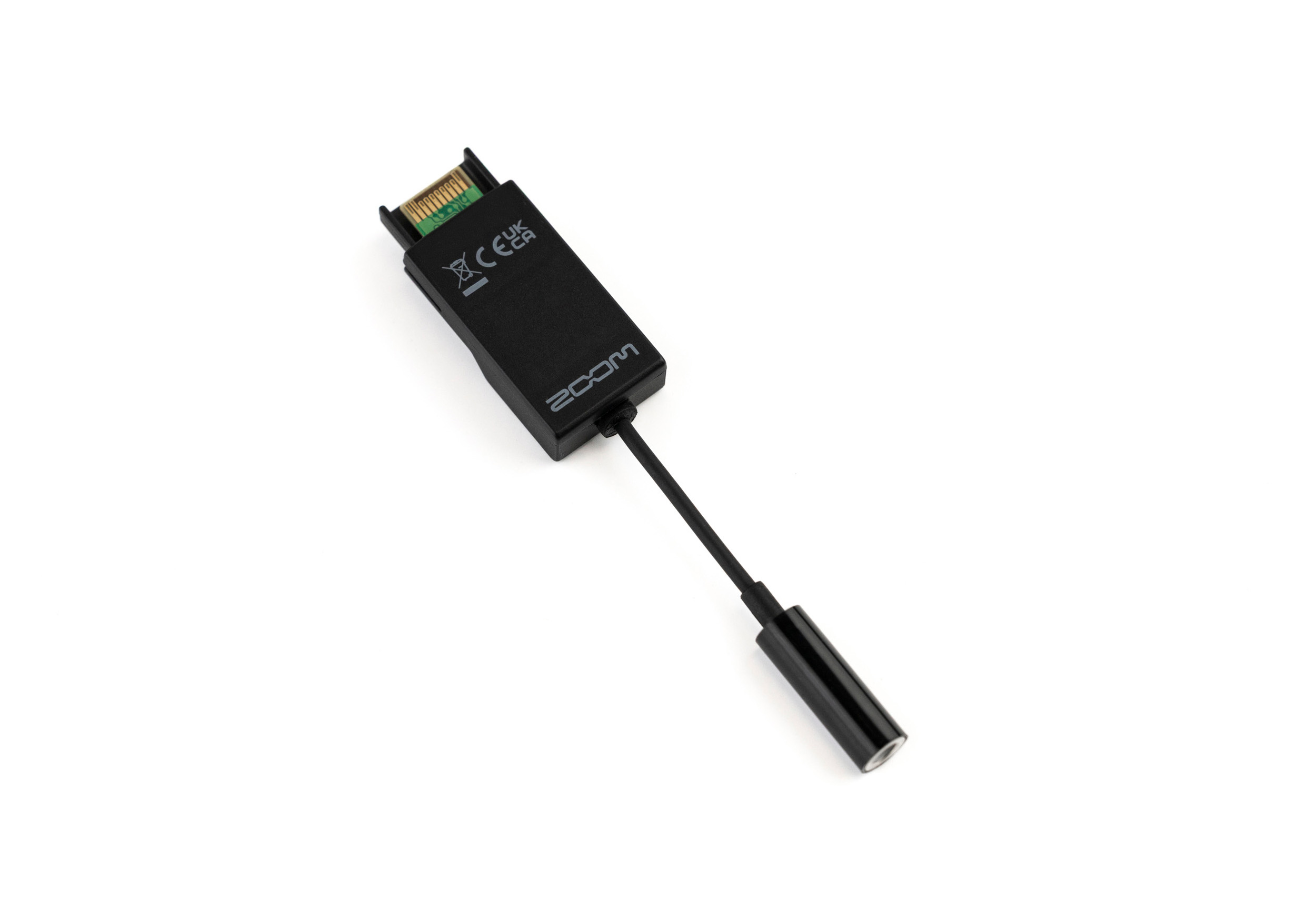

Zoom TCA-1 Timecode Adapter for Zoom Recorders
Model: ZTCA1
About: Zoom TCA-1 Timecode Adapter for Zoom Recorders
Your Zoom recorder just got a serious upgrade. The TCA‑1 is a precision timecode generator engineered for professional audio-video sync. Its temperature‑compensated crystal oscillator (TCXO) delivers exceptional stability, maintaining accuracy within 0.5 frames over 24 hours. It's that accurate.
Fast, Accurate Sync.

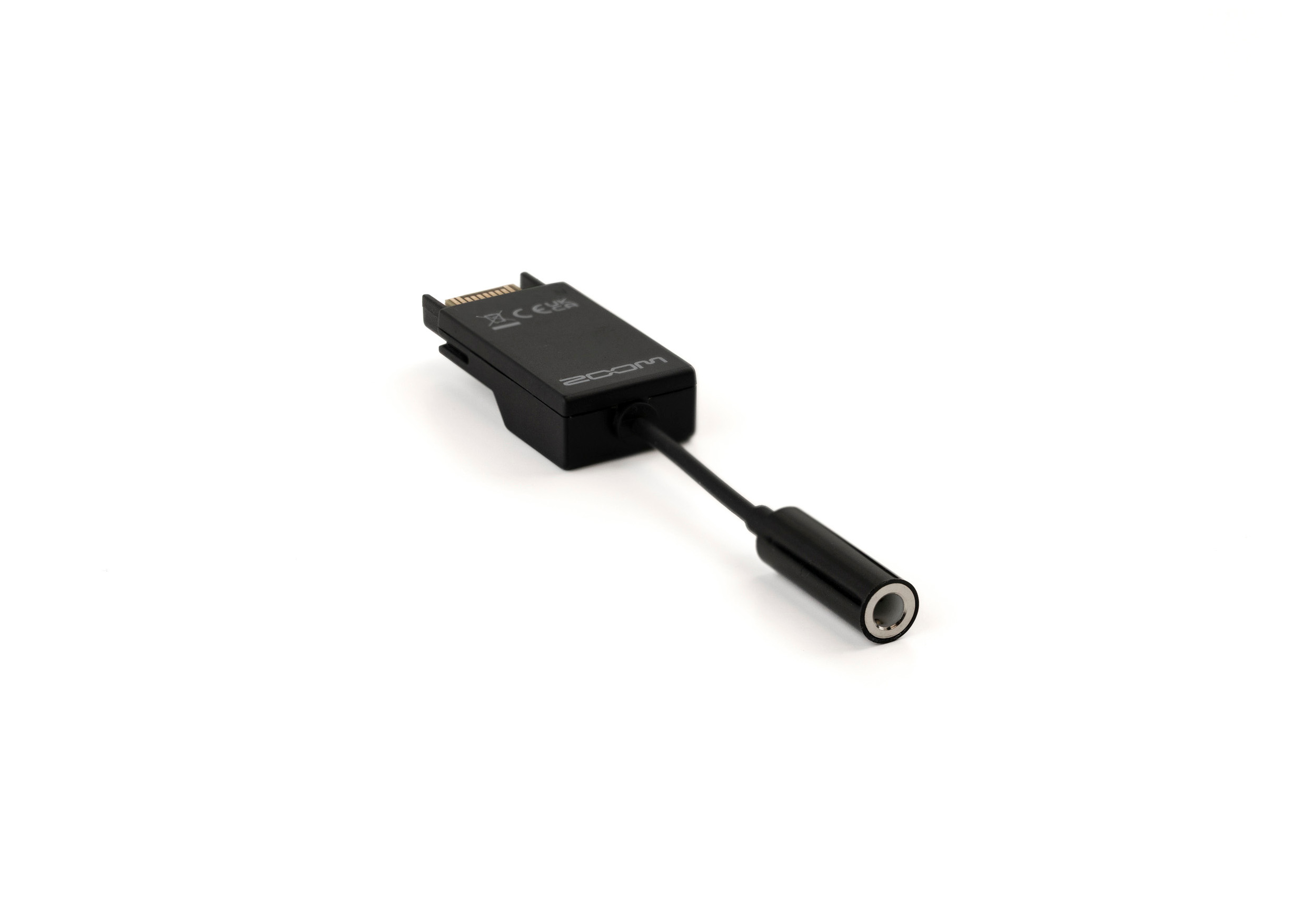

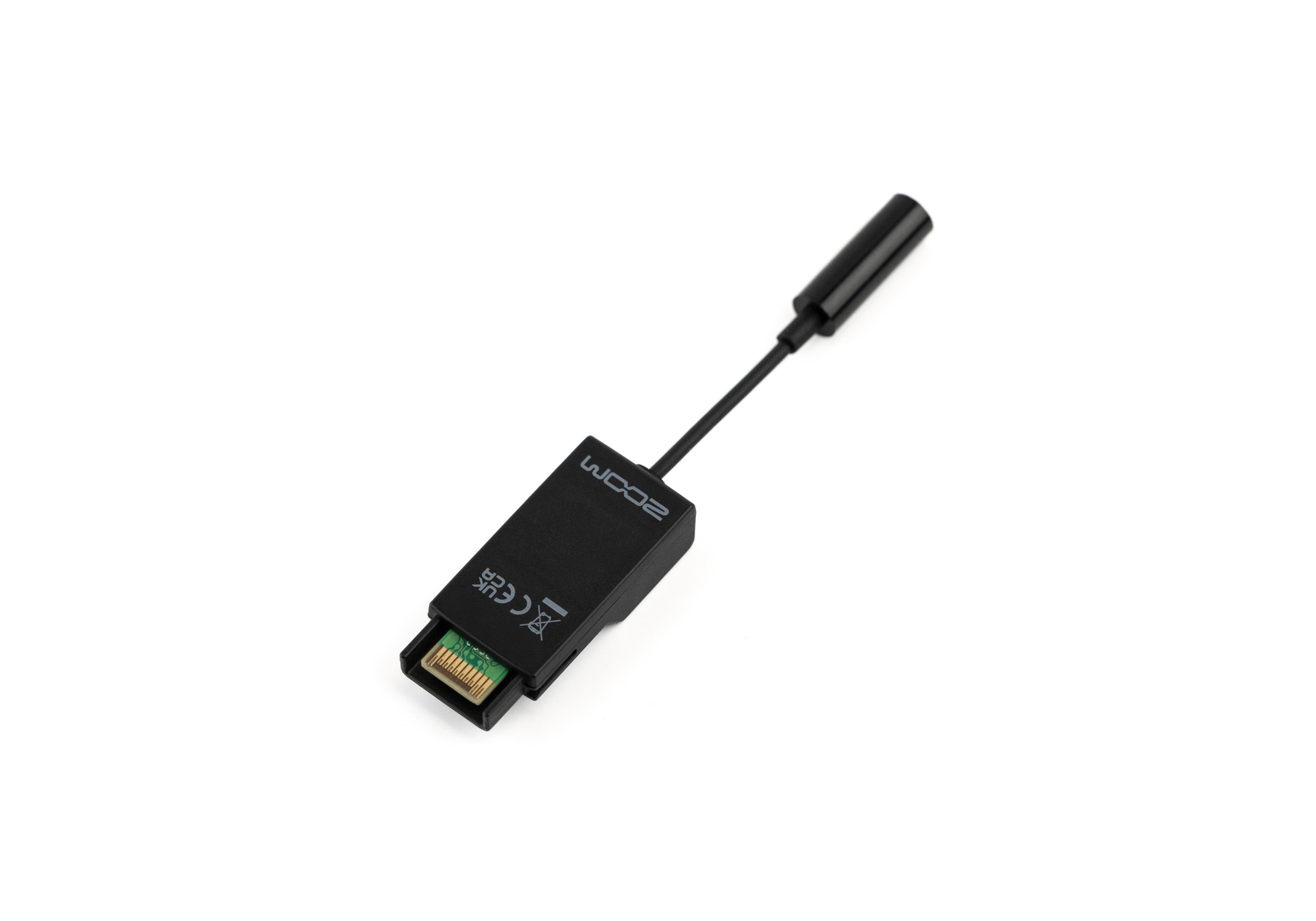

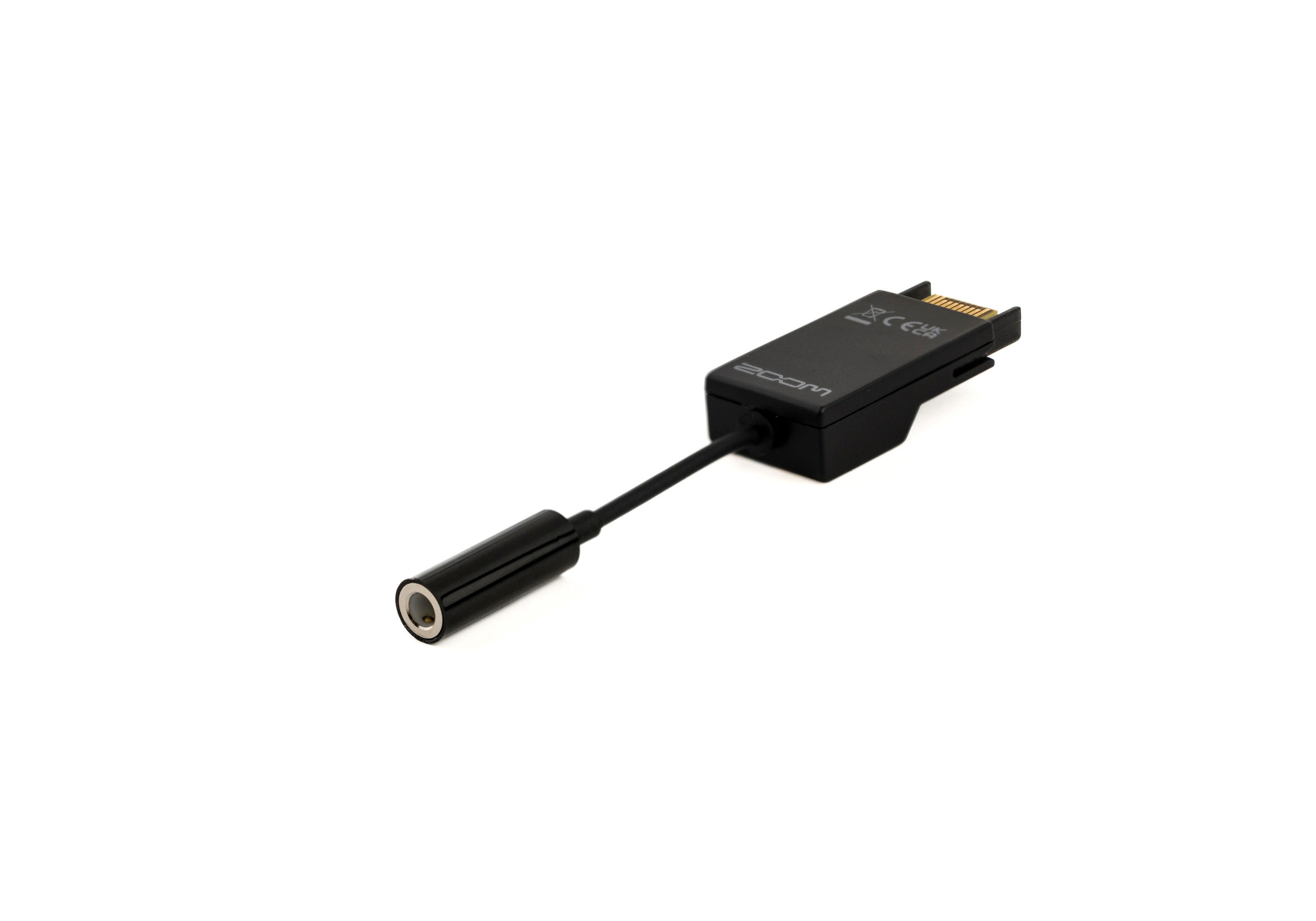

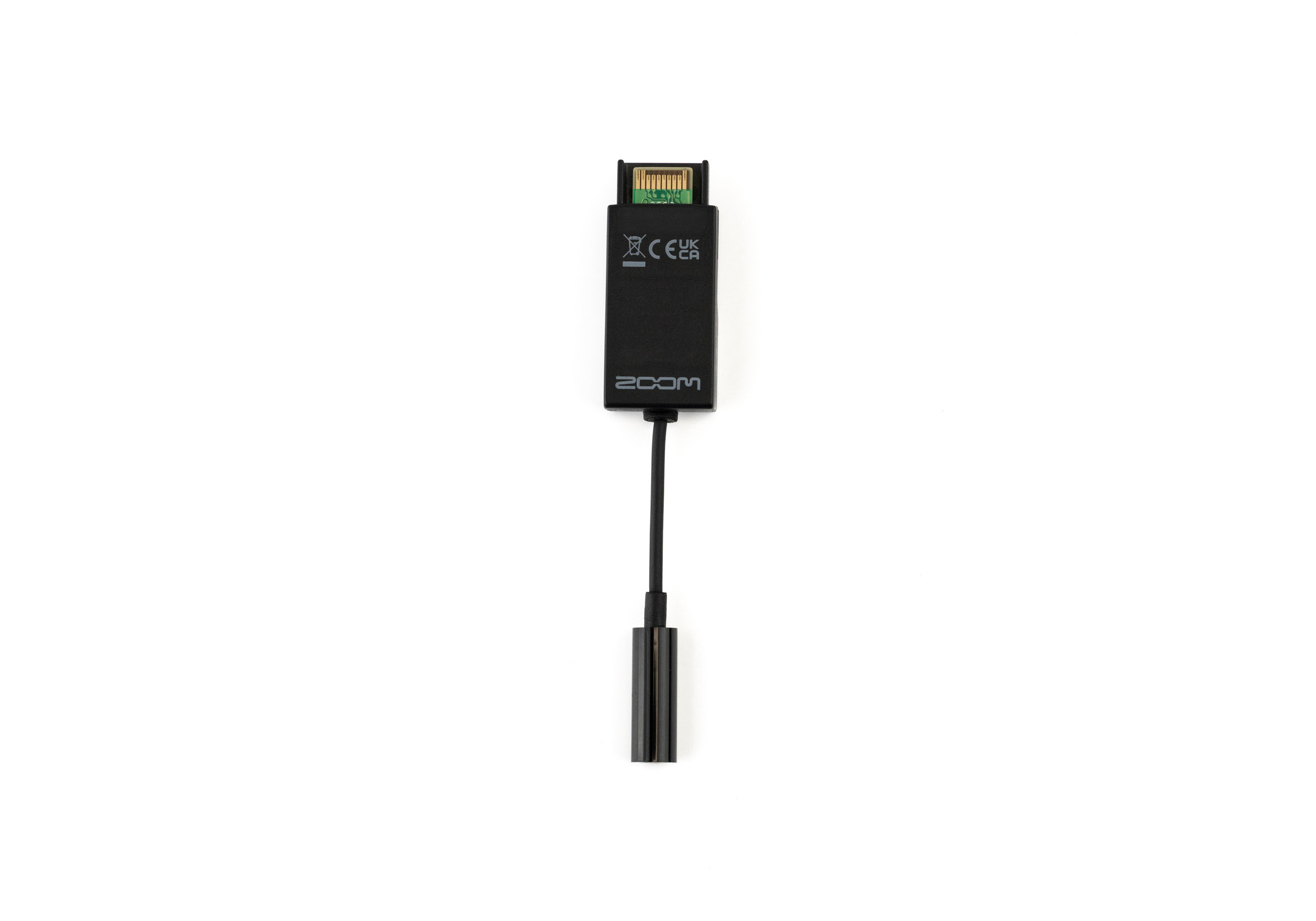

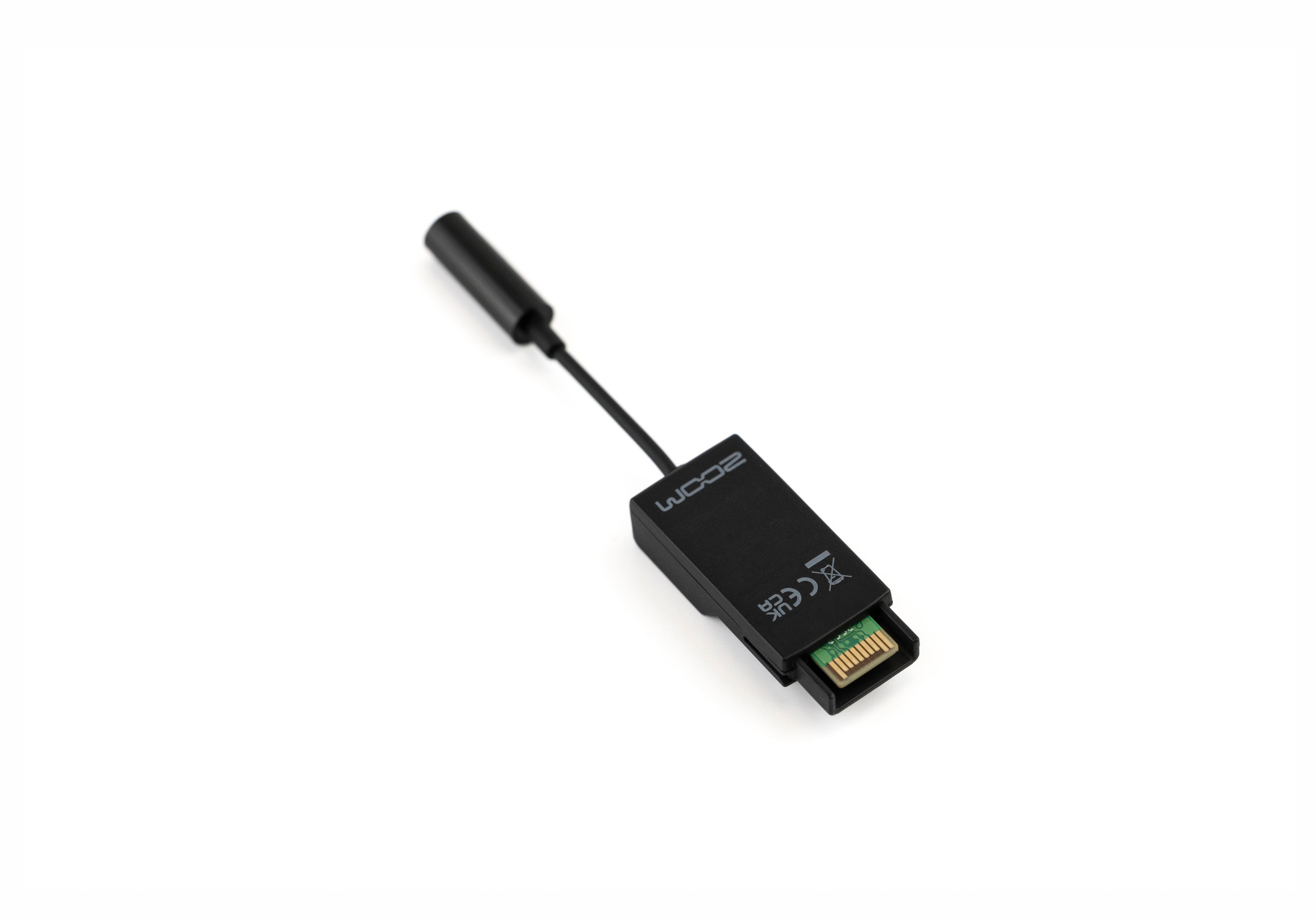

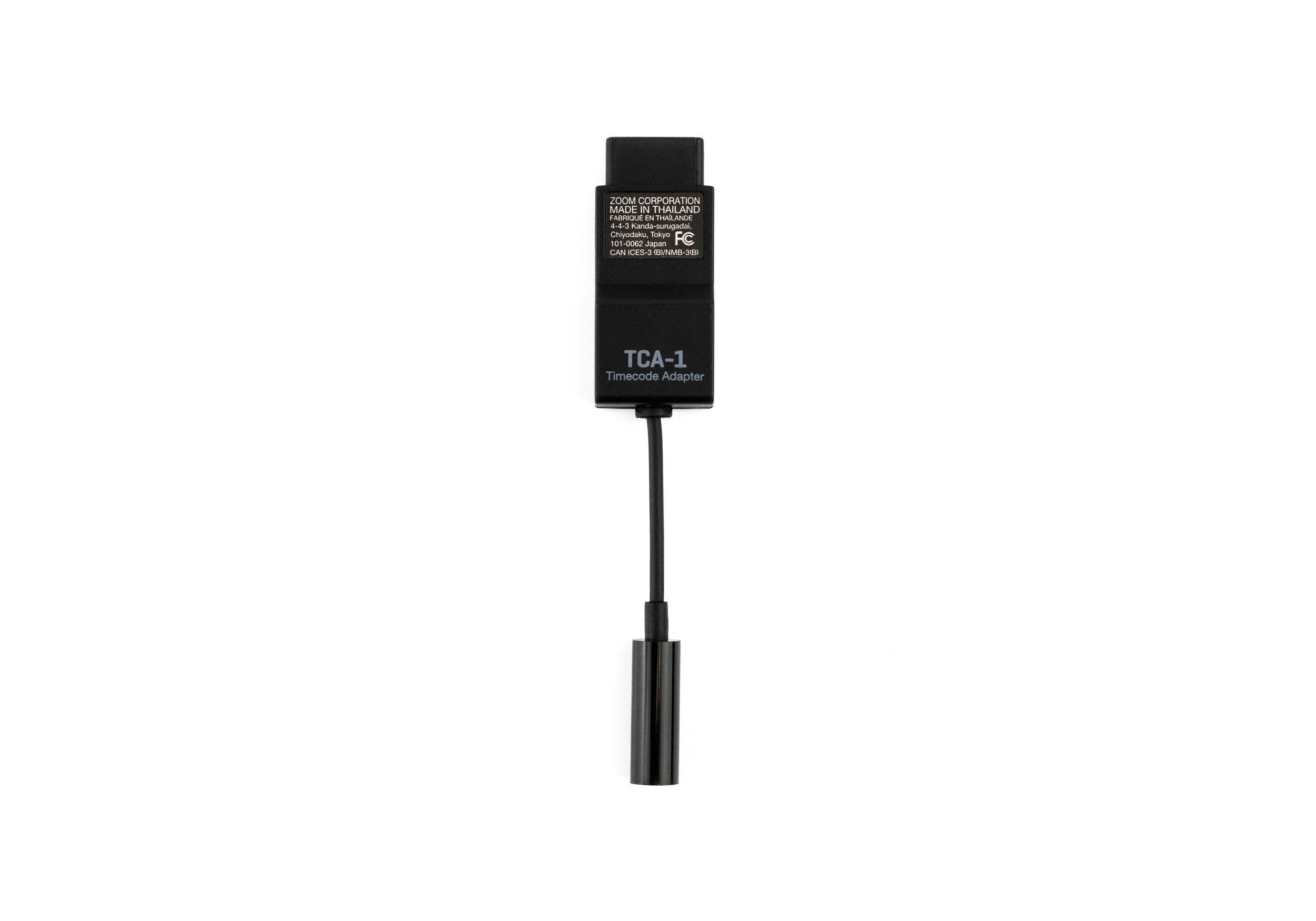

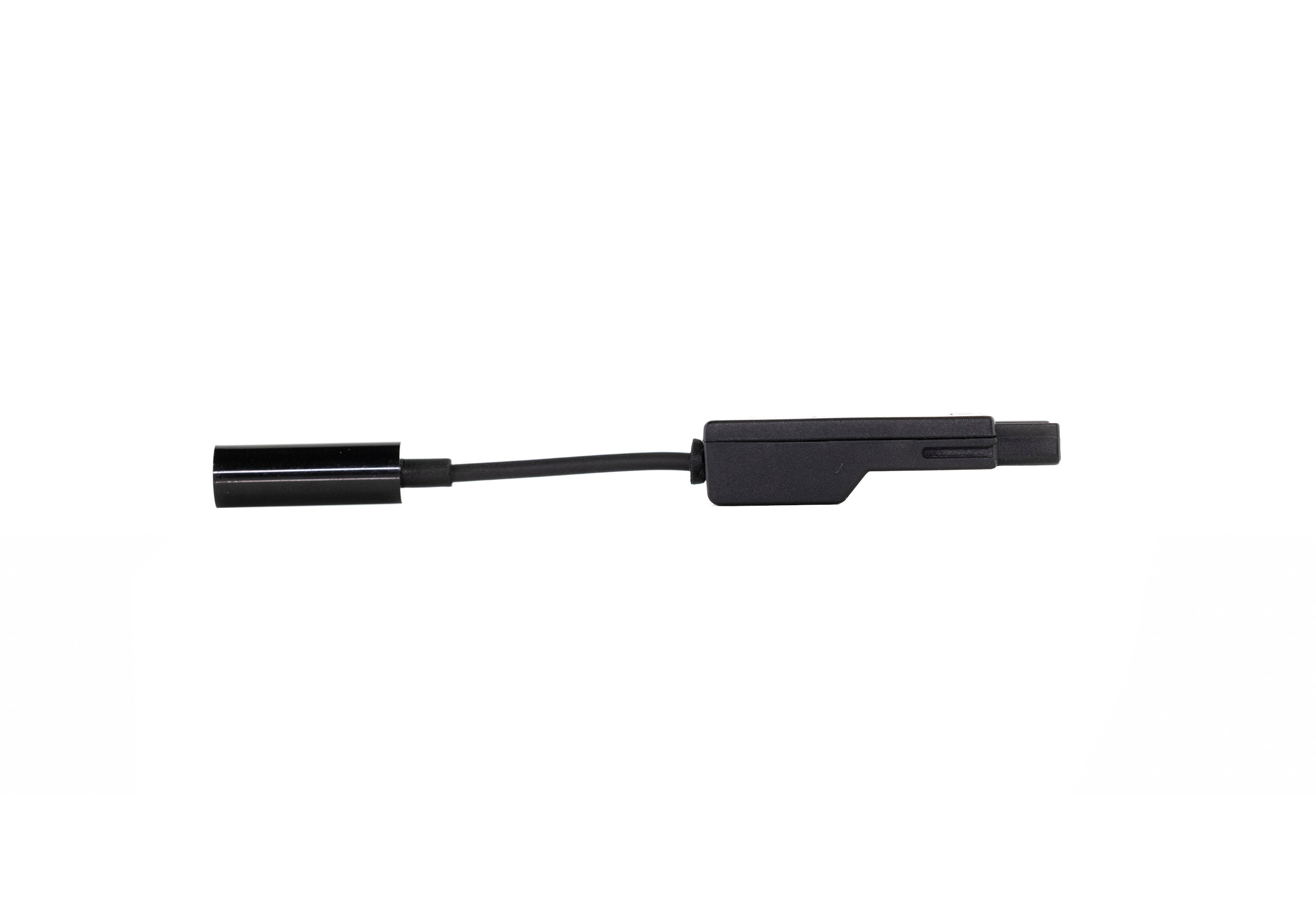

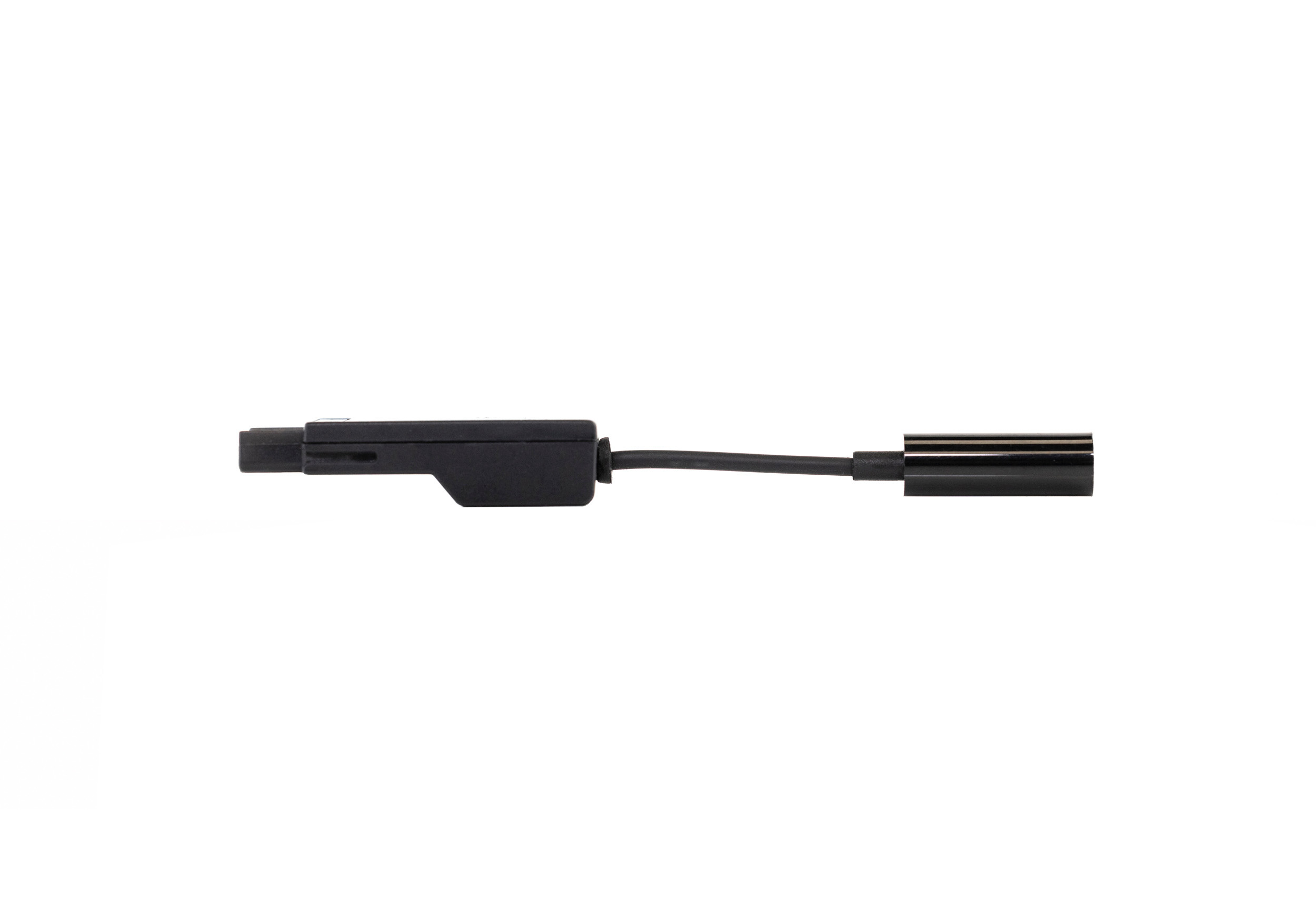

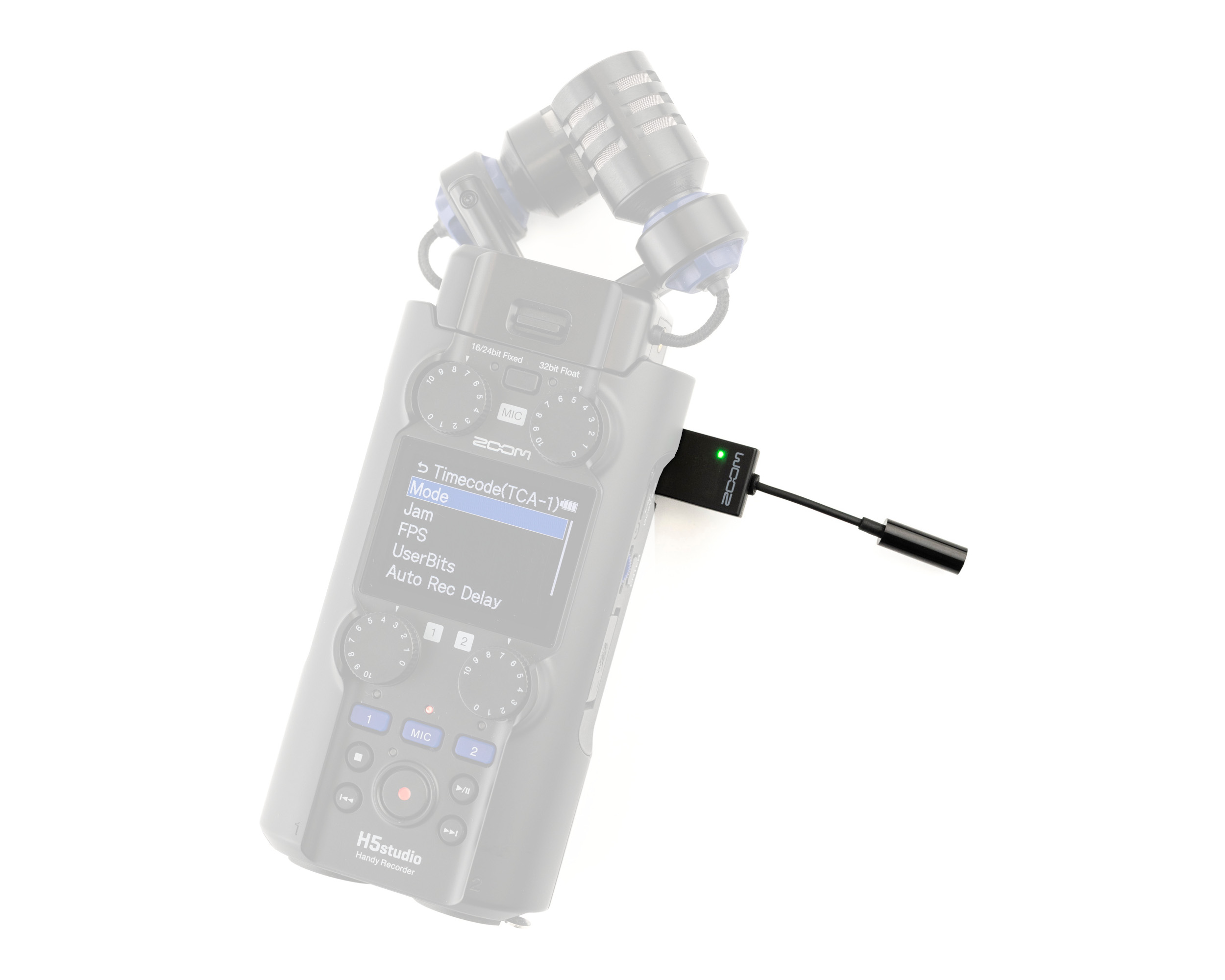

The TCA-1 easily attaches to the Remote connector on compatible Zoom recorders. Its 3.5 mm TRS connection enables timecode input and output for easy syncing with cameras, timecode generators, and slates.
- *Cannot be used with the BTA-1 Bluetooth adapter.
Compatibility
The TCA-1 is compatible* with the H6studio, H5studio, H6essential, H4essential, H2essential and F3 recorders.
- *Requires Latest Firmware version
Specifications
- Timecode Connector: 3.5mm stereo mini
- Modes: Off, Int Free Run, Int Rec Run, Time of Day, Ext, Ext Auto Rec
- Frame Rate: 23.976 NDF, 24 NDF, 25 NDF, 29.97 NDF, 29.97 DF, 30 NDF, 30 DF
- Precision: ±0.2 ppm
- Allowed input level: 0.2 - 5.0 Vpp
- Input Impedance: 4.5 kΩ
- Output Level: 3.3 Vpp
- Output Impedance: 50 Ω or less
- Power Supply: DC 3.3V (Supplied from connected host unit)
- Dimensions (WxDxH): 0.67 x 3.68 x 0.36 inch (17 x 93.5 x 9.2mm)
- Weight: 0.013 lbs (5.9 g)
UPC: 4515260030576
Videos: Zoom TCA-1 Timecode Adapter for Zoom Recorders
Reviews: Zoom TCA-1 Timecode Adapter for Zoom Recorders
Warranty: Zoom TCA-1 Timecode Adapter for Zoom Recorders
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
