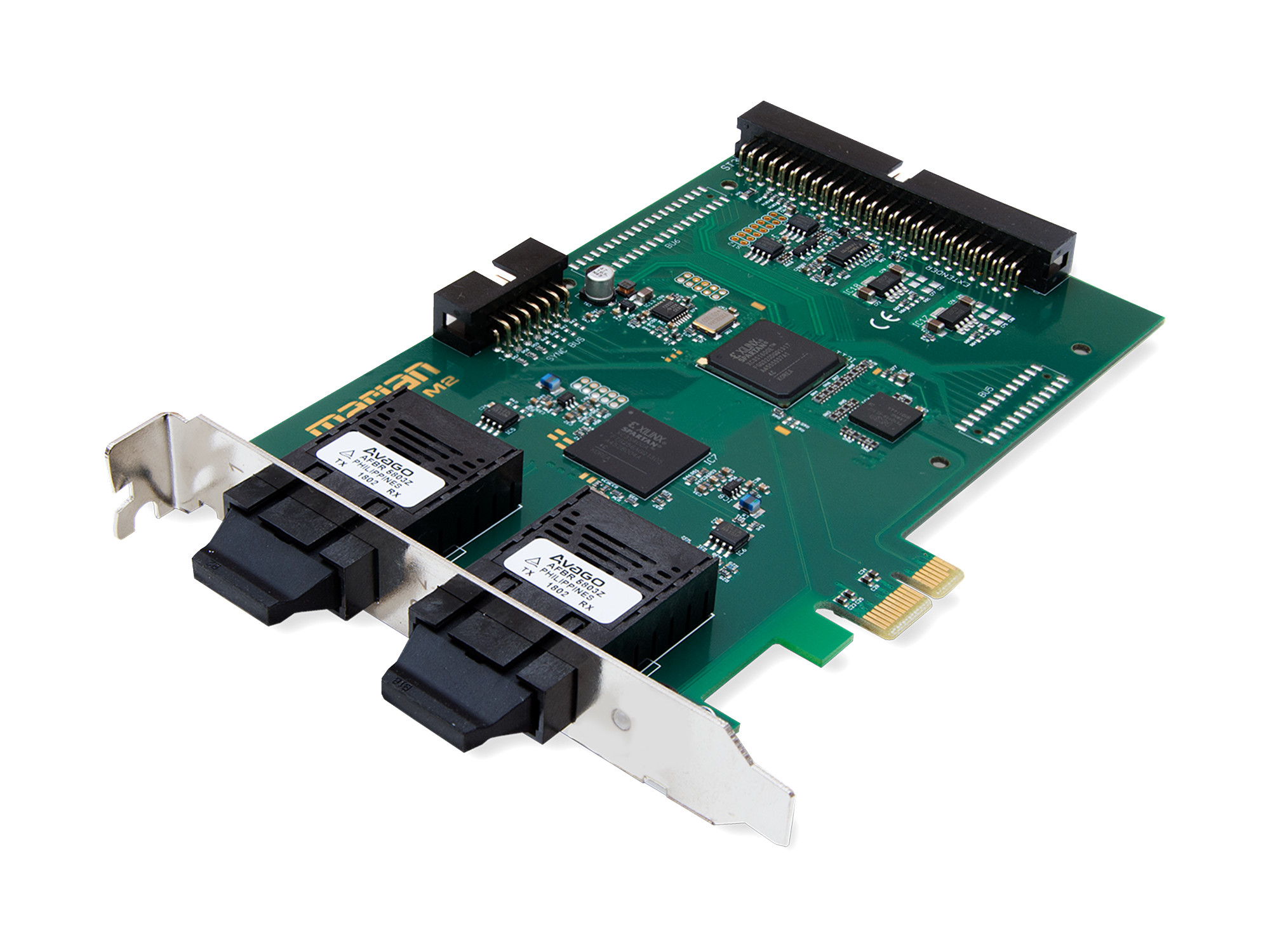

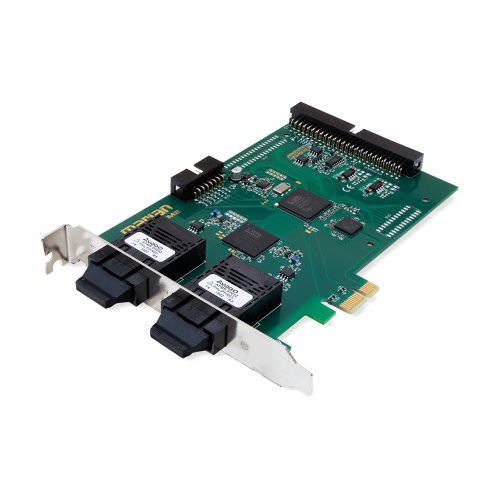

Marian SERAPH M2 384kHz MADI PCIe Sound Card w/Optical SC

About: Marian SERAPH M2 384kHz MADI PCIe Sound Card w/Optical SC

Up to 256 channels, integrated clock synchronization, stable connections over long distances, samplerates of up to 384 kHz, lowest transmission latencies – all these advantages are now available with the Seraph M2 at an amazingly low price. I

The Seraph M2 is available in two versions; with optical SC connectors or coaxial BNC connectors.

• 24 Bit / 384 kHz Resolution (Digital Connectors)
• 2 MADI In- and Outputs (256 channels)
• SC or BNC Versions available
• Single Mode Transceiver (1300nm) available
• 2 MIDI In- and Outputs (with MWX Sound Card, Sold Separately)
• 2x MIDI over MADI
• Cascadeable (via TDM SyncBus)
• Compatible with current Thunderbolt PCIe Adapters
• Windows Driver
• Free life-long quality support

Compatible to all MADI Formats up to 384 kHz

Both versions of the Seraph M2 have two MADI inputs and outputs, realizing a different number of transmission channels depending on the samplerate. 224 or 256 channels are possible at up to 48 kHz, depending on the connected device. By default, each doubling of the samplerate results in a halving of the channels. At 384 kHz, this ensures the transmission of 32 high-quality audio signals.

Advanced synchronization capabilities and MIDI via MADI

With the optional MWX Extender (Sold Separately) the Seraph M2 are extended by a wordclock output. This allows the synchronization of external digital devices by the sound system independent of the MADI connections. In addition, the MWX Extender has two MIDI inputs and outputs. Finally, MIDI signals can be embedded into the MADI signal via a DAW and thus be transmitted over long distances.

Real-time routing and signal control in hardware

A comfortable user interface is available for convenient latency-free routing of up to 128 input signals to different outputs as well as for adjusting their respective volume. It is part of a comprehensive driver suite optimized for Windows systems and minimal latencies in any ASIO DAW.

Fast and Reliable Multi-Client Treiber Suite

The continuously enhanced driver provides multi-client support for ASIO 2.2 as well as multichannel WDM audio and WASAPI, delivering ultra-low latency across all software environments. This enables multiple audio applications to access the sound system simultaneously, either through the same or through different driver interfaces.

Powerful and Future-Proof

This sound system is a quality product developed 100% in Germany and manufactured according to DIN EN ISO 9001. This is guaranteed by its warranty period of 5 years.

Specifications

• Technical
  • PCIe Audio Interface
  • 1 Lane (PCIe 1x) according to PCI Express Base Specification 1.1
  • Temperature Range: -25 °C bis +60 °C
  • PCIe Busmaster DMA with Direct ASIO Support
  • Samplerates 44.1 to 384 kHz
  • Sample Resolutions of 8 to 32 Bit towards the Audio Application
  • 2x MIDI via MADI
  • Flexible Routing of Input- and Playback Signals to Outputs
  • TDM SyncBus (Synchronization only)
  • Multi-Card Support
• Digital Inputs
  • 2x MADI
  • 128 Channels @ 48 kHz
  • 16 Channels @ 384 kHz
  • 64 Channels @ 96 kHz
  • 32 Channels @ 192 kHz
  • BNC WordClock (with MWX Sound Card, Sold Separately)
  • 2x MIDI (with MWX Sound Card, Sold Separately)
  • TDM SyncBus (Synchronization only)
• Digital Outputs
  • 2x MADI
  • 128 Channels @ 48 kHz
  • 64 Channels @ 96 kHz
  • 32 Channels @ 192 kHz
  • 16 Channels @ 384 kHz
  • TDM SyncBus (Synchronization only)
  • BNC WordClock (with MWX Sound Card, Sold Separately)
  • 2x MIDI (with MWX Sound Card, Sold Separately)
