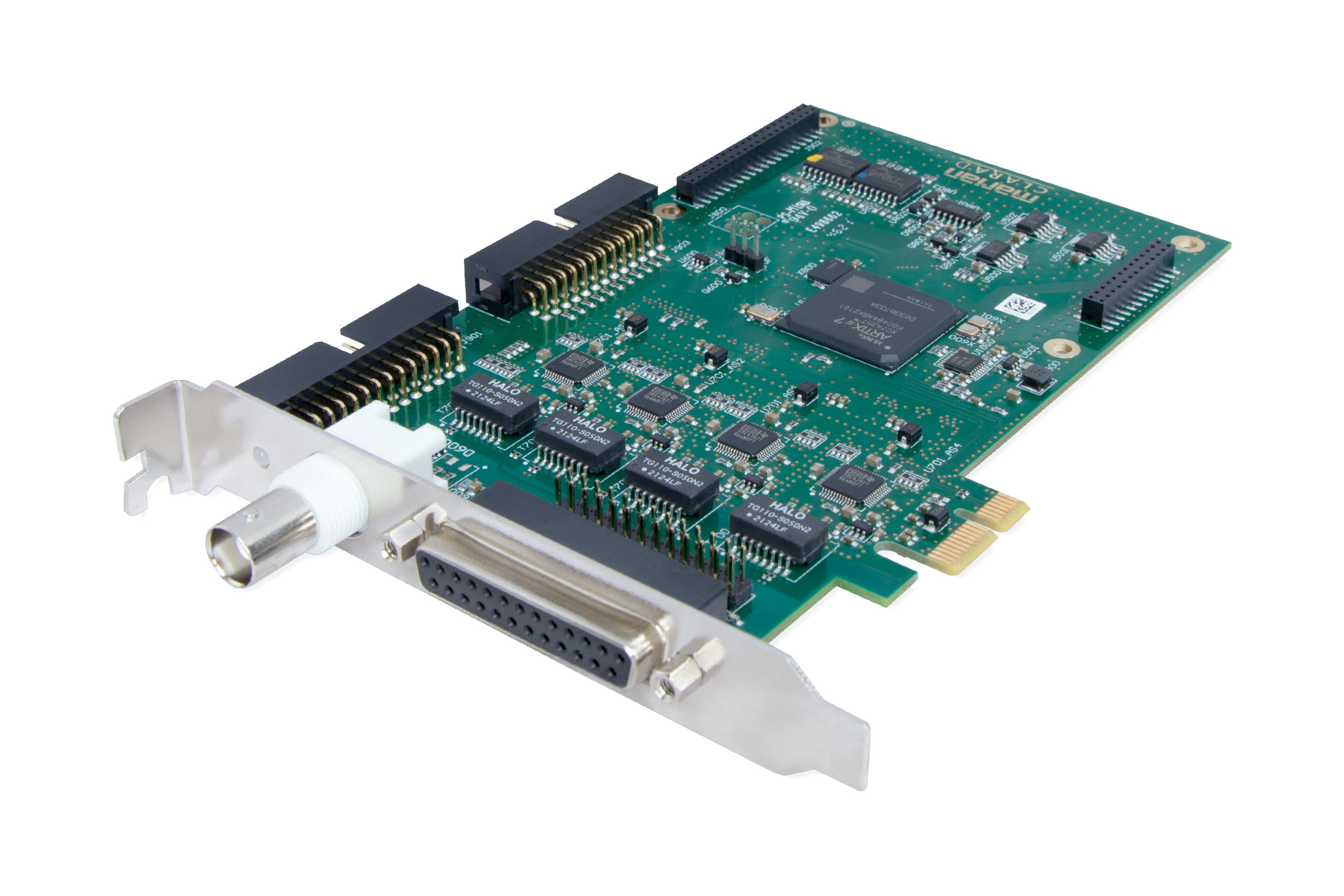

Marian Clara D 16-Channel AES/EBU Sound Card

About: Marian Clara D 16-Channel AES/EBU Sound Card

With 16 channels, the Clara D offers an ideal introduction to pure digital signal processing. High-definition audio at up to 24-bit resolution and sample rates of up to 192 kHz ensures pristine sound quality. High-quality sample rate converters enable flexible clock management while preserving a full dynamic range of 144 dB.

• 24 Bit / 192 kHz Resolution
• 4 AES/EBU In- and Outputs (16 Channels)
• 2 MIDI In- and Outputs (with MWX Sound Card, Sold Separately)
• Switchable Input SRC with 144 dB Dynamic Range
• 64 Channel DSP Mixing Desk with EQ
• Cascadeable (via TDM SyncBus)
• Compatible with current Thunderbolt PCIe Adapters
• Wordclock/Superclock Input
• Wordclock / Superclock Output (with MWX Sound Card, Sold Separately)
• Ultra Low Jitter
• Family Driver - Combines multiple Clara sound systems into one audio platform with a shared ASIO driver for all channels.
• Mac driver - (currently no BEAST Mixer & Routing)
• Free life-long quality support

Realtime Routing, Mixing and EQ

Each input signal of the sound system can be level-adjusted individually and routed to any output with zero latency. The BEAST DSP Mixer can also sum up to 64 signals into eight independent buses and distribute them to any number of outputs without delay. In addition, playback signals from any DAW can be integrated directly into the mixer. All mix buses can be routed back into recording applications, enabling flexible monitoring and recording workflows. For tonal shaping, every channel in the BEAST Mixer features four fully parametric EQ bands.

Precision Clock

The internal clocking of the Clara sound system delivers exceptionally low jitter of less than one nanosecond. As a result, it often provides a significantly more accurate clock source than many connected studio devices, allowing it to reliably synchronize external hardware without the need for costly standalone master clocks.

Switchable Samplerate Converter (SRC)

The software-switchable sample rate converters (SRCs) allow any digital input signal to be fed into the sound system independently of its sample rate or clock configuration. This enables seamless connection of digital devices without the need for dedicated synchronization lines.

Expansion options

If multiple Clara units are installed in a single computer, they are synchronized via the TDM SyncBus and appear to ASIO applications as one unified audio system. Within the Beast Mixer, up to 32 audio signals can be exchanged directly between the connected Clara systems.

Sound system with a +

With the optional MWX expansion module (sold separately) users can add a word clock input/output as well as two MIDI inputs and outputs to the sound system. The expansion board connects to the audio interface via a ribbon cable and can be flexibly installed in any free slot of the computer chassis.

Fast and Reliable Multi-Client Treiber Suite

The continuously enhanced driver provides multi-client support for ASIO 2.2 as well as multichannel WDM audio and WASAPI, delivering ultra-low latency across all software environments. This enables multiple audio applications to access the sound system simultaneously, either through the same or through different driver interfaces.

Powerful and Future-Proof

This sound system is a quality product developed 100% in Germany and manufactured according to DIN EN ISO 9001. This is guaranteed by its warranty period of 5 years.

Specifications

• Technical
  • PCIe Audio Interface
  • 1 Lane (PCIe 1x) according to PCI Express Base Specification 2.1
  • Power Consumption: +3,3 V: 0,8 A und +12 V: 0,03 A
  • PCIe Busmaster DMA with Direct ASIO Support
  • Samplerates 22 to 192 kHz
  • Sample Resolutions of 8 to 32 Bit towards the Audio Application
  • Switchable Input SRC with 144 dB(A) Dynamic Range and 1:16 / 16:1 Conversion
  • Beast DSP powered
  • 64 Freely configurable DSP Channels: Input, TDM- and Playsignals
  • TDM SyncBus
  • Multi-Card Support
  • Wordclock / Superclock Input
  • BNC Input: without DC offset, Schmitt-Triggered, Over Voltage Protection
  • BNC Input Frequency Range: 0 to 30 Mhz
  • BNC Input Impedance: 5 kOhm, Software Controlled Termination to 75 Ohms
  • BNC Input Voltage Range: 1,5 Vss to 5,0 Vss
  • Clock Jitter
• Digital Inputs

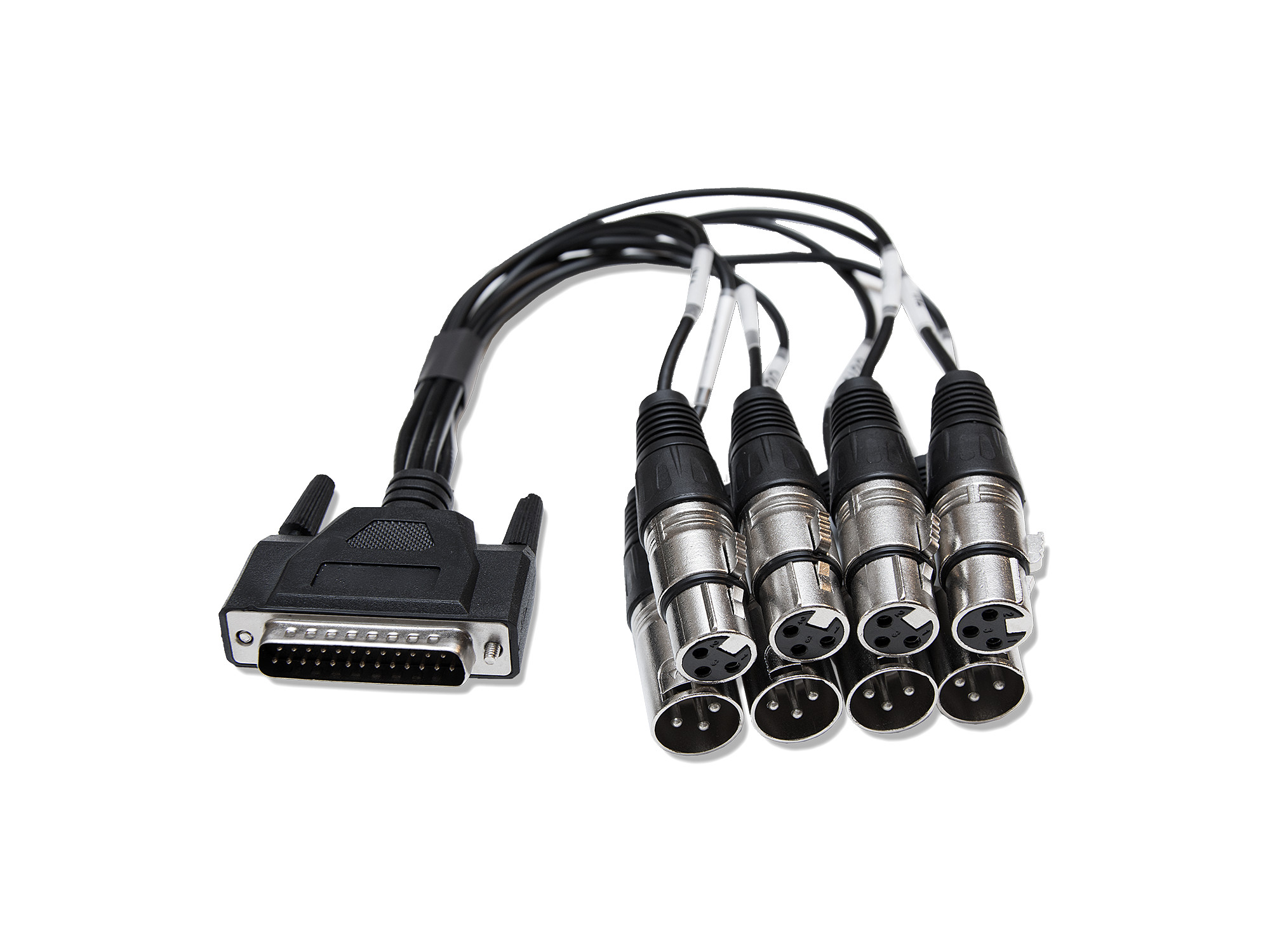

  • 4 AES/EBU (8 Channels) AES3-Format
  • Up to 32 Channels via TDM SyncBus
  • BNC WordClock
  • 2x MIDI (with MWX Sound Card, Sold Separately)
• Digital Outputs
  • 4 AES/EBU (8 Channels) AES3-Format
  • Up to 32 Channels via TDM SyncBus
  • BNC WordClock (with MWX Sound Card, Sold Separately)
  • 2x MIDI (with MWX Sound Card, Sold Separately)
