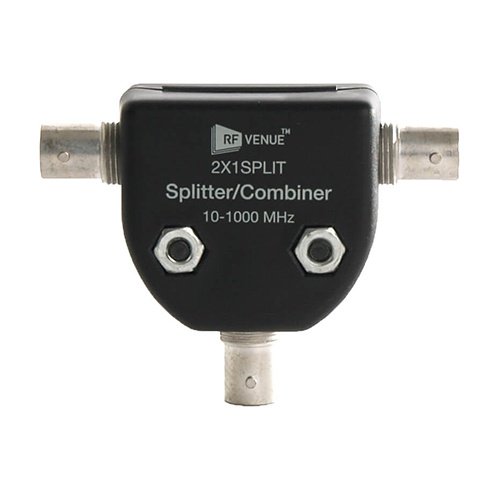

RF Venue 2x1SPLIT Passive Splitter/Combiner
Model: 2X1SPLIT
About: RF Venue 2x1SPLIT Passive Splitter/Combiner
Use the 2x1Split to make an 8 channel IEM combiner, create a distributed antenna system, or to tap into your spectrum analyzer to get more insight into your setup.
The 2x1SPLIT is intended for use with wireless audio systems and is compatible with all major brand wireless microphones and in-ear monitors.
Features:

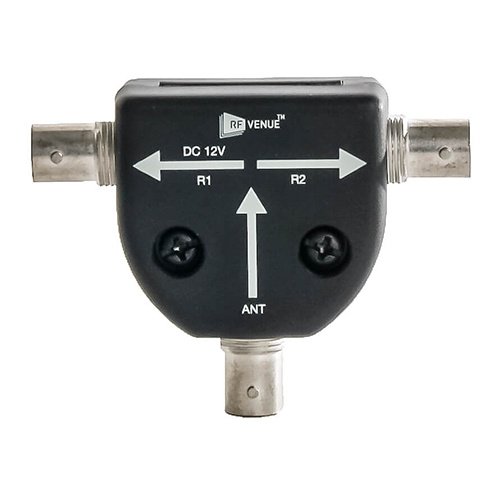

One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out. R1 channel passes 12V DC if DC over coax is provided.
Specifications:
- RF Carrier Frequency Range: 10-1,000 MHz
- VSWR (Voltage Wave Standing Ratio): 1.2
- Impedance: 50 Ohm
- Isolation: 20dB
- Insertion Loss: 2dB
- Dimensions: 72.2x54.9x23.6 mm
- Weight: 62.6g
UPC: 718122340712
