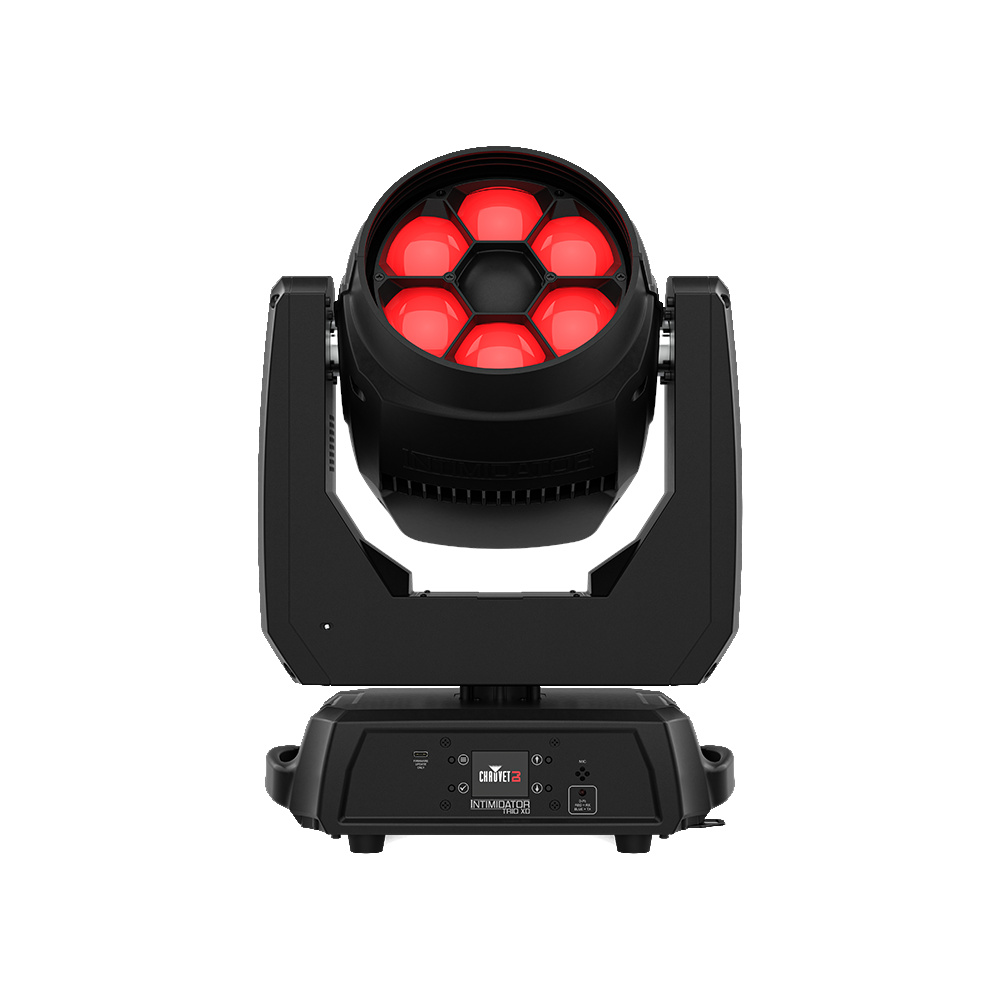

Chauvet DJ Intimidator Trio XD

About: Chauvet DJ Intimidator Trio XD

With its motorized zoom and continuously rotating multi-lens honeycomb optics, Intimidator Trio XD creates complex effects as easily as it shifts seamlessly from narrow beams to wide washes. This innovative LED-powered moving head brings all the advantages of a carbon fiber composite housing together with the convenience of a built-in D-Fi transceiver for wireless DMX or master/slave control. Auto programs with zone control generate eye-catching looks with no programming and Totem mode keeps all the excitement focused on the dance floor.

• Innovative, LED-powered moving head with beam, wash, and effect features
• Built-in D-Fi transceiver for wireless DMX or master/slave communications
• Carbon fiber composite housing material is exceptionally strong, resists corrosion, and reduces weight
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Onboard USB-C port allows for quick software updates
• Seamlessly change from a narrow beam to a wide wash with the motorized zoom
• Continuously rotating honeycomb delivers the excitement of an effect light
• Generate complex looks easily with built-in, eye-catching auto programs with zone control
• Built-in Totem mode allows beams to remain focused on the dance floor
• Set, save, and recall 1 scene directly from the full-color LCD display

Specifications

• DMX Channels: 16, 23, or 52
• DMX Connectors: 3- and 5-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Light Source: 6 LEDs (quad-color RGBW) 270 W total, (9.5 A), 50,000 hours life expectancy.
• Strobe Rate: 0 to 20 Hz
• Zoom Angle: 3° to 22°
• Power Linking: 4 units @ 120 V; 8 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current
  • 348 W, 2.9 A @ 120 V, 60 Hz
  • 343 W, 1.5 A @ 230 V, 50 Hz
• Max. Output Current: 12 A (4 units @ 120 V) (8 units @ 230 V
• Fuse: F5A, 250 V
• Illuminance
  • Narrow: (3°) 124,299 lux @ 2m
  • Wide: (22°) 7,505 lux @ 2m
• Cable Length: 5 ft (1.5 m)
• Optional Controllers: RFC, RFC-XL
• Approvals: CE, FCC, MET
• Weight: 20.4 lb (9.3 kg)
• Size: 12.6 x 8.7 x 17 in (320 x 220 x 431 mm)

What's Included

• Intimidator Trio XD
• Power cord
• PowerCON to bare end (EU only)
• Hanging brackets
• Quick Reference Guide
