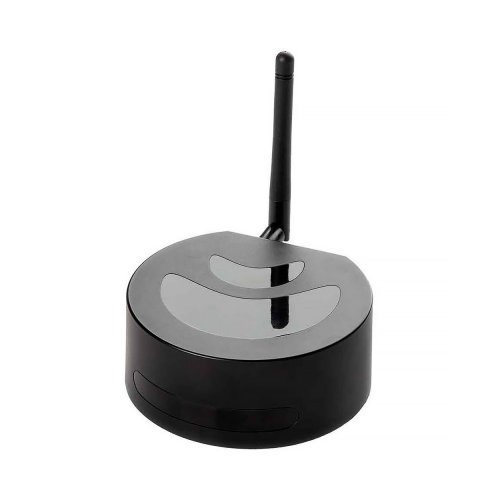

LumenRadio W-DMX Orb Wireless DMX Transmitter
Model: LR830-3001
About: LumenRadio W-DMX Orb Wireless DMX Transmitter
Orb gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. Available as a transmitter or a receiver – either way it’s plug and play. Simply connect the transmitter to your controller and the receiver to your fixtures… and boom, instant wireless control! And you get the same rock-solid W-DMX performance loved by the lighting professionals.
- Cable-free control over your lighting set-up
- A simple to use, plug and play product
- Rock-solid performance which won’t let you down
- Wireless DMX tech loved by lighting pros
Experience Wireless DMX
Orb uses W-DMX technology – an incredibly reliable wireless alternative to the DMX cable. It is also completely compatible with other W-DMX and LumenRadio CRMX products so as your business grows, you don’t have to replace everything all at once. Start with Orb and Stick and later use them together with more advanced products like LumenRadio’s Aurora or Stardust.
Specifications
- Power supply AC: 100-240 VAC +/- 10% 50/60 Hz
- with external power supply only
- Power supply DC: 5 VDC +/- 10%
- Max. power consumption: 1W
- Self-healing fuse: Yes
- IP rating: IP 20
- Dimensions (WxHxD): 99 x 97 x 43 [mm]
- Weight: 190 g
- Antenna connector: RP-SMA
- Operating temp. range: -20 to +55 °C
- Storage temp. range: -30 to +80 °C
- Humidity: 0 – 90% non-condensing
- Frequency range: 2402 – 2480 MHz (ISM band)
- Max. RF output power: 35mW
- Supported protocols: DMX-512A
- Supported RF protocols (TX): W-DMX G3
- Supported RF protocols (RX): CRMX, CRMX2, W-DMX G3, G4, G4S & G5
What's in the Box
- 1x W-DMX Orb unit (TX)
- 1x External power supply for world-wide use
- 1x USB-C to USB-C cable for power
- 1x RP-SMA 2dBi antenna
- 1x Quick start instruction (this leaflet)
