ADJ WOLFMIX WMX1 MK3 DMX Controller

About: ADJ WOLFMIX WMX1 MK3 DMX Controller

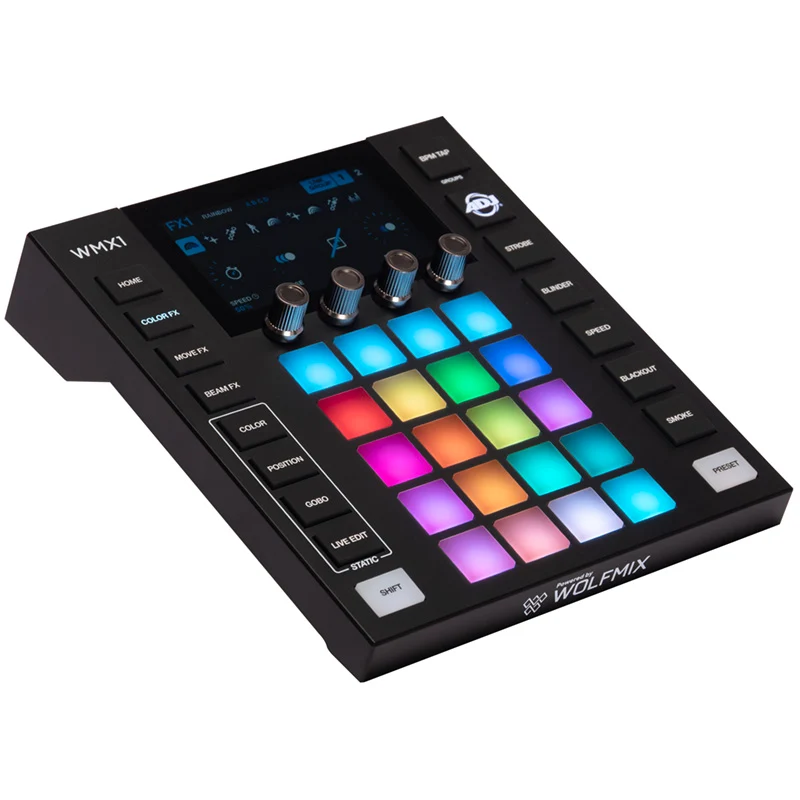

The ADJ WMX1 MK3 brings professional-grade DMX lighting control to users who demand power, flexibility, and simplicity. Designed as a completely standalone solution, the WMX1 MK3 eliminates the need for a computer while providing intuitive control over complex lighting systems through its responsive 4.3-inch capacitive touchscreen interface.

Compatible with virtually any DMX fixture, the controller supports up to four DMX universes and 2,048 channels (additional universes available via optional add-ons), allowing control of up to 680 fixtures across 50 device types. With access to more than 15,000 fixture profiles and support for fixture grouping, addressing, sequencing, and project management, the WMX1 MK3 is equally at home in mobile entertainment, clubs, houses of worship, event production, and installation environments.

Create dynamic lighting shows with dedicated Color, Move, and Beam FX engines, each offering eight effect types and extensive customization options including speed, phase, size, fade, fan, sequence, and flicker controls. Built-in music synchronization can be driven by the onboard microphone, line input, Ableton Link, OS2L integration, or manual BPM tapping for perfectly timed effects.

For sophisticated multi-element fixtures, the WMX1 MK3 features Fixture Clusters, allowing a fixture to be divided according to its defined, named sections rather than simply splitting it into equal beams. This makes it easier to control fixtures that incorporate multiple functional lighting elements, such as pixel arrays, RGB rings, strobes, or other independently controllable sections. Each cluster can be recognized as a logical section of the fixture, providing more intuitive control and allowing complex multi-element fixtures to integrate more effectively with the WMX1 MK3’s FX engines.

The WMX1 MK3 also features 100 preset slots for storing and instantly recalling lighting snapshots, advanced fixture tools such as FLIP and SPLIT functions, automatic gobo alignment across different fixture models, DMX channel testing, and time-controlled triggering of presets and flash buttons.

Additional expansion capabilities include DMX input mapping, WLINK synchronization between multiple Wolfmix controllers, offline 3D visualization with Easy View, and project backup and management through the WTOOLS application. Automatic project recovery ensures your show is always ready to go without the need for manual saving.

With versatile DMX connectivity, MIDI support, USB integration, and a rugged design featuring an ABS enclosure and steel base plate with VESA mounting capability, the ADJ WMX1 Mk3 provides an innovative and efficient solution for modern lighting control.

Specifications

Control & Performance

• Standalone DMX lighting controller
• No computer required
• Compatible with virtually any DMX fixture
• Supports up to 4 DMX universes (2,048 channels total)*
• Controls up to 680 fixtures
• Supports up to 50 device types
• 8 fixture groups
• 6 project memories
• 15,000+ fixture profiles available (3,500+ stored on controller)
• Fixture addressing, sequencing, and grouping tools
• DMX splitter functionality with universe mapping
• Automatic active-project restoration
• Import multiple fixture setups into a single project
• *Additional universes require optional add-ons. Certain advanced functions require additional purchases through the WTOOLS app.

Effects & Programming

• Color FX engine with 8 effect types
• Move FX engine with 8 effect types
• Beam FX engine with 8 effect types
• 200 preset slots with hold and fade timing control
• Live Move FX registration point control
• Global FX speed and freeze functions
• Effect parameters:
• Speed
• Phase
• Sequence
• Size
• Fade
• Fan
• Flicker

Synchronization

• Music synchronization:
• Built-in microphone
• 3.5 mm line input
• BPM synchronization:
• Ableton Link OS2L
• Manual BPM Tap
• MIDI Clock via USB MIDI port

Advanced Features

• DMX input mapping with group dimmer and channel patching*
• WLINK synchronization between WMX1 controllers*
• MIDI controller support
• USB storage device support DMX channel tester
• Time-controlled flash and preset triggering
• Fixture FLIP function
• Fixture SPLIT function for multi-FX bars
• Fixture CLUSTERS function for multi-element fixtures: (IN BETA TESTING - OFFICIAL SOFTWARE RELEASE COMING NOVEMBER 2026)
• Divides fixtures into defined, named sections
• Supports pixel arrays, RGB rings, strobes, and other independently controllable elements
• Provides enhanced integration with FX engines
• Allows more intuitive control of individual fixture sections
• Project and fixture backup through WTOOLS
• Supports between 1 and 100 projects, depending on project size and available memory
• Offline 3D visualization with Easy View and WTOOLS via USB*
• *Feature requires optional add-on or additional purchase via WTOOLS app.

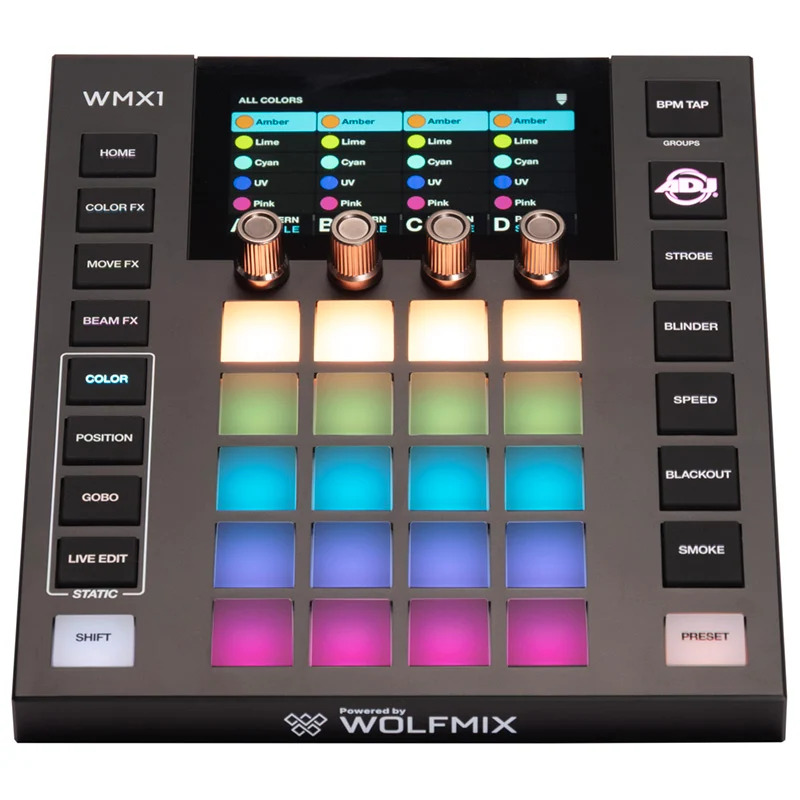

Display

• 4.3-inch color TFT touchscreen
• Capacitive touch technology
• Tinted glass surface

Audio

• Built-in omnidirectional electret microphone
• 3.5 mm mini-jack line input

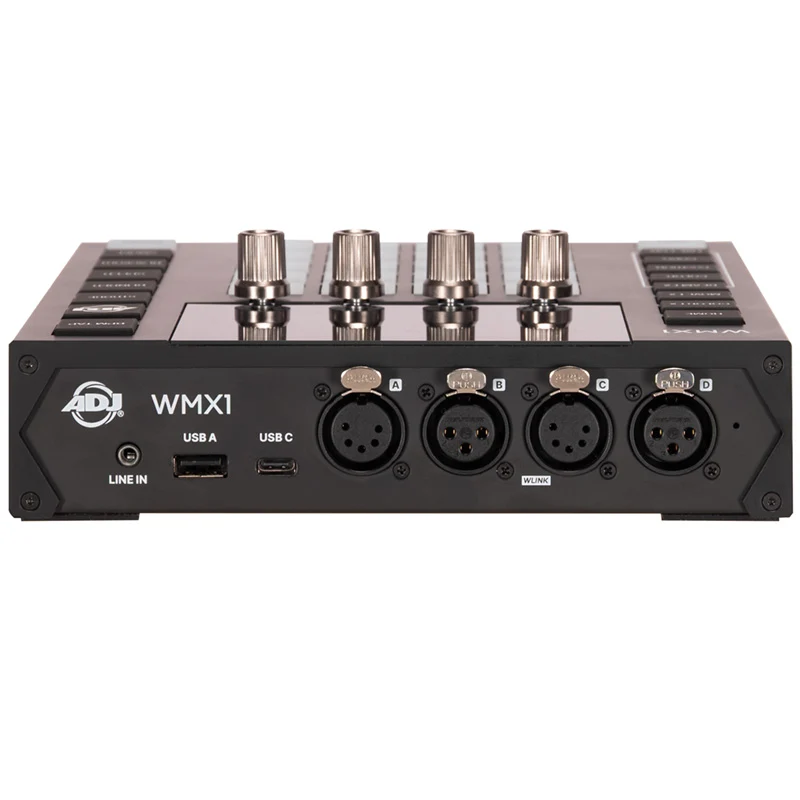

Connections

• 2 x 3-pin XLR DMX outputs
• 1 x 5-pin XLR DMX output
• 1 x 5-pin XLR DMX IN/OUT with WLINK
• USB-A port with MIDI, MSD, and WLINK support (5V, 900mA)
• USB-C power input (900mA required; 1500mA recommended for MIDI/WLINK operation)

Construction

• Housing: ABS plastic
• Base plate: Powder-coated steel
• Mounting: Integrated 100 mm VESA mounting pattern

Dimensions & Weight

• Dimensions (L x W x H): 7.68" x 8.66" x 2.44" (195 x 220 x 62 mm)
• Weight: 2.36 lbs. (1.070 kg)

Optional Upgrades

• Easy View 3D Visualizer: $99
• WLINK (+DMX IN): $49
• Additional DMX universes: $99 each (up to 2 additional universes)
