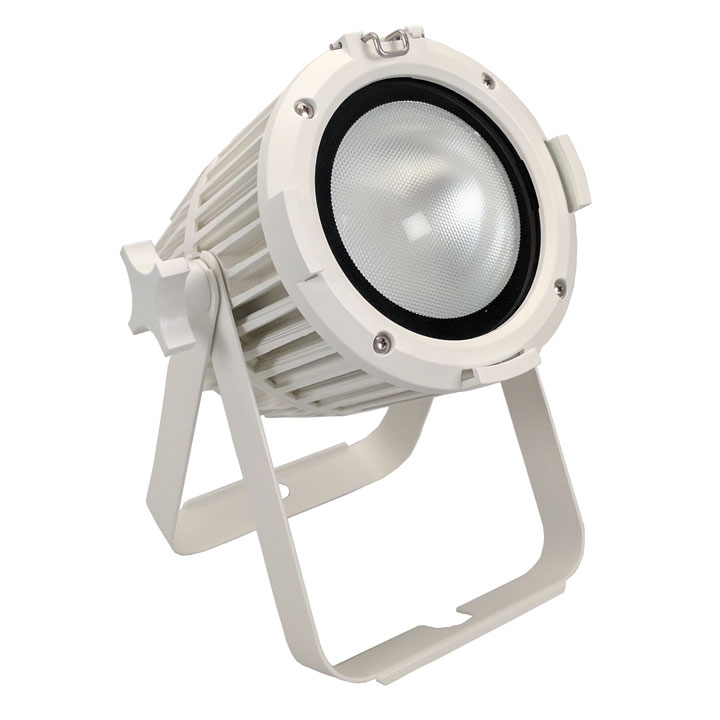

Chroma-Q Studio One 100 V LED PAR - White

About: Chroma-Q Studio One 100 V LED PAR - White

The new Chroma-Q Studio One 100 V LED PAR is designed to deliver the highest quality of white light from an LED based fixture, for the most demanding applications.

Utilising core LED technology from the Chroma-Q premium performance lighting range, the multi-purpose fixture is ideal for a wide range of environments and provides a powerful, creative lighting tool.

Features

• Extreme variable white output (3,000K to 6,100K)
• Choice of daylight, variable, and tungsten white CCTs
• Extremely uniform wash
• Fully homogenised beam
• Superior build quality
• Defined 18° beam
• High CRI of 86
• Camera friendly - Flicker free operation
• Floor, truss, or wall mountable
• Convection cooled for silent running
• Theatrical grade dimming

Smooth, Homogenised Optics

The Studio One100 custom optical design and fully homogenised output provides a smooth, uniform, and defined 18° beam.

Theatrical Grade Dimming

Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Flicker Free Operation

The Studio One 100 offers adjustable dimming frequencies to ensure flicker-free operation on cameras.

Multi-Purpose Workhorse Fixture

With the advanced feature set also including convection cooling for silent operation and a versatile mounting yoke, the Studio One 100 is suitable for numerous TV, film, studio, exhibition & entertainment lighting applications - complementing the popular Chroma-Q Studio Force and Studio Force Phosphor LED fixtures ranges.

Convenient Remote-Controlled Operation

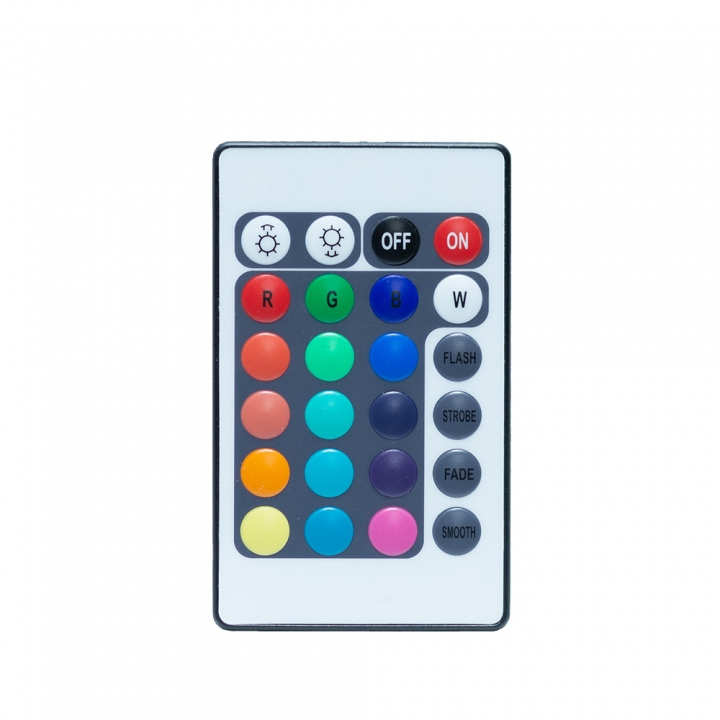

With a simple-to-use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console ---saving time and labour with instant access to pre-set colour temperatures, on/off, dimming, and effects.

Compatible With Industry-Standard Accessories

To enable maximum flexibility with users' existing production inventory, the Studio One accepts industry-standard 6.25" accessories such as egg crates, barndoors, and top hats.

Specifications

• Power Supply -  Built-in
• Power Input Rating -  100-240V AC 50-60Hz 125VA
• Power Factor -  0.5
• Power Consumption
  • 60W @ 120V AC
  • 61W @ 230V AC
• Idle Power Consumption
  • 3W @ 120V AC
  • 5W @ 230V AC
• Typical Power & Current -  Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• Power Connectors In/Out -  powerCON
• Data Connectors In/Out -  XLR 5-pin
• Control Protocol -  ANSI E1.11 USITT DMX 512-A
• Cooling System -  Convection
• Operating Temperature -  0°C to 40°C
• Construction -  Cast machined aluminium
• Colour -  White
• Built-In Hardware -  Split Yoke, 6.25” Accessory Holder
• IP Rating -  IP20
• LED Engines -  1
• LEDs Per Engine -  Warm White, Cold White
• Control Modes
  • 2 channels CTI
  • 2 channels WW CW
  • Master
  • Slave
• Dimming Curve -  Theatrical
• Wireless Control
  • On / Off
  • Fade In
  • Fade Out
• Hot Lumen Output (Combined) -  2,100
• Optics -  Fully homogenised
• Beam Angle -  18°
• Beam Distribution -  Symmetrical direct illumination
• CCT -  3,000K - 6,100K
• CRI -  86
• Lamp Life -  L70 at 50,000 hours
• Dimensions (Full Open Yoke) -  214mm x 267mm x 232mm / 8.5" x 10.5" x 9"
• Weight -  3.8kg / 8.5lb

What's Included

• 1x Studio One 100 V Fixture
• 1x Power Cord
• 1x Power Connector
• 1x Colour Frame
• 1x IR Remote
• 1x Quick Start Guide
