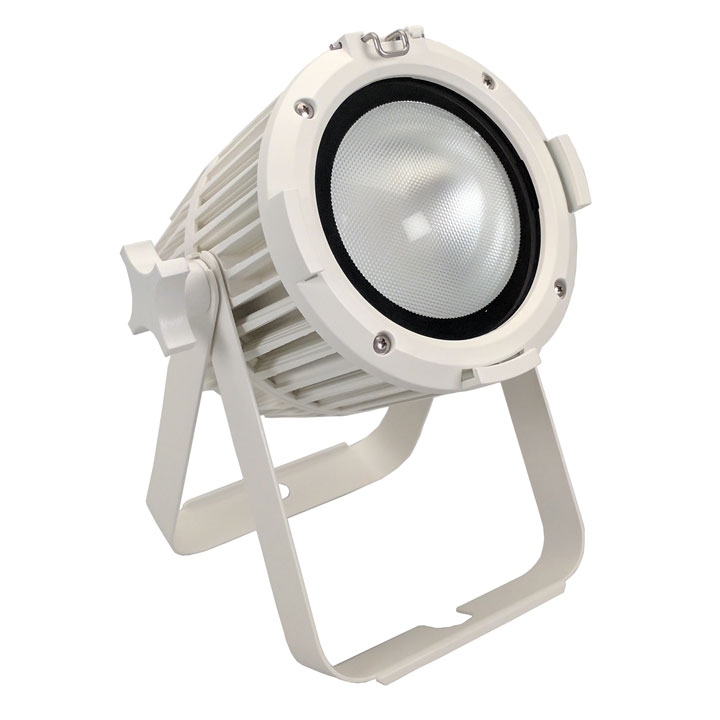

Chroma-Q Color One 100X RGBA IP20 LED PAR w/PowerCon & 5-Pin XLR - White

About: Chroma-Q Color One 100X RGBA IP20 LED PAR w/PowerCon & 5-Pin XLR - White

The next generation of the Chroma-Q Color One family is here: the Color One 100X LED PAR! This must-see luminaire features the same innovative homogenised beam as the Color One 100, only with nearly 60% more output. The 100X's custom optical design and fully homogenised output delivers a powerful, smooth, uniform, and defined 19° beam, with outstanding colour blending across the spectrum and no unsightly colour separation shadows. RGBA emitters deliver outstanding colours across the spectrum - including deep-cold blues, red-hot lava looks, and super-soft pastels, as well as a complete range of whites ---all from ONE source.

Utilising core LED technology from the Chroma-Q premium performance lighting range, the multi-purpose fixture is ideal for a wide range of applications and provides a powerful, creative lighting tool.

Features

• Nearly 60% brighter than its predecessor
• Fully homogenised beam
• RGBA colour-mixing palette
• Extremely uniform wash
• Defined 19° beam
• Bold saturates and subtle pastels from ONE source
• A pure white, all from a single source
• High CRI of 93
• Floor, truss, or wall mountable
• Quiet, convection cooled, no fans
• Theatrical grade dimming
• Chroma-Q calibration provides exceptional fixture-to-fixture consistency

Smooth, Homogenised Optics

The Color One's custom optical design and fully homogenised output provides a smooth, uniform, and defined 19° beam, with outstanding colour blend across the spectrum and no unsightly colour separation shadows.

This makes the Color One ideal for use as a front and backlight with clean shadows, and an uplighter with a smooth, even beam - all from ONE source.

Power Across The Spectrum

The Color One's huge RGBA colour-mixing palette delivers outstanding colour blend across the spectrum - including deep-cold blues, red-hot lava looks, and super-soft pastels - as well as a complete range of whites - all from ONE source.

High CRI

With RGBA colour mixing providing a high CRI of 93, the fixture can achieve extremely accurate colour matching.

Theatrical Grade Dimming

Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Multi-Purpose Workhorse Fixture

With the advanced feature set also including convection cooling for quiet operation, a versatile mounting yoke, and a choice of IP20 or IP65 models, the Color One 100x is suitable for numerous entertainment lighting applications - complementing the popular Chroma-Q Color Force and Inspire LED fixtures ranges.

Convenient Remote-Controlled Operation

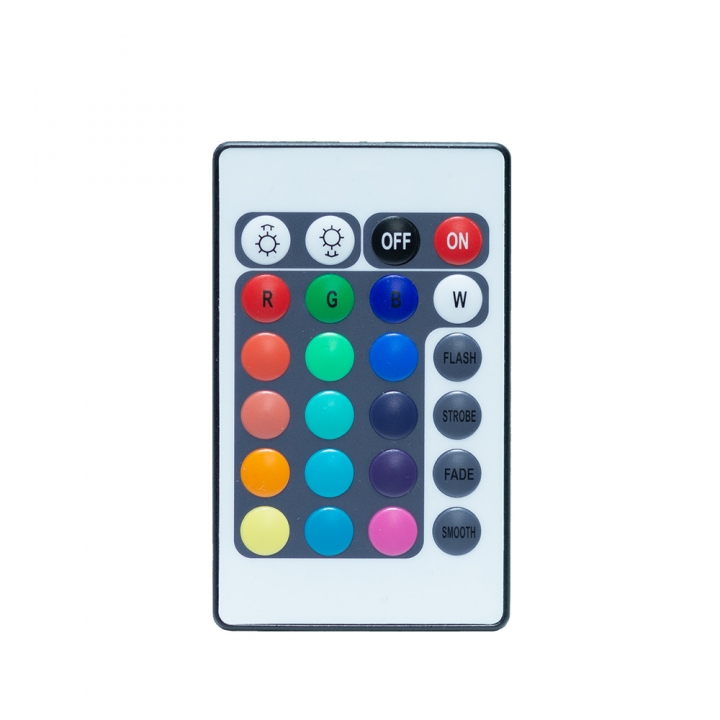

With a simple-to-use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console - saving time and labour with instant access to preset colours, on/off, dimming, and effects.

Compatible With Industry-Standard Accessories

To enable maximum flexibility with users' existing production inventory, the Color One accepts industry-standard 6.25" accessories such as egg crates, barndoors, and top hats.

Specifications

• IP Rating -  IP20
• Power Supply -  Built-in
• Power Input Rating -  100-240V AC 50-60Hz 125VA
• Power Factor -  0.539
• Power Consumption
  • 63W (Maximum)
  • 5.5W (Stand-by)
• Inrush Current -  22A @ 120V AC; 39A @ 230V AC
• Typical Power & Current -  Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• Power Connector In/Out -  powerCON
• Data Connectors In/Out -  XLR 5-pin
• Control Protocol -  ANSI E1.11 USITT DMX 512-A
• Cooling System -  Convection
• Operating Temperature -  0°C to 40°C
• Construction -  Cast machined aluminium
• Colour -  White
• Built-In Hardware -  Split Yoke, 6.25” Accessory Holder
• LED Engines -  1
• LEDs Per Engines -  Combination of Red, Green, Blue and Amber
• Control Modes
  • 4 channels RGBA
  • 5 channels RGBAI
  • 3 channels HSI
  • 3 channels RGB
  • 3 channels MLED RGB
  • Master
  • Slave
• Dimming Curve -  Theatrical
• Variable Effects Engine -  Yes (via Wireless IR Remote)
• Effects Parameters -  Full Color Scroll, Warm Color Scroll, Cold Color Scroll and Fade In/Fade Out
• Hot Lumen Output (Combined) -  1,950
• Optics -  Fully homogenised
• Beam Angle -  19°
• Beam Distribution -  Symmetrical direct illumination
• CCT -  Adjustable 1,000 – 10,000K
• Colour Gamut -  Performance enhanced
• CRI -  93
• Lamp Life -  L70 at 50,000 hours
• Dimensions (Full Open Yoke) -  214mm x 267mm x 232mm / 8.5” x 10.5” x 9”
• Weight -  3.8kg / 8.5lb

What's Included

• 1x Color One 100X Fixture (IP20)
• 1x Power Cord
• 1x Power Connector
• 1x Colour Frame
• 1x IR Remote
• 1x Quick Start Guide
