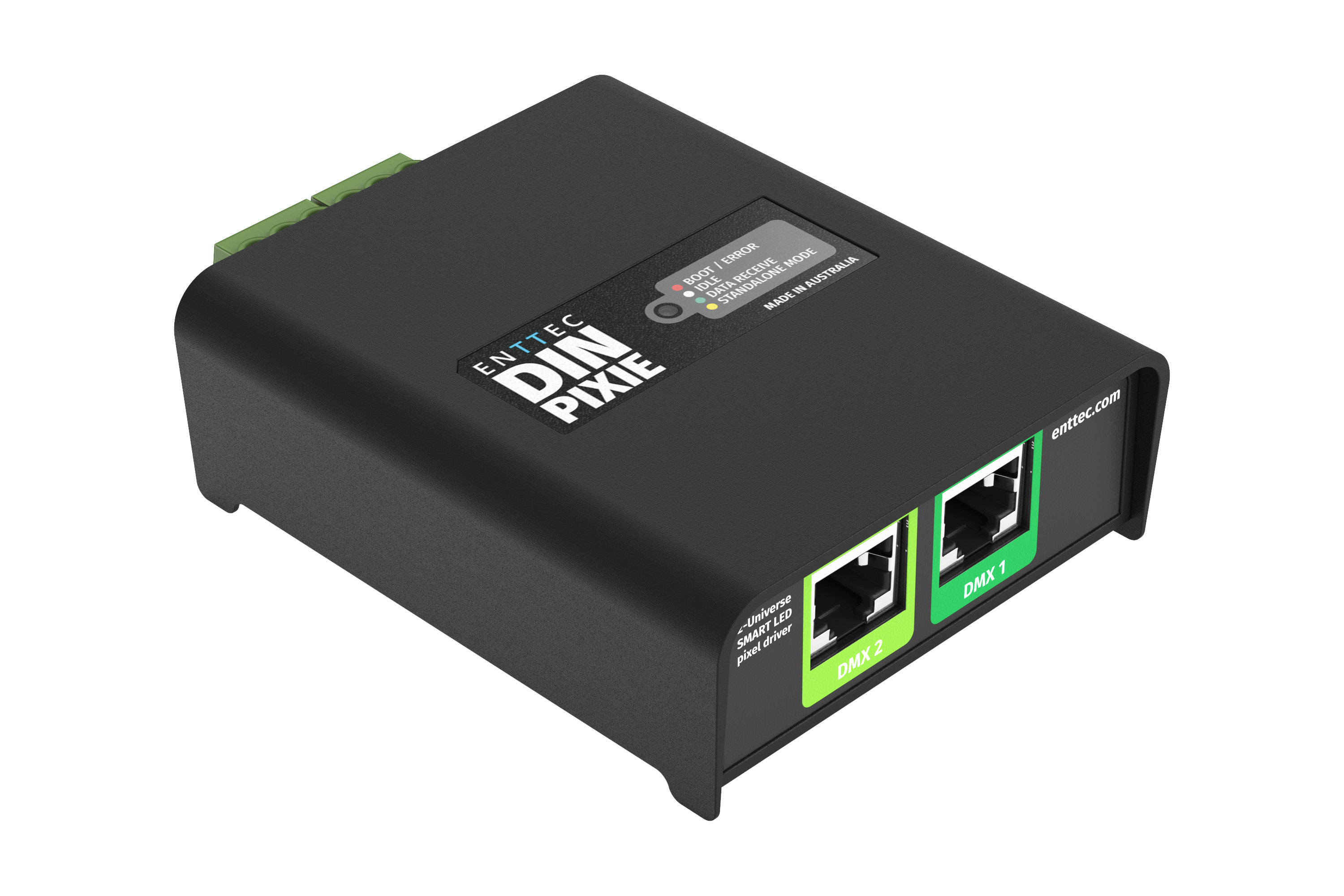

ENTTEC DIN PIXIE SPI Pixel Strip/Dot Controller

About: ENTTEC DIN PIXIE SPI Pixel Strip/Dot Controller

A smart, cost-effective lighting control solution, the DIN PIXIE is a compact, 2-universe, DMX to LED pixel protocol converter and standalone player, engineered to take any architectural, commercial or entertainment project to the next level.

• Controls/records up to 4 universes SPI pixels
• Operates between USB Mode, DMX Mode or Standalone Mode.
• 2U pixel control when receiving 1U DMX512 per port in DMX Mode.
• 4U pixel control when recording or using live input in USB Mode.
• Supports over 20 SPI protocols and custom protocols for pixel strips and dots.
• Records from either Art-Net or DMX port for Standalone show playback using inbuilt flash memory (4000 frames [~100 seconds]).
• Precisely configures data distribution across two output ports with advanced output controls: DMX start address and pixel grouping function.
• Option to play a show on DMX loss or blackout output.
• All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise propagation through control infrastructure.
• Configuration and updates via USB Type-B port using EMU software.
• Backward compatible with API for USB -> SPI control.

2-universe DMX to SPI pixel converter & standalone player.

The DIN PIXIE is a robust, installation-grade DMX-to-SPI pixel converter and standalone player, designed for easy LED pixel control. Control live or pre-program shows via DMX inputs, or stream two universes of DMX from a computer through USB. Alternatively, play back up to four universes of standalone shows saved to internal memory using Art-Net via EMU software. For larger setups, link multiple DIN PIXIEs with a STORM Ethernet-to-DMX node for hundreds of universes. Supporting a wide range of LED pixel strips and dots, the DIN PIXIE integrates seamlessly into any lighting system.

Standalone playback

The DIN PIXIE is the perfect device for carrying a ready-to-go lighting show around with you – literally in your pocket. It can play back a stored sequence of up to 4 universes recorded using Art-Net via EMU software. Trigger your standalone show either from within EMU or on power-up of the DIN PIXIE.

Trusted technology

The DIN PIXIE expands upon the rock solid DMX USB technology and developer API that put ENTTEC on the map over 20 years ago with our original, bestselling Pixie Driver. The DIN PIXIE is our evolution of that classic device – only it’s far more compact.

Powered by pixels

With its industry-leading, wide input voltage range of 5-48V, the DIN PIXIE is powered directly by your LED pixel strip or dots via either port. This means there’s no need for extra wires or dedicated power supplies taking up precious socket space, making it a dream device for a fast, efficient install.

Surge-protected

Wiring mishaps can happen to even the best of installers from time to time, but at least you can be assured that your DIN PIXIE features a self-healing fuse with surge protection on every port. Plus, with reverse polarity protection on each SPI data line and built-in overtemperature protection, so you know your device will be safe and sound.

Installer-friendly

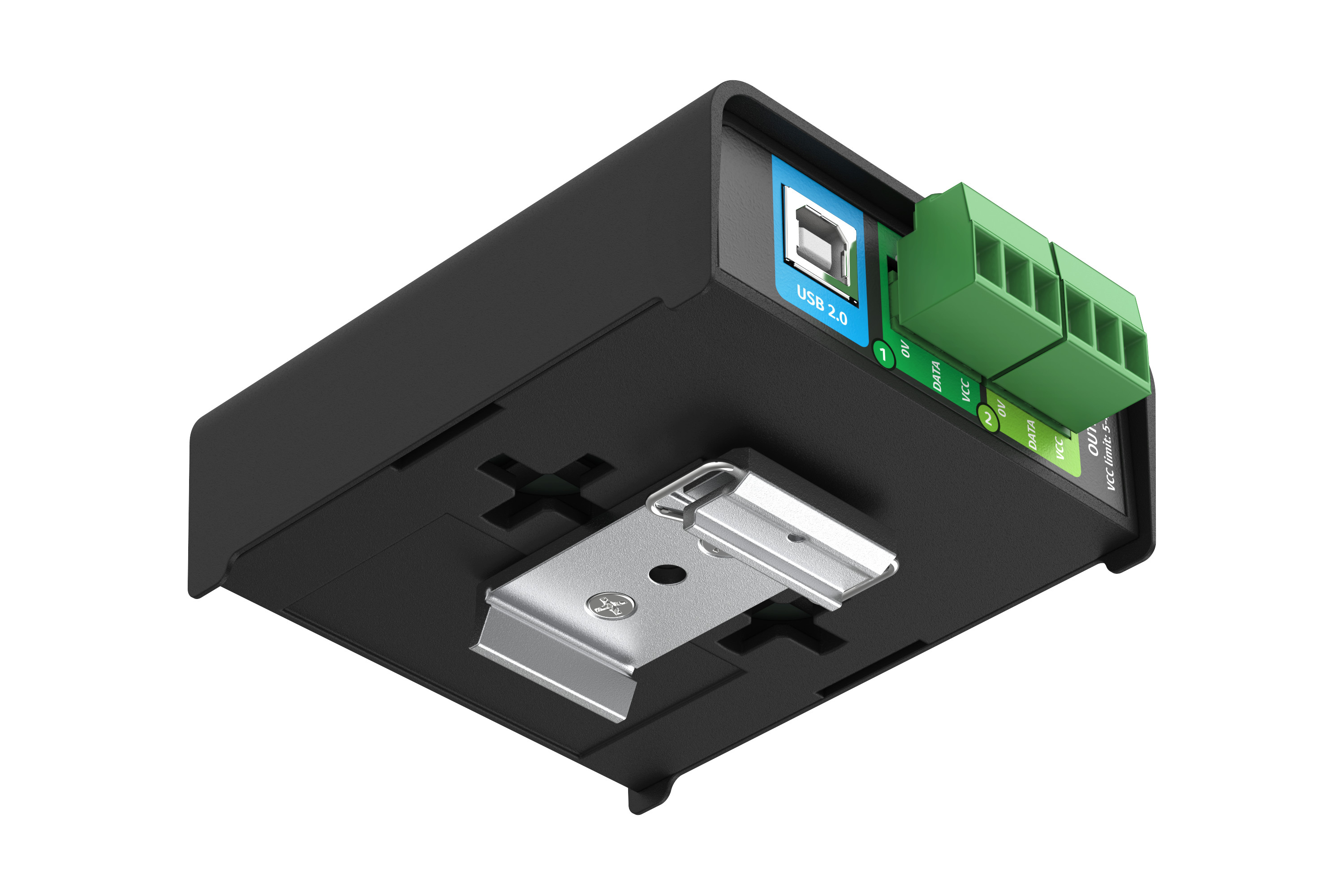

With support for multiple LED integrated circuits, the DIN PIXIE is packed with installer-friendly features. Its intuitive configuration enables the device to be heavily tailored to your projects, while its slim 4-DIN-unit form factor allows for discreet surface or TS-35 DIN rail mounting.

Custom protocols

ENTTEC pixel controllers support more than 20-pixel protocols by default within the device. In the event of a missing protocol, our custom feature allows the users to create a custom protocol for the desired pixel fixture anytime (two key criteria apply) without having to submit a support request for new firmware. Note: Rev B devices only.

Specifications

• Input voltage: 5 – 48V DC (via USB or output port VCC terminal)
• Max. power draw: 1.5W
• Max. rated current per screw terminal (VCC / VCC0): 10A
• Connectors
  • 1x USB 2.0 Type-B Input

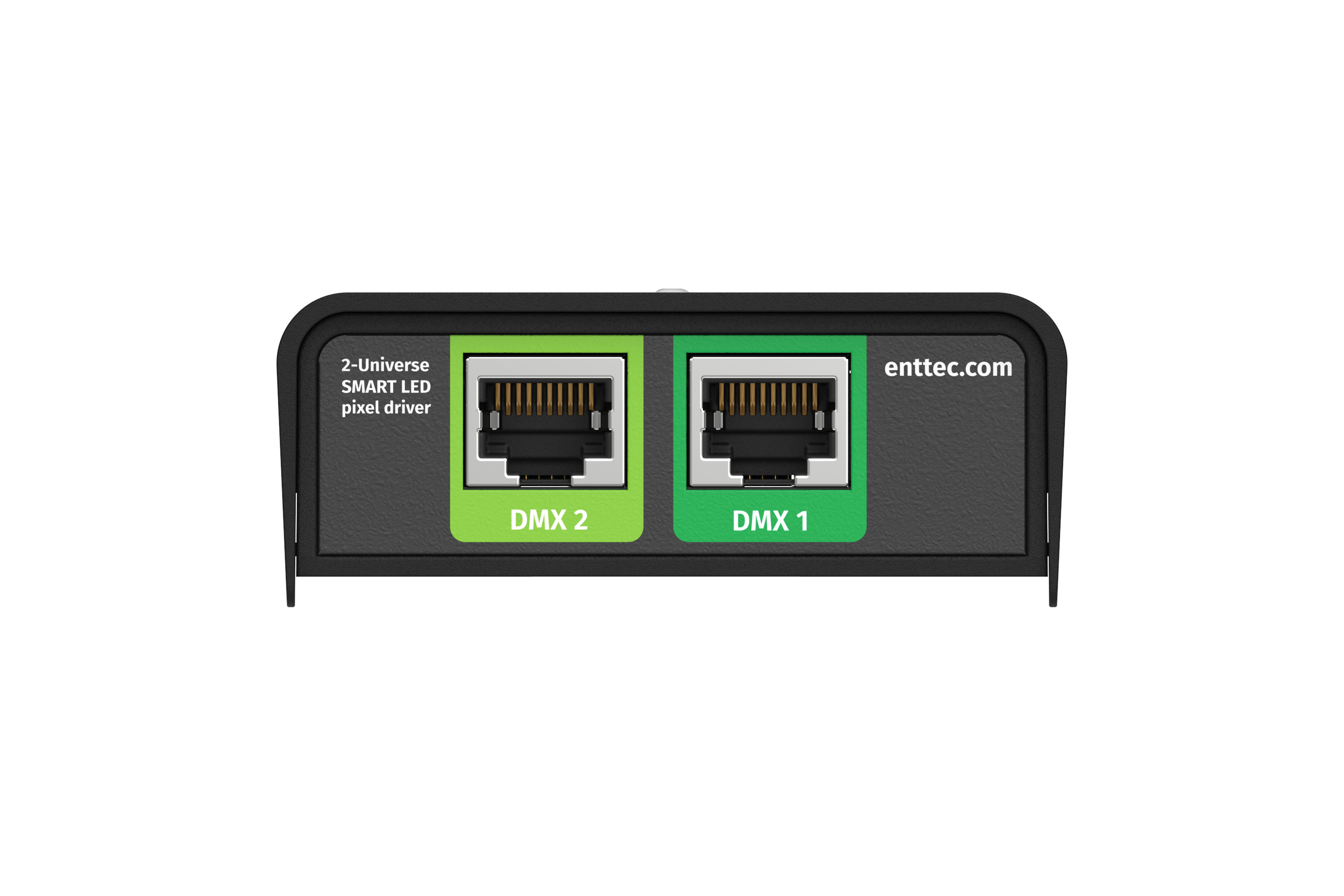

  • 2x DMX Input (RJ45 port)

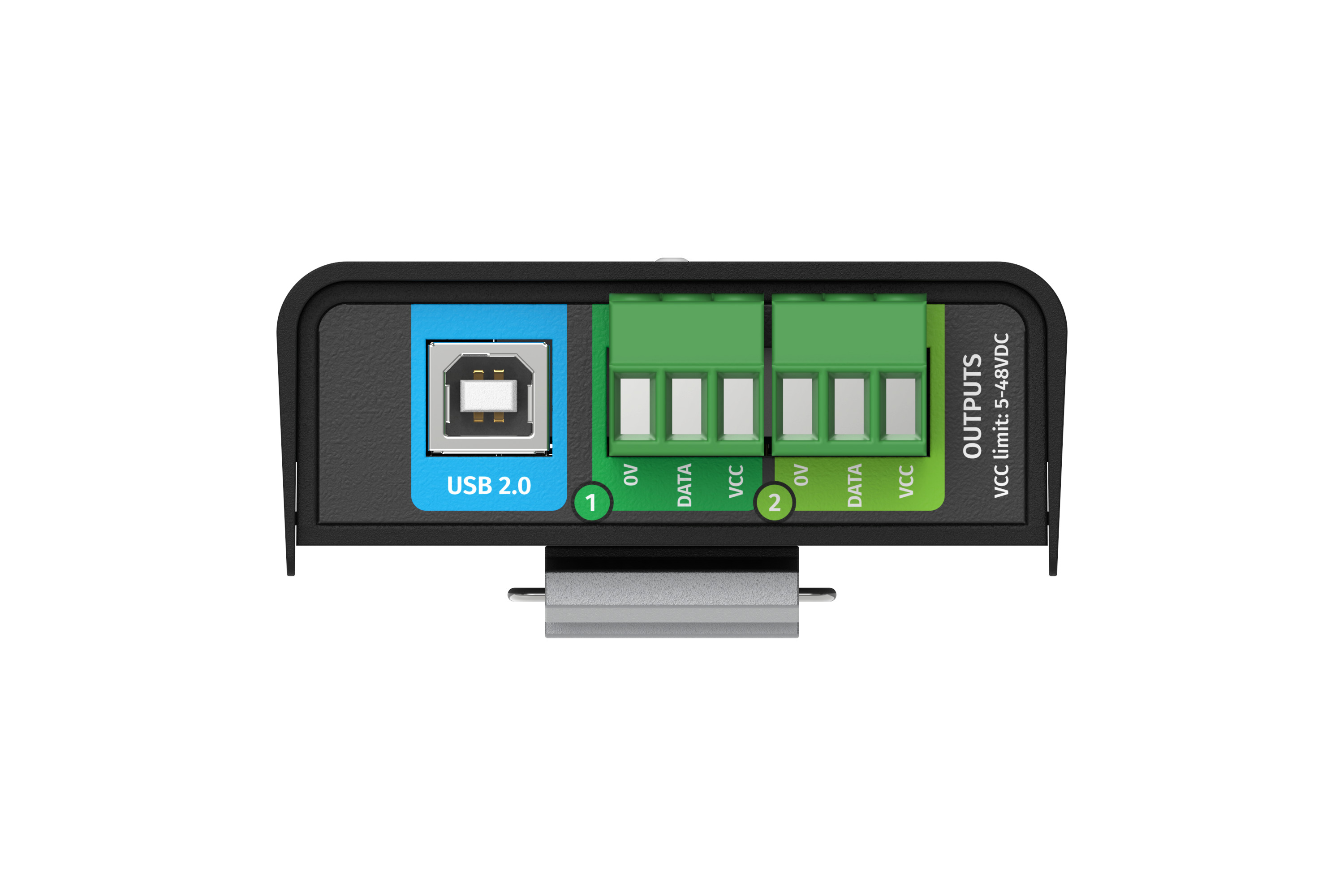

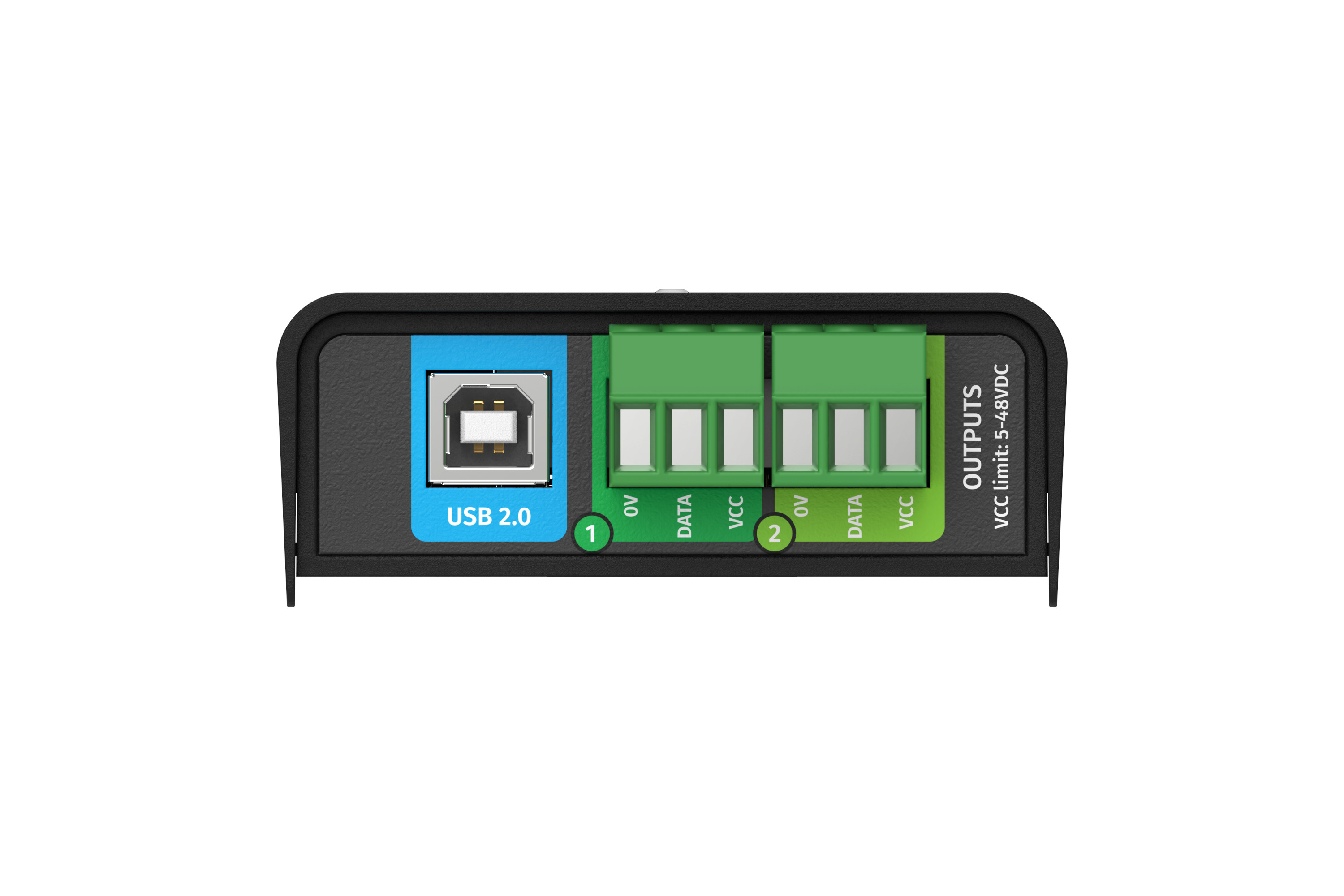

  • 2x SPI Output (3 Pin Phoenix)
• ESD protection: Resettable fuse & TVS suppression per port
• Surge protection: All ports
• Other protection: Diode & resettable fuse to block stray power on data line
• Data input: USITT DMX512-A protocol via 2 x RJ45 ports
• Data output: SPI protocols (customisable) via 2 x 3-pin Phoenix ports
• Max. output per port: 2 universes (1024 channels, duplicable on both ports)
• Max. output refresh rate: 40FPS
• Latency: 5 milliseconds
• Configuration input: 1 x USB 2.0 Type-B port
• Configuration software: ENTTEC EMU
• Firmware updates: ENTTEC EMU

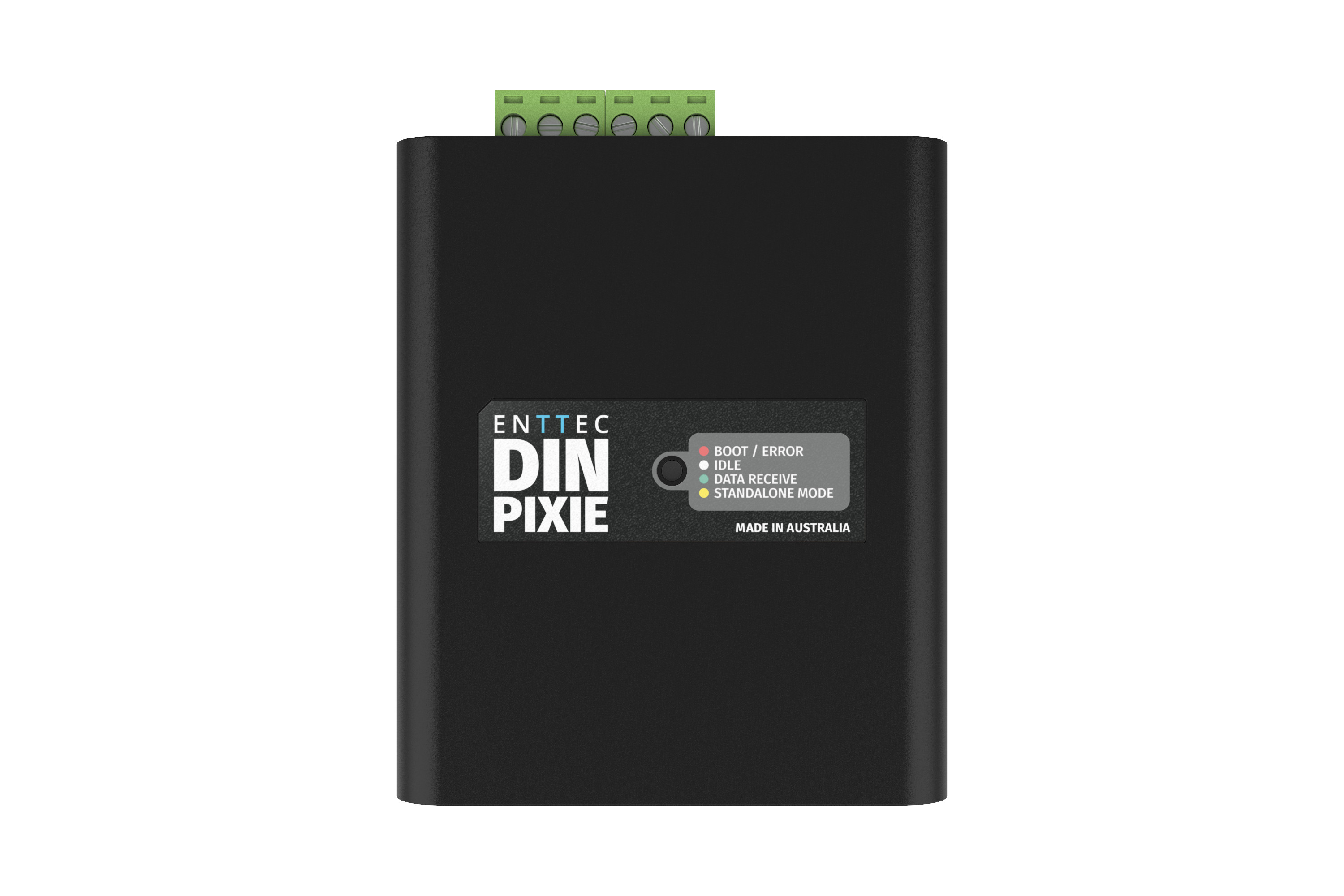

• LED indicator: Forward-facing status LED

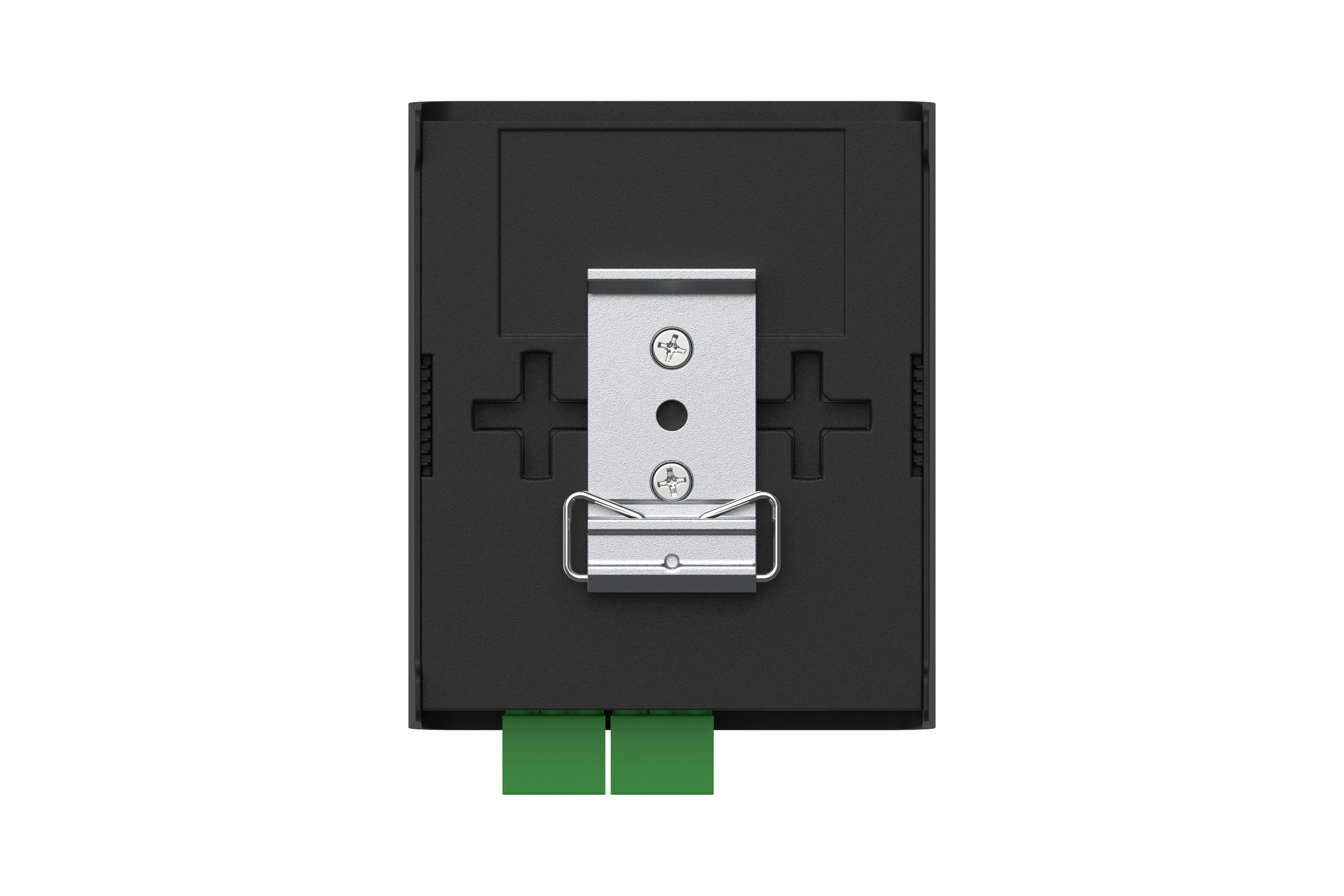

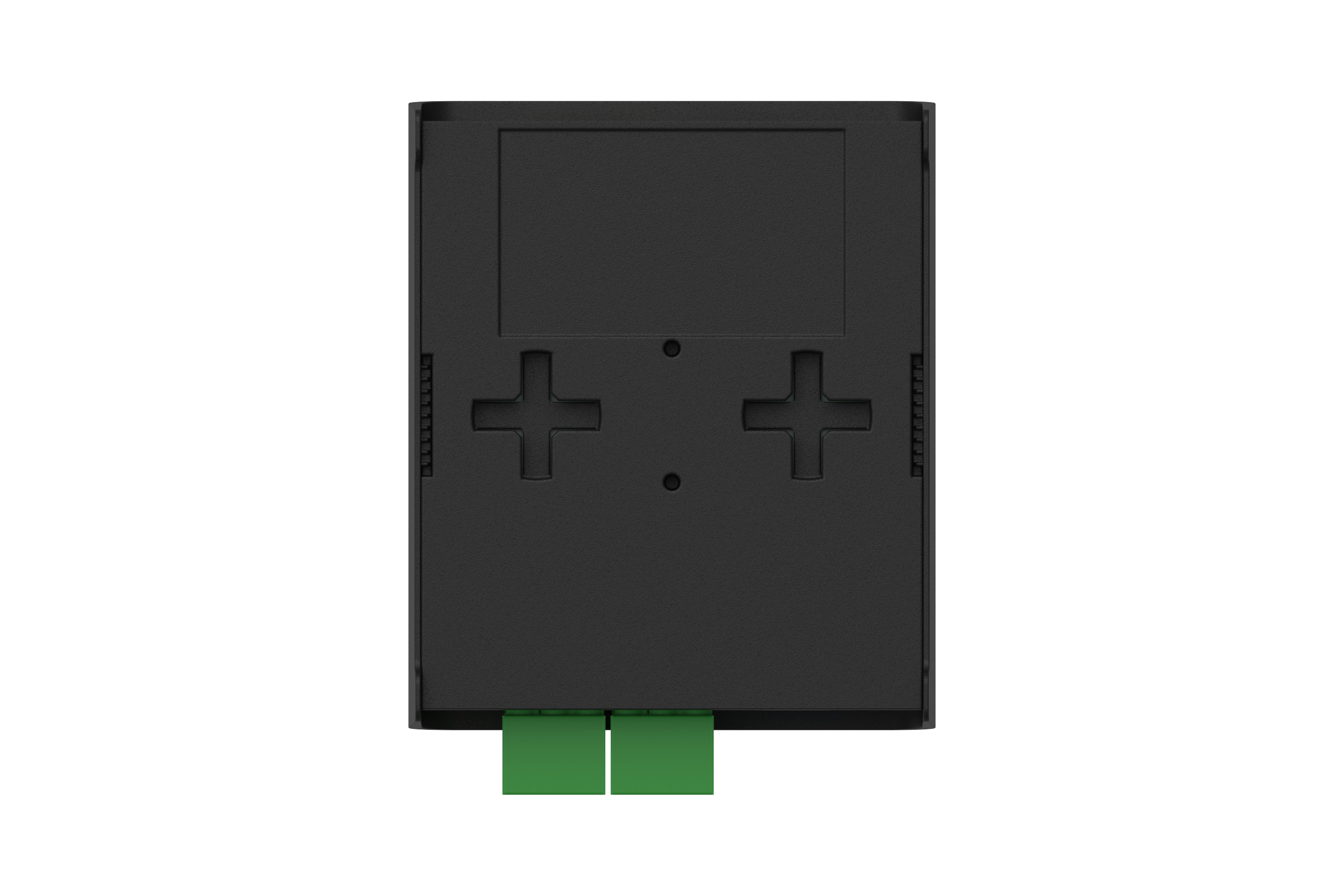

• Mounting: Surface & TS35 DIN rail mountable (clips & screws included)
• IP rating: IP20
• Environmental operating temperature: -20°C to 50°C / -4°F to 122°F
• Environmental operating humidity: 5- 95% (non-condensing)
• Body material: ABS plastic
• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Weight: 0.21lbs (95g)
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• DIN PIXIE
• DIN Mounting Bracket
• USB Type A -> USB 2.0 Type B cable
