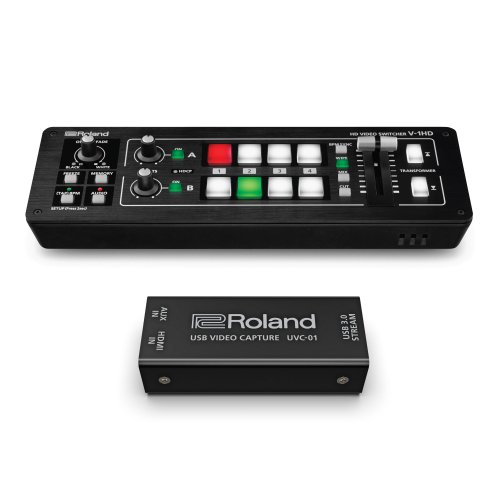

The V-1HD makes it easy to connect and switch video cameras, smartphones, computers, tablets, Blu-ray players, and other HDMI video sources with a simple push of a button or slide of the T-Fader.
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy-to-use interface
- Full 12-channel audio mixer included
- Easy to operate with hardware controls
- Two HDMI outputs
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Remote control via USB or MIDI connection
- Software control using V-1HD RCS Application for Mac, PC, and iPad
A Standard That Set the Standard
The V-1HD has set the standard in 4-channel HDMI video switching. The highly successful V-1HD is used to create webcasts, live performances, sports production, presentations, conferences, house of worship services, and training curriculum. With a variety of HDMI sources, the V-1HD seamlessly mixes cameras, computers, tablets, media players, and game consoles in 1080p HD.
V-1HD Connectivity
The V-1HD includes all HDMI connectivity to keep workflows economical, simple, and flexible. Nearly all modern cameras and digital video devices use HDMI—the most common A/V connector on the planet. The V-1HD seamlessly mixes four HDMI sources, video cameras, action cameras, PC/Mac, and more with Full HD support, even when the sources are mismatched, interlaced, or progressive.
Simple Interface
The V-1HD sets a new benchmark in simple-to-use interfaces for setup and control. Connect an HDMI monitor to the multi-viewer preview output. Basic operation requires just a few buttons and the T-Fader, the most recognizable video switcher interface for amateurs and professionals alike. Large broadcast-style back-lit buttons ease video switching in low light conditions. Meanwhile, output fade dials in smooth, fast fades to black or white.
Visual Effects
Video effects, layers, and graphics add polish and excitement to any production. The V-1HD has a three-layer effects engine, so you can create picture-in-picture composition and split screen function. Plus, combine Chroma/Luminance keying with visual effects like silhouette, colorpass, and negative to keep audiences engaged and entertained.
Audio
The V-1HD might be small, but its powerful 12-channel digital audio mixer fits effortlessly into any live production environment. Mix embedded audio from all four HDMI channels with a stereo line-level or mic level input. Each audio input channel features delay, EQ, reverb, and mastering effects on all outputs, including both HDMIs and stereo RCA connection. Therefore, the V-1HD replaces many standalone sound processing racks.
Automated Video Switching
The V-1HD makes your job easier with two technology-assisted automatic switching modes. Input Scan switches sources in a range of 1–120 seconds in sequence. Beats Per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified song tempo.
Two Video Outputs
Two independent HDMI outputs are available. One output can be assigned to display one of three different video busses, providing the versatility needed for professional production. For example, use one as the main program output for a projector/monitor, recorder, or livestream. The second output may be used to split the main program output, turn any HD video monitor into an “up-next” input preview display, or show a four-way multi-viewer preview screen.
V-1HD Remote Control
The dedicated V-1HD remote control app turns an iPad into an efficient touch interface. You can also use the PC/Mac Remote Control Software to run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for fast, efficient setup changes.
System Program Version 2.0
System Program Version 2.0 is a free update for the popular V-1HD HDMI video switcher including the companion Remote Control Software version 2.0 for Windows & macOS. Version 2.0 expands picture-in-picture effects with a new 1/3 sizing option. Turn on Auto Scan for hands-free switching. Numerous user interface improvements include the ability to view audio level meters on the multi-viewer, panel lock, and quickly reset system values by holding the WIPE button.
Specifications
- Video
- Video Processing: 4:2:2(Y/Pb/Pr), 8-bit
- Input Connectors: HDMI INPUT 1-4: Type A(19pins)x 4
- Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins)
- Input Formats
- HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
- HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p(FORMAT switch = 1080i or 1080p)
- *The input interlaced video signal is converted to progressive video signal by internal processing.
- *The video signal frame rate is selected by SETUP parameters (59.94 or 50).
- Output Formats
- HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
- HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
- HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
- *The video signal frame rate is selected by SETUP parameters (59.94 or 50).
- Video Effects
- Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), TRANSFORMER(11 types)
- EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@, GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@, SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@, SPLIT(V-CENTER)@
- *@ marked Effects are effected common to A-BUS and B-BUS.
- Audio
- Audio Processing: Sampling rate: 24bit/48kHz
- Input Connectors
- Digital: HDMI INPUT 1–4 (19 pins) x 4
- Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
- Output Connectors
- Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
- Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
- Input Level: AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
- Input Impedance: AUDIO IN: 15 k ohms, MIC:10 k ohms
- Output Level: AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
- Output Impedance: AUDIO OUT: 1k ohms, PHONES: 10 ohms
- Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
- Others
- Other Connectors: USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
- Other Functions
- MEMORY (8 types), FREEZE (input video captured),
- BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK/AUDIO)
- Power Supply: AC adaptor
- Current Draw: 1.5A
- Power Consumption: 18W
- Dimensions (WxDxH): 12.32 x 4.02 x 2.32 inch (313 x 102 x 59mm)
- Weight: 2.65 lbs (1.2kg)
What's Included
- AC Adaptor
- Power Cord
- Cord Hook
- Owner’s Manual
