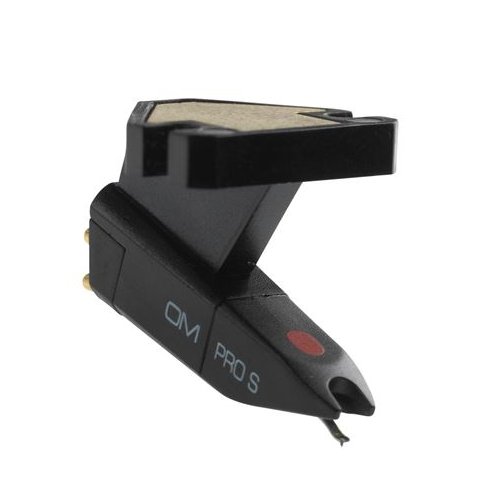

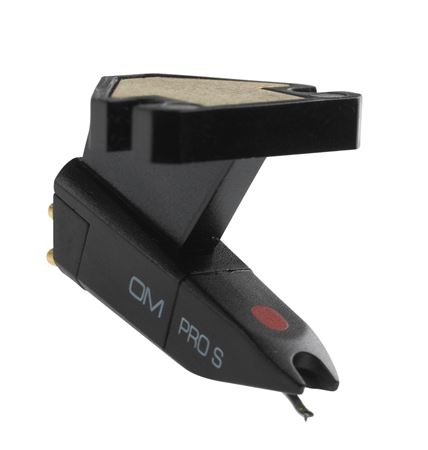

Ortofon OM Pro S Cartridge
Model: OM Pro S
About: Ortofon OM Pro S Cartridge
New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.
The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.
No matter what the application, the Pro S provides remarkable versatility for virtually any setting.
The sound quality is absolutely not to worry about.
Pro S Technical data
- Stylus Type Spherical
- Tracking Force 4.0 g
- Output Voltage 5 mV
- Frequency Range 20–18.000 Hz
- Output voltage at 1000Hz, 5cm/sec. - 5 mV
- Channel balance at 1kHz - 2 dB
- Channel separation at 1kHz - 20 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-18.000 Hz
- Tracking ability at 315 Hz at recommmended tracking force - 70 μm
- Compliance, dynamic lateral - 7 μm/m N
- Stylus type - Spherical
- Stylus tip radius - R 18 μm
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
- Tracking angle - 20°
- Internal impedance, DC resistance - 750 Ohm
- Internal inductance - 450 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-600 pF
- OM cartridge weight - 5,0 g
- Replacement stylus unit - Pro S
