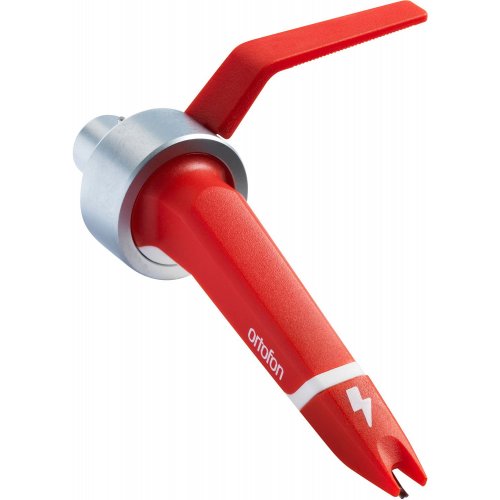

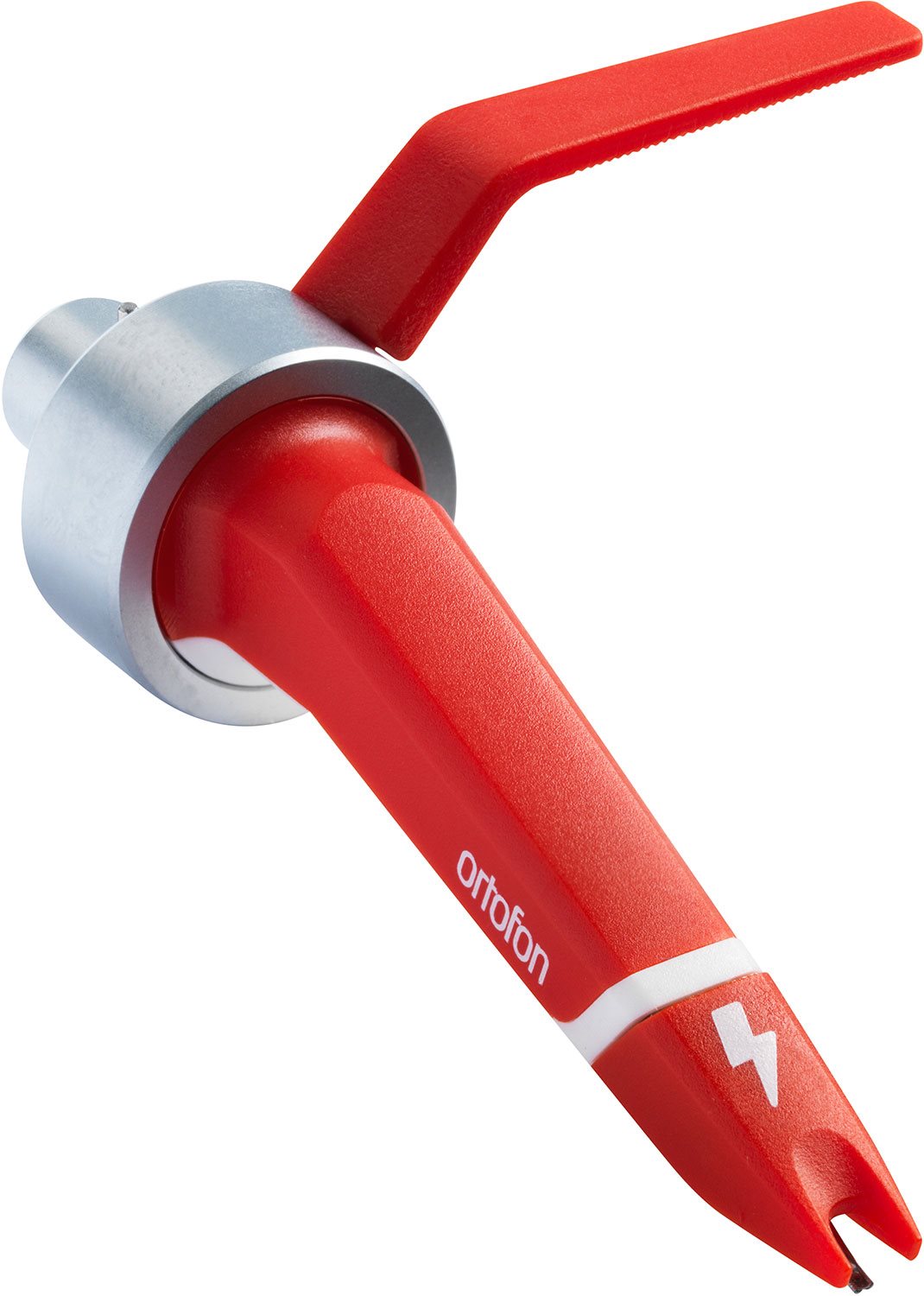

Ortofon Concorde MkII DIGITAL CC Single Cartridge
Model: DIGITAL-CC-SINGLE
About: Ortofon Concorde MkII DIGITAL CC Single Cartridge
Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding
- At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
- This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
- Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.
Specifications:
- Output voltage at 1000Hz, 5cm/sec. - 10 mV
- Channel balance at 1kHz - 1 dB
- Channel separation at 1kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-18.000 Hz
- Tracking ability at 315 Hz at recommmended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
UPC: 5705796013658
Videos: Ortofon Concorde MkII DIGITAL CC Single Cartridge
Reviews: Ortofon Concorde MkII DIGITAL CC Single Cartridge
There are currently no product reviews.
Warranty: Ortofon Concorde MkII DIGITAL CC Single Cartridge
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
2 year warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
